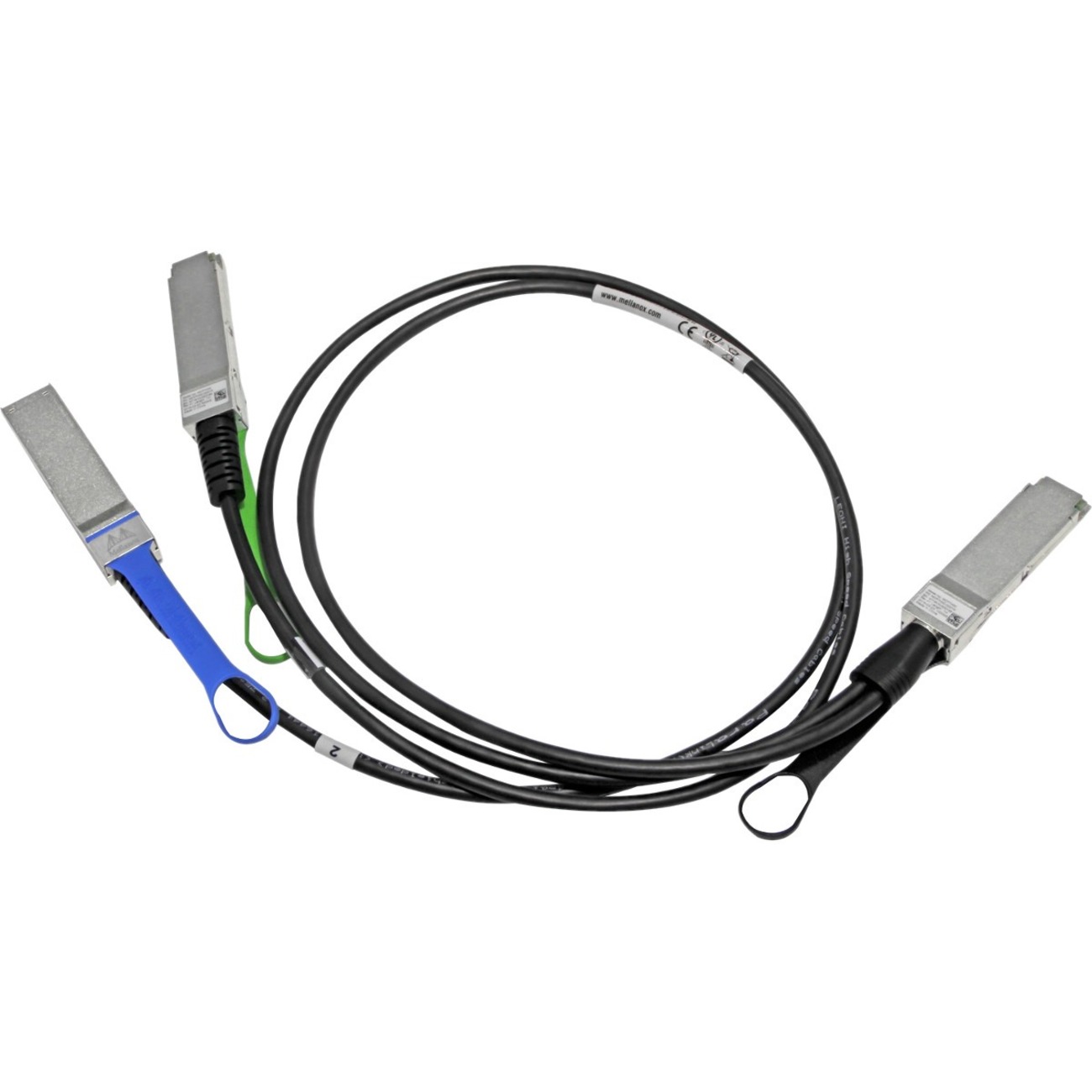

NVIDIA 2M PASSIVE COPPER HYBRID CABLE

Name: NVIDIA 2M PASSIVE COPPER HYBRID CABLE
Brand: NVIDIA SOURCING
SKU: 190Q10
Price: 95.44 USD
Availability: InStock

NVIDIA SOURCING

PCN#

190Q10

MFG#

MCP7H50-H002R26

$95.44

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Mellanox LinkX Fiber Optic Network Cable

Tech Specs

Specifications

Manufacturer	Mellanox Technologies Ltd
Manufacturer Part Number	MCP7H50-H002R26
Manufacturer Website Address	http://www.mellanox.com
Brand Name	Mellanox
Product Line	LinkX
Product Name	LinkX Fiber Optic Network Cable
Marketing Information	Mellanox® MCP7H50-H0xxRyy DAC splitter cables(1) are high-speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications. MCP7H50-H0xxEyy cables provide connectivity between system units with a 200Gb/s HDR QSFP56 port on one side and two 100Gb/s HDR100 QSFP56 ports on the other side. The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2, 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the box installation experience, performance and durability.
Product Type	Network Cable

Technical Information

Cable Type	Hybrid Fiber Optic
Cable Characteristic	Splitter Cable
Cable Length	6.56 ft
Connector Type on First End	QSFP56 Network
Connector on First End Details	1 x QSFP56 Network
Connector Type on Second End	QSFP56 Network
Connector on Second End Details	2 x QSFP56 Network
Device Supported	Network Device
American Wire Gauge	26 AWG
Data Transfer Rate	200 Gbit/s
Features	Passive Halogen Free Lead-free
