AIPHONE INTERCOM SYSTEM ACCESSORY MASTER STATION

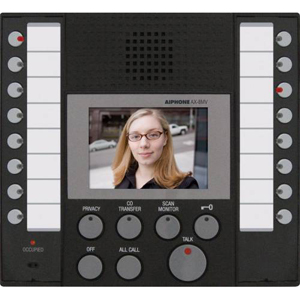

The AX-8MV Master Station is the centerpiece of the AX Integrated Audio & Video Security system.

Each AX-8MV master station can initiate and answer calls from up to 7 additional master stations and up to 8 door or sub stations. The master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door / sub stations. Its streamline design is mountable on a wall or desk.

• AX-8MV Video Door Phone
• Metal Bracket

• Call Tone: Tremolo ring tone & blinking LED
• Communication: Open voice hands-free (VOX or Push-to-Talk)
• Scanning Lines: 525 lines
• Video Output: NTSC Standard 1Vpp (0.7-1.4Vpp)
• Headset Jack: 3.5mm mic and speaker jacks
• Calling Capacity: Up to 7 additional master stations Up to 120 door / sub stations
• Mounting: Desk with flip-up stands, or wall mount with provided metal bracket
• Wall mount box:2-gang electrical box or ring
• Wiring: CAT-5e homerun to CEU
• Wiring Connection:RJ45 jack
• Housing: ABS Resin
