AIPHONE VIDEO INTERCOM SYSTEM 1.23 MP BLACK SILVER

Name: AIPHONE VIDEO INTERCOM SYSTEM 1.23 MP BLACK SILVER
Brand: OEM SOURCING
SKU: Z38338
Price: 988.47 USD
Availability: InStock

OEM SOURCING

PCN#

Z38338

MFG#

IX-DV

$988.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

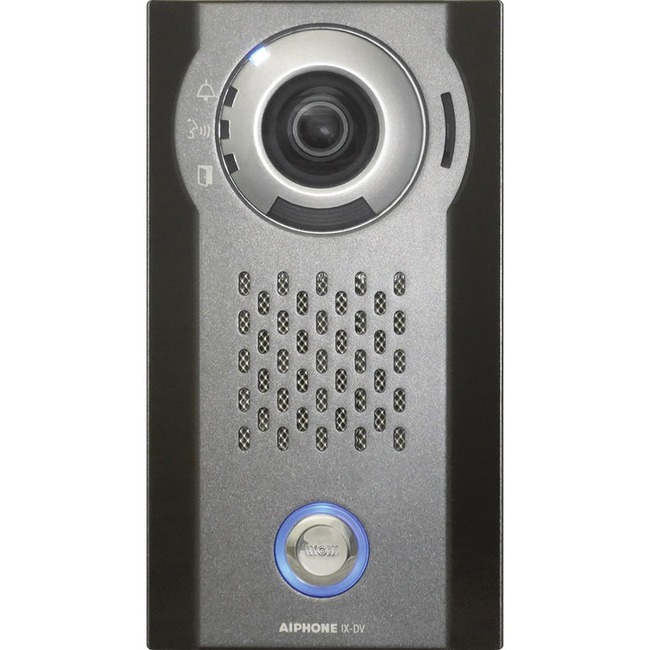

Aiphone IX-DV Video Door Phone Sub Station

Tech Specs

Specifications

Manufacturer	Aiphone Co., Ltd
Manufacturer Part Number	IX-DV
Manufacturer Website Address	http://www.aiphone.com
Brand Name	Aiphone
Product Model	IX-DV
Product Name	IX-DV Video Door Phone Sub Station
Marketing Information	The IX-DV (surface mount) and IX-DVF (flush mount) are weather resistant, (IP65) IP addressable video door stations. They connect to a network using Cat-5e/6 cable and are both SIP compliant. Each station is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to 3rd party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-DV and IX-DVF can be programmed to call up to 20 different stations. There are 3 different call level selections. The stations have a 600Ω output that can be used for paging or communication. There are 2 contact outputs that can be programmed to trigger during door release, when the 600Ω output is used or based on the status of the station. There are 6 inputs that can be used to trigger an outgoing call or answer a call/page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.
Product Type	Video Door Phone Sub Station

Camera

Power Description

Input Voltage	24 V DC
Power Consumption	5.28 W

Physical Characteristics

Product Material	Die-cast Aluminum
Durability	Weather Resistant Vandal Resistant
Height	8.1"
Width	4.5"
Depth	2.1"

Miscellaneous

Package Contents	IX-DV Video Door Phone Sub Station Bracket
Application/Usage	Door Entry
Certifications & Standards	IP65 IEEE 802.3at Type 2 PoE+ IEEE 802.3af PoE IEEE 802.1X IK07
Country of Origin	Thailand

Warranty

Limited Warranty

2 Year
