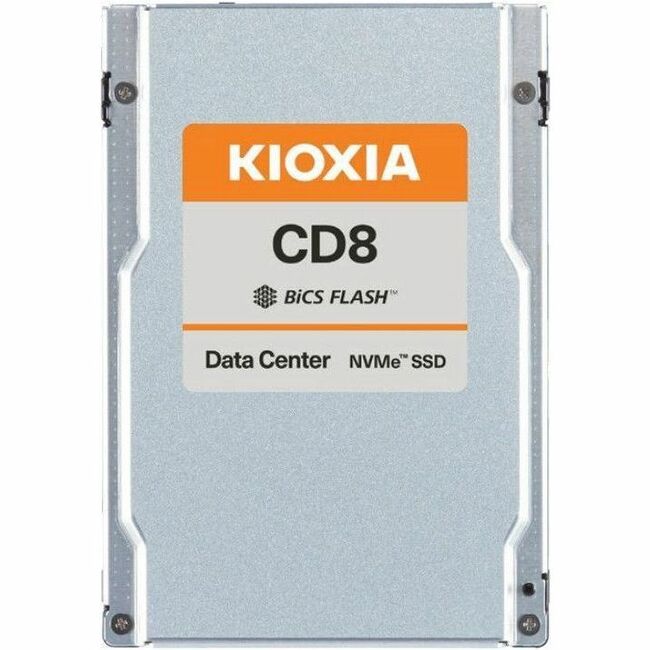

KIOXIA SSD 15.36TB 2.5 PCIE4 CD8-R SDF1E81GEB SIE 1 DWPD BARE

by
OEM SOURCING
PCN#
690U54
MFG#
KCD8XRUG15T3
$19,881.88
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Storage System Device Supported
  • 1 DWPD
  • 6600 MB/s Maximum Read Transfer Rate
Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
KIOXIA CD8-R KCD8XRUG15T3 15 TB Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Read Intensive
Tech Specs
Specifications

Manufacturer

Toshiba

Manufacturer Part Number

KCD8XRUG15T3

Manufacturer Website Address

http://www.toshiba.com

Brand Name

KIOXIA

Product Series

CD8-R

Product Model

KCD8XRUG15T3

Product Name

Data Center NVMe Read Intensive SSD

Marketing Information

KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe 4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC ash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Product Type

Solid State Drive
Technical Information

Storage Capacity

15 TB
Drive Performance

Maximum Read Transfer Rate

6600 MB/s

Maximum Write Transfer Rate

6000 MB/s

Random 4KB Read

1050000IOPS

Random 4KB Write

195000IOPS

Endurance (DWPD)

1

Endurance Type

Read Intensive
Interfaces/Ports

Drive Interface

PCI Express NVMe

Drive Interface Standard

PCI Express NVMe 4.0 x4
Physical Characteristics

Drive Type

Internal

Form Factor

2.5"

Height

0.6"

Width

2.8"

Length

4"

Weight (Approximate)

4.59 oz
Miscellaneous

Device Supported

Storage System
