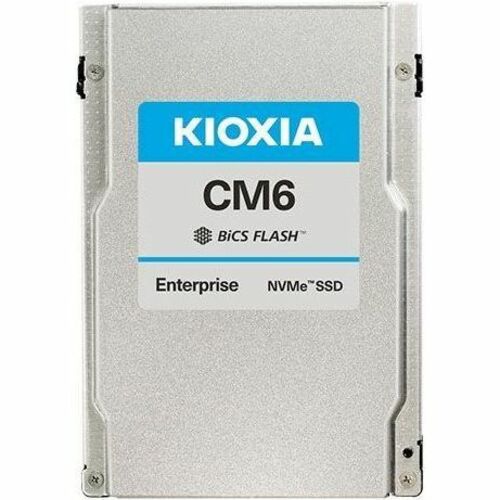

KIOXIA CM6-R 3.75TB SOLID STATE DRIVE 2.5 INTERNAL PCI

KIOXIA CM6-R series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe^® 4.0 and NVMe™ 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.

Featuring KIOXIA Corporation's 96-layer BiCS FLASH™ 3D TLC memory, the CM6-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Key Features

• PCIe^®4.0, NVMe™ 1.4 specification compliant
• Form factor: 2.5-inch, 15mm Z-height
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• 6th generation, two-die failure recovery and double parity protection
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS 140-2
• Six power mode settings

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning

• Triple-level Cell Flash
• Power Loss Protection (PLP)
• End-to-end Data Protection

• Storage System
• Server
