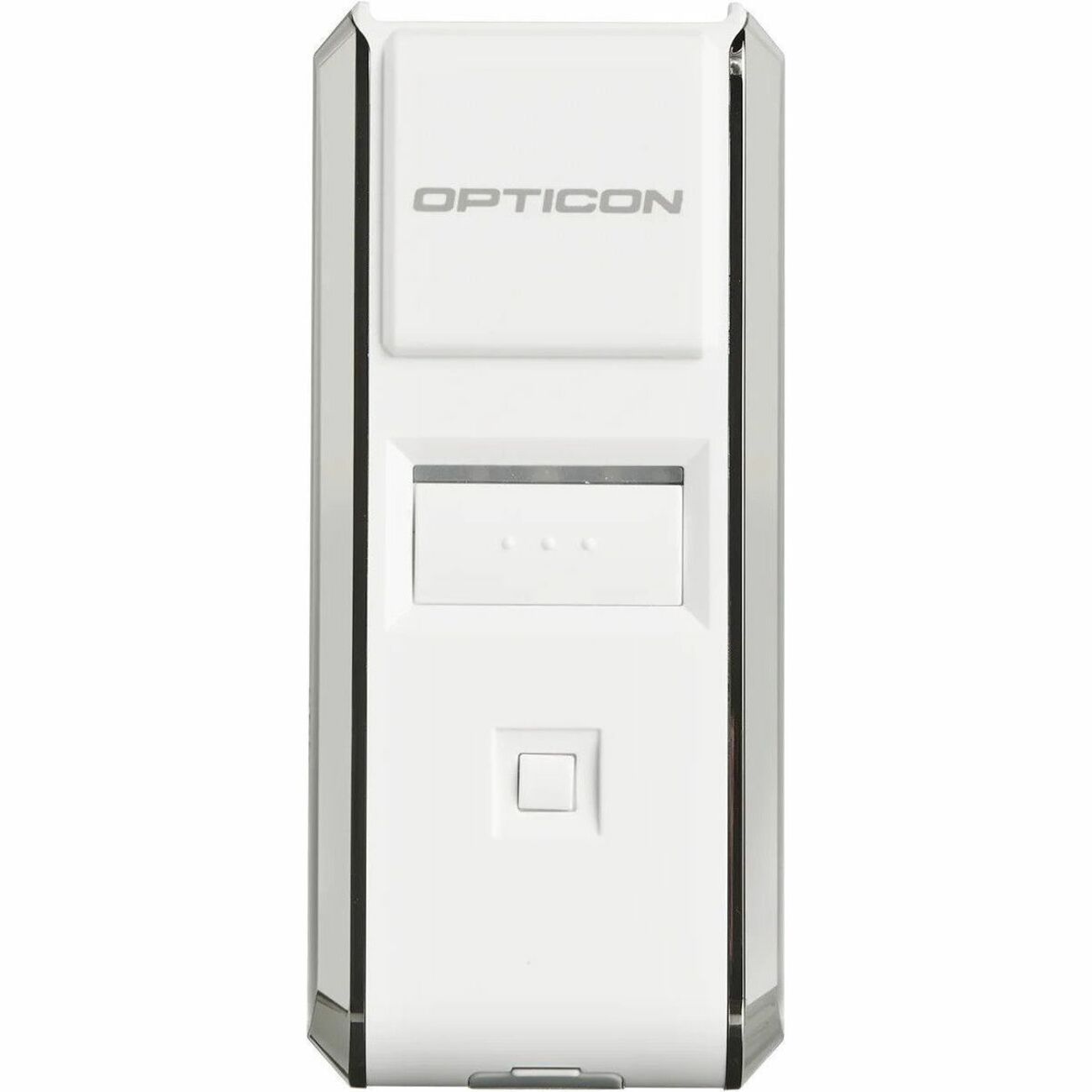

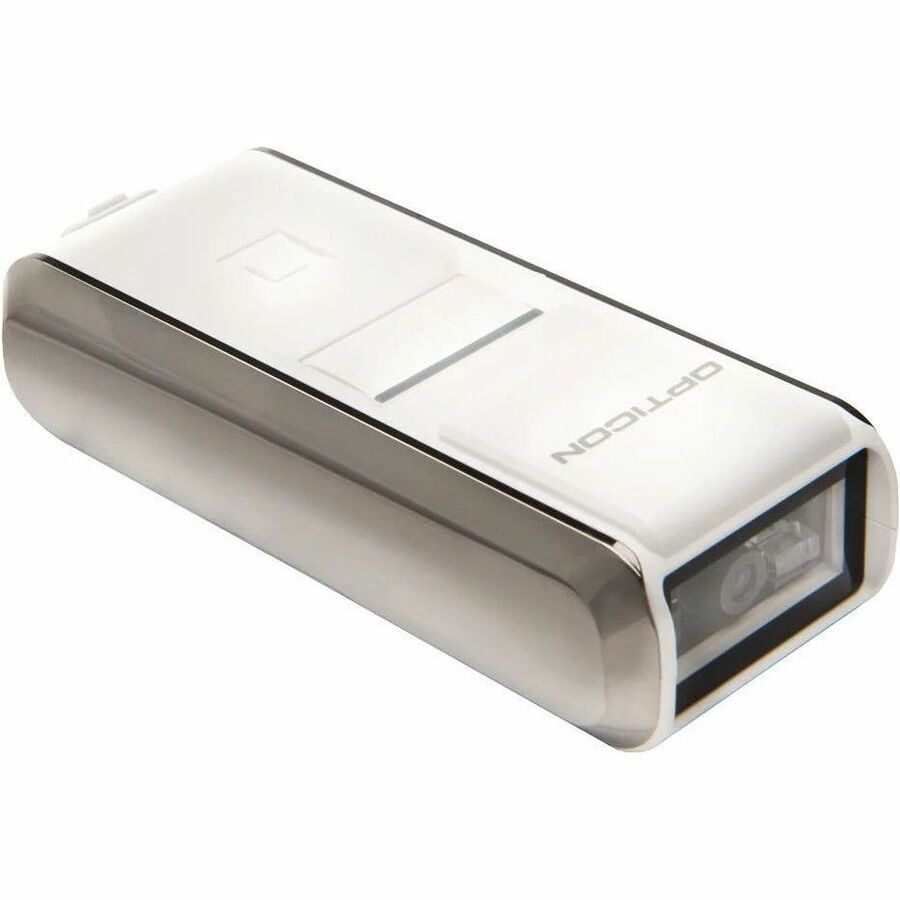

OPTICON OPN-3102I 2D CMOS IMAGER BLUETOOTH WHITE MADE

The OPN-3102i adds real-time barcode scanning to any Bluetooth device. It is extremely small, making it an ideal solution for field sales, POS, inventory management, and many more. The integrated NFC tag enables easy Bluetooth pairing. It contains wireless charging technology and can as well as be charged over a standard USB cable.

• 1D
• 2D

1D:

• UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 add-on, EAN-8, EAN-8 Addon, JAN-8, JAN-13, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC, IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic

Postal Code:

• Chinese Post, Korean Postal Authority code

2D:

• Aztec Code, Codablock F, Data Matrix (ECC 200), Maxi Code (mode 2 to 5), MicroPDF417, Micro QR Code, PDF417, QR Code, Chinese Sensible Code

Depth of field at code 39:

• 60 - 150 mm (0.127 mm) / 2.36 - 5.90 in (5 mil)
• 70 - 205 mm (0.254 mm) / 2.76 - 8.07 in (10 mil)
• 80 - 390 mm (0.508 mm) / 3.15 - 15.35 in (20 mil)

Depth of field at Code 128:

• 80 - 165 mm (0.2 mm) / 3.15 - 6.50 in (7.87 mil)

Depth of field at UPC:

• 65 - 260 mm (1.33 mm) / 2.56 - 10.24 in (52.36 mil)

Depth of field at PDF417:

• 65 - 125 mm (0.169 mm) / 2.56 - 4.92 in (6.65 mil)
• 50 - 180 mm (0.254 mm) / 1.97 - 7.09 in (10 mil)

Depth of field at QR Code:

• 70 - 95 mm (0.169 mm) / 2.76 - 3.74 in (6.65 mil)
• 35 - 225 mm (0.381 mm) / 1.38 - 8.86 in (15 mil)

Depth of field at Data Matrix:

• 60 - 130 mm (0.212 mm) / 2.36 - 5.12 in (8.35 mil)
• 50 - 150 mm (0.254 mm) / 1.97 - 5.91 in (10 mil)

• Notification LED
• Vibration
• Scan Button

• 201.5 m / 5 ft drop onto concrete surface

• Dust Resistant
• Water Resistant
• Drop Resistant

• OPN-3102i 2D CMOS Imager
• MicroUSB Cable
• Neck Strap

• Field Sales/Service
• Inventory
• Asset Tracking
• Retail

• iOS
• Android
• PC
