DATALOGIC HANDHELD BARCODE READER 1D/2D BLACK YELLOW

by
OEM SOURCING
PCN#
Z41253
MFG#
PD9630-ARK2
$626.44
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Cable Connectivity
  • 65.58 ft Scan Distance
  • 1D, 2D

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.

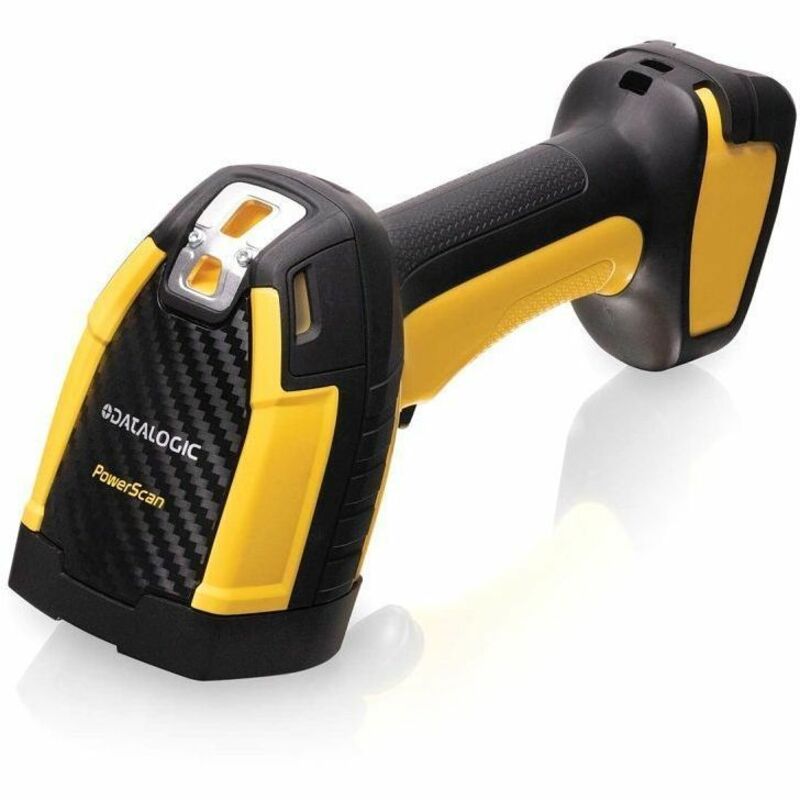

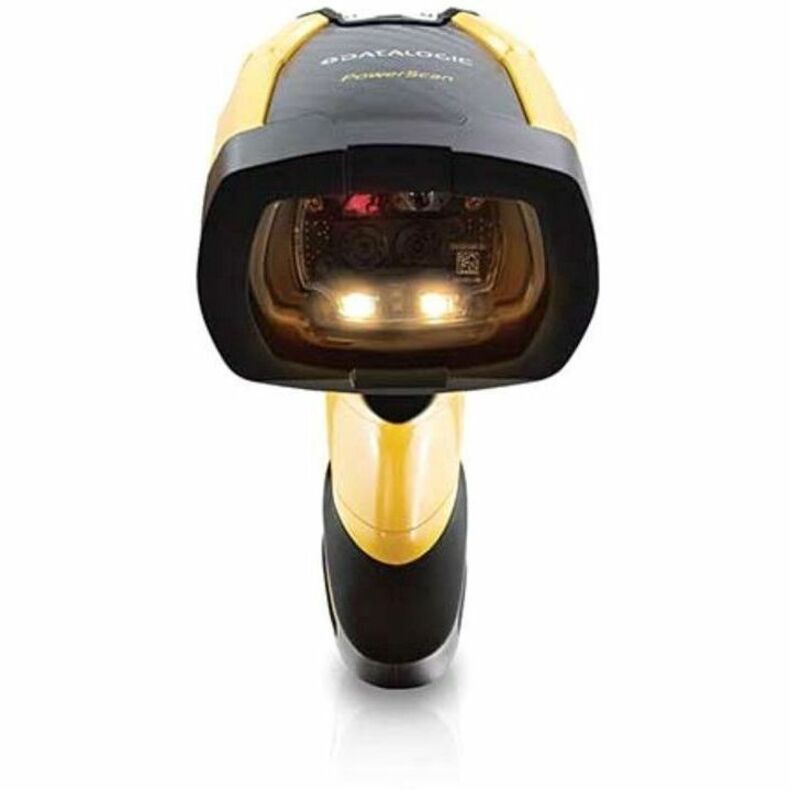

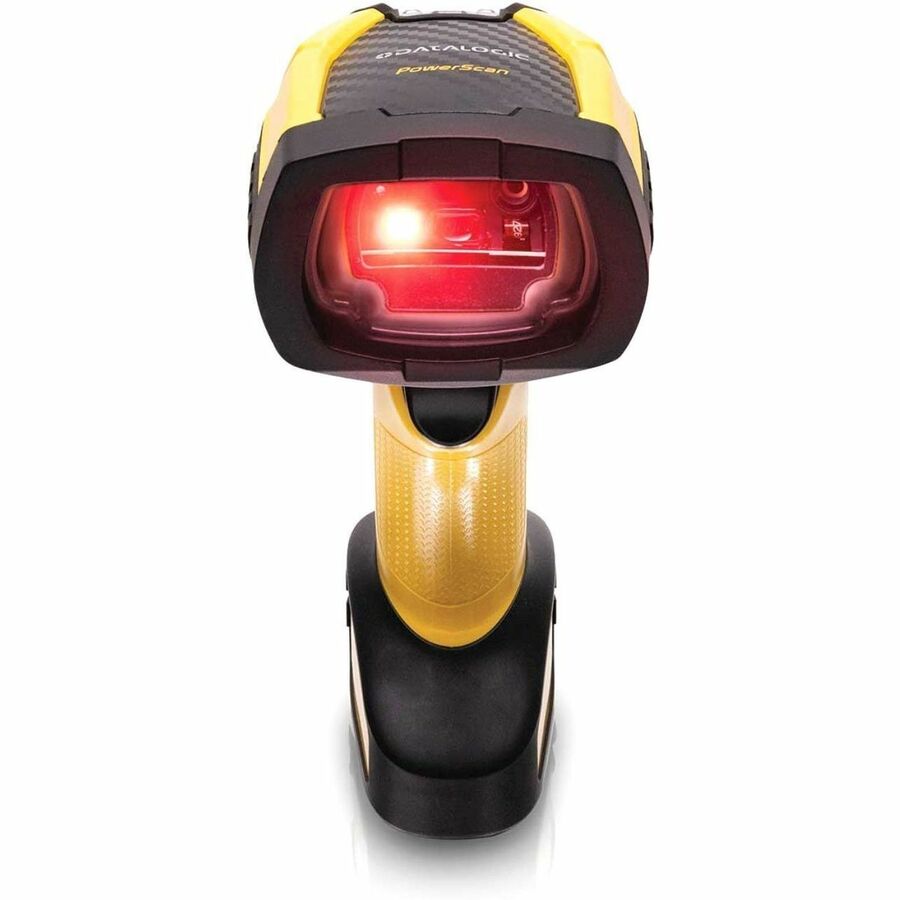

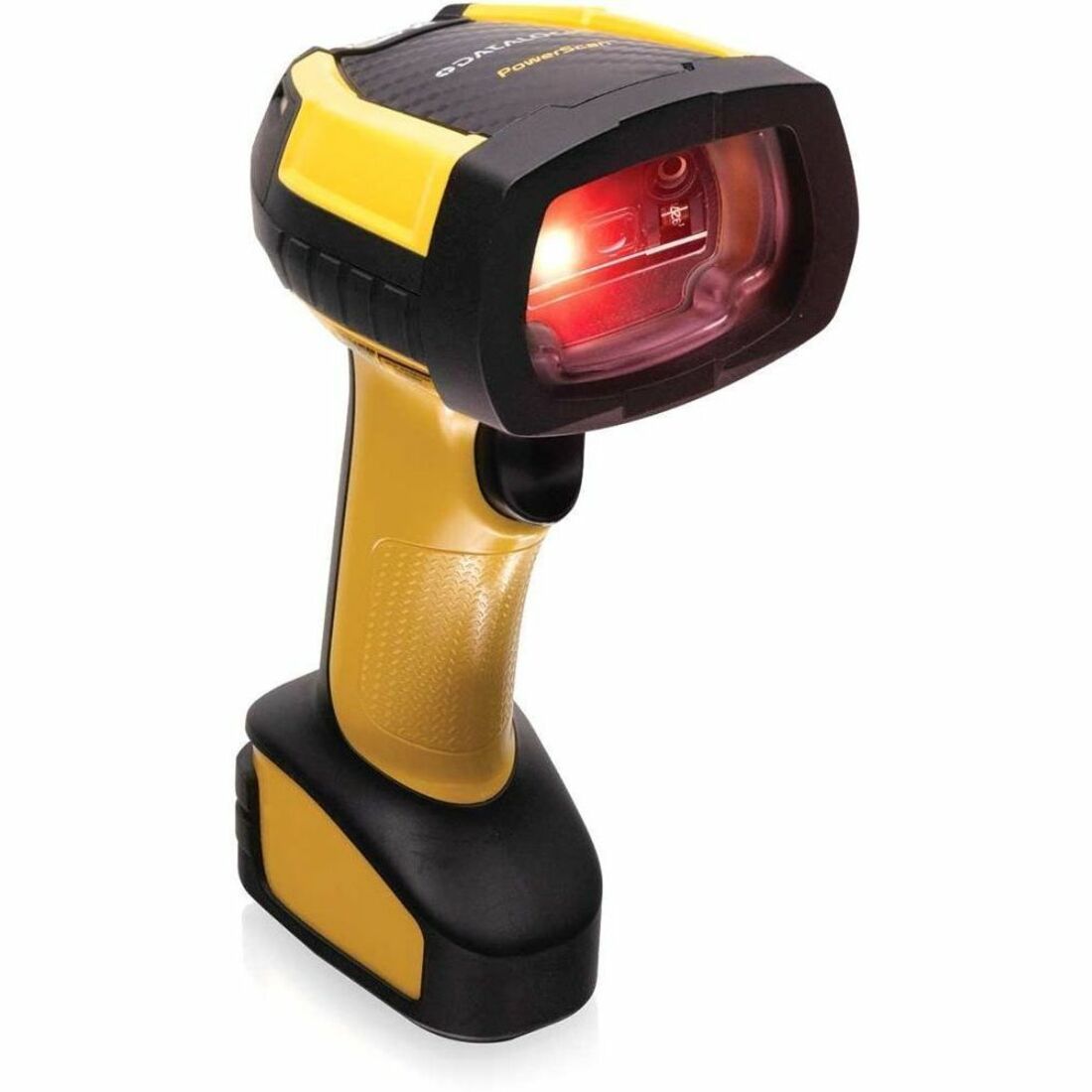

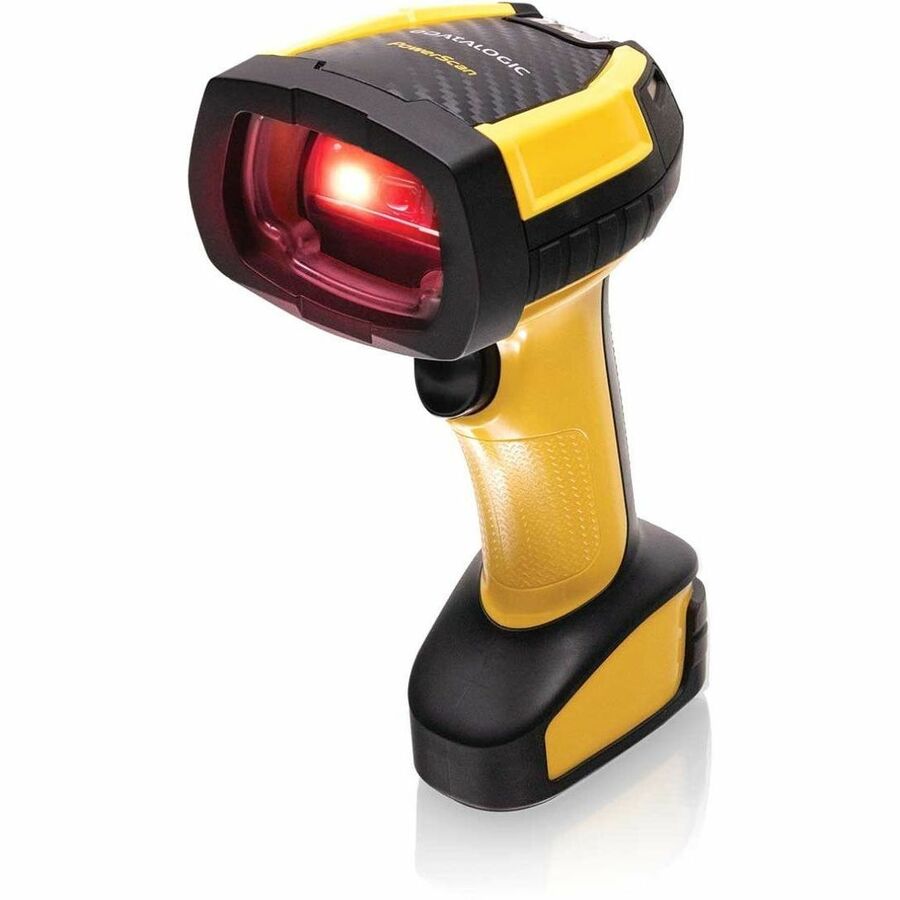

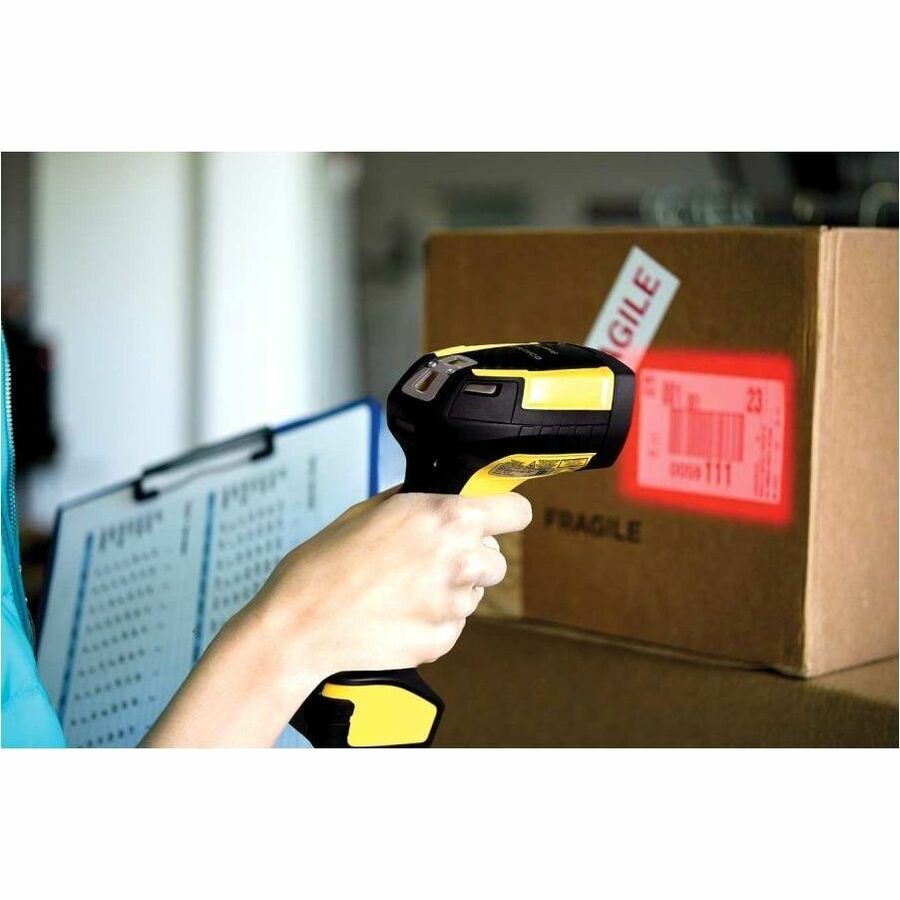

Datalogic PowerScan PD9630-AR Barcode Scanner Kit
Tech Specs
Specifications

Manufacturer

Datalogic S.p.A

Manufacturer Part Number

PD9630-ARK2

Manufacturer Website Address

http://www.datalogic.com

Brand Name

Datalogic

Product Line

PowerScan

Product Model

PD9630-AR

Product Name

PowerScan PD9630-AR Barcode Scanner Kit

Marketing Information

Industrial Handheld Auto Range Scanner with extra-long range capabilities and high flexibility

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away.

AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic's proprietary STAR Cordless System™ or the new Bluetooth® 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning.

The PowerScan 9600 family features Datalogic's Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions.

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Product Type

Barcode Scanner Kit
Technical Information

Connectivity Technology

Cable

Scanning Capability

  • 1D
  • 2D

Light Source

LED

Image Sensor Type

Imager

Scan Mode

Trigger

Scanner Range

Auto Range

Scanning Distance

65.58 ft

Features

Vibration

Cable Type Included

Serial

Reading Angle (Skew)

60°

Reading Angle (Pitch)

60°

Reading Angle (Roll)

360°

Maximum Ambient Light

100000 lux

Minimum Print Contrast

20%

Minimum Element Resolution (Code 39)

3 mil

Maximum Element Resolution (Code 39)

20 mil

Minimum Element Resolution (DataMatrix)

10 mil

Maximum Element Resolution (DataMatrix)

100 mil

Image Sensor Resolution

1280 x 800

Illumination Type

LED

Illumination Color

Red
Interfaces/Ports

Host Interface

  • Serial
  • USB
Power Description

Input Current

770 mA

Standby Current

140 mA
Battery Information

Battery Included

Yes

Battery Chemistry

Lithium Ion (Li-Ion)

Battery Capacity

3350 mAh

Maximum Battery Recharge Time

3.20 Hour
Environmental Conditions

Operating Temperature

-22°F (-30°C) to 122°F (50°C)

Storage Temperature

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing)

0% to 95%
Physical Characteristics

Form Factor

Handheld

Rugged

Yes

Height

7.8"

Width

3.1"

Length

5.5"

Weight (Approximate)

11.29 oz
Miscellaneous

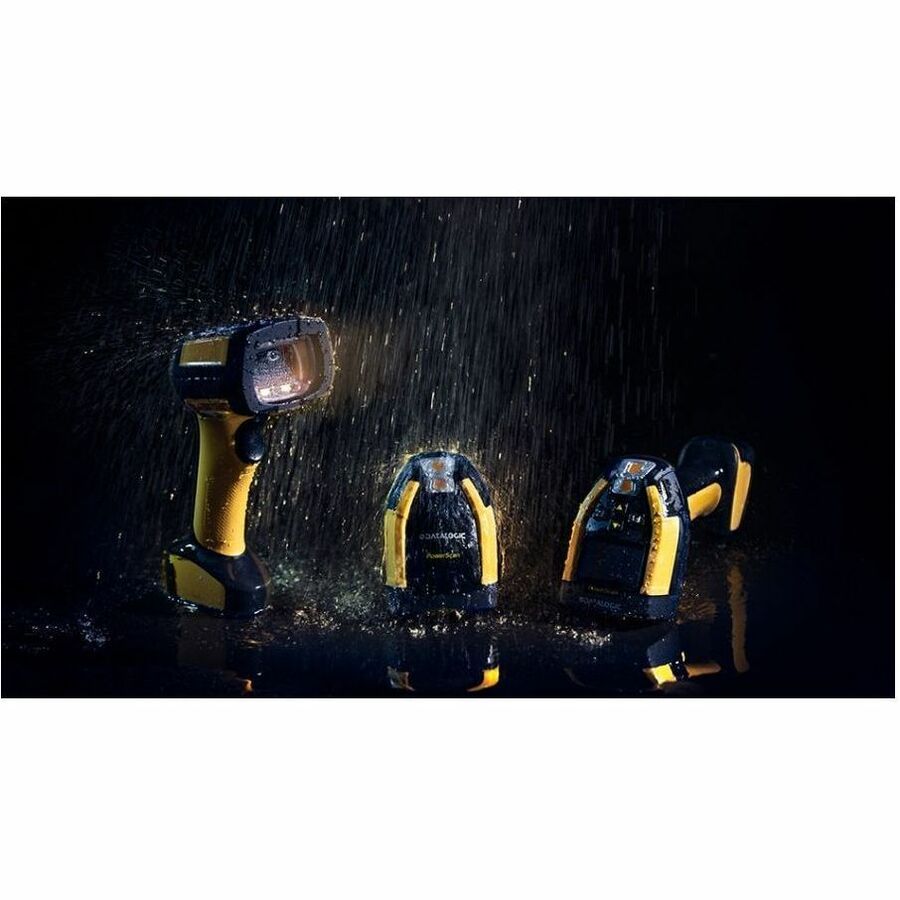

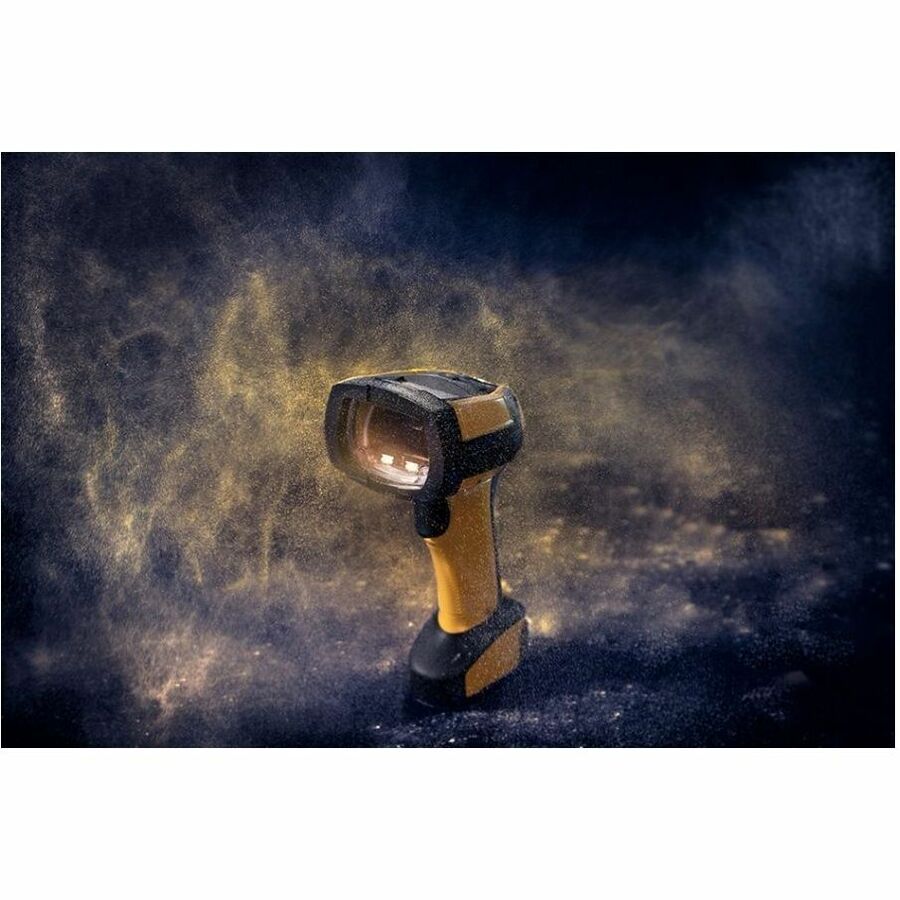

Ingress Protection (IP) Rating

  • IP65
  • IP67

Application/Usage

  • Warehouse
  • Logistics
  • Manufacturing
  • Inventory
