10BASE-TL1 SPOE MANAGED SWITCH 4X3-PIN 10/100/1000 2XRJ-45 DC PWR

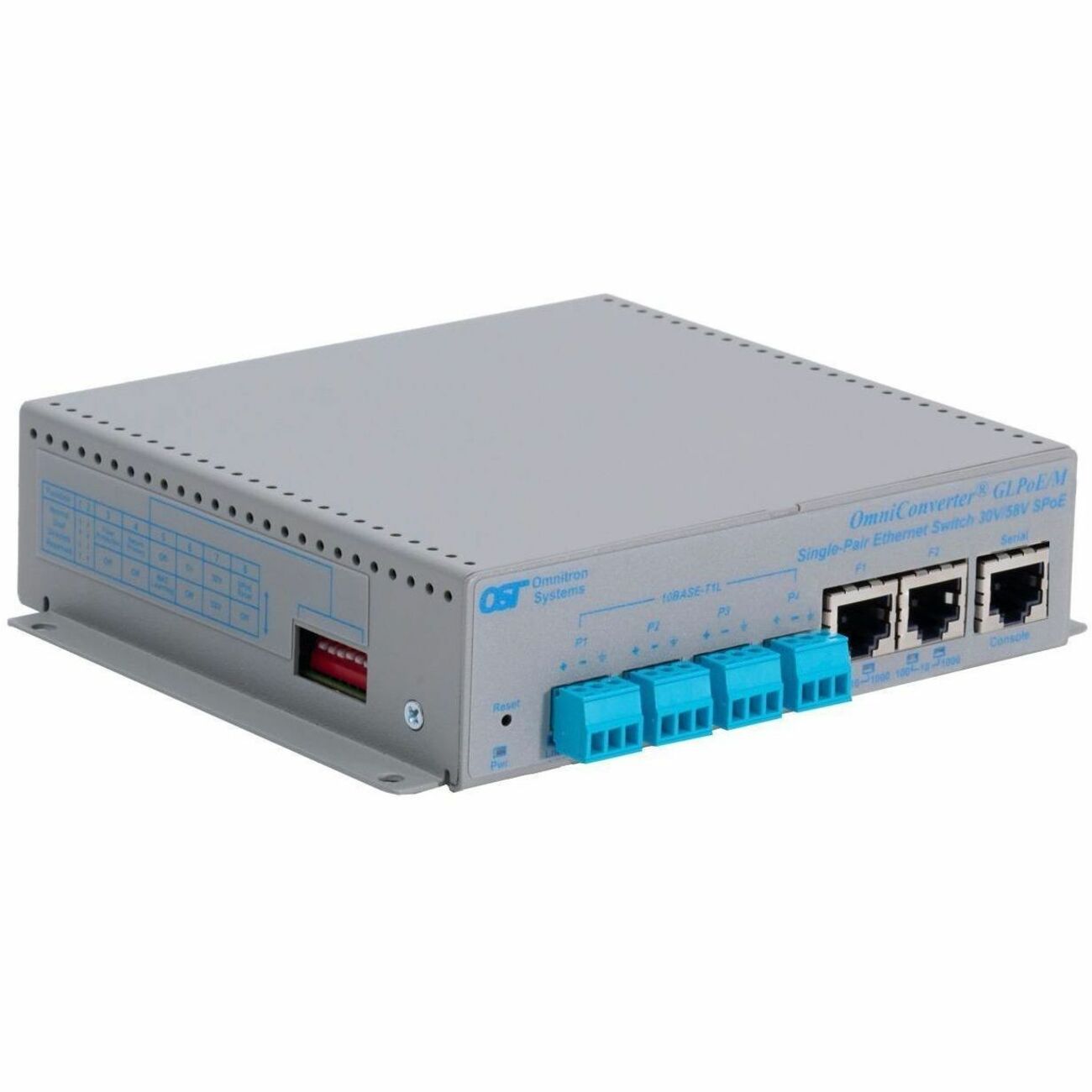

The OmniConverter GLPoE/M is a managed Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.

The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The GLPoE/M SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection.

The switch supports Dual Device mode, Directed Switch mode and Protected Uplinks.

Dual Device mode enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLPoE/M provides separate and independent data traffic paths between the two uplink ports and four user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The switch supports protected uplinks using industrial ring Media Redundancy Protocol (MRP) or Spanning Tree Protocol or Redundant uplinks for high availability industrial network applications.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists.

Email notification and alarm reporting is provided. The Small Form Pluggable (SFP) transceiver receptacle ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.

The switch can be wall mounted, rack mounted using a shelf (8260-0) or DIN-rail mounted using the DIN-rail mounting clips (8251-0). The switch is available with an external 100 to 240V AC power adapter or with a DC terminal connector.

• Access Control List
• Broadcast Storm Control

• 4 x Ethernet SPoE
• 2 x Gigabit Ethernet Network

• Ethernet
• Gigabit Ethernet

• 10Base-T1L
• 100/1000Base-X

• IEEE 802.3cg
• IEEE 802.1x

• 50 V DC
• 58 V DC

• 50 Hz
• 60 Hz

• Power Adapter
• DC

• Compact
• Shelf Mountable
• Wall Mountable
• Rack-mountable
• DIN Rail Mountable

• OmniConverter GLPoE/M Managed Single Pair Power Over Ethernet Switch
• User Manual

Safety:

• UL 62368-1
• UL 60950-1
• IEC 62368-1
• IEC 60950-1
• CUL CSA C22.2 No. 60950-1
• EN 60950-1:2006
• CE Mark
• UKCA

EMI:

• FCC 47CFR, Part 15 Class A
• AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2
• ICES-003 Issue 3
• EN 55032/CISPR 22 and EN55035
• EN61000-3-2
• VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:

• IEC/EN61000-4-2
• IEC/EN61000-4-3
• IEC/EN61000-4-4
• IEC/EN61000-4-5
• IEC/EN61000-4-6
• IEC/EN61000-4-8
• IEC/EN61000-4-11

ACT:

• BAA, NDAA
• +E65:E78

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
