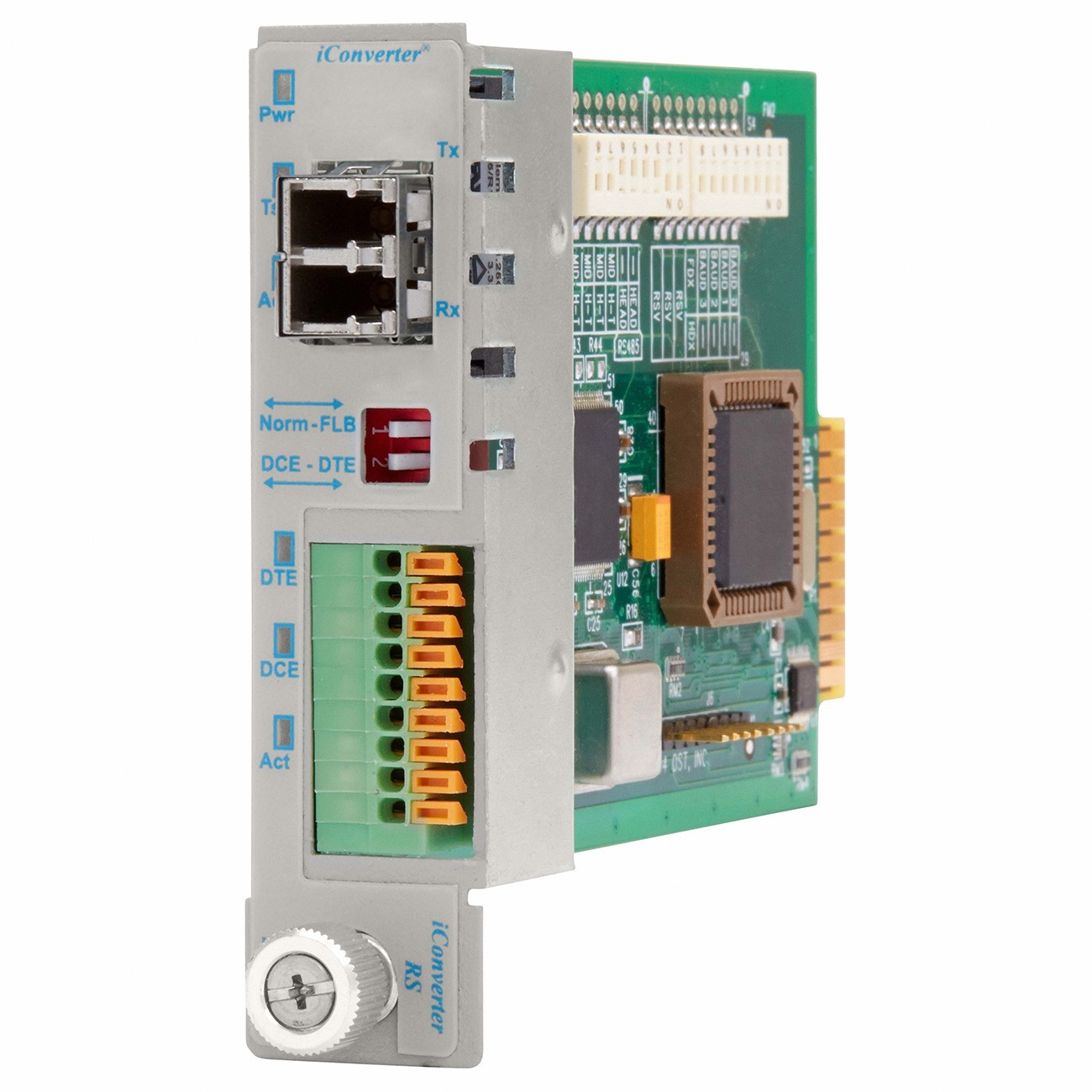

iConverter RS-232 Serial Fiber Media Converter DB-9 LC Single-Mode 60km Module

Name: iConverter RS-232 Serial Fiber Media Converter DB-9 LC Single-Mode 60km Module
Brand: OMNITRON SYSTEMS
SKU: PG9263
Price: 1234.61 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

PG9263

MFG#

8767-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,234.61

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x RS
232; 1 x LC Single
Mode; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

iConverter RS-232 Serial Fiber Media Converter DB-9 LC Single-Mode 60km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8767-2
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	RS232
Product Model	8767-2-x
Product Name	iConverter RS232 DB-9 LC Single-Mode 60km Plug-In Module
Marketing Information	The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring. The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of LC Ports	1
LC Port Type	Duplex
Number of Serial Ports	1

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	60 km

Physical Characteristics

Form Factor	Rack-mountable Desktop Internal Wall Mountable Mountable
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter RS232 DB-9 LC Single-Mode 60km Plug-In Module User Manual
Additional Information	Serial Port Type: DB-9 (female)
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	Compliance: UL CE FCC Class A
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
