16 SERIAL PORTS C14 PWR CRD

Name: 16 SERIAL PORTS C14 PWR CRD
Brand: OPENGEAR
SKU: S62114
Price: 3530.24 USD
Availability: InStock

OPENGEAR

PCN#

S62114

MFG#

CM8116-10G-C14

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,530.24

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

1.95 GB
DDR4 SDRAM
Twisted Pair, Optical Fiber
2 Total Expansion Slot(s)
2 x Network (RJ
45)
2 x USB
16 x Serial Port
10GBase
X, 1000Base
T
10 Gigabit Ethernet
Management Port
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty4 Year

Shipping Weight: 12 lbs.

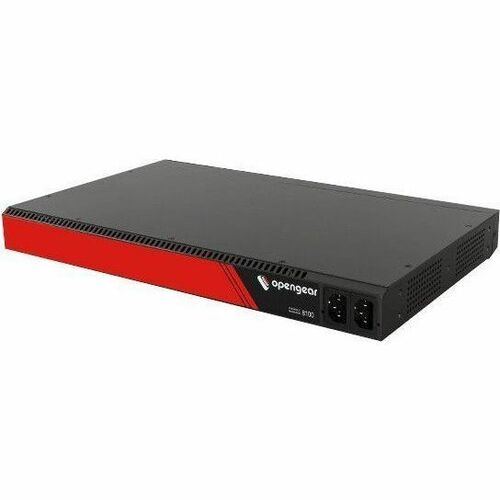

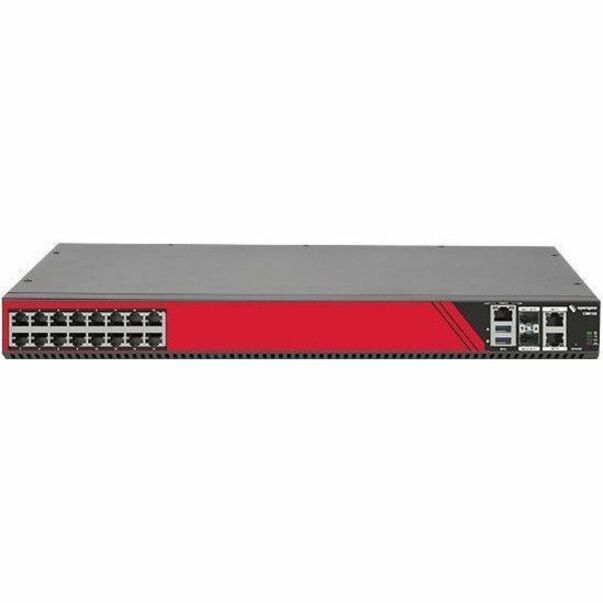

Opengear CM8100 Console Server

The CM8100 series is Opengear's latest console manager, specifically designed for data centers, enterprise networks, and edge locations. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security.

Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse® Software.

16, 32, 48, and 96 port serial console server with Smart Out-of-Band™REST API support for automation tools, Docker, and Python scripting5G cellular modem for enhanced bandwidth, lower latency, and reliabilityHardware-based TPM 2.0 provides secure bootDual power supplies with independent monitoring10Gb SFP+ uplinks connect directly to high-speed networks in select modelsPort auto-discovery simplifies configuration of serial settings and port labelsEliminates the need for serial adapters with selectable software serial ports in select models

Product Type

Device ServerTechnical Information

Device Type

Console Server

Connectivity Technology

WiredProcessor & Chipset

Processor Manufacturer

ARM

Processor Speed

1.60 MHzMemory

Standard Memory

1.95 GB

Memory Technology

DDR4 SDRAM

Maximum Memory Supported

32 GBMedia & Performance

Media Type Supported

Twisted PairOptical FiberI/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP+Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Network Standard

10GBase-X1000Base-TInterfaces/Ports

Network (RJ-45)

Yes

USB

Yes

Serial Port

Yes

Management Port

Yes

Total Number of Network Ports

Number of Network (RJ-45) Ports

Number of USB Ports

Number of Serial Ports

16Environmental Conditions

Minimum Operating Temperature

41°F (5°C)

Maximum Operating Temperature

122°F (50°C)Power Description

Input Voltage

120 V AC230 V AC

Input Voltage Range

100 V AC -240 V AC

Plug/Connector Type

IEC 60320 C14

Frequency

50 Hz60 HzPhysical Characteristics

Form Factor

Rack-mountableMiscellaneous

Certifications & Standards

Overview

Emissions

FCC Part 15 Subpart B

2021 Class AICES-003 Issue 7AS/NZS CISPR 32

2015EN 55035

2017EN 55032

2017VCCI-CISPR 32

2016CNS 13438

2006-6Product TypeDevice ServerTechnical InformationDevice TypeConsole ServerConnectivity TechnologyWiredProcessor & ChipsetProcessor ManufacturerARMProcessor Speed1.60 MHzMemoryStandard Memory1.95 GBMemory TechnologyDDR4 SDRAMMaximum Memory Supported32 GBMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberI/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeSFP+Network & CommunicationEthernet Technology10 Gigabit EthernetNetwork Standard10GBase-X1000Base-TInterfaces/PortsNetwork (RJ-45)YesUSBYesSerial PortYesManagement PortYesTotal Number of Network Ports2Number of Network (RJ-45) Ports2Number of USB Ports2Number of Serial Ports16Environmental ConditionsMinimum Operating Temperature41°F (5°C)Maximum Operating Temperature122°F (50°C)Power DescriptionInput Voltage120 V AC230 V ACInput Voltage Range100 V AC -240 V ACPlug/Connector TypeIEC 60320 C14Frequency50 Hz60 HzPhysical CharacteristicsForm FactorRack-mountableMiscellaneousCertifications & Standards

Tech Specs

Immunity

EN 61000-3-2-2019
IEC 61000-3-2
2018
EN/IEC 61000-3-3
2013
EN 61000-4-2
2009
IEC 61000-4-2
2008
EN 61000-4-3
2006
+ A1
2008 +A2
2010
IEC 61000-4-3
2006 + A1
2007 + A2
2010
EN/IEC 61000-4-4
2012
IEC 61000-4-8
2009
EN/IEC 61000-4-11
2004
CE
IEC 1950
IEC 62368

Environmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty4 Year
