24SERIAL PT+24X1GBESWITCH4G LTE 1GBE SFPDOCKERDUALACC14 PWR

Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.

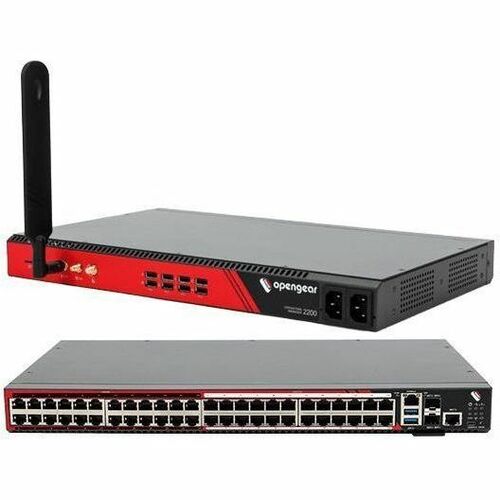

The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.

• 6, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
• x86 platform supporting Docker and Python
• Smart OOB includes automated port discovery and VLAN support on the OM appliances
• All appliances now ship with two C14 power cables standard

• 24 selectable serial ports + 24x 1GbE switch
• x86 4-core CPU
• 8G RAM
• 64G SSD
• 10GbE SFP+
• Docker Support
• TPM 2.0
• 4G LTE-A Pro Global
• C14 Power Cord
• 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial
• 8 x USB 2.0 ports for device console management
• 2 x USB 3.0 Host Ports for storage
• 2 x 10/100/1000 Ethernet/SFP Fiber port

Environmental:

• Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F
• Storage Temperature: -30°C to +60°C, -22°F to +140°F
• Humidity: 5% to 90%

Security and Authentication:

• Trusted Platform Module 2.0
• AAA - TACACS+
• SSH
• Embedded Firewall
• OpenVPN - Lighthouse Connection

Cellular Specifications:

• SIM Slot: Dual Push Click 2FF SIM slots
• Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
• Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
• Air Interface: LTE-A Pro (LTE-LAA), HSPA+
• Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19
• Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
