BARCODE SCANNERS,2D CMOS IMAGR SCANNER, CABLED FIXED MOUNT, IP42 RATING, 2 YEAR

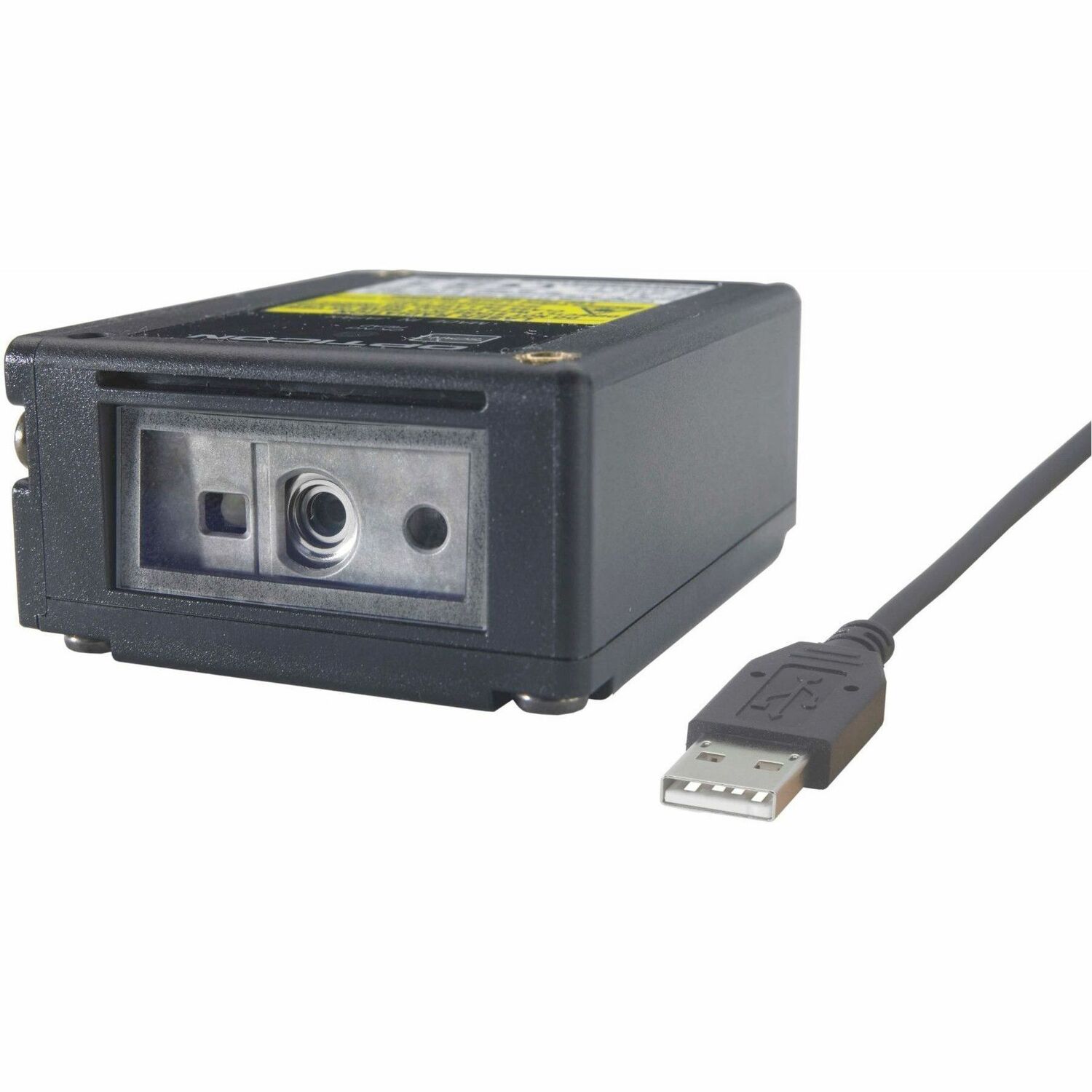

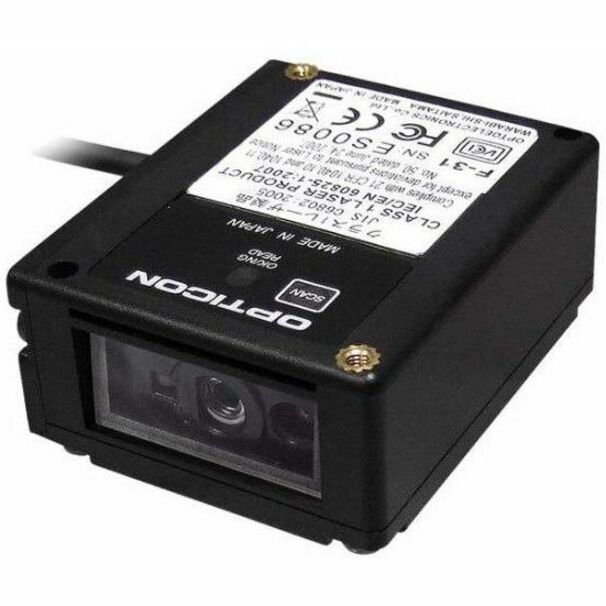

The F-31, a fixed mount 2D CMOS imager from Opticon, features auto-focus, liquid lens technology. With built in auto-focus capability, the F-31 quickly and efficiently scans 1D and 2D images and the real-time adapting liquid lens self-adjusts for distance and angle. F-31 product highlights include:

• 2D CMOS imager with auto-focus technology
• Rapidly scans and decodes a wide variety of 1D or 2D barcodes at 80 frames per second (FPS)
• Laser ranging method plus the high-speed CMOS image sensor enables high speed autofocusing
• Custom configuration capabilities
• Complete unit with integrated decoder
• Durable-survives 2.5 foot drop to concrete
• IP42 rating against dust and moisture
• Communication interface: USB or RS232
• Dimensions: 1.81" x 0.98" x 2.28" (WxLxD)
• Backed by a two year warranty

• 1D
• 2D

1D:

• JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

2D:

• Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Postal Code:

• Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET

• CMOS
• Imager

• JPEG
• BMP

2.5 ft (0.75 m) drop onto concrete surface
