BARCODE SCANNERS,BLUETOOTH WIRELESS 2D CMOS IMAGER, INCLUDES POWER SUPPLY, CHARG

Name: BARCODE SCANNERS,BLUETOOTH WIRELESS 2D CMOS IMAGER, INCLUDES POWER SUPPLY, CHARG
Brand: OPTICON BARCODE SCANNER
SKU: 8014BS
Price: 307.78 USD
Availability: InStock

OPTICON BARCODE SCANNER

PCN#

8014BS

MFG#

OPN3200IAM-00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$307.78

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Cable/Wireless Connectivity
10.24" Scan Distance
1D, 2D
LED
CMOS, Imager
Bluetooth
USB
White
Power Supply Included
IP42
Field Sales/Service, Retail, Inventory, Asset Tracking

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

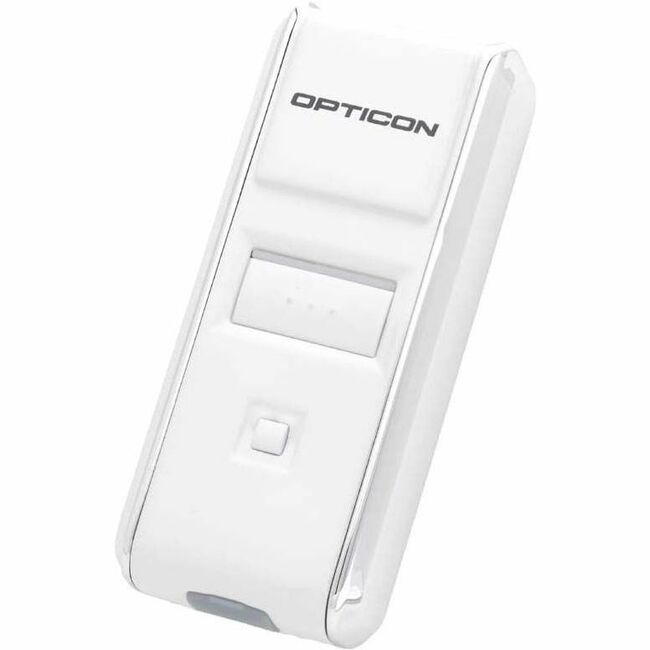

Opticon OPN-3002i Bluetooth Companion Scanner (2D)

Overview

Tech Specs

Specifications

Manufacturer	Opticon Sensors Europe
Manufacturer Part Number	OPN3200IAM-00
Manufacturer Website Address	http://www.opticon.com
Brand Name	Opticon
Product Line	Companion
Product Model	OPN-3002i
Product Name	OPN-3002i Bluetooth Companion Scanner (2D)
Marketing Information	The OPN-3002i Bluetooth Companion Scanner (2D Imager) enables real-time barcode scanning into any Bluetooth ready device including Android, iOS and Windows. The OPN-3002i scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more. Even though it features one of the industry's most technically advanced 2D CMOS imager scan engines, the OPN-3002i comes at a very affordable price point that enables any business to integrate barcode scanning into mobile applications. OPN-3002i Product highlights include
Product Type	Barcode Scanner Kit

Technical Information

Connectivity Technology	Cable/Wireless
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: UPC/EAN/JAN (standard, composite, addon), Code 39, Codabar (NW7), Industrial 2 of 5, Interleaved 2 of 5, Code 128, Code 93, IATA, MSI/Plessey, UK/Plessey, Telepen, Code 11, Matrix 2 of 5, JPN, GS1-Databar (Limited, Expanded, Composite), GS1-128 (standard, composite) 2D: PDF417, micro PDF417, Codablock F, QR Code, Micro QR Code, Data Matrix (ECC 000-140 & ECC 200), Aztec Code, Aztec Runes, Chinese Sensible Code, Maxicode POSTAL CODES: Chinese Post Matrix 2 of 5, Korean Postal Authority, Intelligent Mail Barcode, Postnet
Light Source	LED
Image Sensor Type	CMOS Imager
Scan Mode	Trigger
Depth of Field	DEPTH OF FIELD: Code 39 at 5 mils (0.127 mm): 3.54 - 4.33 in (90 - 110 mm) Code 39 at 10 mils (0.254 mm): 2.56 - 7.28 in (65 - 185 mm), Code 39 at 20 mils (0.508 mm): 2.56 - 10.24 in (65 - 260 mm) Code 128 at 7.87 mils (0.20 mm): 3.35 - 6.50 in (85 - 165 mm) UPC at 13 mils (0.33 mm): 2.17 - 7.68 in (55 - 195 mm) PDF417 at 6.65 mils (0.169 mm): 3.35 - 5.31 in (85 - 135 mm) PDF417 at 10 mils (0.254 mm): 2.56 - 7.09 in (65 - 180 mm) QR Code at 8.35 mils (0.212 mm): 3.54 - 4.33 in (90 - 110 mm) QR Code at 15 mils (0.381 mm): 2.17 - 7.09 in (55 - 180 mm) Data Matrix at 10 mils (0.254 mm): 3.35 - 5.31 in (85 - 135 mm)
Scanning Distance	10.24"
Features	Vibration Notification LED
Number of Keys	2
Field of View (Horizontal)	41°
Field of View (Vertical)	26°
Reading Angle (Skew)	50°
Reading Angle (Pitch)	50°
Reading Angle (Roll)	180°
Motion Tolerance	78.74 in/s
Maximum Ambient Light	100000 lux
Drop Specification	5 ft (1.5 m) onto to concrete
Minimum Element Resolution (Code 39)	5 mil
Maximum Element Resolution (Code 39)	20 mil
Minimum Element Resolution (DataMatrix)	10 mil
Minimum Element Resolution (PDF417)	6.6 mil
Maximum Element Resolution (PDF417)	10 mil
Image Sensor Resolution	752 x 480
Illumination Type	LED

Memory

Standard Memory	96 KB
Flash Memory	1 MB

Processor & Chipset

Processor Speed

96 MHz

Network & Communication

Bluetooth

Yes

Interfaces/Ports

Host Interface

USB

Power Description

Power Supply Included

Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Capacity	600 mAh
Maximum Battery Run Time	10 Hour

Environmental Conditions

Operating Temperature	32°F (0°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)	20% to 85%

Physical Characteristics

Color Family	White
Product Color	White
Durability	Dust Resistant Water Resistant
Height	3.3"
Width	1.4"
Depth	0.9"
Weight (Approximate)	2 oz

Miscellaneous

Package Contents	OPN-3002i Bluetooth Companion Scanner (2D) USB cable (data/charging) Lanyard (neck strap) Power Supply Charging Cradle Hand Strap
Ingress Protection (IP) Rating	IP42
Application/Usage	Field Sales/Service Retail Inventory Asset Tracking
Platform Supported	iOS Android PC

Warranty

Limited Warranty

2 Year
