G6 MS PDU 30AMP (20) C13 (4)C19 NEMA L6-30P-3M TOP FED BLACK

Name: G6 MS PDU 30AMP (20) C13 (4)C19 NEMA L6-30P-3M TOP FED BLACK
Brand: PANDUIT
SKU: 400R09
Price: 1842.95 USD
Availability: InStock

PANDUIT

PCN#

400R09

MFG#

P24E28G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,842.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored, Switched
NEMA L6
30P
20 x IEC 60320 C13, 4 x IEC 60320 C19
230 V AC, 120 V AC, 208 V AC
Network (RJ
45)
10 ft Cord Length
0U
Vertical
Rack
mountable
Rack, Vertical, Full

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 1 lbs.

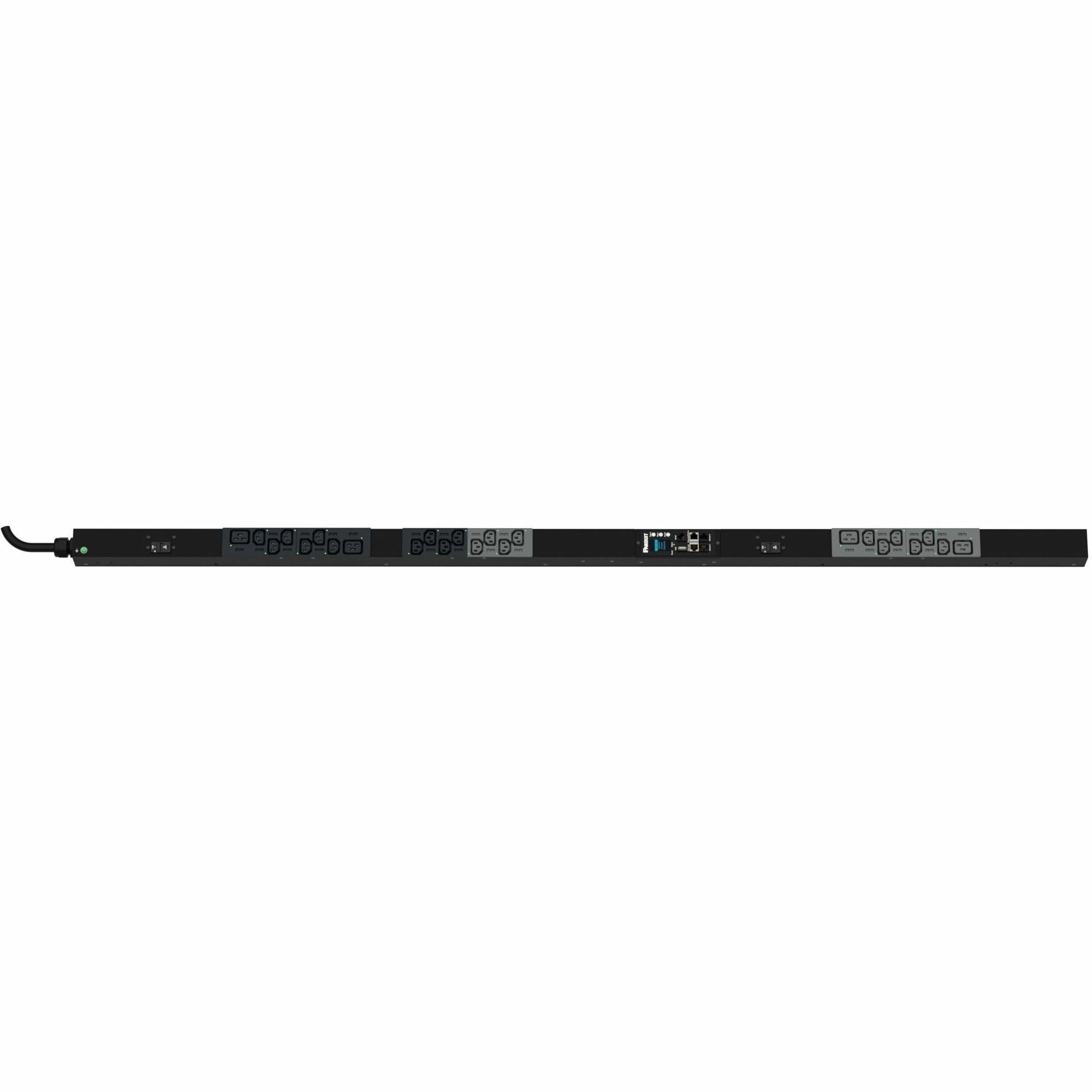

Panduit G6 MS PDU, 30AMP, (20)C13, (4)C19, NEMA L6-30P

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P24E28G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 MS PDU, 30AMP, (20)C13, (4)C19, NEMA L6-30P
Marketing Information	The Panduit G6 Monitored Switched PDU features (20) C13 and (4) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Monitored Switched
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	20 x IEC 60320 C13 4 x IEC 60320 C19
Features	LCD Display LED Status Indicator
Load Capacity (VA)	5000 W

Power Description

Input Voltage	230 V AC 120 V AC 208 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	2

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack Vertical Full
Rack Height	0U
Cord Length	10 ft
Height	69"
Width	2"
Depth	2.1"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	IT Equipment Server Rack/Cabinet Data Center
Certifications & Standards	CE UKCA
Country of Origin	China
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
