G6 MIPDU 60A IP44-3M TF BLK PK1 .

Name: G6 MIPDU 60A IP44-3M TF BLK PK1 .
Brand: PANDUIT
SKU: NN1856
Price: 2814.39 USD
Availability: InStock

PANDUIT

PCN#

NN1856

MFG#

P42D20G

$2,814.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 15 lbs.

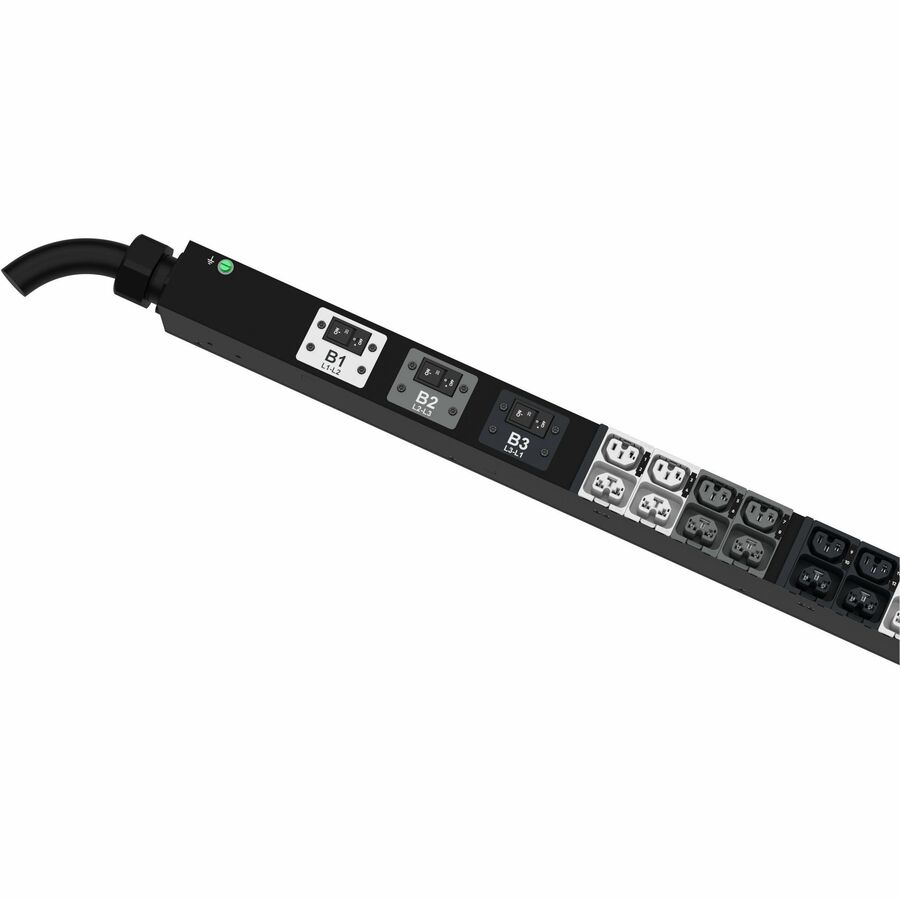

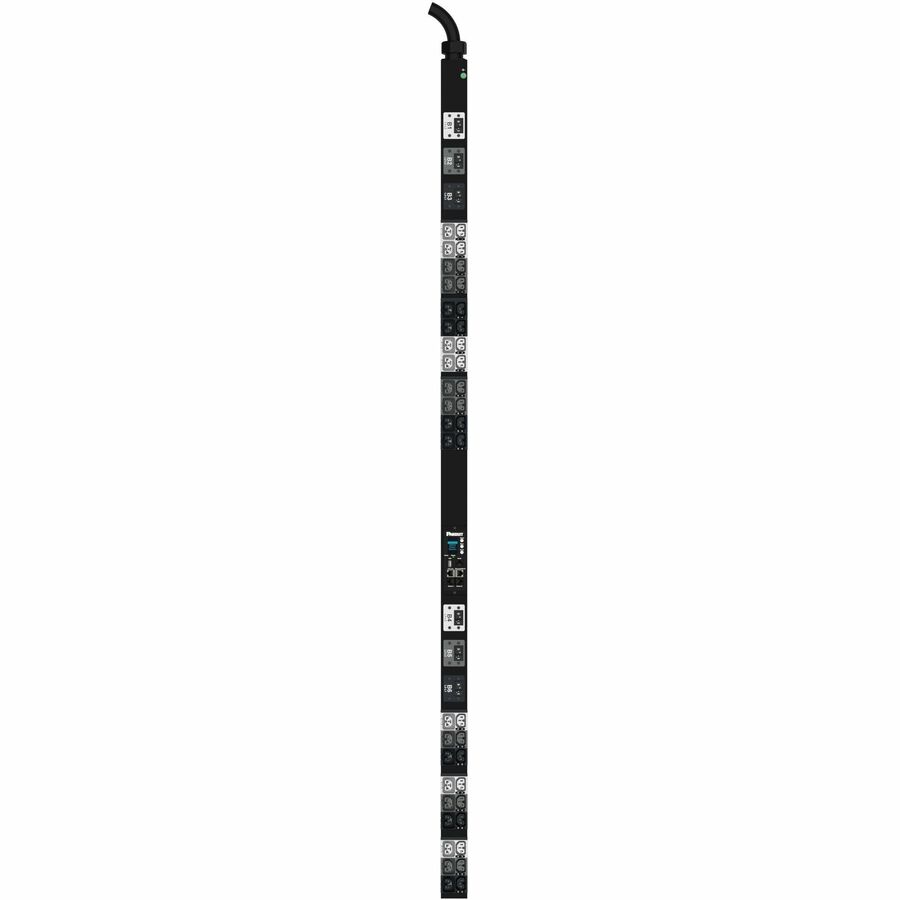

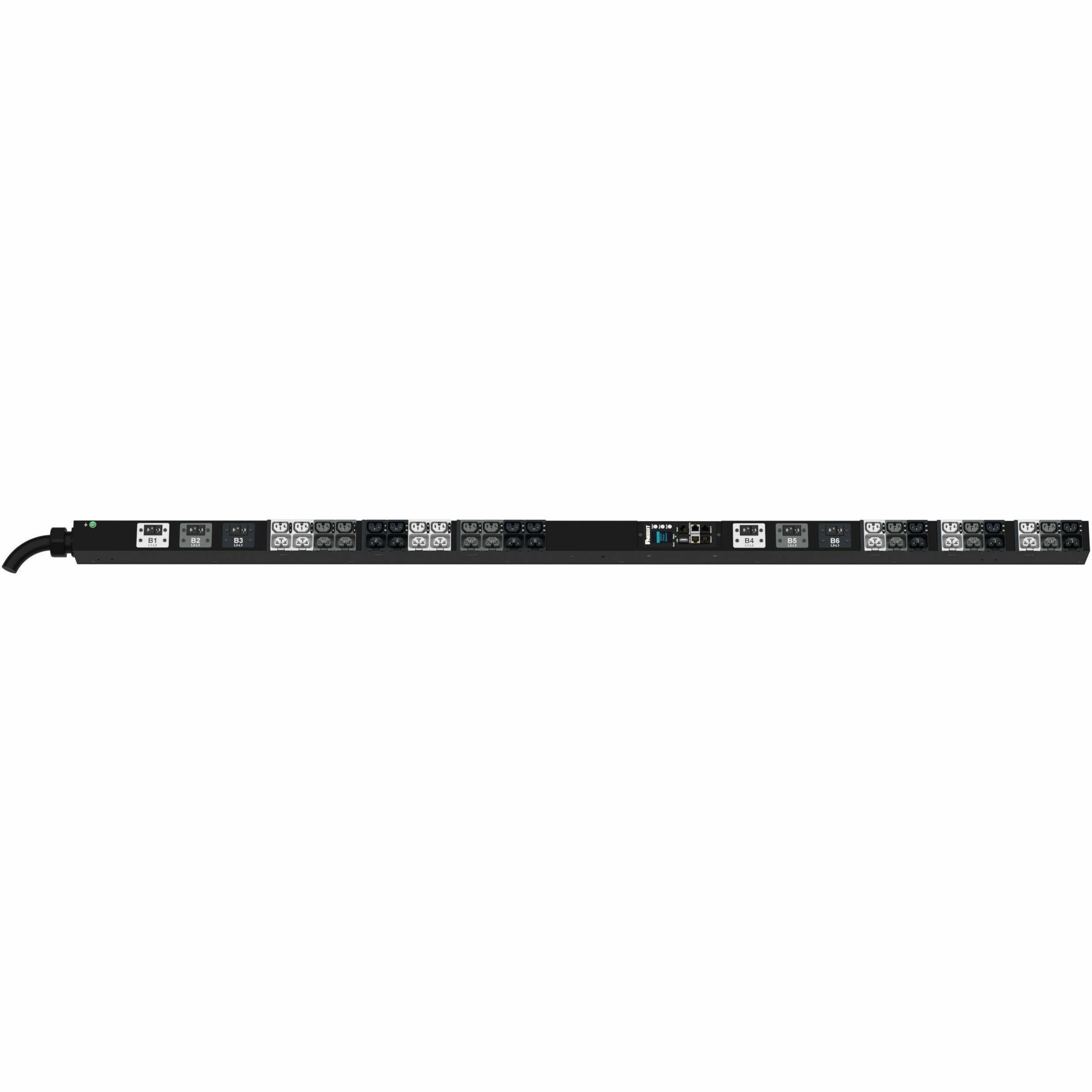

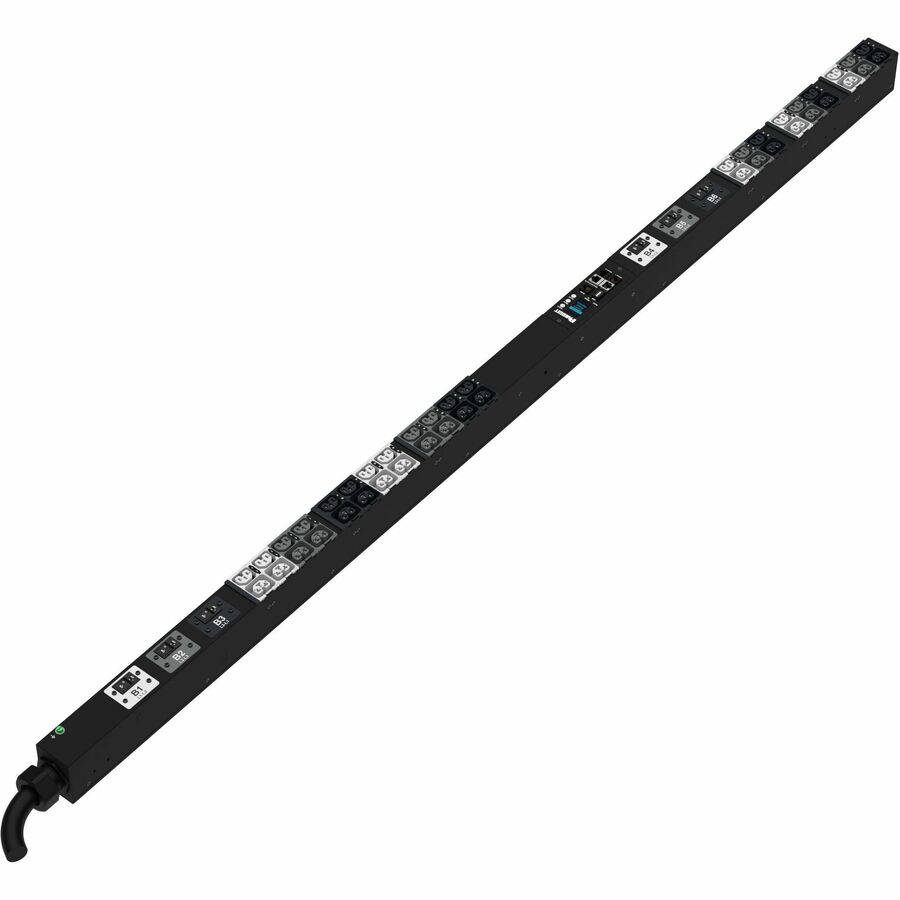

Panduit G6 MI PDU, 60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+E 9h

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P42D20G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 MI PDU, 60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+E 9h
Marketing Information	The Panduit G6 Monitored Input PDU features (21)C13/C15, (21)C13/C15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 60 amp 208V three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

Power Description

Input Voltage	208 V AC
Output Voltage	208 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	60 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	6
Voltage Measurement Accuracy	±1%
Power Measurement Accuracy	±1%
Current Measurement Accuracy	±1%

Management

SNMP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	G6 MI PDU, 60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+E 9h 1 x Mounting Hardware Kit
Application/Usage	IT Equipment Server Rack/Cabinet Data Center
Certifications & Standards	UL 62368-1 FCC Pat 15 Class A (USA) NOM (Mexico) RETIE (Colombia)
Country of Origin	India
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
