EL2P MSPO PDU 30 AMP NEMA L6-30 P-3MBLK PK1

Name: EL2P MSPO PDU 30 AMP NEMA L6-30 P-3MBLK PK1
Brand: PANDUIT POWER
SKU: Z23335
Price: 2846.9 USD
Availability: InStock

PANDUIT POWER

PCN#

Z23335

MFG#

E36G18L

$2,846.90

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

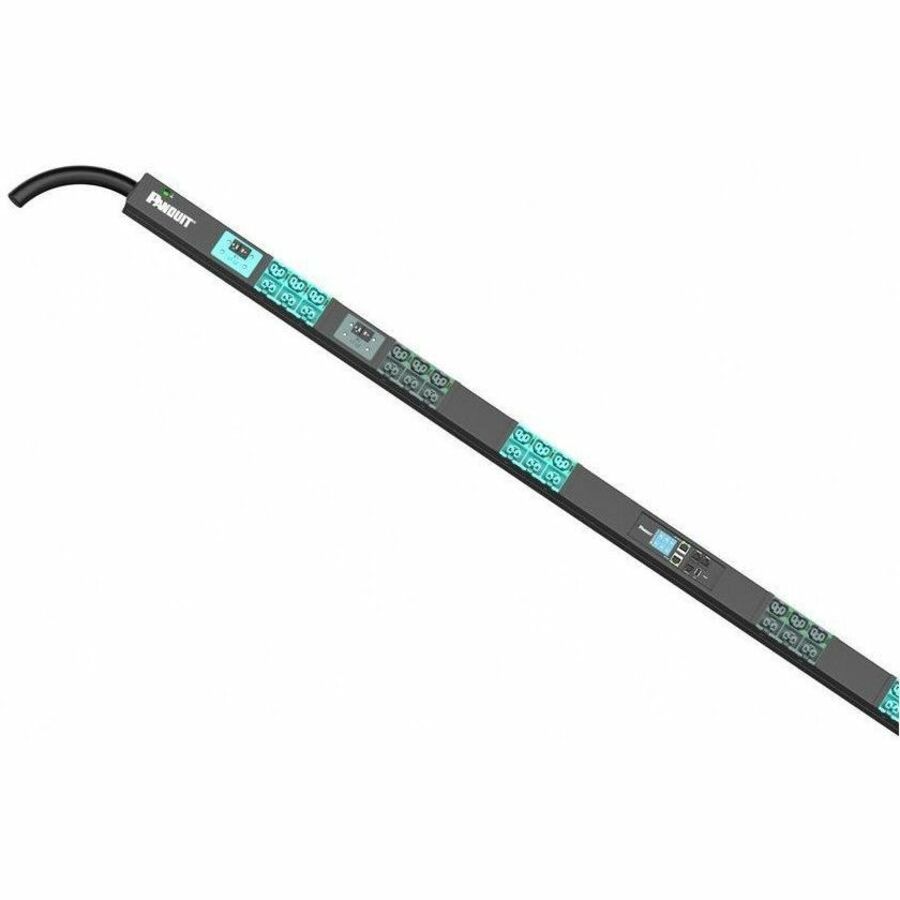

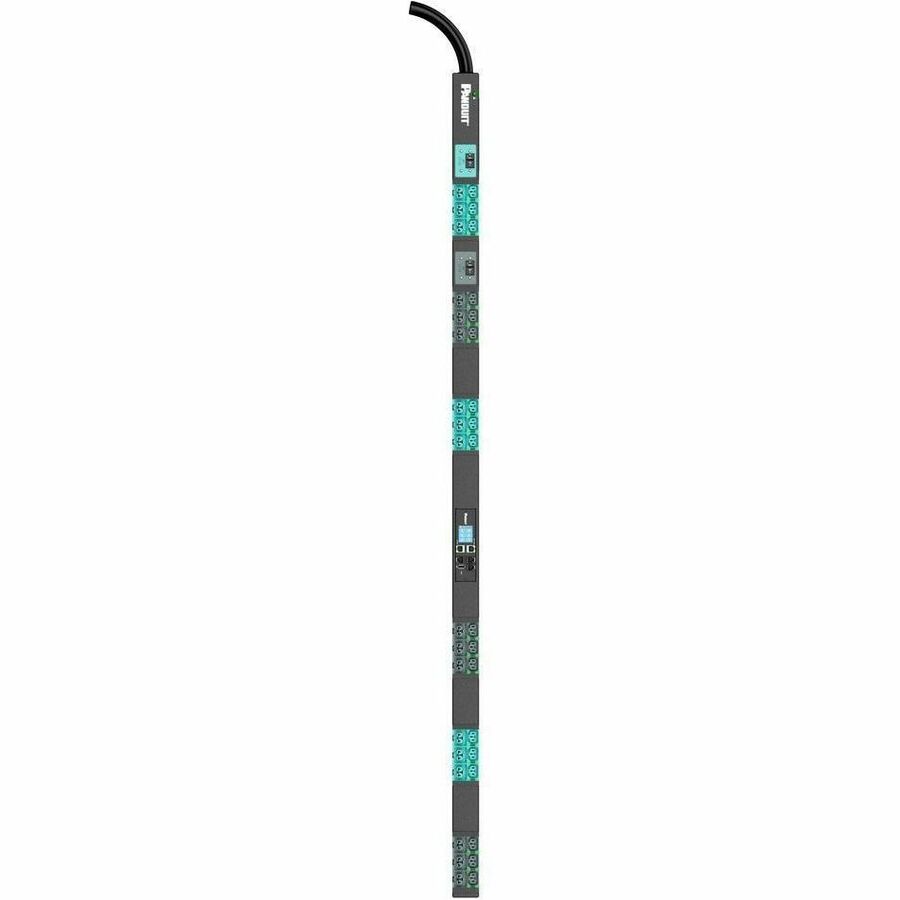

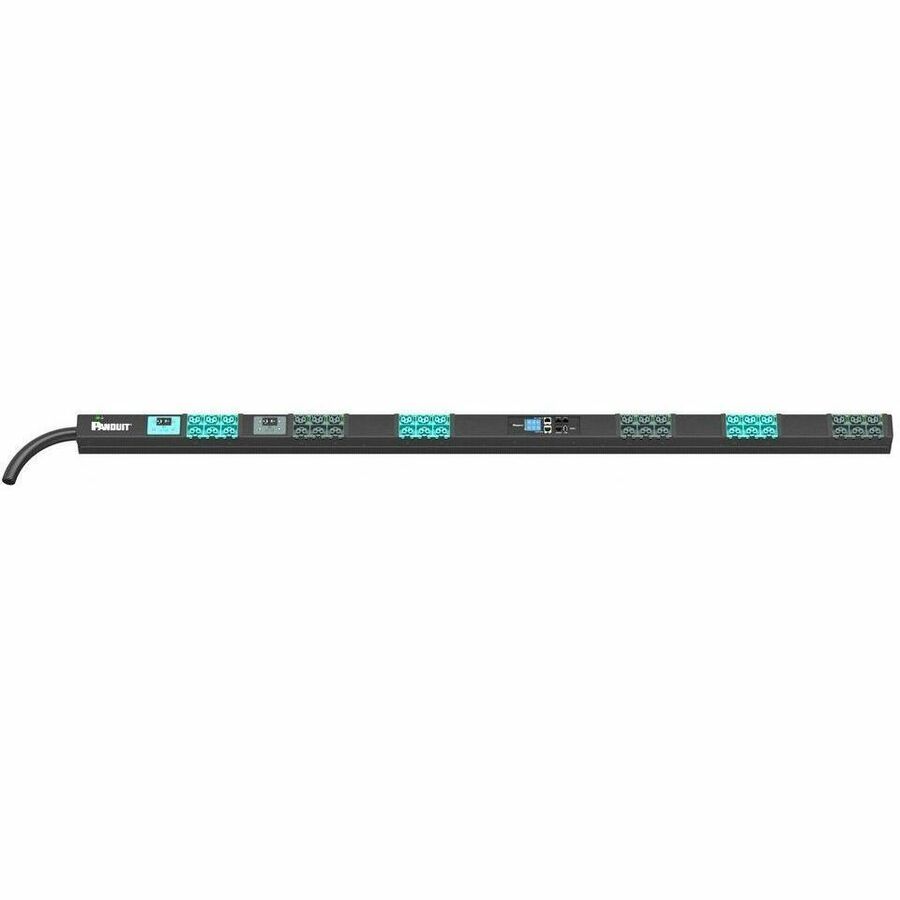

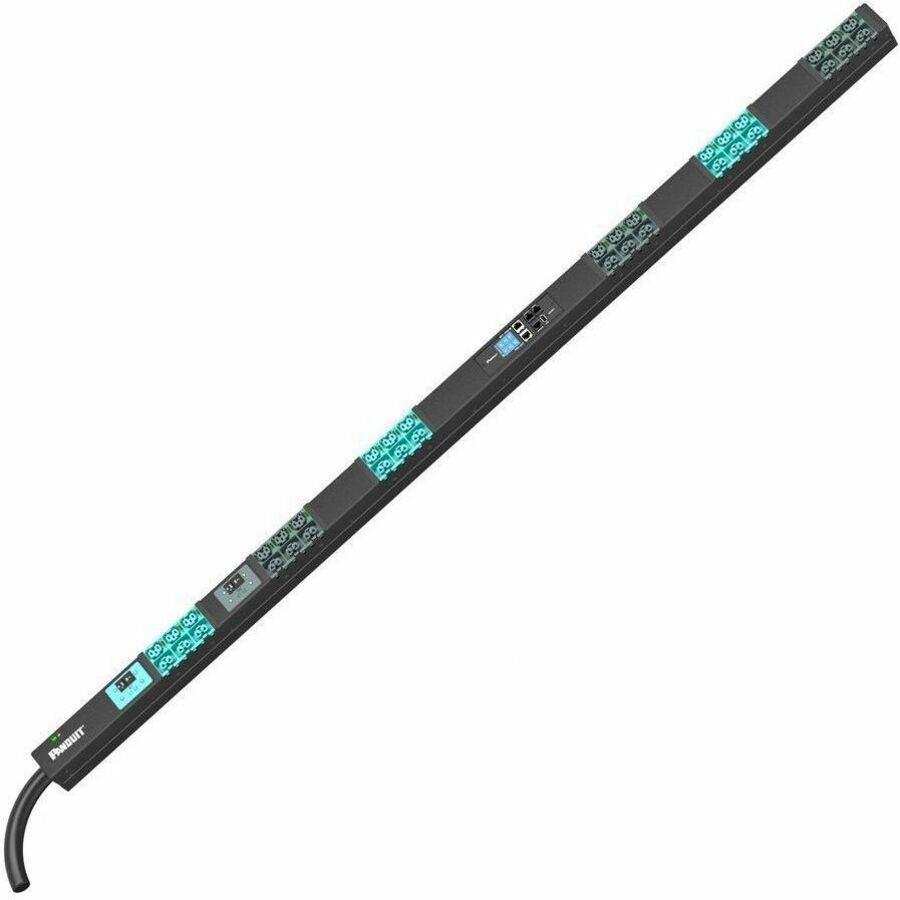

Panduit EL2P MSPO PDU, 30 AMP, 1 PH , 36 OUTLETS

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	E36G18L
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Name	EL2P MSPO PDU, 30 AMP, 1 PH , 36 OUTLETS
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Switched Outlet Monitored
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13/C15 IEC 60320 C13/C15/C19/C21
Receptacle Detail	18 x IEC 60320 C13/C15 18 x IEC 60320 C13/C15/C19/C21
Features	On/Off LED Onboard Display SNMP Compatible

Power Description

Output Voltage	208 V AC
Power Rating (VA)	5000 VA
Input Current	30 A
Circuit Breaker	Yes
Number of Circuit Breakers	2
Voltage Measurement Accuracy	±1%
Power Measurement Accuracy	±1%
Current Measurement Accuracy	±1%

Interfaces/Ports

Network Monitoring Port Detail

Gigabit network port reduces labor by auto negotiating with data center level network switches

Physical Characteristics

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	EL2P MSPO PDU, 30 AMP, 1 PH , 36 OUTLETS Mounting Hardware
Additional Information	Front Panel Display: Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device Network Card: Panduit EL2P Dual Gigabit Network Module Frequency Compatibility (Hz): 50/60
Certifications & Standards	CB & NRTL Certificate/Report
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	RoHS REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) China Restriction of Hazardous Substances (China RoHS)

Warranty

Limited Warranty

5 Year
