EL2P MSPO PDU 60 AMP IEC 60309 2P+E 6H 60A (IP44)-3MBLK PK1

Name: EL2P MSPO PDU 60 AMP IEC 60309 2P+E 6H 60A (IP44)-3MBLK PK1
Brand: PANDUIT POWER
SKU: Z23314
Price: 3584.35 USD
Availability: InStock

PANDUIT POWER

PCN#

Z23314

MFG#

E42G02L

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,584.35

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched Outlet Monitored
21 x IEC 60320 C13/C15, 21 x IEC 60320 C13/C15/C19/C21
9.84 ft Cord Length
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

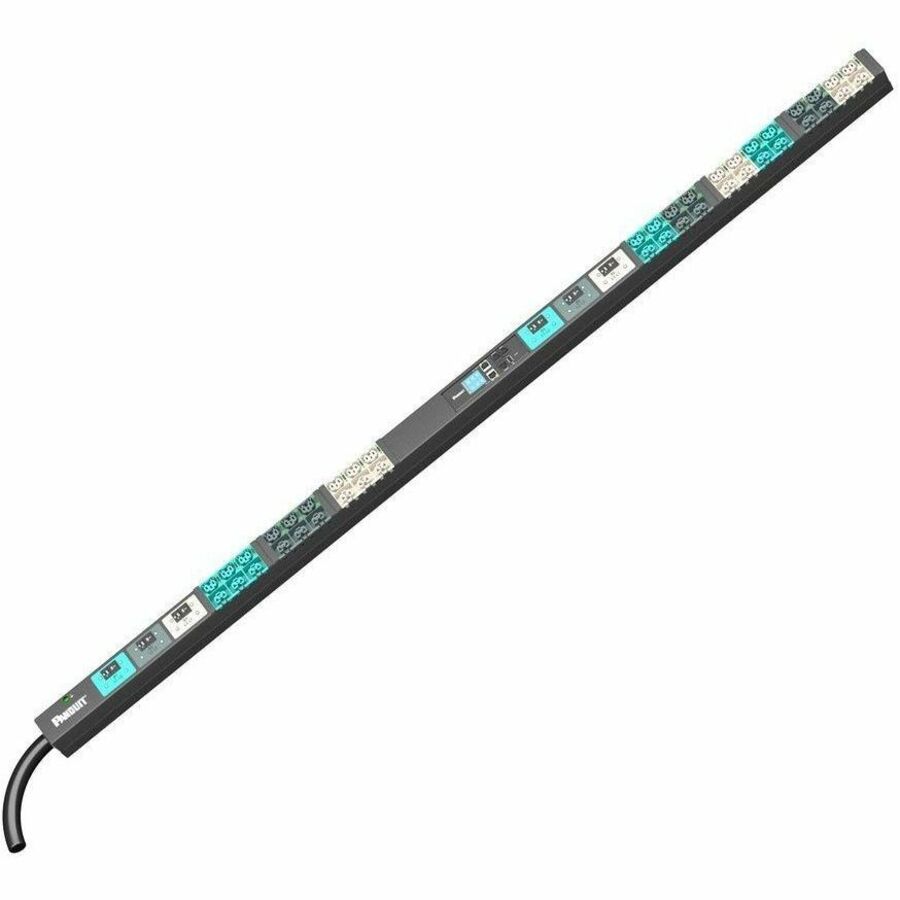

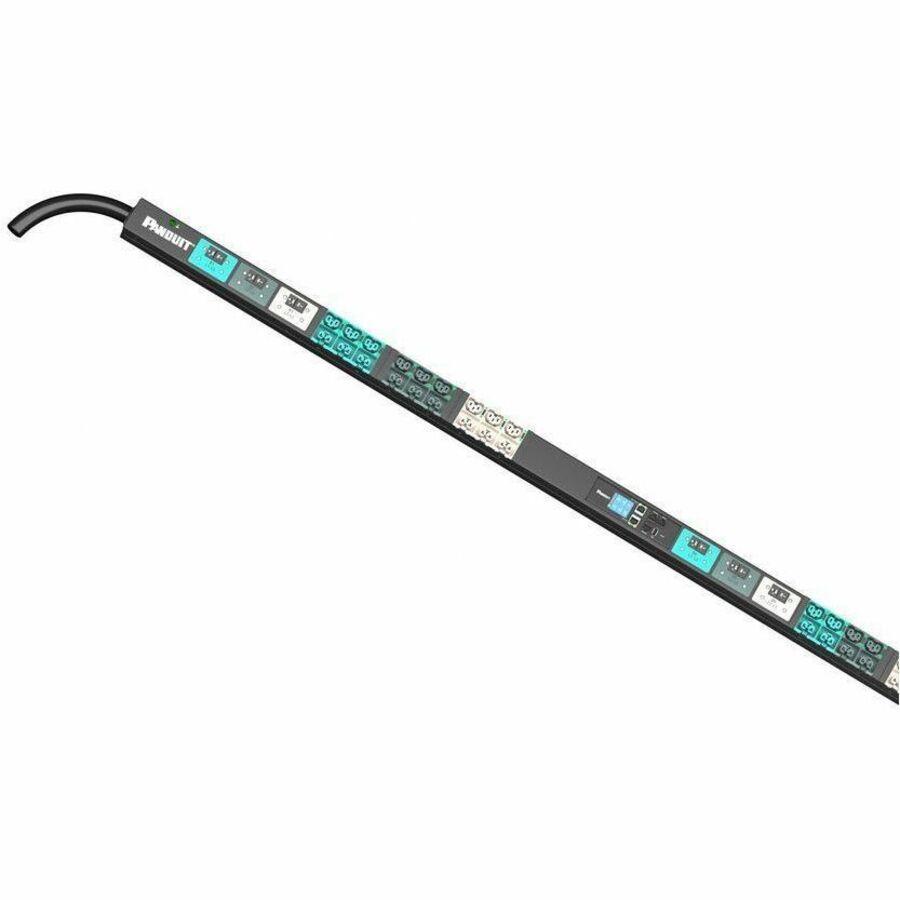

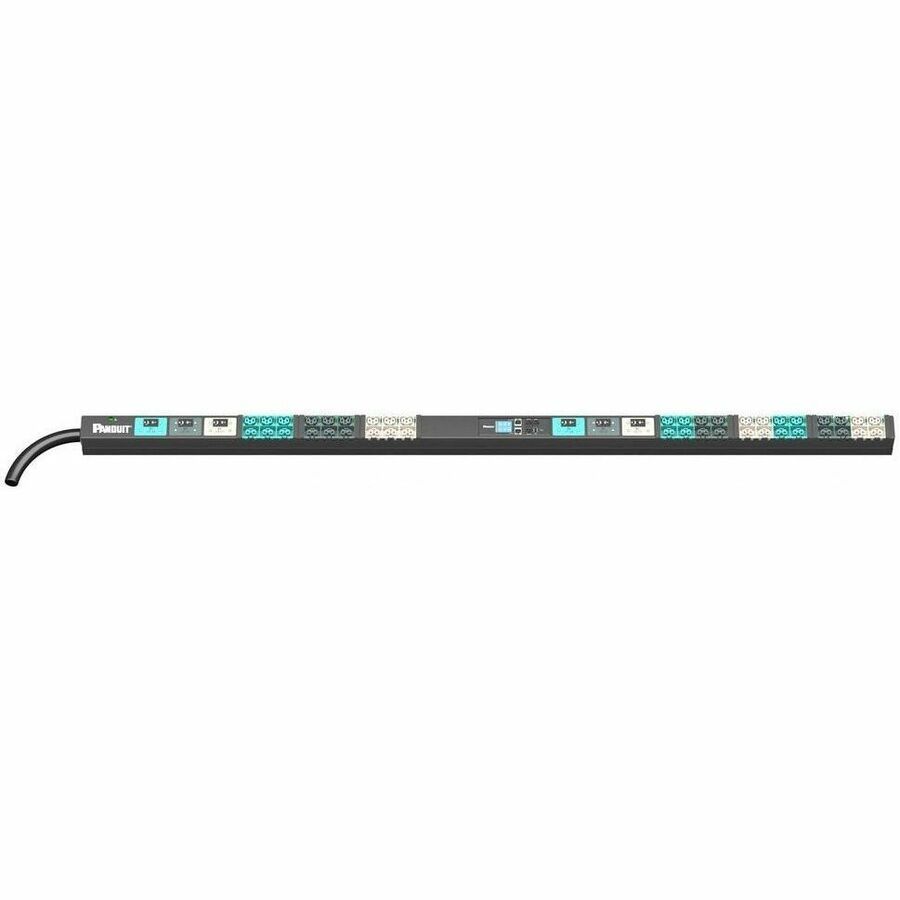

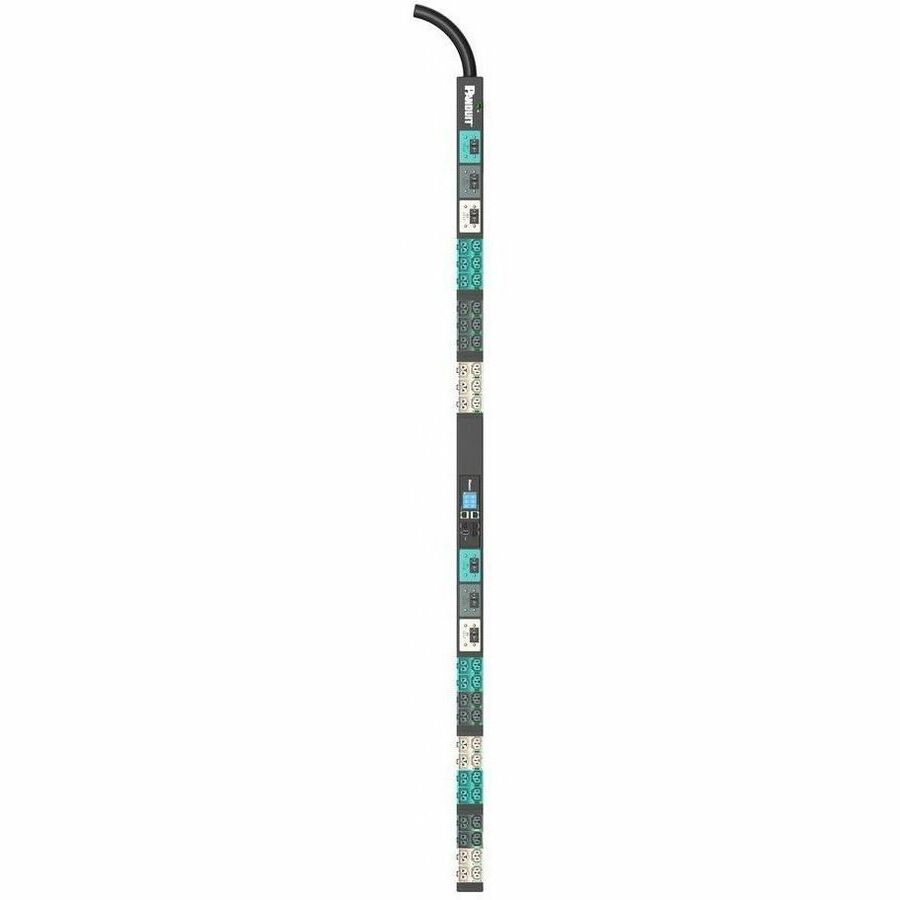

Panduit EL2P MSPO PDU, 60 AMP, 1 PH , 42 OUTLETS

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	E42G02L
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Name	EL2P MSPO PDU, 60 AMP, 1 PH , 42 OUTLETS
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Switched Outlet Monitored
Phase	Single Phase
Receptacle Type	IEC 60320 C13/C15/C19/C21 IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15 21 x IEC 60320 C13/C15/C19/C21
Features	Onboard Display On/Off LED SNMP Compatible

Power Description

Output Voltage	240 V AC
Power Rating (VA)	10000 VA
Input Current	60 A
Circuit Breaker	Yes
Number of Circuit Breakers	6
Voltage Measurement Accuracy	±1%
Power Measurement Accuracy	±1%
Current Measurement Accuracy	±1%

Interfaces/Ports

Network Monitoring Port Detail

Gigabit network port reduces labor by auto negotiating with data center level network switches

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Finishing	Powder Coated
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Cord Length	9.84 ft
Height	70"
Width	2"
Depth	3"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	EL2P MSPO PDU, 60 AMP, 1 PH , 42 OUTLETS Mounting Hardware
Additional Information	Front Panel Display: Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device Network Card: Panduit EL2P Dual Gigabit Network Module Frequency Compatibility (Hz): 50/60
Certifications & Standards	CB & NRTL Certificate/Report
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	REACH RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

5 Year
