BASIC PDU 415V 30 AMP (6)C19 PERFORATED 700MM X 45RU BLACK

Name: BASIC PDU 415V 30 AMP (6)C19 PERFORATED 700MM X 45RU BLACK
Brand: PANDUIT POWER
SKU: Z76374
Price: 876.44 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76374

MFG#

P06B04M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$876.44

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L22
30P
6 x IEC 60320 C19
415 V AC
Overload Protection
9.84 ft Cord Length
1U
Horizontal
Rack
mountable, Cabinet
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 21 lbs.

Panduit Basic PDU, 30AMP, 415V, (6)C19, NEMA L22-30P

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P06B04M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G5
Product Name	Basic PDU, 30AMP, 415V, (6)C19, NEMA L22-30P

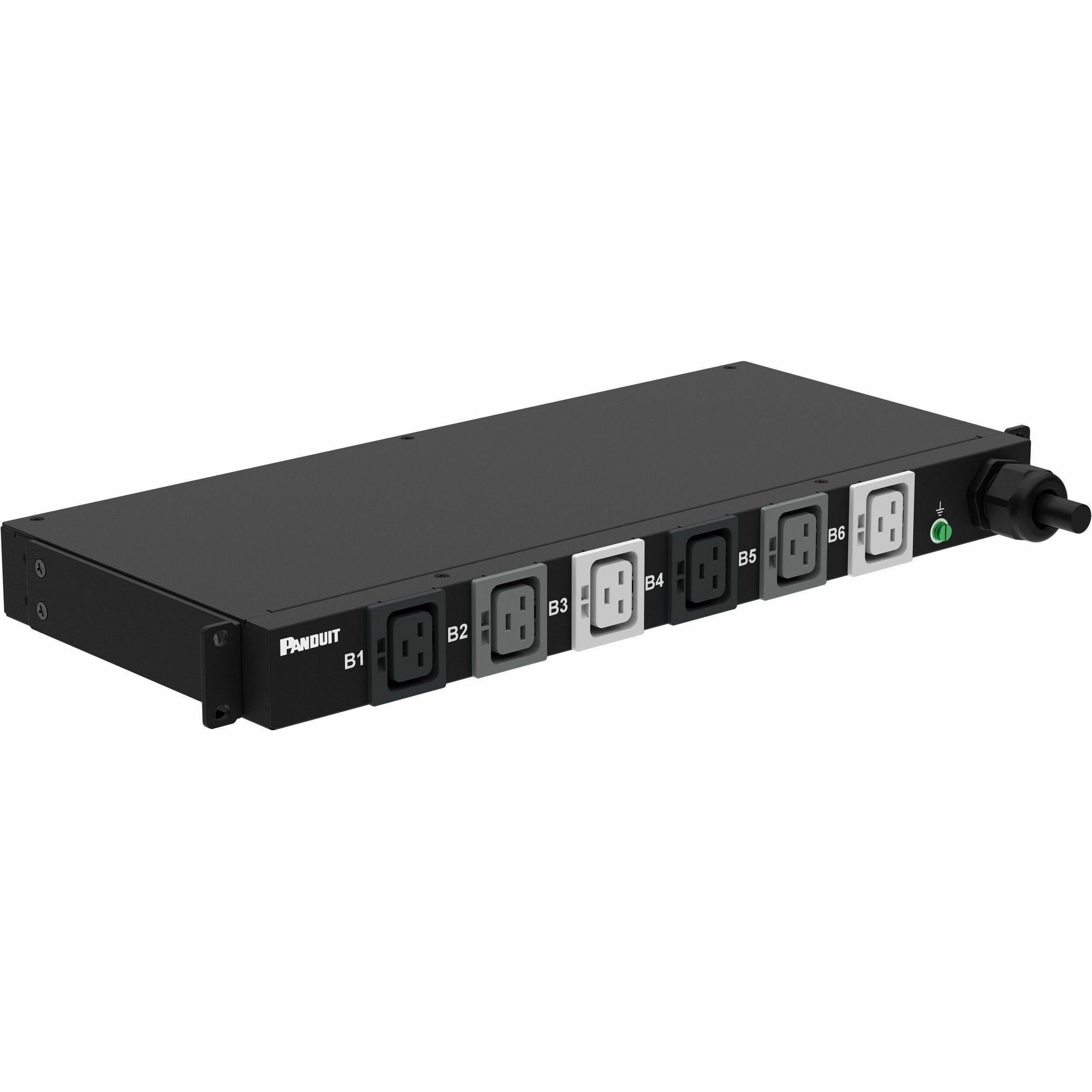

Marketing Information	This Panduit G5 Basic PDU features (6) C19 outlets. It is a 30 amp, 415 V, three phase PDU with a NEMA L22-30P input plug and a 10 foot (3m) power cord. The PDU is black.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Three Phase
Plug/Connector Type	NEMA L22-30P
Receptacle Type	IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C19
Protection Type	Overload Protection
Locking Receptacles	IEC 60320 C19
Load Capacity (VA)	17.30 kW

Power Description

Input Voltage	415 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	9.84 ft
Height	1.7"
Width	17.5"
Depth	10.6"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	Data Center Server Rack/Cabinet IT Equipment
Certifications & Standards	UL CB CE
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
