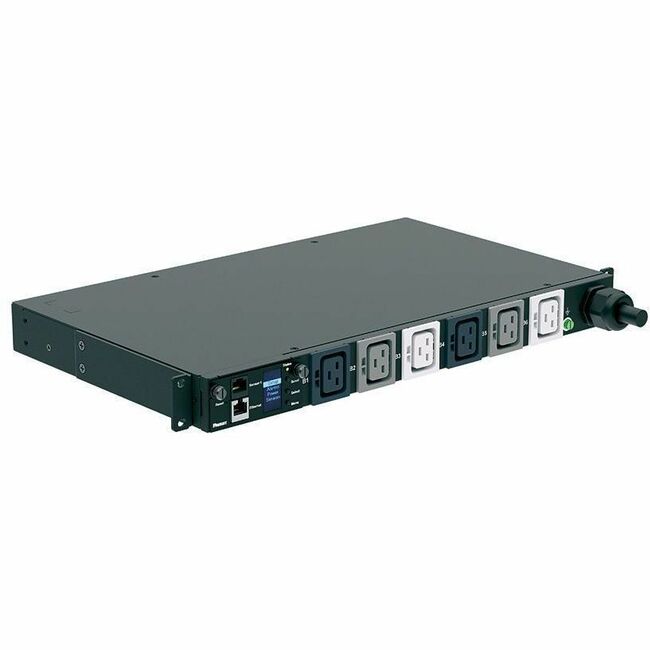

MI PDU 32AMP (6)C19 IEC 6030 PERFORATED 800MM X 42RU WHITE

Name: MI PDU 32AMP (6)C19 IEC 6030 PERFORATED 800MM X 42RU WHITE
Brand: PANDUIT POWER
SKU: Z76404
Price: 1209.03 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76404

MFG#

P06D39M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,209.03

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored
IEC 60309 3P+N+E 6h (IP44)
6 x IEC 60320 C19
230 V, 415 V AC
Overload Protection
Network (RJ
45)
9.84 ft Cord Length
1U
Horizontal
Rack
mountable, Cabinet
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 20 lbs.

Panduit MI PDU, 32AMP, 400V, (6)C19, IEC 60309 3P+N+E 6h 32A (IP44)

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P06D39M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G5
Product Name	MI PDU, 32AMP, 400V, (6)C19, IEC 60309 3P+N+E 6h 32A (IP44)
Marketing Information	This Panduit G5 Monitored Input PDU features (6) C19 outlets. It is a 32 amp, 400 V, three phase PDU with an IEC 60309 3P+N+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+E 6h (IP44)
Receptacle Type	IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C19
Protection Type	Overload Protection
Locking Receptacles	IEC 60320 C19
Features	LED Display
Load Capacity (VA)	22 kW

Power Description

Input Voltage	230 V 415 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	32 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	6

Management

SNMP v3
TLS

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	9.84 ft
Height	1.7"
Width	17.5"
Depth	10.6"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	Data Center Server Rack/Cabinet IT Equipment
Certifications & Standards	UL CB CE EAC
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
