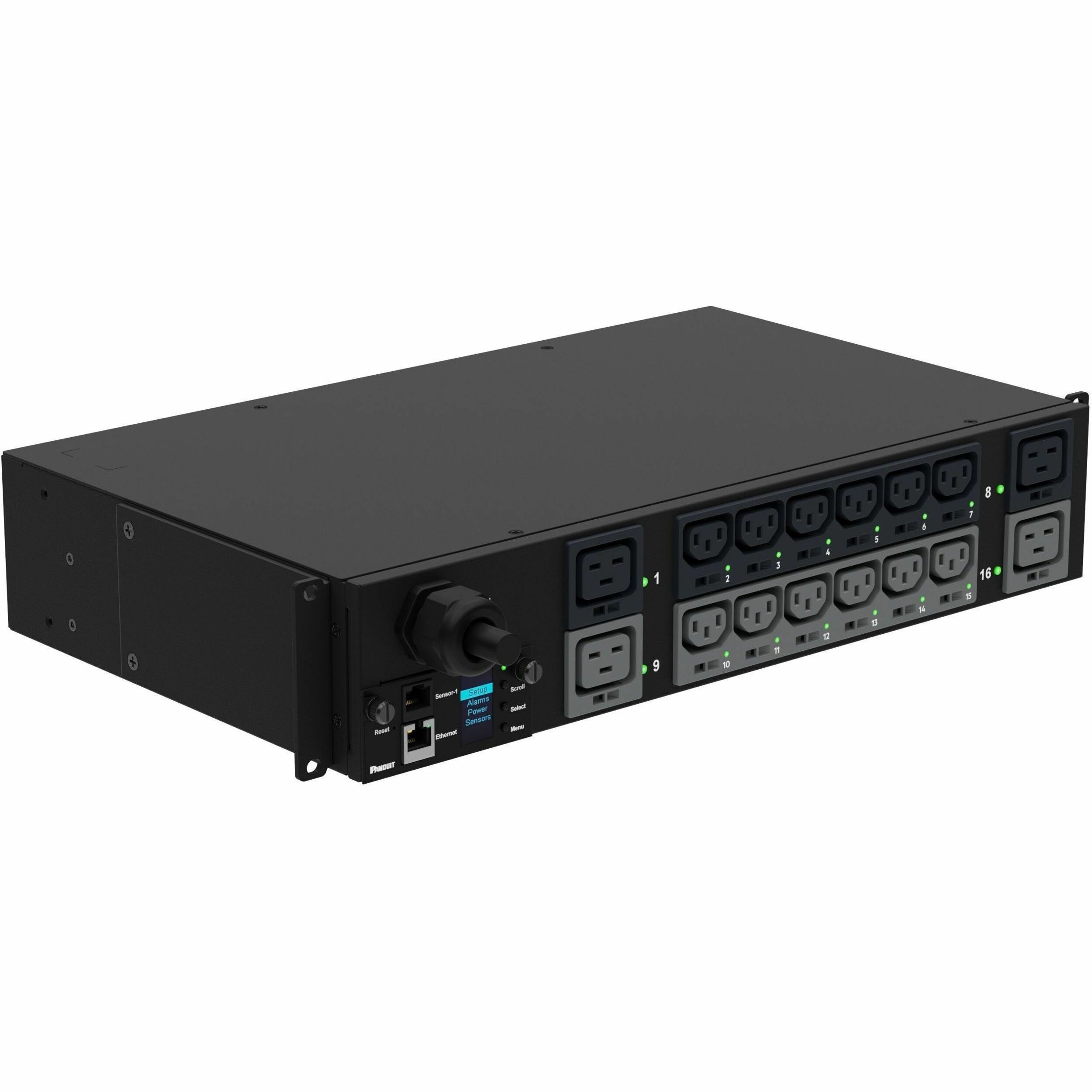

MS PDU 32AMP (12)C13 (4)C19 ERFORATED 600MM X 42RU WHITE

Name: MS PDU 32AMP (12)C13 (4)C19 ERFORATED 600MM X 42RU WHITE
Brand: PANDUIT POWER
SKU: Z76430
Price: 1437.95 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76430

MFG#

P16E26M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,437.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored, Switched
IEC 60309 2P+E 6h 32A (IP44)
12 x IEC 60320 C13, 4 x IEC 60320 C19
120 V AC, 230 V AC
Overload Protection
Network (RJ
45)
9.84 ft Cord Length
2U
Horizontal
Rack
mountable, Cabinet
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 20 lbs.

Panduit MS PDU, 32AMP, 230V, (12)C13, (4)C19, IEC 60309 2P+E 6h 32A (IP44)

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P16E26M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G5
Product Name	MS PDU, 32AMP, 230V, (12)C13, (4)C19, IEC 60309 2P+E 6h 32A (IP44)
Marketing Information	This Panduit Monitored Switched PDU features (12) C13 and (4) C19 outlets. It is a 32 amp, 230 V, single phase PDU with an IEC 60309 2P+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Monitored Switched
Phase	Single Phase
Plug/Connector Type	IEC 60309 2P+E 6h 32A (IP44)
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 4 x IEC 60320 C19
Protection Type	Overload Protection
Locking Receptacles	IEC 60320 C13 IEC 60320 C19
Load Capacity (VA)	7400 W

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	32 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	2

Management

SNMP v3
TLS

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	9.84 ft
Height	3.4"
Width	17.5"
Depth	10.6"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	Data Center Server Rack/Cabinet IT Equipment
Certifications & Standards	UL CB CE EAC
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
