BASIC PDU 415V 30 AMP (12)C13 ( ERFORATED 700MM X 42RU WHITE

Name: BASIC PDU 415V 30 AMP (12)C13 ( ERFORATED 700MM X 42RU WHITE
Brand: PANDUIT POWER
SKU: Z76435
Price: 1218.81 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76435

MFG#

P24B03M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,218.81

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
IEC 60309 3P+N+E 6h 30A (IP44)
12 x IEC 60320 C13, 12 x IEC 60320 C19
415 V AC
10 ft Cord Length
0U
Rack
mountable
Full

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 21 lbs.

Panduit Basic PDU, 30AMP, 415V, (12)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44)

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P24B03M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G5
Product Name	Basic PDU, 30AMP, 415V, (12)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44)

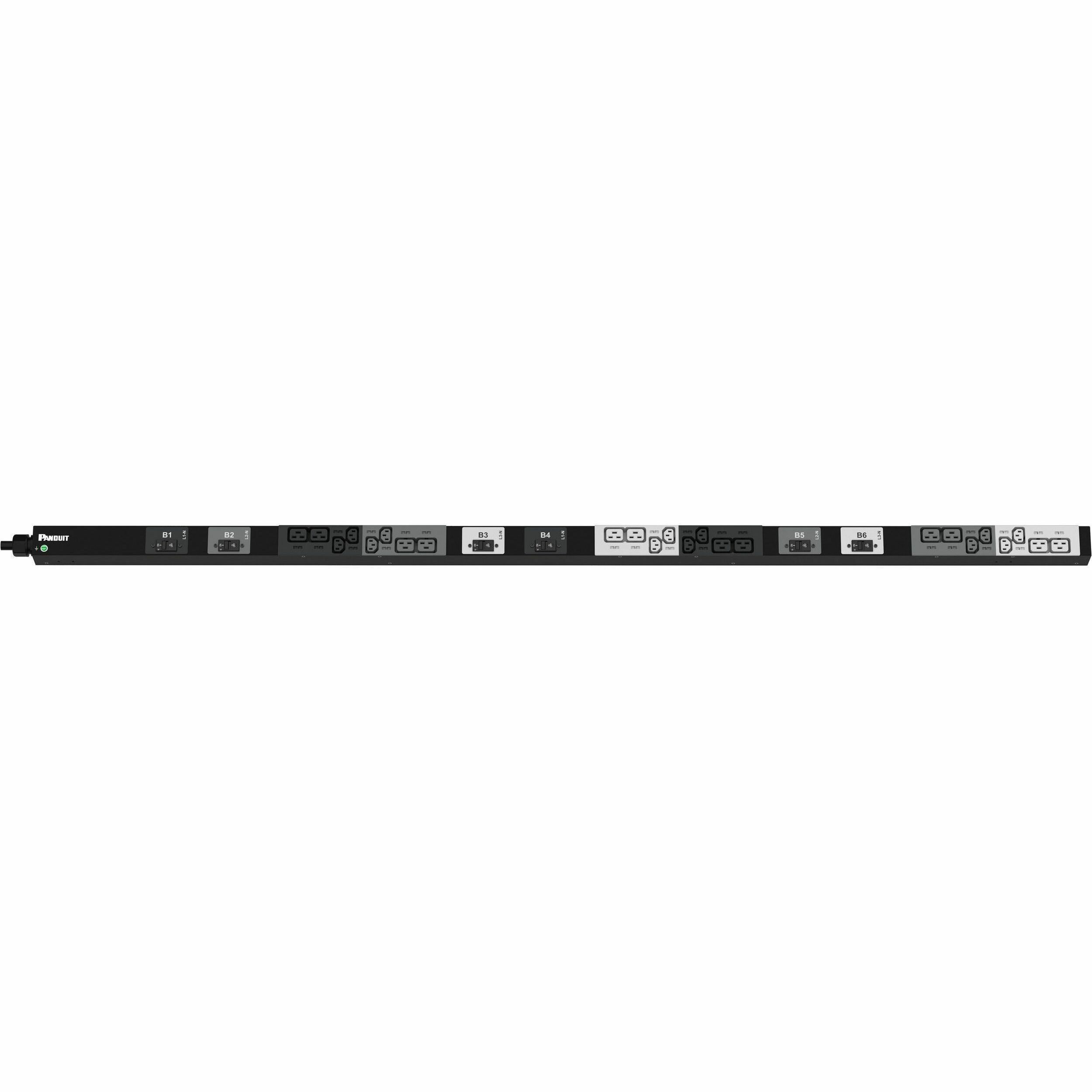

Marketing Information	This Panduit G5 Basic PDU features (12) C13 and (12) C19 outlets. It is a 30 amp, 415 V, three phase PDU with an IEC 60309 3P+N+E 6h 30A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+E 6h 30A (IP44)
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 12 x IEC 60320 C19
Load Capacity (VA)	17.30 kW

Power Description

Input Voltage	415 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mount Type	Rack-mountable
Form Factor	Full
Rack Height	0U
Cord Length	10 ft
Height	69"
Width	2"
Depth	2.1"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	Data Center IT Equipment Server Rack/Cabinet
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
