G6 MI PDU 60AMP(12)C13(12)C19 I ERFORATED 700MM X 51RU BLACK

Name: G6 MI PDU 60AMP(12)C13(12)C19 I ERFORATED 700MM X 51RU BLACK
Brand: PANDUIT POWER
SKU: Z76433
Price: 2272.83 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76433

MFG#

P24D34G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,272.83

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored
IEC 60309 3P+E 9H 60A
12 x IEC 60320 C13, 12 x IEC 60320 C19
230 V AC
Network (RJ
45)
10 ft Cord Length
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 31 lbs.

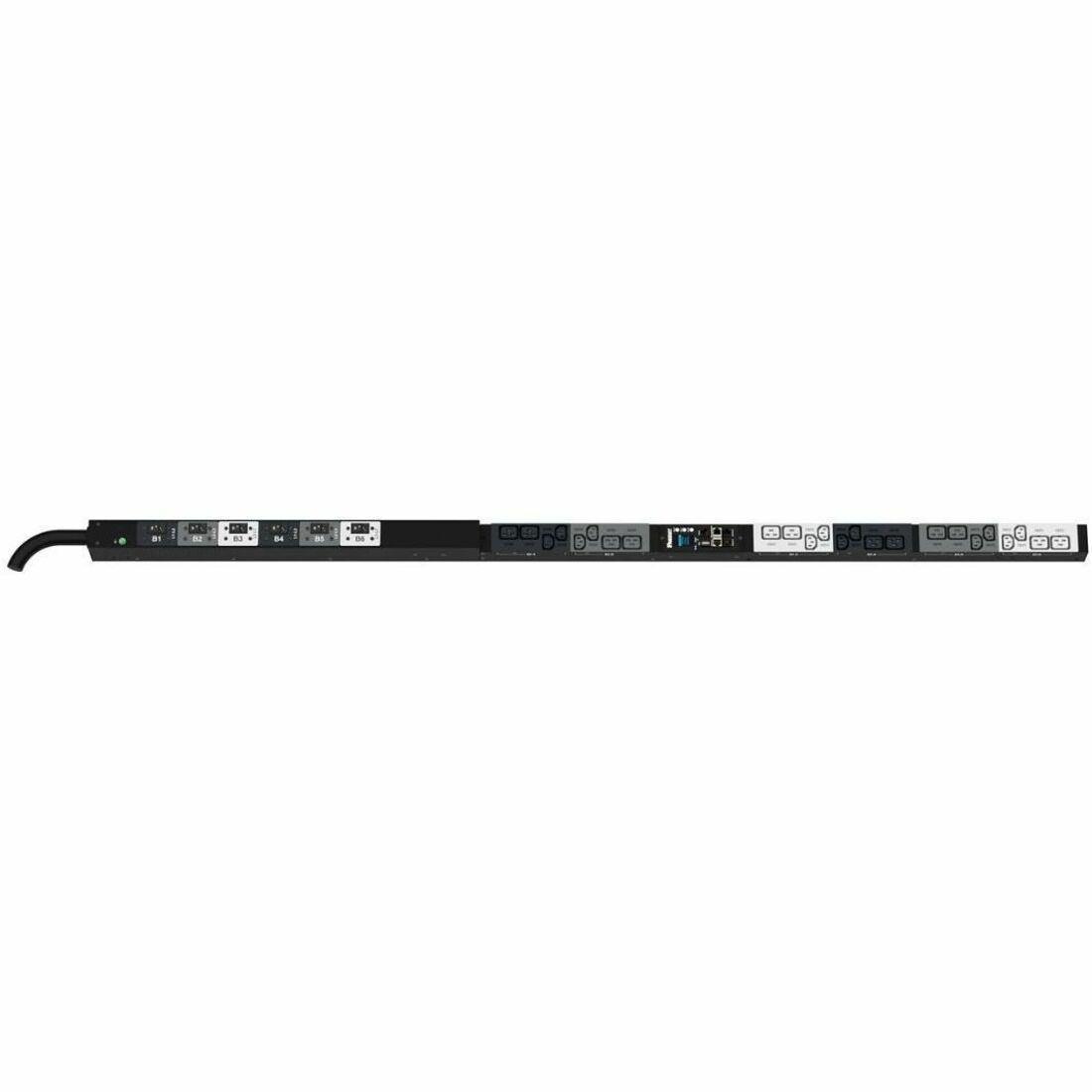

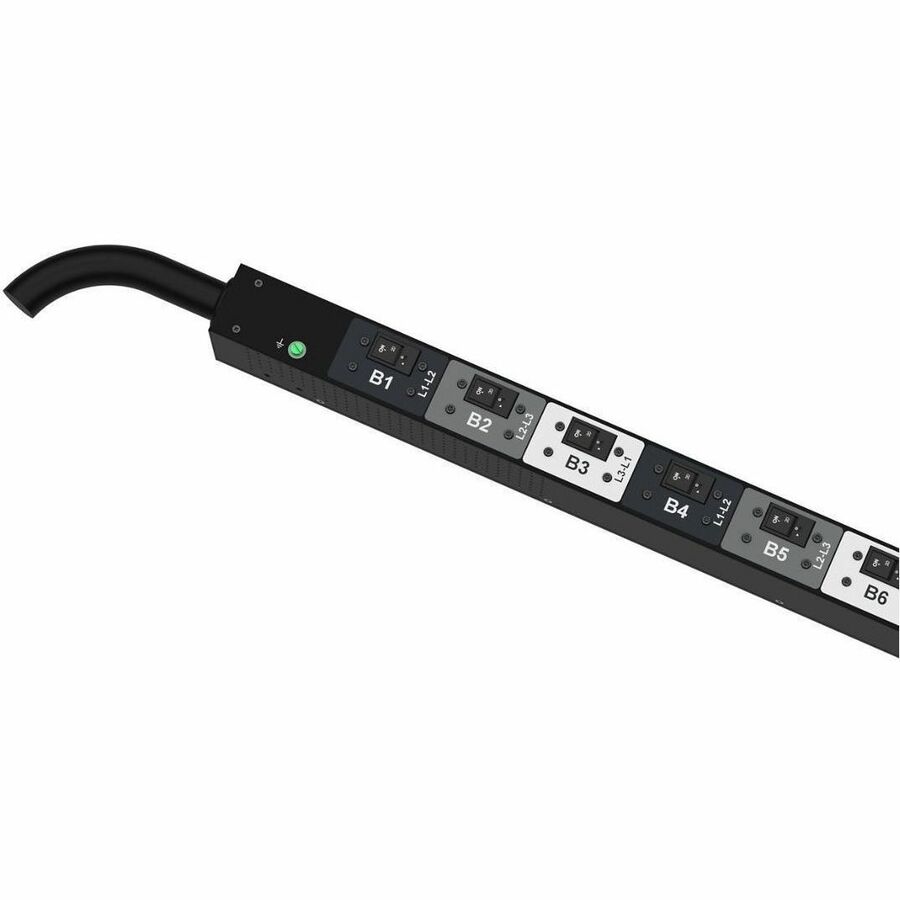

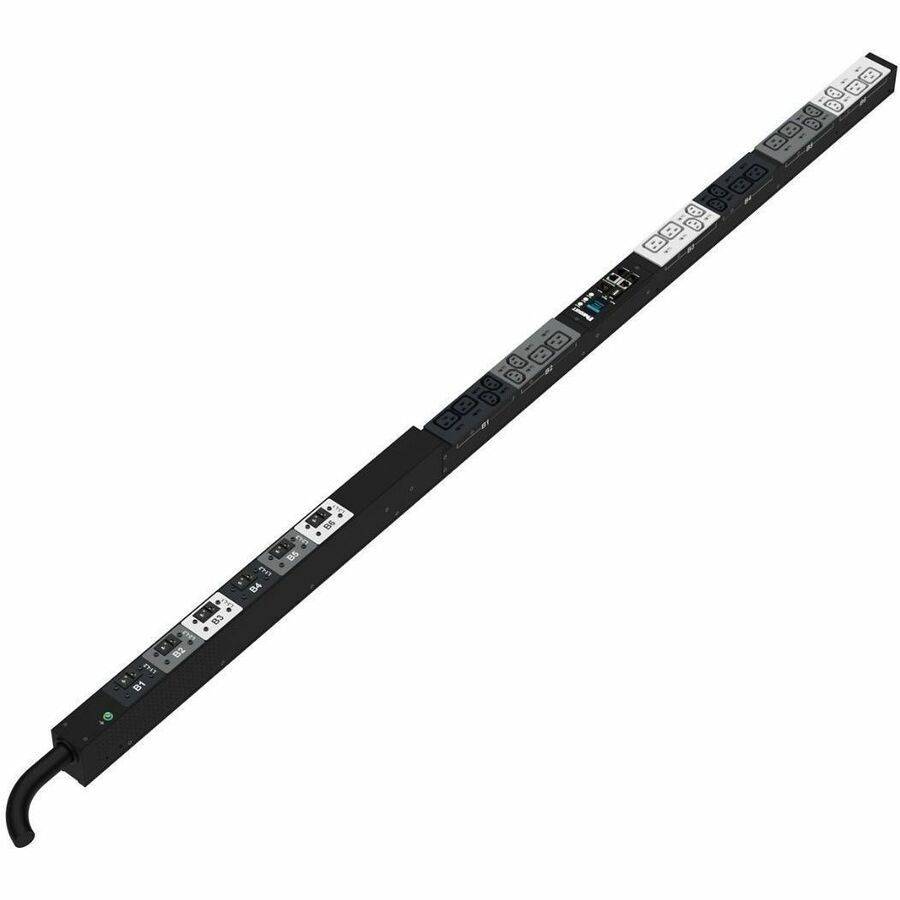

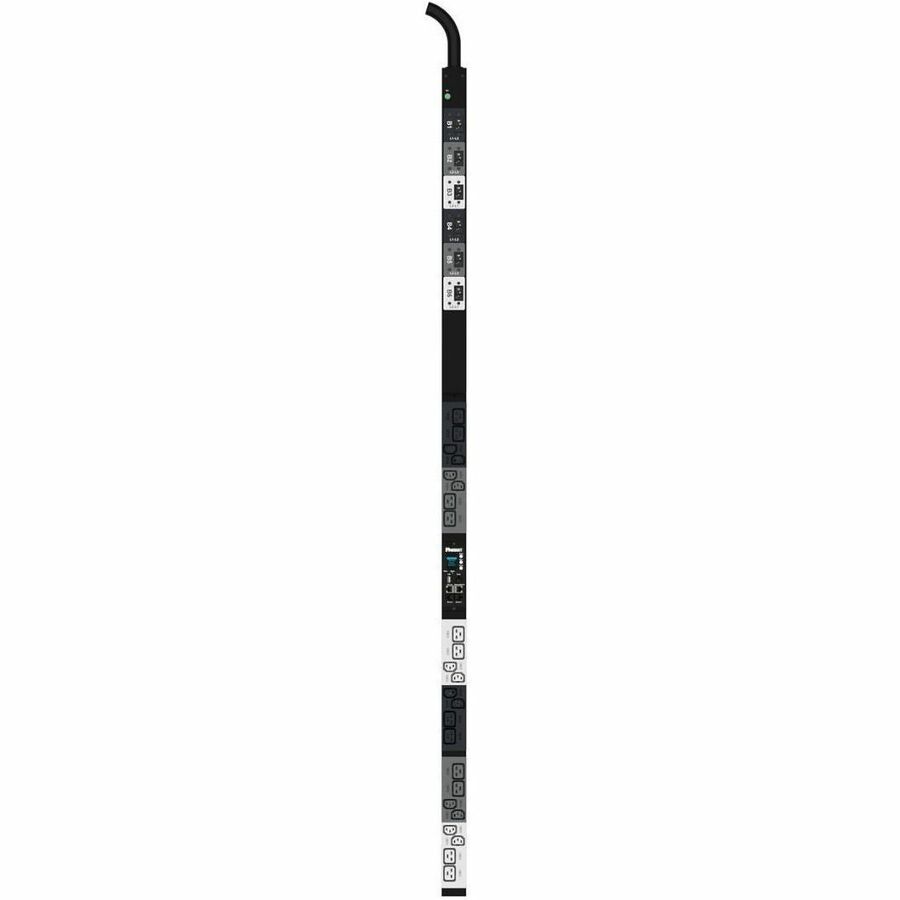

Panduit G6 24-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P24D34G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 24-Outlets PDU
Marketing Information	The best just got better. The G6 iPDU is more than a power distribution unit and energy monitoring device. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. The iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Panduit's full range of G6 iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+E 9H 60A
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 12 x IEC 60320 C19
Features	Onboard Display
Load Capacity (VA)	17.30 kW

Power Description

Input Voltage	230 V AC
Input Voltage Range	120 V AC - 240 V AC
Output Voltage	208 V AC
Input Current	60 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	6

Management

SNMP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Cord Length	10 ft
Height	69"
Width	2"
Depth	2.1"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	24.8°F (-4°C)
Maximum Storage Temperature	284°F (140°C)

Miscellaneous

Package Contents	G6 24-Outlets PDU Mounting Hardware
Application/Usage	Data Center IT Equipment
Certifications & Standards	UL Listed USGv6 Certified IPV6
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
