G6 MI PDU 32AMP(12)C13(12)C19 I ERFORATED 700MM X 52RU BLACK

Name: G6 MI PDU 32AMP(12)C13(12)C19 I ERFORATED 700MM X 52RU BLACK
Brand: PANDUIT POWER
SKU: Z76458
Price: 1477.97 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76458

MFG#

P24D43G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,477.97

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored
IEC 60309 3P+N+E 6h 32A (IP44)
12 x IEC 60320 C19, 12 x IEC 60320 C13
230 V AC, 415 V AC
10 ft Cord Length
0U
Vertical
Rack
mountable
Rack, Vertical

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 21 lbs.

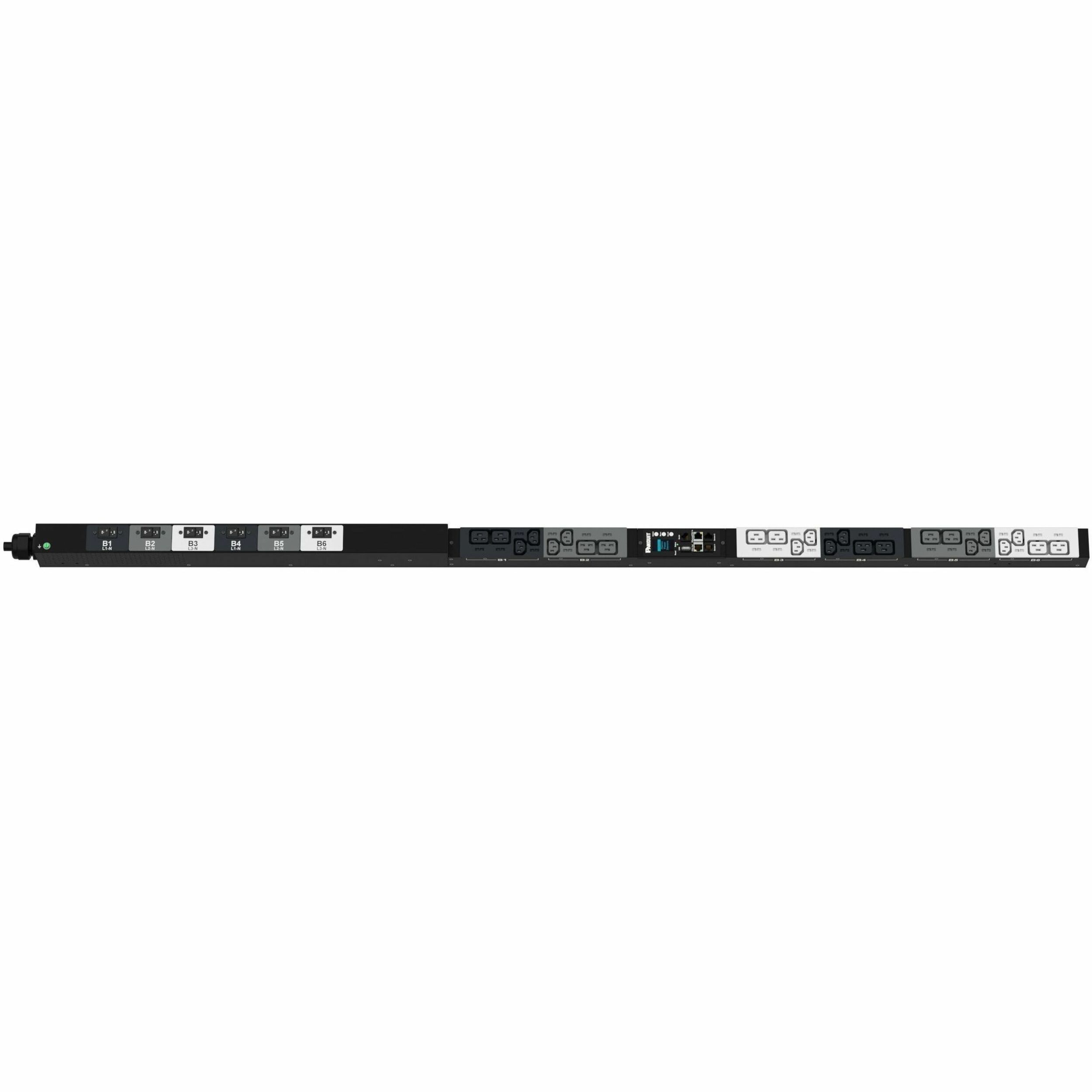

Panduit G6 MI PDU, 32AMP, (12)C13, (12)C19, IEC 60309 3P+N+E 6h

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P24D43G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 MI PDU, 32AMP, (12)C13, (12)C19, IEC 60309 3P+N+E 6h
Marketing Information	The Panduit G6 Monitored Input PDU features (12) C13 and (12) C19 outlets. It is a 32 amp, 400 V, three phase PDU with an IEC 60309 3P+N+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+E 6h 32A (IP44)
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C19 12 x IEC 60320 C13
Load Capacity (VA)	22 kW

Power Description

Input Voltage	230 V AC 415 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	32 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	6

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack Vertical
Rack Height	0U
Cord Length	10 ft
Height	69"
Width	2"
Depth	2.1"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	IT Equipment Server Rack/Cabinet Data Center
Certifications & Standards	CE UKCA
Country of Origin	China
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
