G6 MI PDU 10KW 50AMP(30)C13(6)C 600 X 42RU WHITE

by
PANDUIT POWER
PCN#
Z76470
MFG#
P36D29G

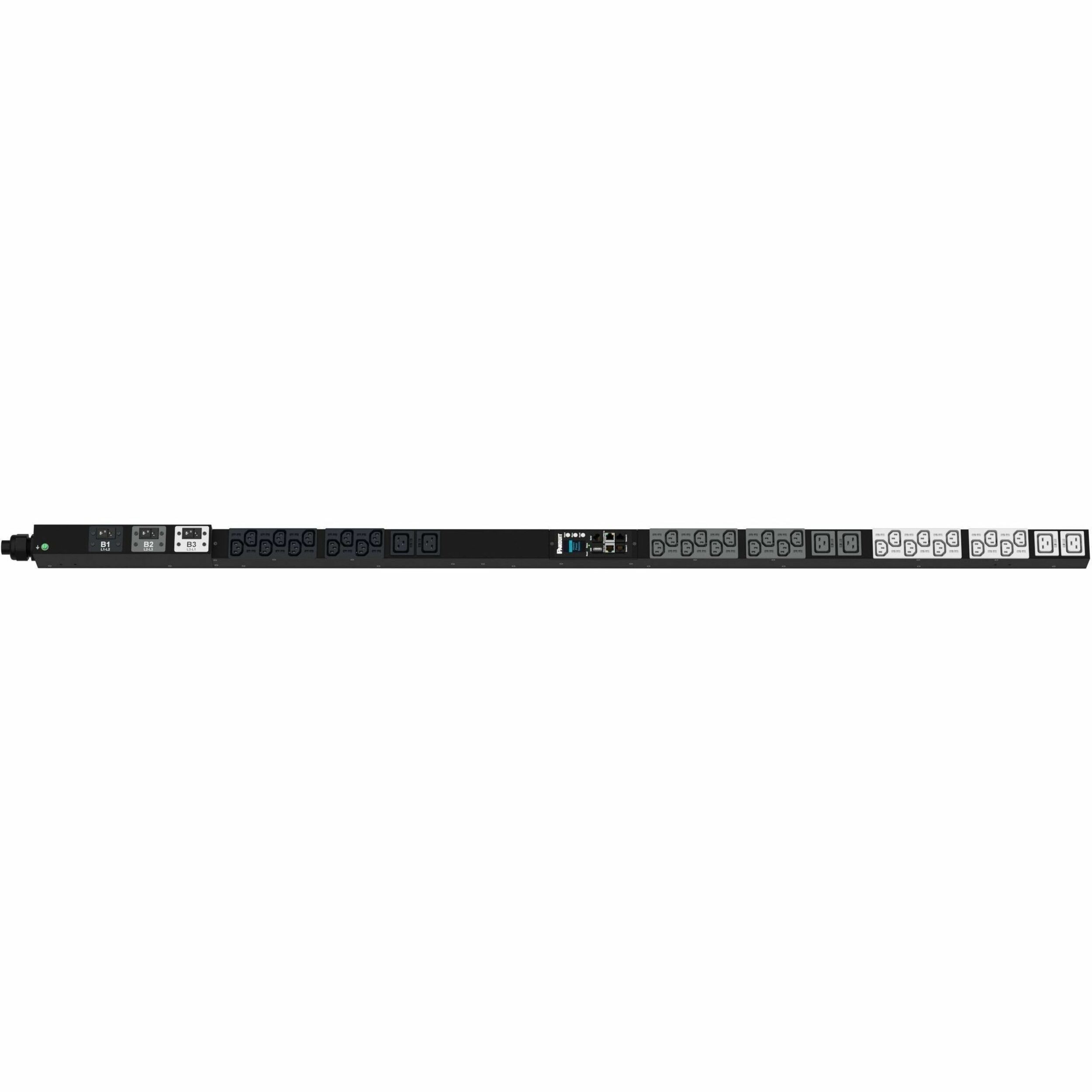

main product photo
fotorama-image
$1,994.72
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored
  • CS8365
  • 30 x IEC 60320 C13, 6 x IEC 60320 C19

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration
Shipping Weight: 23 lbs.
Panduit G6 MI PDU, 10KW, 50AMP, (30)C13, (6)C19, CS8365
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

P36D29G

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Series

G6

Product Name

G6 MI PDU, 10KW, 50AMP, (30)C13, (6)C19, CS8365

Marketing Information

The Panduit G6 Monitored Input PDU features (30) C13 and (6) C19 outlets. It is a 50 amp, 208 V, three phase PDU with a CS8365 input plug and a 10 foot (3m) power cord. The PDU is black.

Packaged Quantity

1 Piece

Product Type

PDU
Technical Information

PDU Type

Monitored

Phase

Three Phase

Plug/Connector Type

CS8365

Receptacle Type

  • IEC 60320 C13
  • IEC 60320 C19

Receptacle Detail

  • 30 x IEC 60320 C13
  • 6 x IEC 60320 C19

Features

LCD Display

Load Capacity (VA)

10 kW
Power Description

Input Voltage

  • 415 V AC
  • 230 V AC

Output Voltage

230 V AC

Output Voltage Range

120 V AC - 240 V AC

Input Current

50 A

Input Frequency

60 Hz

Circuit Breaker

Yes

Number of Circuit Breakers

3

Voltage Measurement Accuracy

±1%

Power Measurement Accuracy

±1%

Current Measurement Accuracy

±1%
Management

Management

SNMP

Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Form Factor

  • Rack
  • Full

Rack Height

0U

Cord Length

10 ft

Height

69"

Width

2"

Depth

2.1"
Environmental Conditions

Minimum Operating Temperature

50°F (10°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

-4°F (-20°C)

Maximum Storage Temperature

140°F (60°C)
Miscellaneous

Package Contents

  • G6 MI PDU, 10KW, 50AMP, (30)C13, (6)C19, CS8365
  • 1 x Mounting Hardware Kit

Application/Usage

  • IT Equipment
  • Server Rack/Cabinet
  • Data Center

Certifications & Standards

  • UL 62368-1
  • FCC Pat 15 Class A (USA)
  • NOM (Mexico)
  • RETIE (Colombia)

Country of Origin

India

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty

Limited Warranty

5 Year

Additional Warranty Information

Three-year default warranty plus two free years upon online registration
