G6 MI PDU 32AMP(36)C13(6)C19 IE 1070MM WHITE

Name: G6 MI PDU 32AMP(36)C13(6)C19 IE 1070MM WHITE
Brand: PANDUIT POWER
SKU: Z76479
Price: 1549.06 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76479

MFG#

P42D06G

$1,549.06

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 20 lbs.

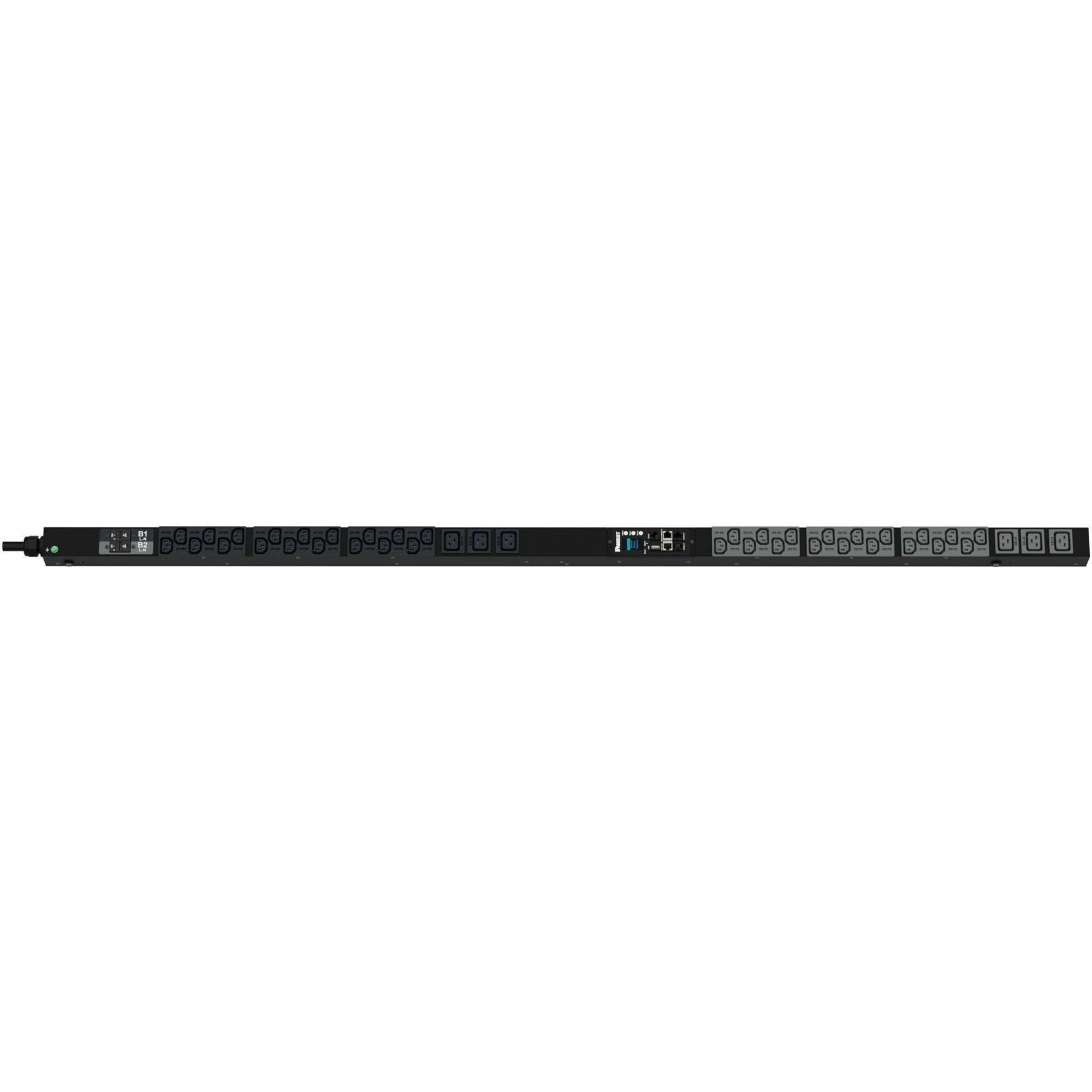

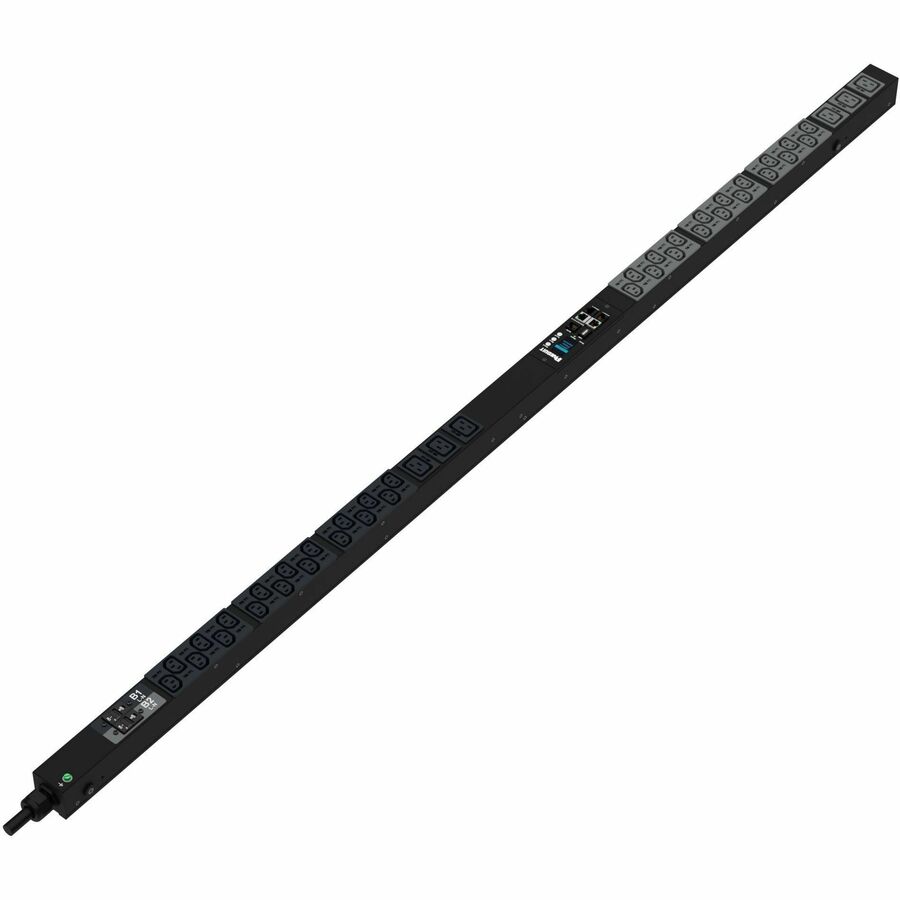

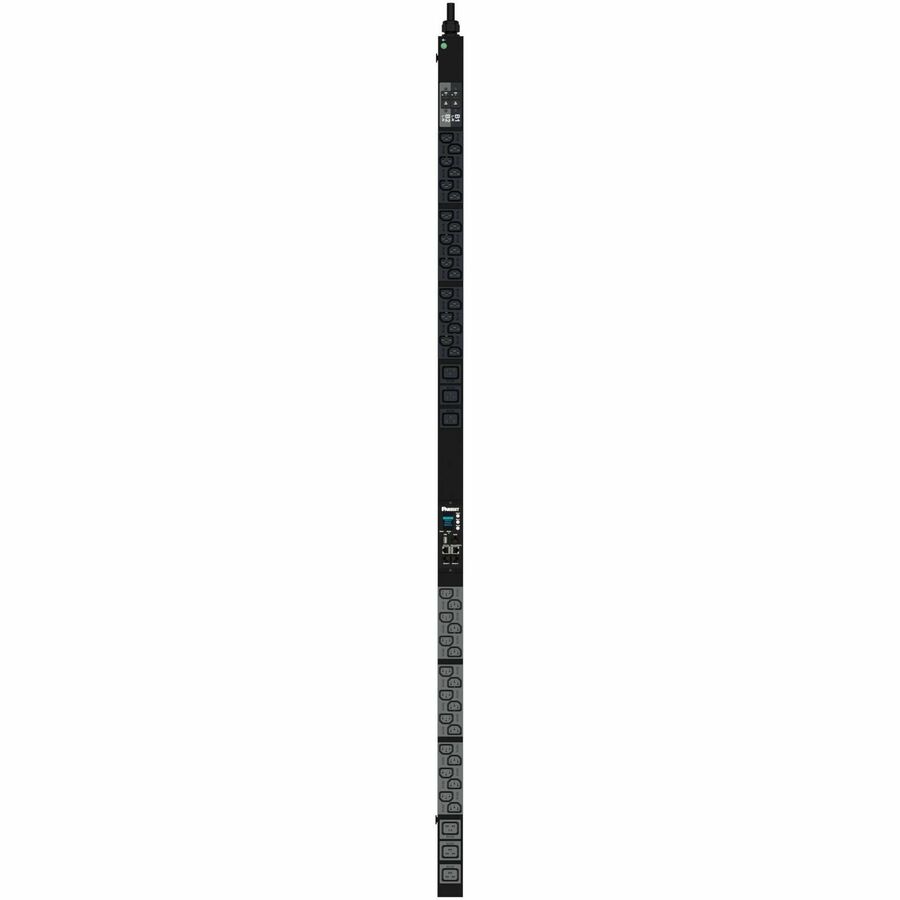

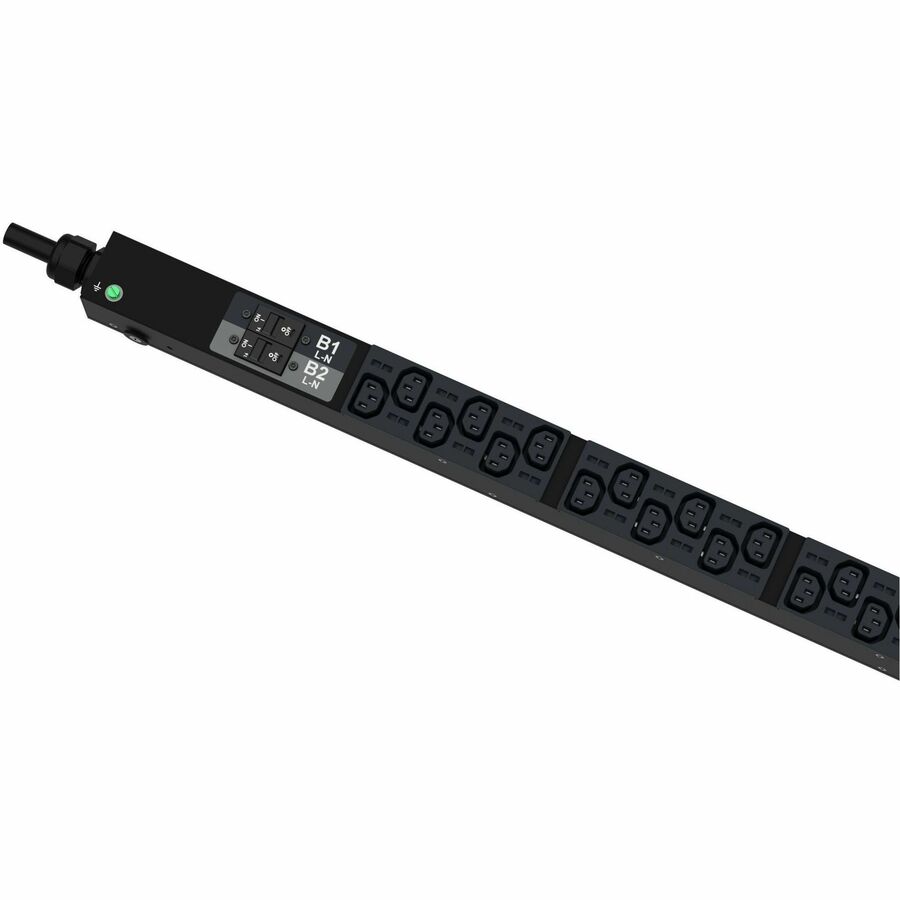

Panduit G6 42-Outlets PDU

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P42D06G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 42-Outlets PDU
Marketing Information	Take control with our G6 Intelligent PDU offering. Manage power at the outlet level, reboot equipment remotely, and prevent unauthorized use, ensuring your data center runs smoothly.
Packaged Quantity	1
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	IEC 60309 2P+E 6h 32A (IP44)
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	36 x IEC 60320 C13 6 x IEC 60320 C19
Protection Type	Overload Protection
Features	SNMP Compatible Onboard Display
Load Capacity (VA)	7400 W

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Input Current	32 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	2
Voltage Measurement Accuracy	±1%
Power Measurement Accuracy	±1%
Current Measurement Accuracy	±1%

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	90%
Minimum Storage Humidity	5%
Maximum Storage Humidity	95%

Miscellaneous

Package Contents	G6 42-Outlets PDU 1 x Mounting Hardware Kit
Application/Usage	Data Center
Certifications & Standards	CE UKCA USGv6 Certified IPV6
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
