BASIC PDU 415V 30 AMP (48)C1 NT BRACKET 800MM BLACK

Name: BASIC PDU 415V 30 AMP (48)C1 NT BRACKET 800MM BLACK
Brand: PANDUIT POWER
SKU: Z76399
Price: 1322.57 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76399

MFG#

P48B03M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,322.57

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L22
30P
48 x IEC 60320 C13
415 V AC
10 ft Cord Length
0U
Vertical
Rack
mountable
Rack, Full

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 21 lbs.

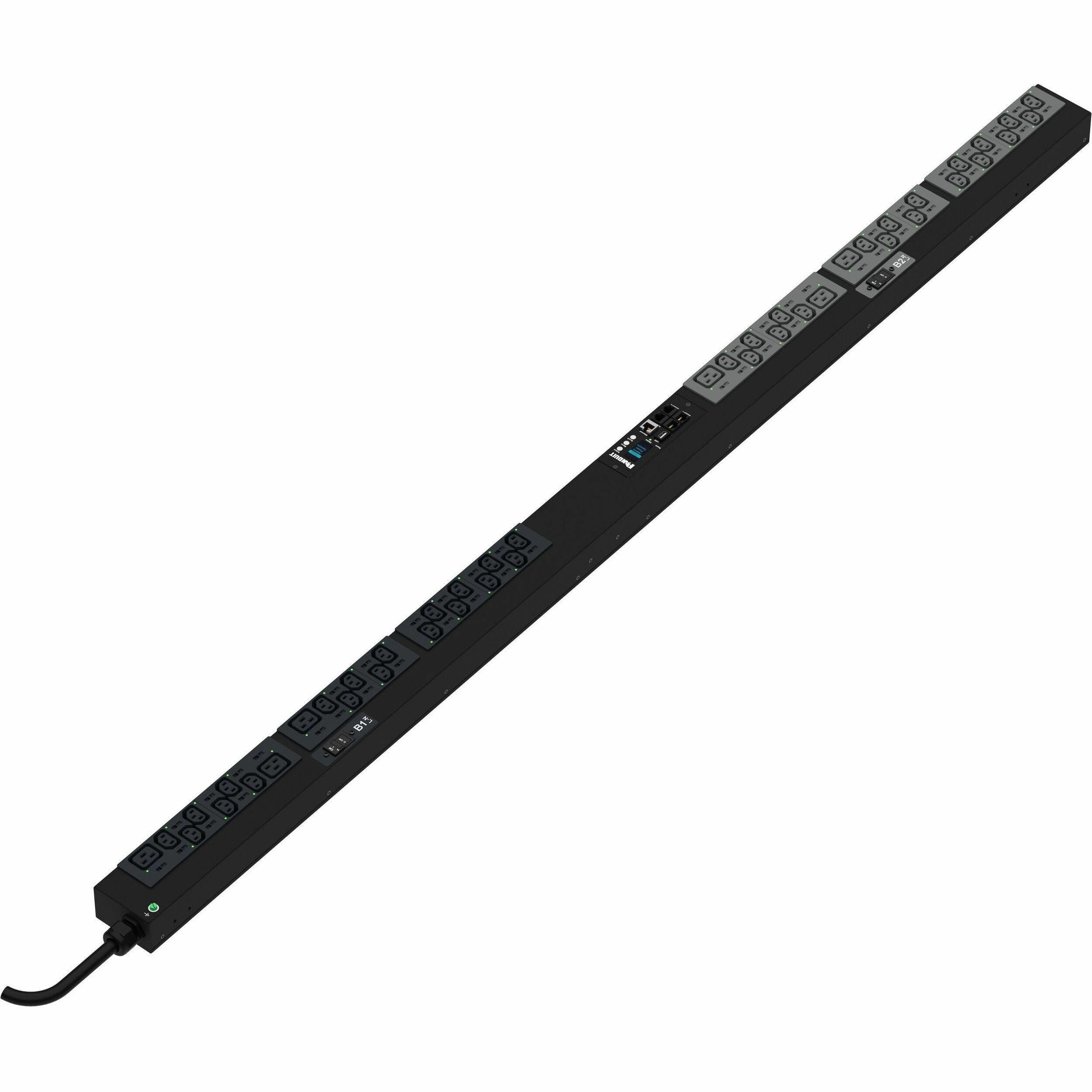

Panduit Basic PDU, 30AMP, 415V, (48)C13, NEMA L22-30P

Overview

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P48B03M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G5
Product Name	Basic PDU, 30AMP, 415V, (48)C13, NEMA L22-30P
Marketing Information	This Panduit G5 Basic PDU features (48) C13 outlets. It is a 30 amp, 415 V, three phase PDU with a NEMA L22-30P input plug and a 10 foot (3m) power cord. The PDU is black.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Three Phase
Plug/Connector Type	NEMA L22-30P
Receptacle Type	IEC 60320 C13
Receptacle Detail	48 x IEC 60320 C13
Load Capacity (VA)	17.30 kW

Power Description

Input Voltage	415 V AC
Output Voltage	240 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	30 A

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack Full
Rack Height	0U
Cord Length	10 ft
Height	69"
Width	3.3"
Depth	2.1"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	Basic PDU, 30AMP, 415V, (48)C13, NEMA L22-30P 1 x Mounting Hardware Kit
Application/Usage	IT Equipment Server Rack/Cabinet Data Center Switch
Certifications & Standards	CE UKCA UL 62368-1 FCC Pat 15 Class A (USA)
Country of Origin	China
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
UL Listed	Yes

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
