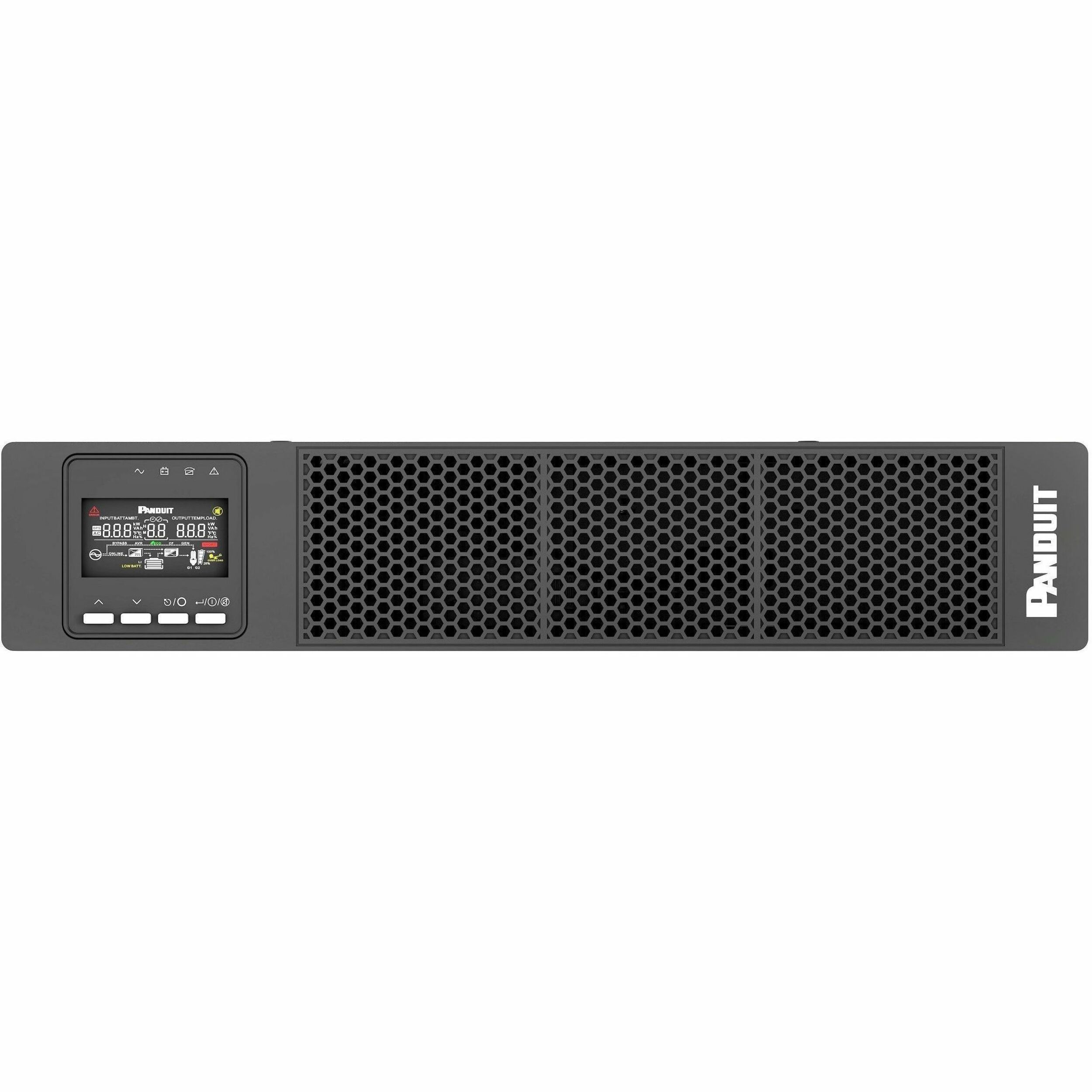

STEADYSINE ON-LINE DOUBLE CONVE RU 1070MM BLACK

by
PANDUIT POWER
PCN#
Z76378
MFG#
U03S14L
main product photo
fotorama-image
$3,484.84
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 2U Tower/Rack Convertible
  • 3 Hour Recharge
  • 9 Minute Stand

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 YearAdditional Warranty Information5 years (UPS & Battery)
Shipping Weight: 65 lbs.
Panduit UPS Lithium-Ion
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

U03S14L

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Line

SteadySine

Product Model

U03S14L

Product Name

UPS Lithium-Ion

Marketing Information

The Panduit SteadySine™ Double Conversion UPS units are ideally suited to protect critical infrastructure in edge or distributed IT applications. When compared to traditional valve-regulated-lead-acid (VRLA) batteries, Lithium-Ion batteries shall offer greater power density, last up to three times longer, recharge quicker, and can endure up to 10-times more discharge cycles. With a 5-year standard warranty, more than double the useful life, and significantly more runtime, the Panduit Lithium-Ion UPS stands at the top of its class.

Packaged Quantity

1 Piece

Product Type

Double Conversion Online UPS
Technical Information

Plug/Connector Type

NEMA L5-30P

Receptacle Type

  • NEMA 5-20R
  • NEMA L5-30R

Receptacle Detail

  • 4 x NEMA 5-20R
  • 1 x NEMA L5-30R

Dataline Protection

RJ-45

Overload Protection

Yes

Cord Length

10 ft

Transfer Time

0 ns

Efficiency Detail

  • 92% (Online Mode)
  • 96.5% (Eco Mode)

Application/Usage

  • Infrastructure
  • Edge Computing
  • IT Equipment
  • Generator

Surge Suppression

Yes

Features

  • Cold Start Function
  • Audible Alarm
  • Quick Charging
Power Description

Load Capacity (VA)

3000 VA

Load Capacity (Watt)

2700 W

Input Voltage

120 V AC

Input Voltage Range

  • 90 V AC - 150 V AC
  • 55 V AC - 150 V AC

Output Voltage

  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 125 V AC

Input Frequency

  • 40 Hz
  • 70 Hz

Output Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Pure Sine Wave

Circuit Breaker

Yes

Output Power Factor

0.9
Display & Graphics

Display

LCD
Management

Network Management

  • Intelligent Card Slot
  • RS-232

Alarm

Fan Fault
Controls/Indicators

Status Indicators

LED Indicators

Interfaces/Ports

Serial Port

Yes

Network (RJ-45)

Yes

USB

Yes

EPO Port

Yes
Battery Information

DC System Voltage

76.8 V DC

Battery Chemistry

Lithium-Ion (LiFePO4)

Backup/Run Time (Full Load)

9 Minute

Backup/Run Time (Half Load)

18 Minute

Battery Life

10 Year

Typical Battery Recharge Time

3 Hour

Hot Swappable

Yes

Replaceable Battery

Yes
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

-13°F (-25°C) - 131°F (55°C)

Maximum Operating Elevation

9842.52 ft

Thermal Dissipation

97.89 W
Physical Characteristics

Color Family

Black

Product Color

Black

Height

3.41"

Width

17.30"

Depth

25.20"

Rack Height

2U

Form Factor

Tower/Rack Convertible

Weight (Approximate)

49 lb
Miscellaneous

Certifications & Standards

  • UL1778 5th Edition CSA C22.2 NO.107.3-14
  • UL1640
  • UL1973
  • NOM
  • FCC Part 15 Subpart B Class A
  • ANSI C63.4-2014
  • ISTA Procedure 2A
  • UN 38.3
  • IEEE/ANSI C62.41 Category B
  • IP20

Energy Star

Yes

Country of Origin

China

Energy Efficiency Certification

ENERGY STAR 2.0

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty

Limited Warranty

5 Year

Additional Warranty Information

5 years (UPS & Battery)
