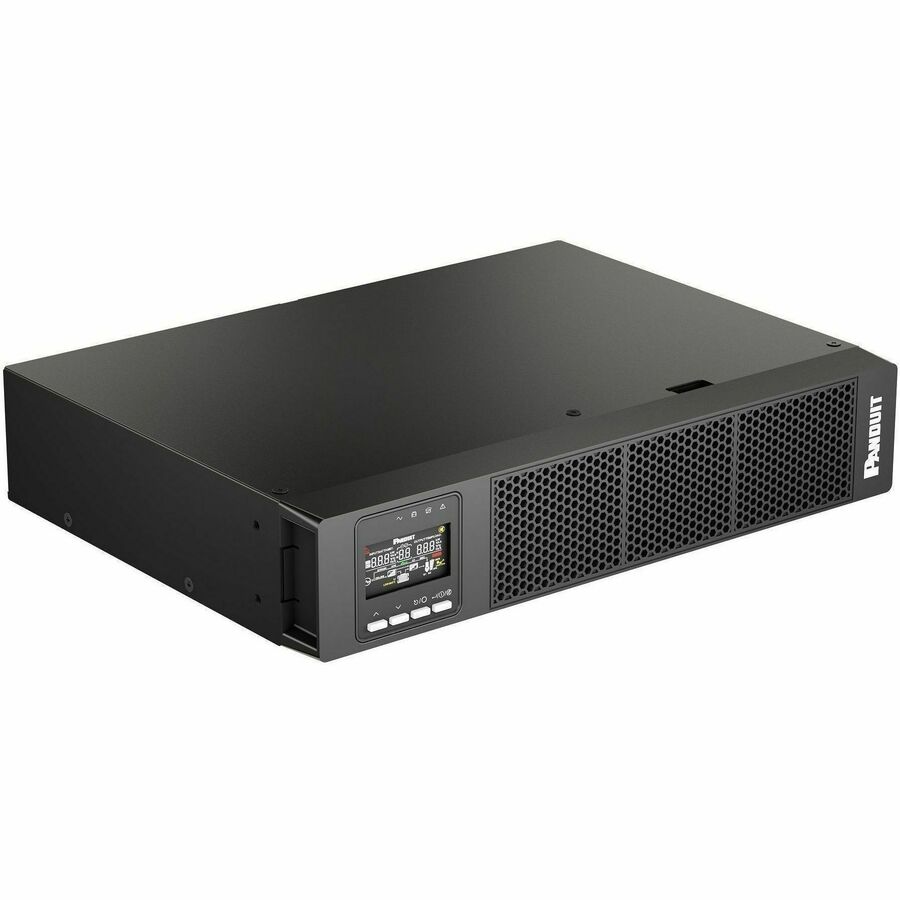

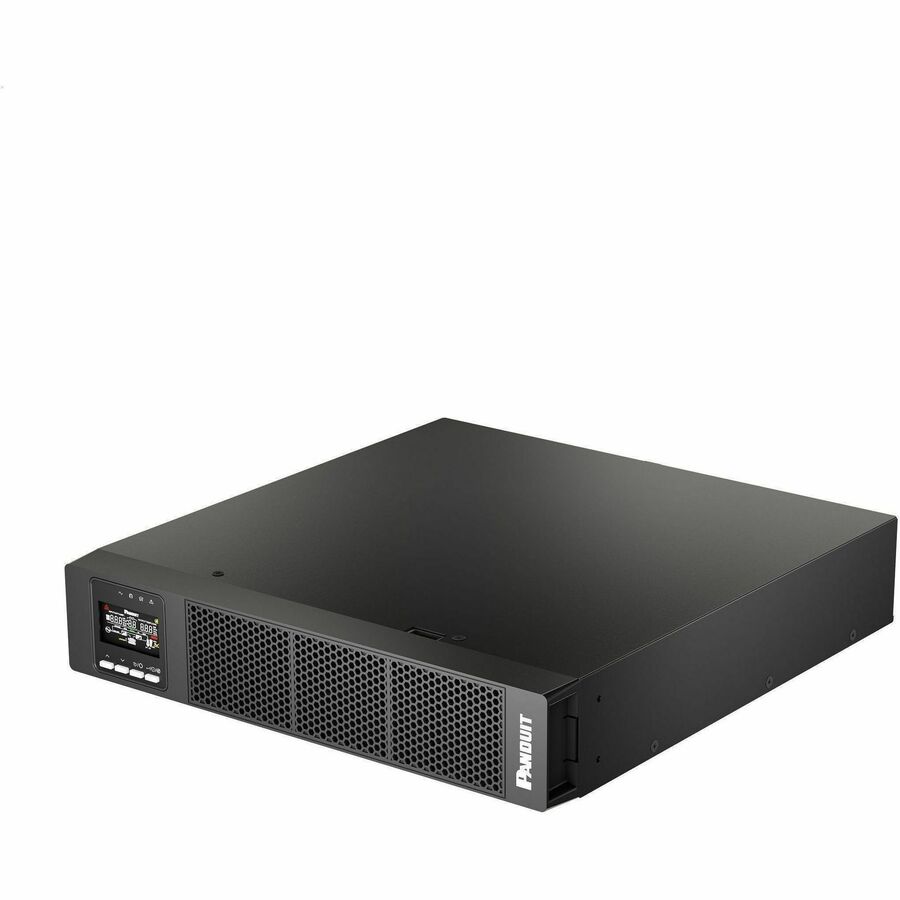

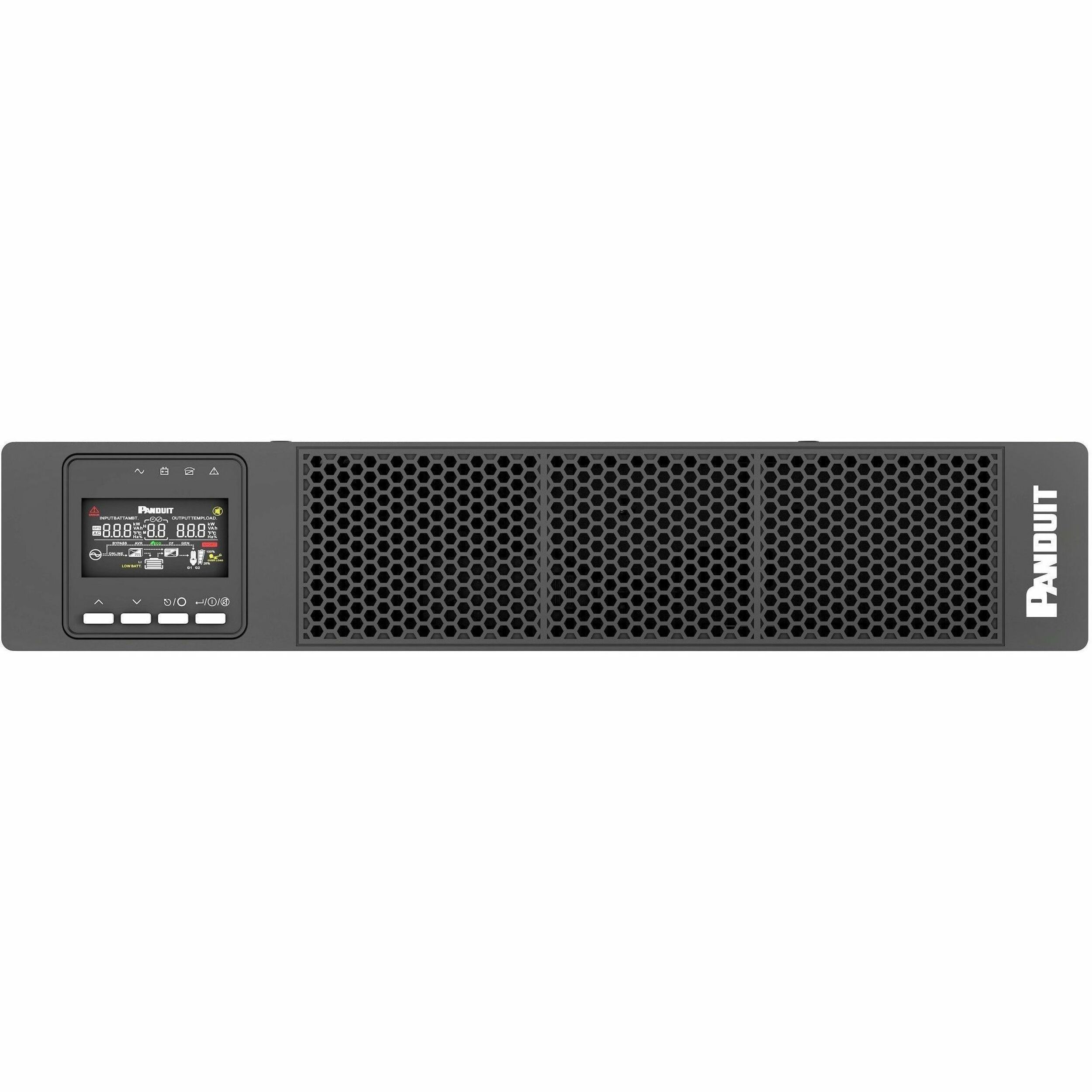

STEADYSINE ON-LINE DOUBLE CONVE RU 1070MM WHITE

Name: STEADYSINE ON-LINE DOUBLE CONVE RU 1070MM WHITE
Brand: PANDUIT POWER
SKU: Z76477
Price: 2830.36 USD
Availability: InStock

PANDUIT POWER

PCN#

Z76477

MFG#

U03S15L

$2,830.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 years (UPS & Battery)

Shipping Weight: 64 lbs.

Panduit UPS Lithium-Ion

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	U03S15L
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Line	SteadySine
Product Model	U03S15L
Product Name	UPS Lithium-Ion
Marketing Information	The Panduit SteadySine™ Double Conversion UPS units are ideally suited to protect critical infrastructure in edge or distributed IT applications. When compared to traditional valve-regulated-lead-acid (VRLA) batteries, Lithium-Ion batteries shall offer greater power density, last up to three times longer, recharge quicker, and can endure up to 10-times more discharge cycles. With a 5-year standard warranty, more than double the useful life, and significantly more runtime, the Panduit Lithium-Ion UPS stands at the top of its class.
Packaged Quantity	1 Piece
Product Type	Double Conversion Online UPS

Technical Information

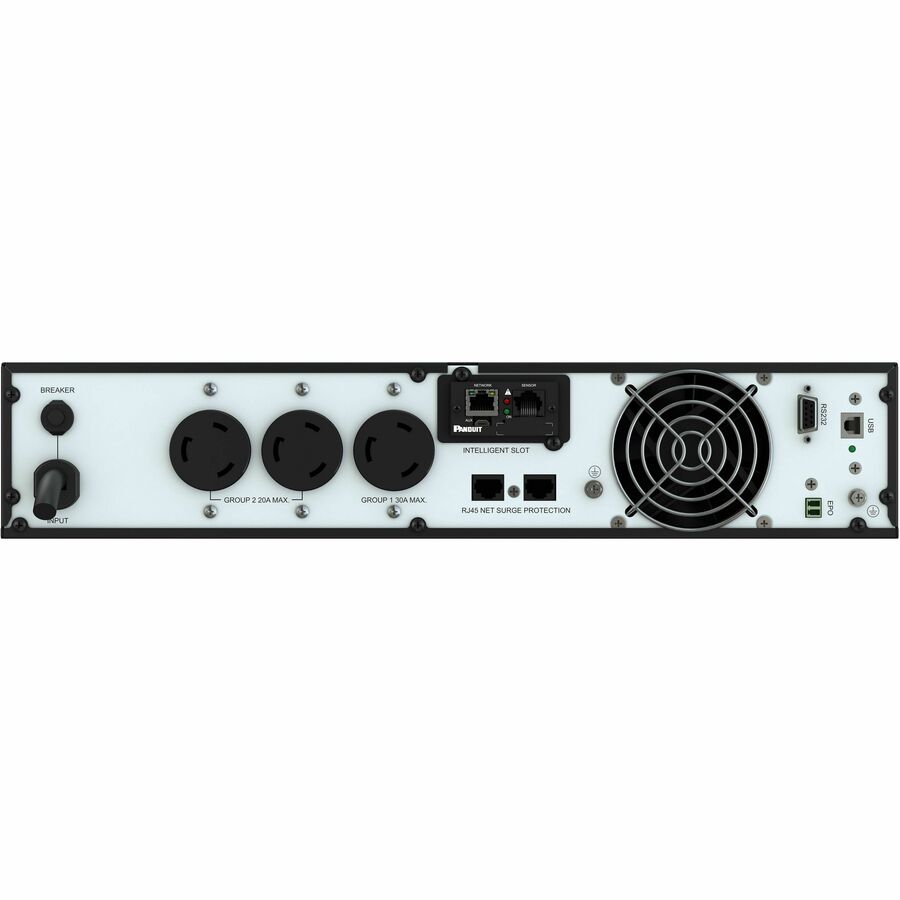

Plug/Connector Type	NEMA L6-20P
Receptacle Type	NEMA L6-20R NEMA L6-30R
Receptacle Detail	2 x NEMA L6-20R 1 x NEMA L6-30R
Dataline Protection	RJ-45
Overload Protection	Yes
Transfer Time	0 ns
Phase	Single Phase
Efficiency Detail	92% (Online Mode) 96.5% (Eco Mode)
Application/Usage	Infrastructure Edge Computing IT Equipment Generator
Surge Suppression	Yes
Features	Cold Start Function Audible/Visual Alarm Quick Charging

Power Description

Display & Graphics

Display

LCD

Management

Network Management	Intelligent Card Slot RS-232 SNMP
Alarm	Fan Fault Line Failure Low Battery Overload System Fault

Controls/Indicators

Status Indicators

LED Indicators

Interfaces/Ports

Battery Information

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-13°F (-25°C) - 131°F (55°C)
Maximum Operating Elevation	9842.52 ft
Sound Emission	50 dB

Physical Characteristics

Miscellaneous

Certifications & Standards	cTUVus UN38.3/ISTA/MSDS ISTA procedure 2A UL1778 5th edition CSA C22.2 NO.107.3-14 UL1640 UL1973 NOM FCC Part 15 Subpart B, Class A ANSI C63.4-2014 IP20
Energy Star	Yes
Country of Origin	China
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Restriction of Hazardous Substances (RoHS) 2

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 years (UPS & Battery)
