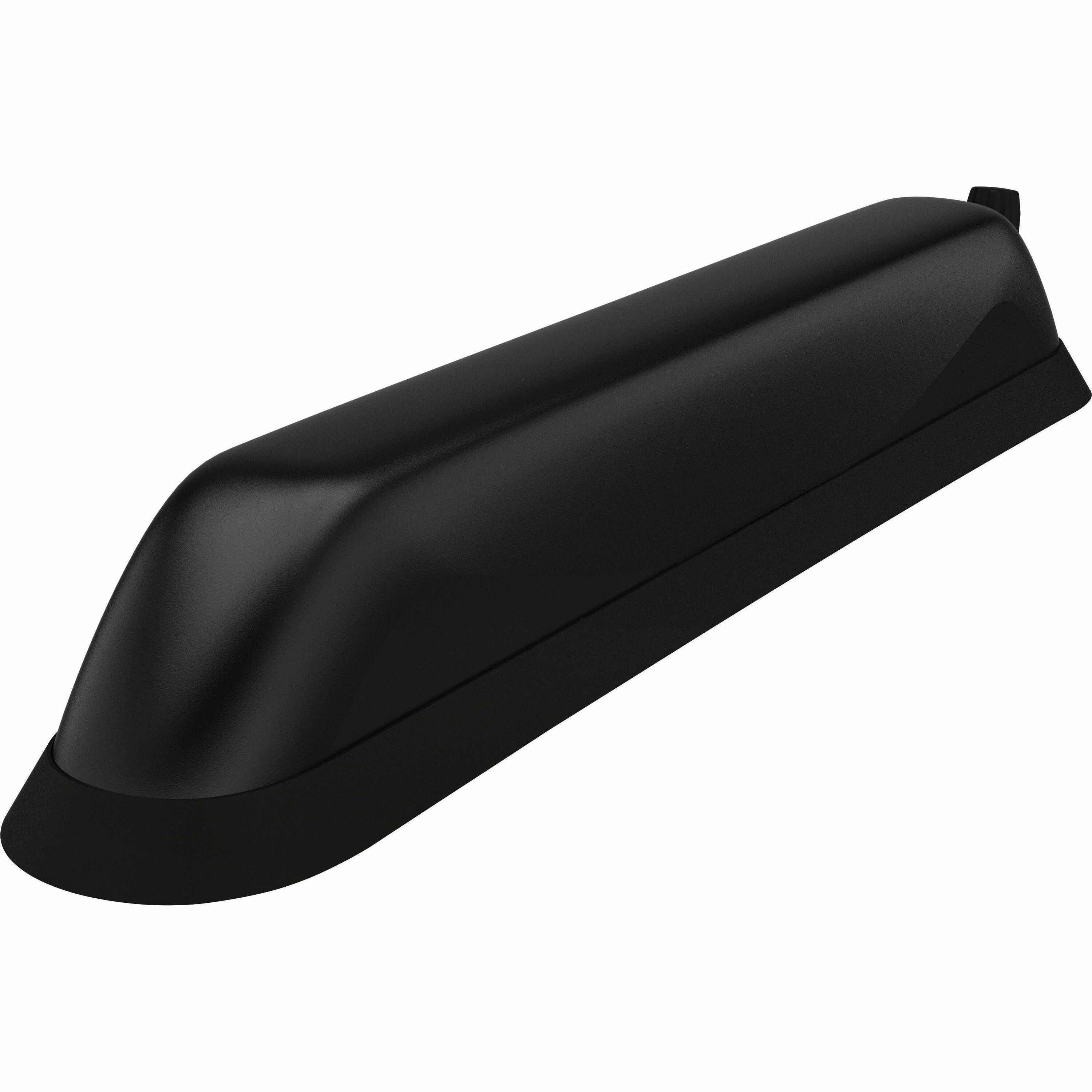

REEF SHARKEE 8-IN-1 LOW PROFILE SHARKFIN

Name: REEF SHARKEE 8-IN-1 LOW PROFILE SHARKFIN
Brand: PANORAMA ANTENNAS
SKU: 6985BT
Price: 458.67 USD
Availability: InStock

PANORAMA ANTENNAS

PCN#

6985BT

MFG#

GP-IN2883

$458.67

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 5 lbs.

Panorama Antennas Reef Sharkee GPSD[X]4-7-49[X] Antenna

Tech Specs

Specifications

Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	GP-IN2883
Manufacturer Website Address	http://www.panorama-antennas.com
Brand Name	Panorama Antennas
Product Line	Reef Sharkee
Product Series	GPSD[X]4-7-49[X]
Product Name	Reef Sharkee GPSD[X]4-7-49[X] Antenna
Marketing Information	The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles. The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications. The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane.
Product Type	Antenna

Technical Information

Directivity	Omni-directional
Operating Frequency Range	698 MHz - 960 MHz 1427 MHz - 4900 MHz
Antenna Gain	30 dB
Voltage Standing Wave Ratio (VSWR)	<2.5:1

Interfaces/Ports

Connector Type

SMA

Physical Characteristics

Miscellaneous

Application/Usage	Cellular Network GPS Wireless Data Network GLONASS
Package Contents	Reef Sharkee GPSD[X]4-7-49[X] Antenna Low Loss Flame Retardant Pigtail Cables
