11-IN-1 5G LGMDM8B-6-60 GPS/GNSS FITTED 5M EXT.

Name: 11-IN-1 5G LGMDM8B-6-60 GPS/GNSS FITTED 5M EXT.
Brand: PANORAMA ANTENNAS
SKU: RF4870
Price: 572.67 USD
Availability: InStock

PANORAMA ANTENNAS

PCN#

RF4870

MFG#

LG-IN2902

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$572.67

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

617 MHz to 960 MHz, 1427 MHz to 6000 MHz
30 dB
Cellular Network, GPS, Kiosk, Wireless Data Network, Modem
Black
Panel Mount
Omni
directional
SMA, RP
SMA Connector

Product Condition: New and Factory Fresh

Shipping Weight: 5 lbs.

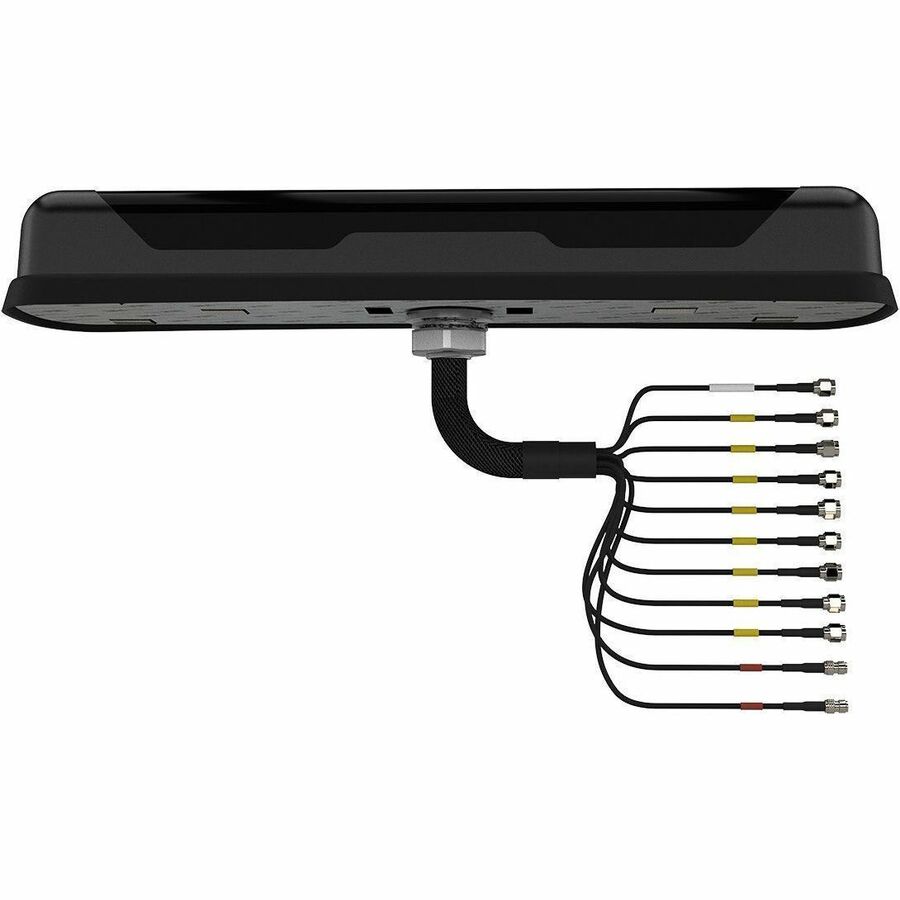

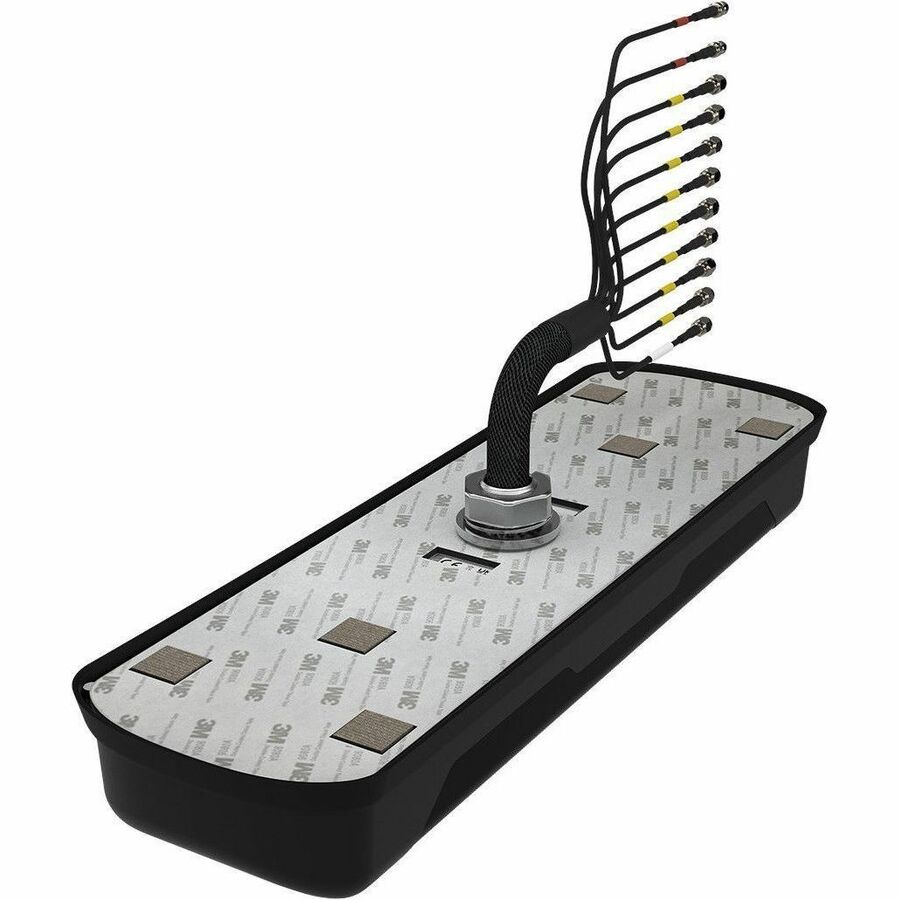

Panorama Antennas L[X]M[X]M8[X]-6-60 | Megalodon 8x 4G/5G Low Profile Antenna

Overview

Tech Specs

Specifications

Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	LG-IN2902
Manufacturer Website Address	http://www.panorama-antennas.com
Brand Name	Panorama Antennas
Product Line	Megalodon
Product Series	L[X]M[X]M8[X]-6-60
Product Name	L[X]M[X]M8[X]-6-60 \| Megalodon 8x 4G/5G Low Profile Antenna
Marketing Information	The industry leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with a number of other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7). The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation. The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
Product Type	Antenna

Technical Information

Directivity	Omni-directional
Operating Frequency Range	617 MHz to 960 MHz 1427 MHz to 6000 MHz
Antenna Gain	30 dB

Interfaces/Ports

Connector Type

SMA
RP-SMA

Physical Characteristics

Color Family	Black
Product Color	Black
Height	2.20"
Width	5.24"
Form Factor	Panel Mount

Miscellaneous

Application/Usage

Cellular Network
GPS
Kiosk
Wireless Data Network
Modem
