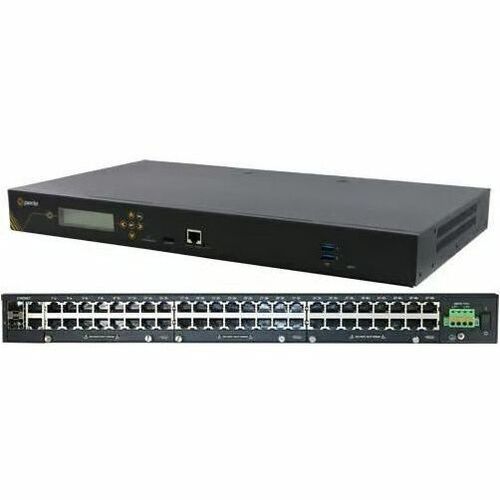

Perle IOLAN SCG50 S-D Device Server

by
PERLE SYSTEMS
PCN#
00NK27
MFG#
04035650
$5,367.12
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1000 MB
  • Twisted Pair, Optical Fiber
  • 2 Total Expansion Slot(s)

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 9 lbs.
Perle IOLAN SCG50 S-D Device Server
Tech Specs
Specifications

Manufacturer

Perle Systems, Inc

Manufacturer Part Number

04035650

Manufacturer Website Address

http://www.perle.com

Brand Name

Perle

Product Line

IOLAN

Product Series

SCG R/U

Product Model

SCG50 S-D

Product Name

IOLAN SCG50 S-D Device Server

Marketing Information

The Perle IOLAN SCG R/U Console Servers provide data center managers with the ultimate solution for redundant, secure remote console management of any device with an RS232 RJ45 or USB console port. And, the IOLAN G16 RS-Multi Card, with 16 x software-selectable RS232/422/485 RJ45 interfaces enables organizations to connect a variety of serial-based devices to Ethernet. With an expandable modular hardware platform, integrated firewall, two-factor authentication, advanced failover to multiple networks, and Zero Touch Provisioning (ZTP), your IT professionals and network operations center (NOC) personnel will have everything they need to easily perform secure remote data center management and out-of-band management of IT assets from anywhere in the world. This cost-effective 1U rack solution also maintains protocol integrity across Ethernet and adds full IPv4/IPv6 routing capabilities with support for RIP, OSPF, and BGP protocols.

Modular Hardware Platform enables Console Management of all IT assets

The IOLAN SCG R/U Console Server provides up to 50 Console Management ports supporting USB, RS232, RS422, and RS485 interfaces . The modular design of the IOLAN SCG allows the user to swap, upgrade, and scale to any combination of 16-port module cards to support all types of admin ports in one Console Management solution.

The Perle IOLAN SCG is the only industry solution that can support up to 50 high-density USB 3.0 ports that are compatible with all manufacturers' USB solutions, including Cisco routers, switches, firewalls, servers (Solaris, Windows, Unix and Linux) PBXs, network storage equipment and security appliances.

The RS232 RJ45 ports are software configurable to use straight thru or rolled cables to connect your Cisco equipment and support DCD pin can be configured for 3rd party devices that need this extra signal. The software-selectable RS232/422/485 RJ45 interfaces simplify configuration and eliminate mechanical tampering associated with DIP switches. This mean the Perle IOLAN SCG supports more serial devices than any other Console Server on the market.

Advanced Network Security, Authentication, and Data Encryption

2 Factor Authentication (2FA) ensures access to equipment and data is limited to authorized users, while remote authentication (RADIUS, TACACS+, & LDAP) management, enables integration with enterprise-grade systems to control access to devices in the field.

The built-in firewall offers intuitive policies to protect inside networks from unauthorized access. The firewall also allows inside networks to be separated from each other. If there are network resources that need to be available to an outside user, such as a web or FTP server, these resources can be placed on a separate network behind the firewall in a demilitarized zone (DMZ).

Network data transmissions and access to remote console admin ports on IT equipment are protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (TLS/SSL). By using encryption technologies, an IOLAN SCG Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all the major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128 are fully supported.

Product Type

Device Server
Technical Information

Device Type

Console Server

IP Rating

IP30
Processor & Chipset

Processor Manufacturer

ARM

Processor Speed

500 MHz
Memory

Standard Memory

1000 MB

Maximum Memory Supported

3.91 GB
Media & Performance

Media Type Supported

  • Twisted Pair
  • Optical Fiber
I/O Expansions

Number of Total Expansion Slots

2
Network & Communication

Ethernet Technology

Gigabit Ethernet

Network Standard

  • 10/100/1000Base-T
  • 1000Base-X
Interfaces/Ports

Network (RJ-45)

Yes

USB

Yes

Serial Port

Yes

Management Port

Yes

Number of Network (RJ-45) Ports

2

Number of USB Ports

3

Number of Serial Ports

48
Power Description

Input Voltage

48 V DC

Input Voltage Range

24VDC - 60VDC

Power Consumption

15.50 W

Input Current

290 mA

Plug/Connector Type

Terminal Block
Physical Characteristics

Product Color

Black

Form Factor

Rack-mountable

Height

1.7"

Width

17.1"

Depth

10.4"

Weight (Approximate)

7.69 lb
Miscellaneous

Package Contents

  • IOLAN SCG50 S-D Device Server
  • Front and Rear Mounting Hardware

Environmentally Friendly

Yes

Environmental Compliance

  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

Lifetime
