IDS409F3C2SD20SD120 6PORT MNGD SW GE RJ FE SC 2XSM20K SM120K CTM

Name: IDS409F3C2SD20SD120 6PORT MNGD SW GE RJ FE SC 2XSM20K SM120K CTM
Brand: PERLE SYSTEMS
SKU: 7T4012
Price: 3827.13 USD
Availability: InStock

PERLE SYSTEMS

PCN#

7T4012

MFG#

07013710

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,827.13

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

9 Ports
Manageable
Fast Ethernet, Gigabit Ethernet
10/100/1000Base
T, 100Base
LX, 100Base
ZX
3 Layer Supported
Single
mode
Twisted Pair, Optical Fiber
DIN Rail Mountable, Compact, Wall Mountable, Panel
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

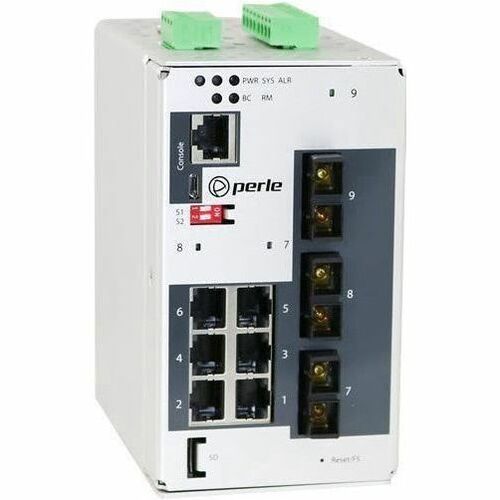

Perle IDS-409F3-C2SD20-SD120 - Industrial Managed Ethernet Switch

Overview

Tech Specs

Resiliency

STP and RSTP protocols for fast recovery
Perle's P-Ring protocol for fast convergence in ring topologies
Link Standby is a link recovery feature for two links that provides a simple alternative to spanning tree protocols for link redundancy

Manageability

Web Device Manager, Telnet, SNMP and Perle's PerleView NMS for centralized management
In-band management via RJ45 or USB serial port
Use an IPv4 or IPv6 address

Product TypeEthernet SwitchTechnical InformationFeatures

IP20
Remote Monitoring (RMON)
Plug and Play

Interfaces/PortsTotal Number of Network Ports9Network (RJ-45)YesPort/Expansion Slot Details

6 x Gigabit Ethernet Network
2 x 100Base-LX Duplex SC Connector
1 x 100Base-ZX Duplex SC Connector

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Fiber Mode SupportedSingle-modeFiber Optic Cable Wavelength

1310 nm
1550 nm

Ethernet Technology

Fast Ethernet
Gigabit Ethernet

Network Technology

10/100/1000Base-T
100Base-LX
100Base-ZX

Network & CommunicationLayer Supported3Networking Standards

IEEE 802.3x
IEEE 802.1ab
IEEE 802.1D
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1p
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3ad

Management & ProtocolsManageableYesReliabilityMTBF105797 HourPower DescriptionInput Voltage

12 V DC
24 V DC
48 V DC
24 V AC

Power Source

Power Supply
AC/DC

Redundant Power Supply SupportedYesPlug/Connector TypeTerminal BlockPhysical CharacteristicsProduct MaterialMetalForm Factor

DIN Rail Mountable
Compact
Wall Mountable
Panel-mountable

Height4.8"Width5.1"Depth3"Weight (Approximate)1.41 lbMiscellaneousApplication/Usage

Industrial
Network
Enterprise
Server
Store
Router
Automation Industry
Government
Power
Outdoor

Country of OriginCanada
