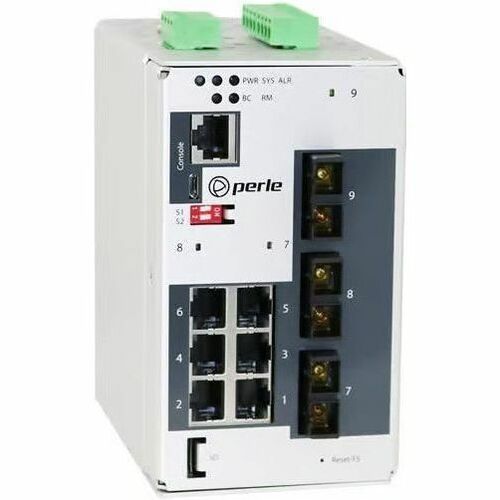

IDS509G3C2MD05SD10 6PORT MNGD SW GE RJ GE SC 2XMM SM10KM CTMP

The IDS-509G is a9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of10/100/1000-Base-T Ethernet copper portsand1000Base-X fiber ports to meet the needs of your environment.

In environments where high levels of electromagnetic interference (EMI)is a common phenomenon, like industrial plants, utilizing fiber is critical. EMI can cause data corruption over copper-based Ethernet links. Data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.

With over 82 models, the Perle IDS-509G offers a choice of connectors, fiber types, temperature support and operating distances.

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

The simple Plug and Play installation available in Perle's Fast Setup feature gets your Ethernet devices networked immediately. CCNA(Cisco Certified Network Associate) and CCNP(Cisco Certified Network Professional) trained engineers will appreciate the familiar Command Line Interface (CLI)via in-band Telnet or the out-band serial console port.

The PRO feature set in the IDS-305F is ideal for enterprise-grade level environments where additional extensive security and network integration functionality is required.

• AAA ( Authentication, Authorization, Accounting)security protocols: RADIUS and TACACS+
• Secure management sessions via SSH, SNMPv3, Telnet and HTTPS
• Management Access Lists(ACL) by IP address and IP Port number
• Password Strength Checking
• IEEE 802.1x Authentication and Port Security for protection of user access ports
• Optimize the performance and intelligence of the network with Advanced Protocols: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping

The IDS-509G supports a comprehensive set of management functions, such as MRP (IEC62439-2),PROFINET, Modbus TCP, management VLAN,QoS,RMON,N:1 port mirroring and local alert log. In addition, the switch can be managed with an IPv6 address.

Hardened to provide superior reliability in -10 to 60°C, these arerugged fan-less switches. In addition, every component on every industrial (XT) model has been designed and tested to handle operating temperatures between-40 and 75C.

All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.

• IP20
• Fanless
• Plug and Play

• 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
• 2 x 1000Base-SX Duplex SC Connector
• 1 x 1000Base-LX/LH Duplex SC Connector

• Twisted Pair
• Optical Fiber

• Single-mode
• Multi-mode

• 850 nm
• 1310 nm

• Gigabit Ethernet
• Fast Ethernet

• 10/100/1000Base-T
• 1000Base-SX
• 1000Base-LX/LH

• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z

• 12 V DC
• 24 V DC
• 48 V DC
• 60 V DC
• 24 V AC

• Power Supply
• AC/DC

• DIN Rail Mountable
• Wall Mountable
• Panel-mountable
• Compact

• Network
• Industrial
• Enterprise
• Security
• Server
• Automation Industry
• Outdoor
• Government
