PZN3815Q 38IN CURVED LCD HDMI DP USB-C DC POWER

Name: PZN3815Q 38IN CURVED LCD HDMI DP USB-C DC POWER
Brand: PLANAR SMALL FORMAT
SKU: S95769
Price: 491.8 USD
Availability: InStock

PLANAR SMALL FORMAT

PCN#

S95769

MFG#

998-4078-00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$491.80

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

37.5" Viewable
In
plane Switching (IPS) Technology
LED Backlight
3840 x 1600
1.07 Billion Colors
300 Nit
6 ms
75 Hz Refresh Rate
Speakers
Tilt, Swivel, Height
USB Type
C
HDMI
DisplayPort
VESA Mount Compatible
KVM Switch, USB Hub

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

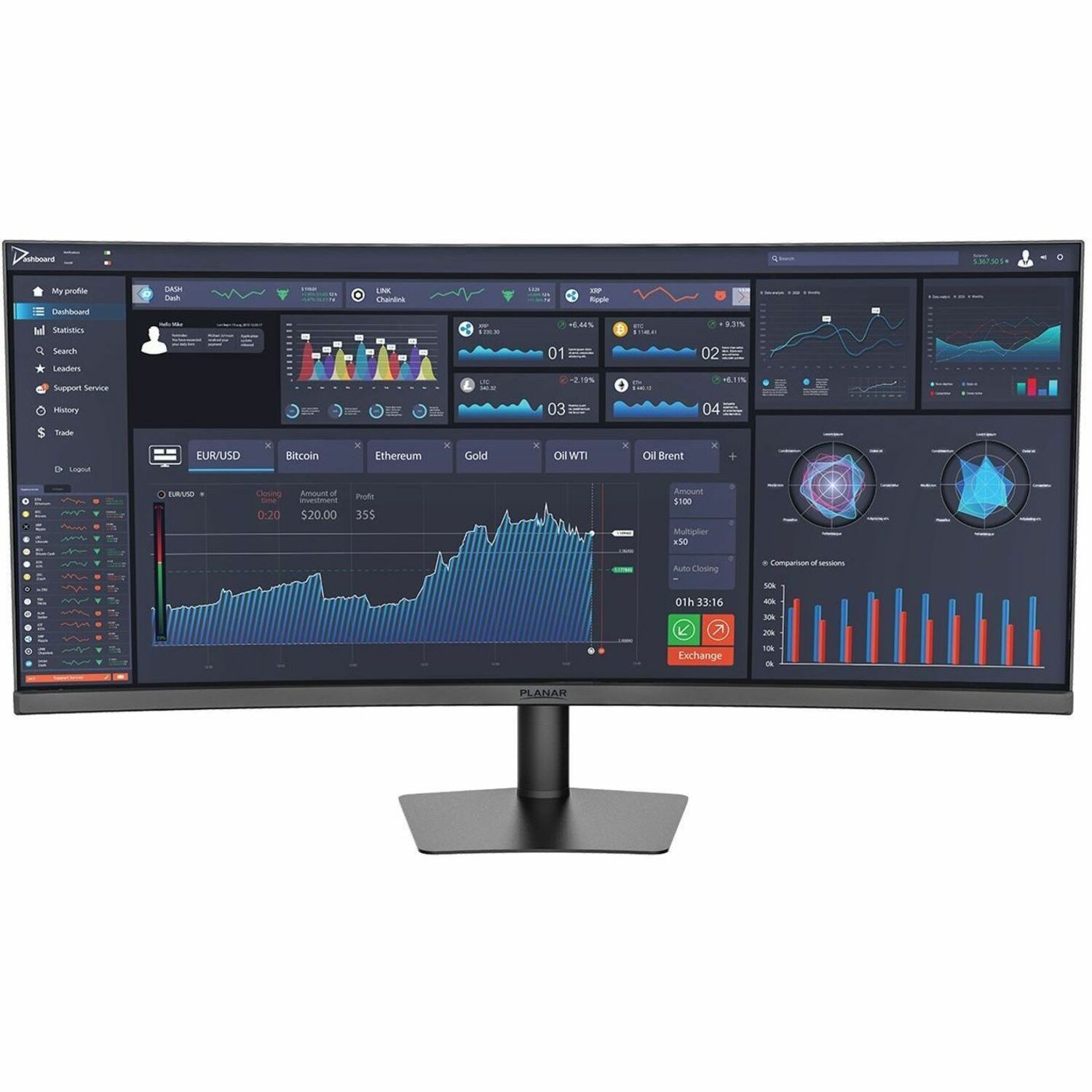

Planar PZN3815Q 38" Class UW-QHD+ Curved Screen LED Monitor - 21:9

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	998-4078-00
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PZN3815Q
Product Name	PZN3815Q Widescreen LED Monitor
Marketing Information	38" Curved Docking Monitor The Planar® PZN3815Q is a 38-inch ultra-wide curved docking monitor featuring WQHD+ resolution (3840x1600) with a 2300R curvature. Its 10-bit IPS panel delivers 1.07 billion colors and covers 98% of the DCI-P3 color gamut, ensuring vibrant and precise visuals. With USB Type-C connectivity and an integrated docking station, it allows seamless connection to PCs or laptops. Additional features include built-in speakers, LED light ring as well as a KVM switch for sharing a keyboard, mouse and display between two PCs. The USB-C cable supports audio, video and data transfer while providing up to 96 watts of power. Designed with an ergonomic stand, this monitor is ideal for education, home, office, and healthcare environments.
Product Type	LED Monitor

Technical Information

Number of Screens	1
Screen Size Class	38"
Viewable Screen Size	37.5"
Screen Mode	UW-QHD+
Panel Technology	In-plane Switching (IPS) Technology
Response Time	6 ms
Response Time Details	6 ms GTG
Aspect Ratio	21:9
Pixel Pitch	0.22908 mm x 0.22908 mm
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Backlight Technology	LED
HDCP Supported	Yes
Features	Blue Light Reduction Picture in Picture Picture by Picture On-screen Display (OSD) Kensington Lock Anti-glare Ergonomic Design
Vertical Frequency	48 Hz to 75 Hz
Adjustable Stand	Yes
Stand Adjustments	Tilt Swivel Height
Curved Screen	Yes
Curvature	2300R
Surface Treatment	Anti-glare

Video

Maximum Resolution	3840 x 1600
Standard Refresh Rate	75 Hz
Color Supported	1.07 Billion Colors
Native Contrast Ratio	2,000:1
Brightness	300 Nit
Color Gamut	98% DCI-P3

Audio

Number of Speakers	2
Speakers	Yes

Interfaces/Ports

HDMI	Yes
USB	Yes
DisplayPort	Yes
USB Type-C	Yes
Number of HDMI Inputs	2
Total Number of HDMI Ports	2
Number of USB Ports	6
Number of USB Type-B Ports	1
Total Number of USB Type-C Ports	1
Number of USB 3.2 (Gen 1) Downstream Ports	2
USB Type-B	Yes

Built-in Devices

KVM Switch
USB Hub

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Operating Humidity Range	10% to 85% (Non-condensing)

Power Description

Average Power Consumption	38 W
Maximum Power Consumption	125 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Height	15.7"
Width	34.6"
Depth	4.2"
Height with Stand	16.59"
Width with Stand	34.63"
Depth with Stand	9.36"
Weight (Approximate)	14.55 lb
Weight with Stand (Approximate)	20.72 lb

Miscellaneous

Package Contents	PZN3815Q Widescreen LED Monitor Adaptor Power Cord HDMI & DP Cable USB Type-C Cable USB A to B Cable VESA Plate adapter User's Guide
Energy Star	Yes
Application/Usage	Home Office Education Healthcare
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
