3PH 208V 60A (DERATED TO 48A) 36 OUTLETS: 18 X LOCKING C13 18 X L

Name: 3PH 208V 60A (DERATED TO 48A) 36 OUTLETS: 18 X LOCKING C13 18 X L
Brand: RARITAN
SKU: SF9092
Price: 3123.57 USD
Availability: InStock

RARITAN

PCN#

SF9092

MFG#

PX4-232A-E7V2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,123.57

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered, Switched
IEC 60309 3P+E 9h 60A (3P4W)
18 x IEC 60320 C13, 18 x CX
208 V AC, 230 V AC
Branch Circuit, Overload Protection
Network (RJ
45)
9.84 ft Cord Length
Button Mount

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 29 lbs.

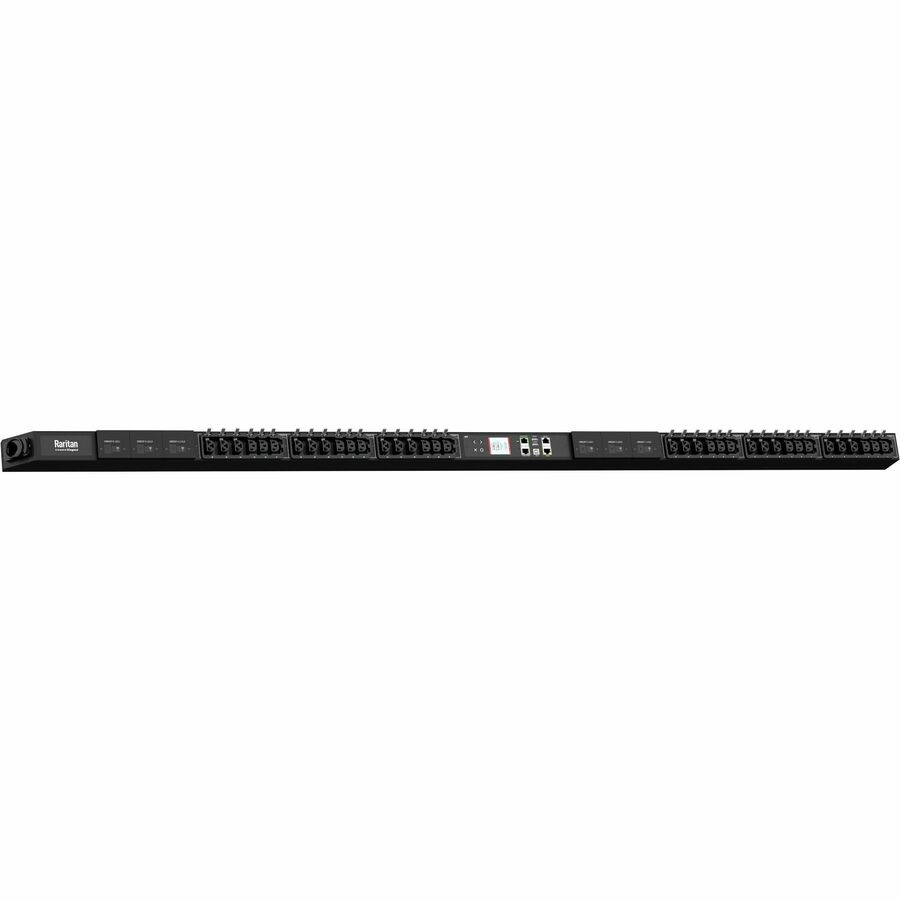

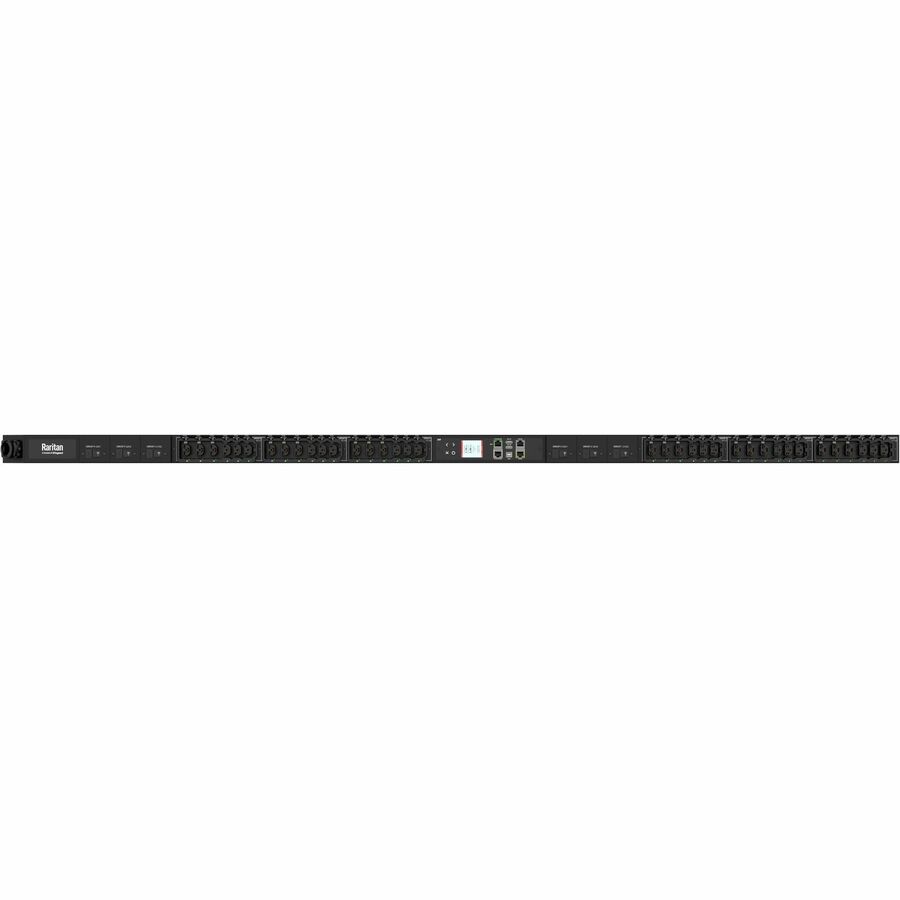

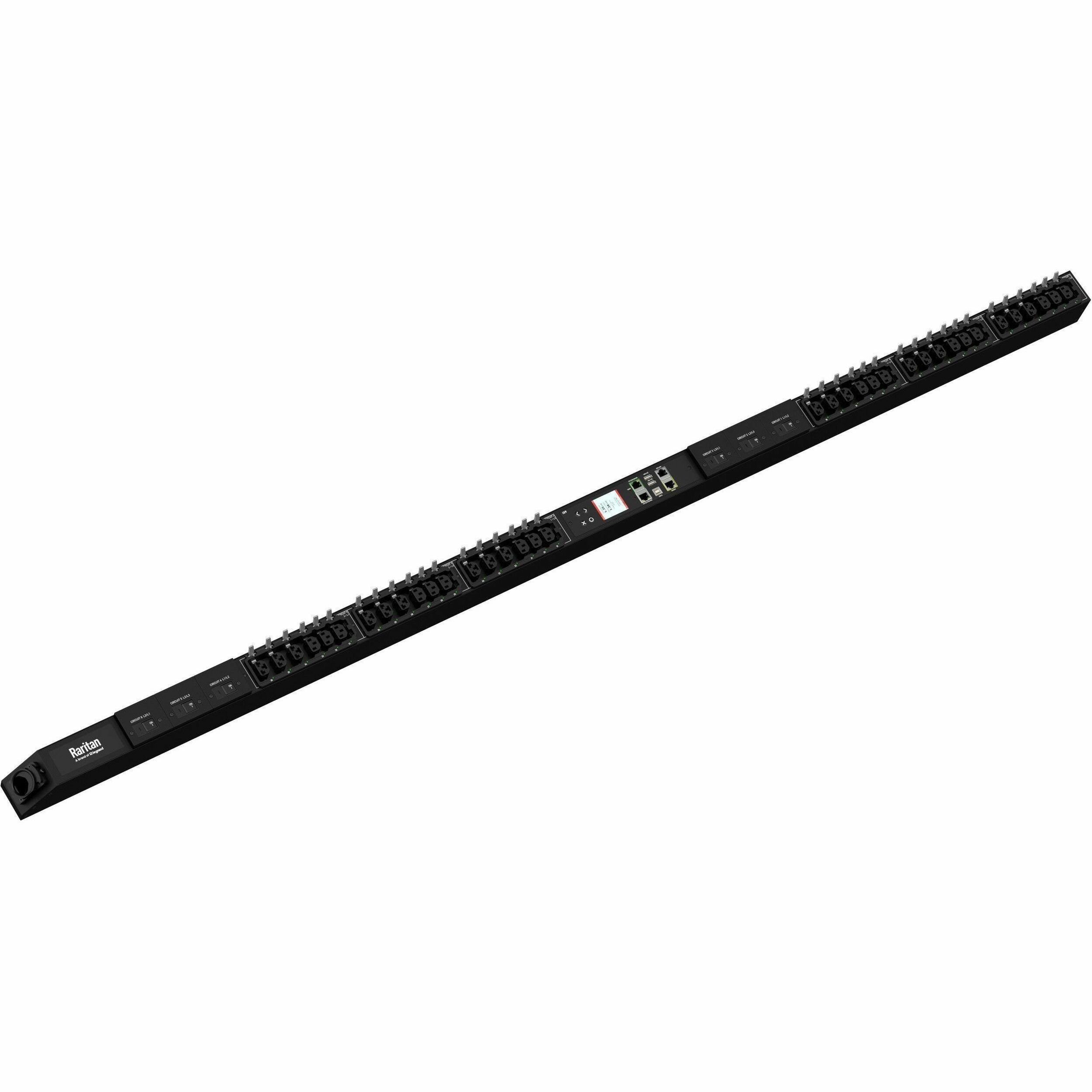

Raritan PX4-232A-E7V2 36-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PX4-232A-E7V2
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Series	PX4
Product Model	PX4-232A-E7V2
Product Name	PX4-232A-E7V2 36-Outlets PDU
Product Type	PDU

Technical Information

PDU Type	Metered Switched
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+E 9h 60A (3P4W)
Plug/Connector Detail	1 x IEC 60309 3P+E 9h 60A (3P4W)
Receptacle Type	IEC 60320 C13 CX
Receptacle Detail	18 x IEC 60320 C13 18 x CX
Protection Type	Branch Circuit Overload Protection
Locking Receptacles	SecureLock P-Lock
Features	LED Status Indicator Onboard Display Multi-color LCD
Load Capacity (VA)	20 kW

Power Description

Input Voltage	208 V AC 230 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage Range	208 V AC - 240 V AC
Input Current	60 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	HTTP(s) SSH (CLI) Telnet RS-232 (Serial) SNMP version v2/v3 SMTP JSON-RPC API MODBUS-T Redfish API
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Product Material	Aluminum
Mount Type	Button Mount
Cord Length	9.84 ft
Height	70.1"
Width	2.2"
Depth	2.6"

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	176°F (80°C)
Minimum Storage Humidity	0%
Maximum Storage Humidity	95%

Miscellaneous

Certifications & Standards	UL Listed Canada ICES-003 Part 15 Class A of the FCC rules
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

2 Year
