1PH 100-240V 20A 18XC13 6XCX IEC C20 100-240V INLET 1.6-3.8KVA

Name: 1PH 100-240V 20A 18XC13 6XCX IEC C20 100-240V INLET 1.6-3.8KVA
Brand: RARITAN
SKU: SQ4487
Price: 1665.45 USD
Availability: InStock

RARITAN

PCN#

SQ4487

MFG#

PX4-24A0CR-C8E8A0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,665.45

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched, Metered
IEC 60320 C20
18 x IEC 60320 C13, 6 x CX
240 V AC
Branch Circuit
Network (RJ
45)
2U
Horizontal
Rack
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 17 lbs.

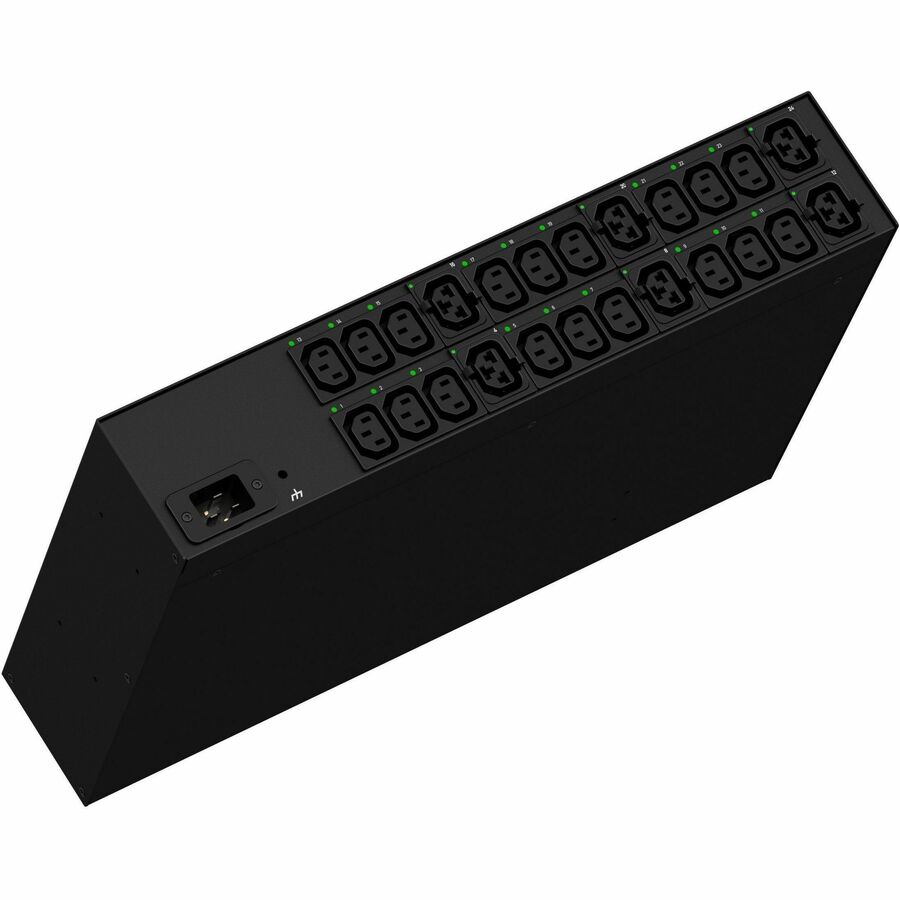

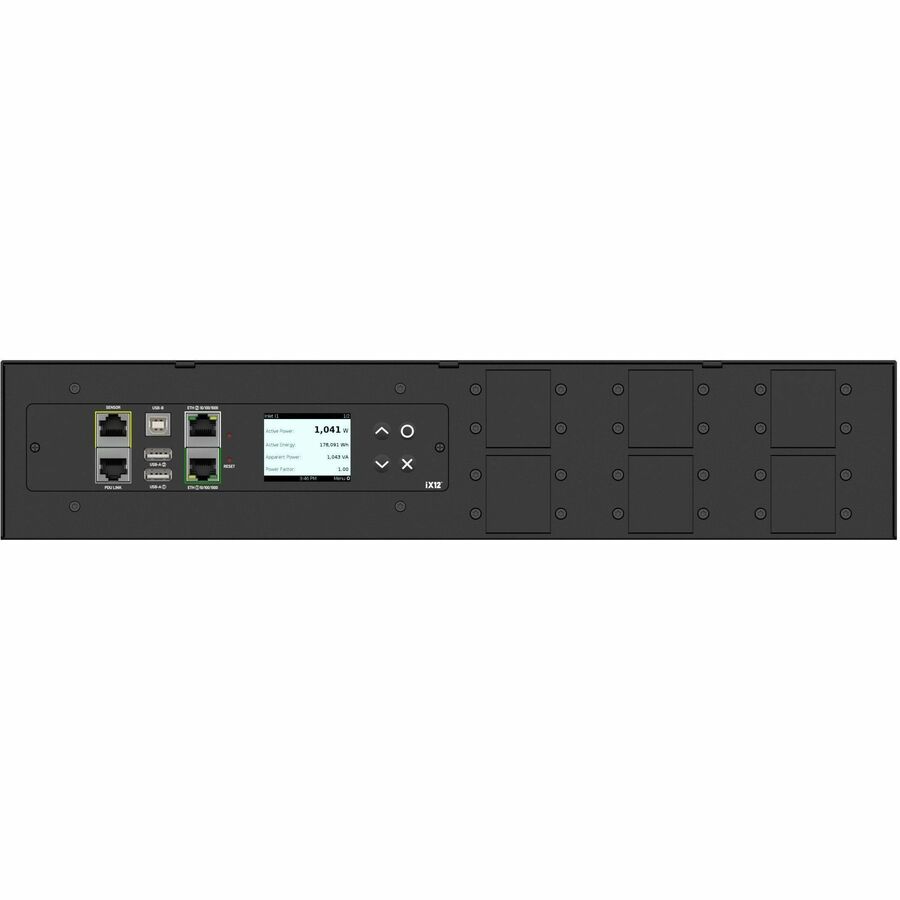

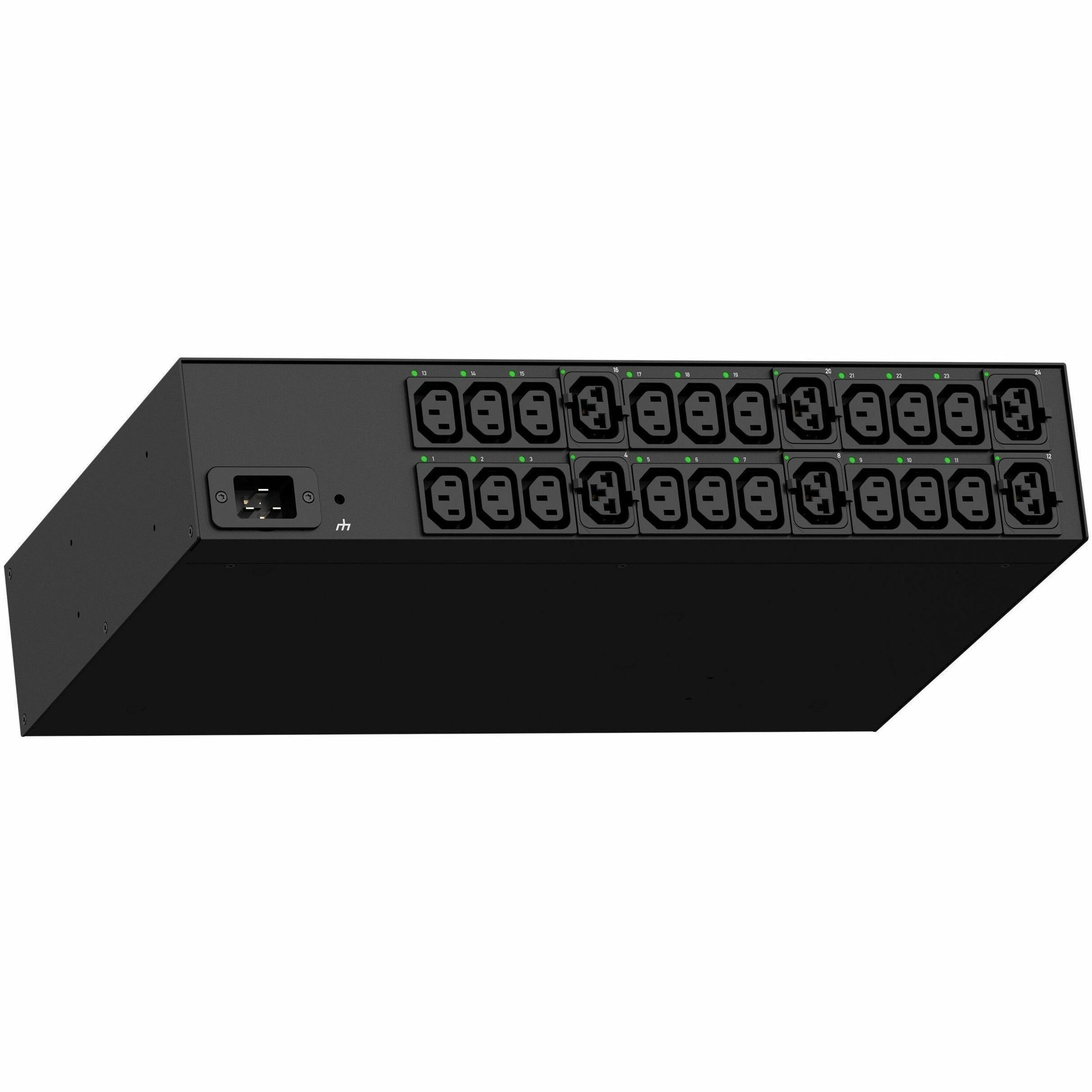

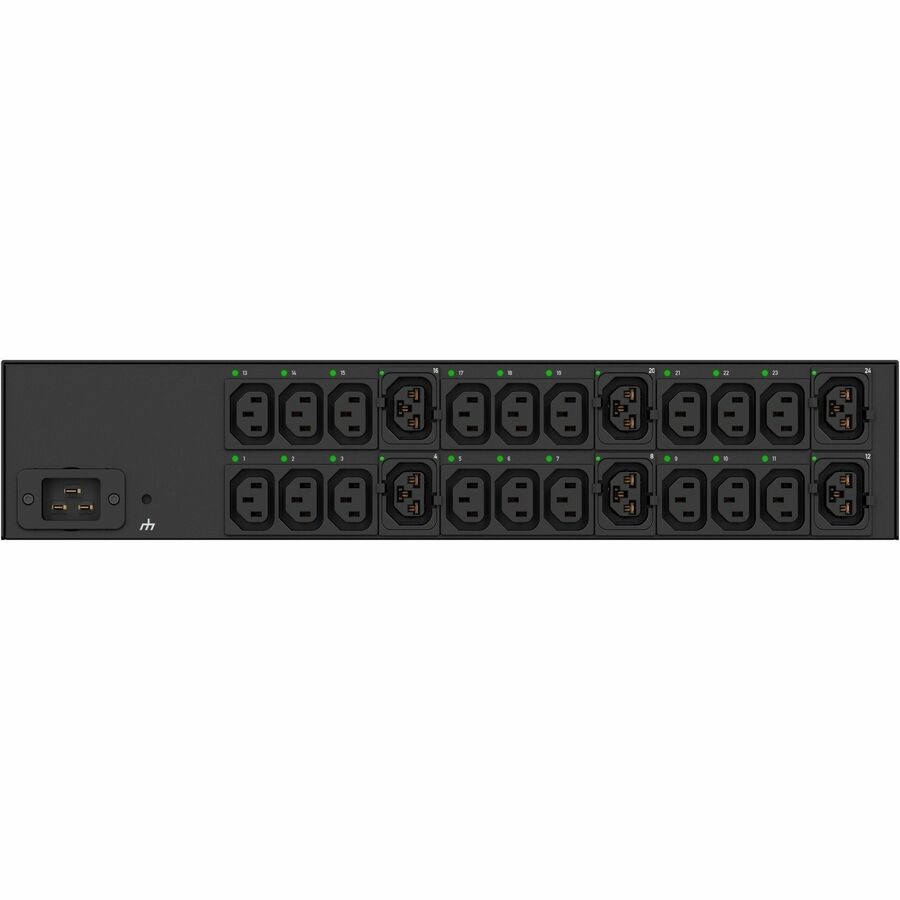

Raritan PX4-24A0CR-C8E8A0 24-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PX4-24A0CR-C8E8A0
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Series	PX4
Product Model	PX4-24A0CR-C8E8A0
Product Name	PX4-24A0CR-C8E8A0 24-Outlets PDU
Product Type	PDU

Technical Information

PDU Type	Switched Metered
Phase	Single Phase
Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C13 CX
Receptacle Detail	18 x IEC 60320 C13 6 x CX
Protection Type	Branch Circuit
Features	LCD Display Onboard Display
Load Capacity (VA)	3800 W

Power Description

Input Voltage	240 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage Range	100 V AC - 240 V AC
Input Current	20 A
Circuit Breaker	Yes

Management

Management	HTTP(s) SSH (CLI Telnet RS-232 (Serial) SNMP version v2/v3 SMTP JSON-RPC API MODBUS-TCP Redfish API
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Height	3.5"
Width	17.3"
Depth	11.5"
Weight (Approximate)	11 lb

Environmental Conditions

Maximum Operating Temperature

140°F (60°C)

Miscellaneous

Certifications & Standards	UL CE
UL Listed	Yes

Warranty

Limited Warranty

2 Year
