1PH 208V 30A (24A/PH RATED) 24 OUTLETS: 18X C13 6 X HDOT CX

Name: 1PH 208V 30A (24A/PH RATED) 24 OUTLETS: 18X C13 6 X HDOT CX
Brand: RARITAN
SKU: SM0827
Price: 2082.06 USD
Availability: InStock

RARITAN

PCN#

SM0827

MFG#

PX4-5495R-E8

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,082.06

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched with Metered
by
Outlet
NEMA L6
30P (2P3W)
18 x IEC 60320 C13, 6 x CX, 2 x Type A USB
208 V AC
Branch Circuit, Overload Protection
Network (RJ
45)
9.84 ft Cord Length
2U
Rack
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 11 lbs.

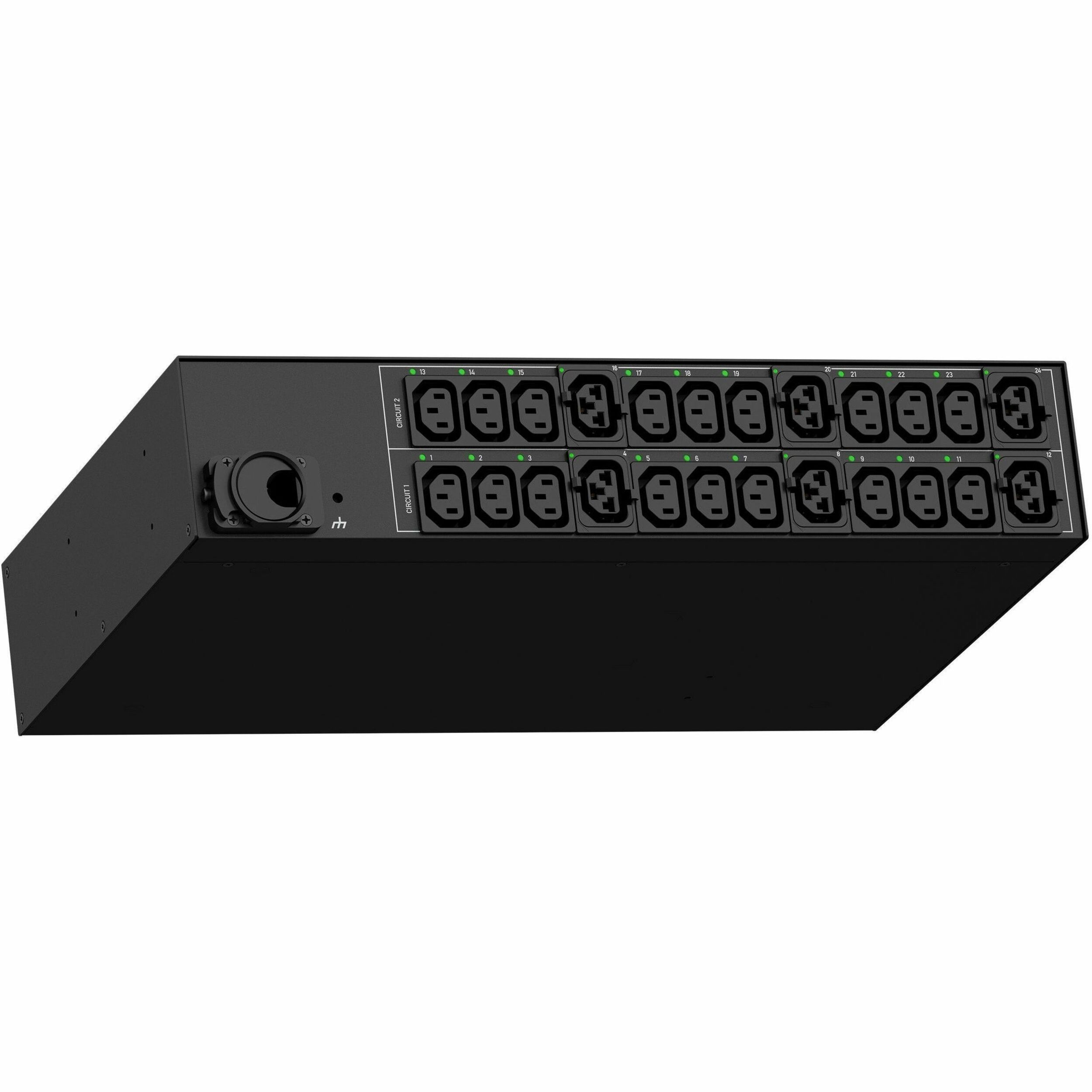

Raritan PX4-5495R-E8 24-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PX4-5495R-E8
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Series	PX4
Product Model	PX4-5495R-E8
Product Name	PX4-5495R-E8 24-Outlets PDU
Product Type	PDU

Technical Information

PDU Type	Switched with Metered-by-Outlet
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P (2P3W)
Receptacle Type	IEC 60320 C13 CX Type A USB
Receptacle Detail	18 x IEC 60320 C13 6 x CX 2 x Type A USB
Protection Type	Branch Circuit Overload Protection
Features	Multi-color LCD Onboard Display LED Status Indicator
Load Capacity (VA)	5800 W

Power Description

Input Voltage	208 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	HTTP(s) SSH (CLI) Telnet RS-232 (Serial) SNMP version v2/v3 SMTP JSON-RPC API MODBUS-TCP Redfish API
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Aluminum
Finishing	Powder Coated
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	9.84 ft
Height	3.5"
Width	17.3"
Depth	11.5"

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	176°F (80°C)

Miscellaneous

Certifications & Standards	UL Listed Canada ICES-003 Part 15 Class A of the FCC Rules
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

2 Year
