RUCKUS ICX 8200 SWITCH, 48 10/100/1000 MBPS POE+ PORTS, 4 25 GBE SFP28 STACKING/

Name: RUCKUS ICX 8200 SWITCH, 48 10/100/1000 MBPS POE+ PORTS, 4 25 GBE SFP28 STACKING/
Brand: RUCKUS WIRELESS
SKU: 5405BU
Price: 5577.39 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

5405BU

MFG#

ICX8200-48PF2-E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$5,577.39

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
25 Gigabit Ethernet, Gigabit Ethernet
25GBase
X, 10/100/1000Base
T
3 Layer Supported
854 W Power Consumption
740 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
Rack
mountable, Wall Mountable, DIN Rail Mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetimeAdditional Warranty InformationThree-year remote TAC support

Shipping Weight: 17 lbs.

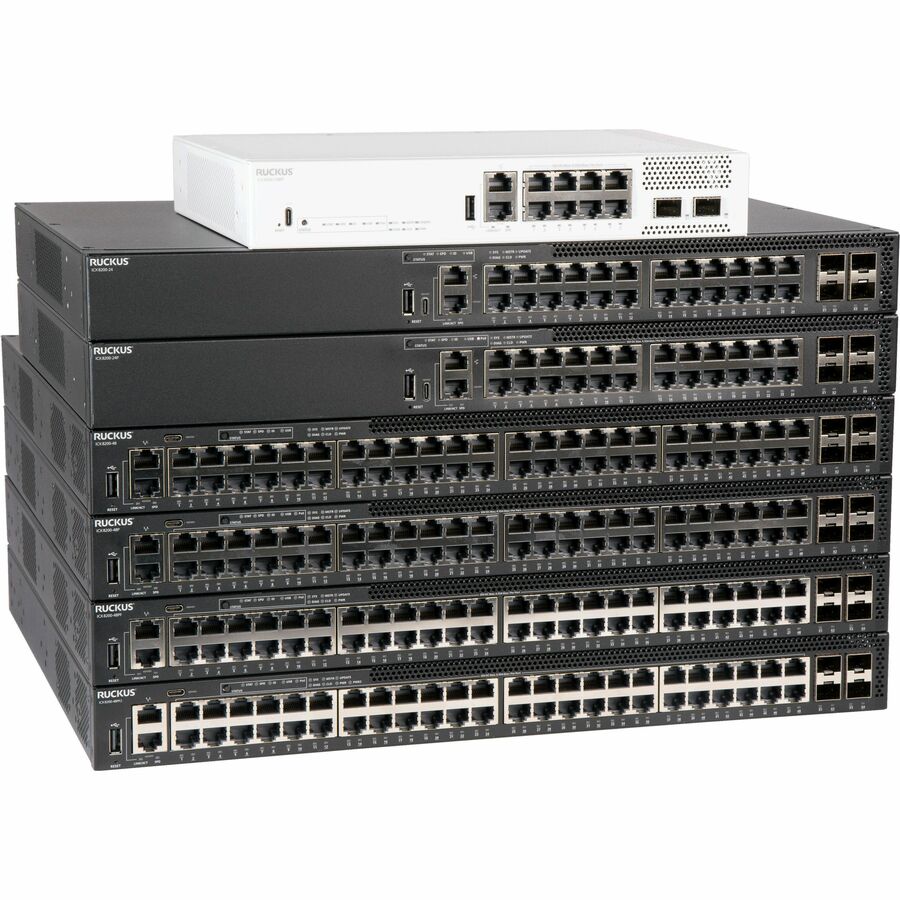

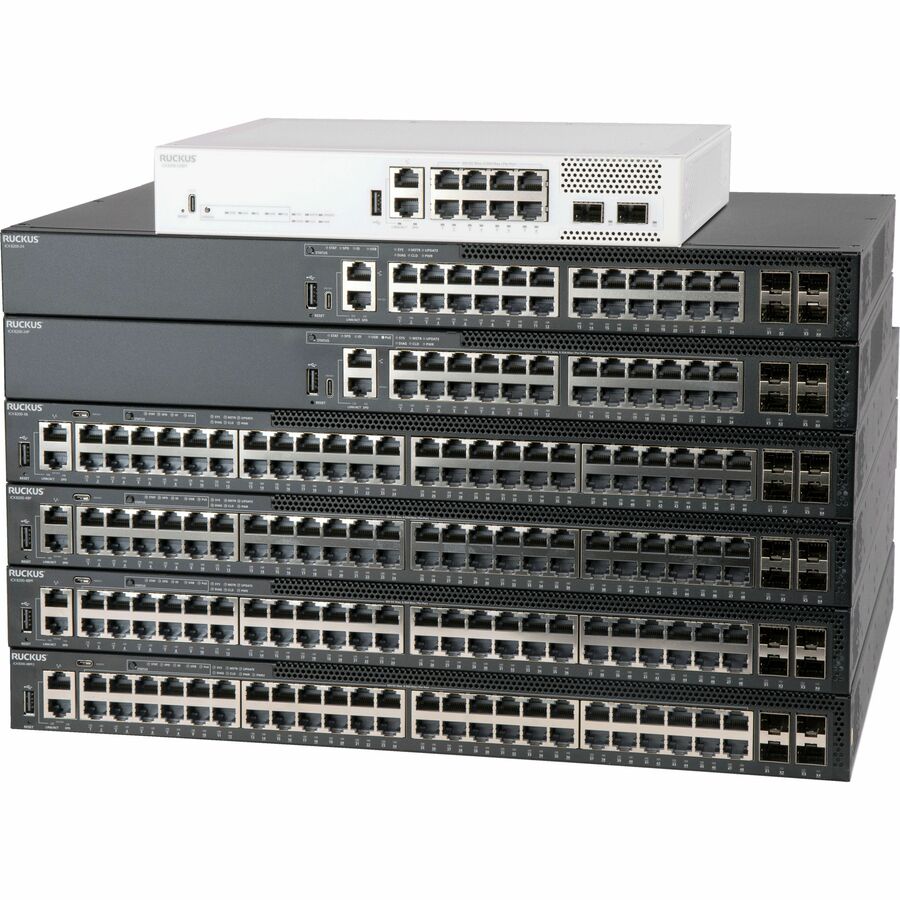

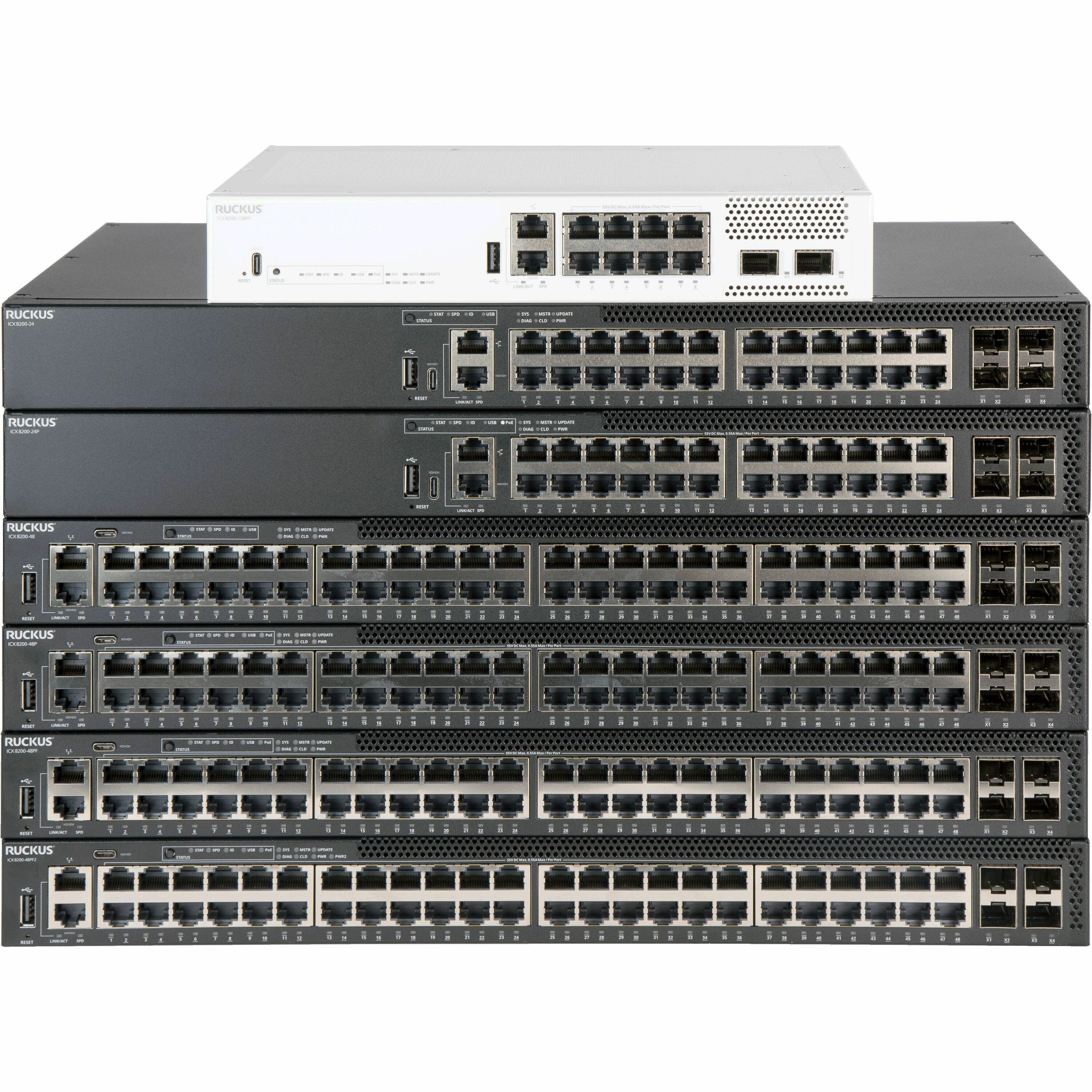

RUCKUS ICX8200-48PF Ethernet Switch

Overview

Tech Specs

Power next generation APs and PoE devices

PoE+ 802.3at, 30W per port on all ports
PoE++ 802.3bt, 60/90W on multigigabit ports
Up to 1480W PoE budget with two power supplies
25 GbE uplinks/stacking for maximum performance and future-proofing
Stacking comes standard with all ICX 8200
Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking

Enhanced Security and data privacy

VXLAN* support for advanced network segmentation and data confidentiality

Advanced L3 routing delivers network design flexibility

IPv4 and IPv6 L3 routing
Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR

Broad range of unified management options for maximum flexibility

On Premises
SmartZone
Cloud Based
RUCKUS Cloud
Controllerless
RUCKUS Unleashed
RUCKUS Analytics

Enhanced availability

Redundant, load-sharing power supplies and fans on specific models

Services and Support IncludedProduct TypeEthernet SwitchTechnical InformationFeatures

Fanless
In-Service Software Upgrade (ISSU)
Hot-swappable
DHCP Snooping
Access Control List
Energy Efficient

Interfaces/PortsTotal Number of Network Ports48Uplink PortYesStack PortYesPort/Expansion Slot Details

48 x Gigabit Ethernet PoE+
4 × 25 Gigabit Ethernet SFP28 Stacking/ Uplink-Ports

Media & PerformanceMedia Type Supported

Optical Fiber
Twisted Pair

Ethernet Technology

25 Gigabit Ethernet
Gigabit Ethernet

Network Technology

25GBase-X
10/100/1000Base-T

I/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP28Network & CommunicationLayer Supported3Networking Standards

IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1w
IEEE 802.1s
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.1AX
IEEE 802.3ae
IEEE802.3af
IEEE 802.3at
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.1Q
IEEE 802.1br
IEEE 802.3az
IEEE 802.3bt

Management & ProtocolsManageableYesData Link Protocols

HTTP
HTTPS

ReliabilityMTBF1297288 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget740 WInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power Source

Power Supply
PoE
AC

Power Consumption854 WPlug/Connector TypeC14Physical CharacteristicsForm Factor

Rack-mountable
Wall Mountable
DIN Rail Mountable

Height1.7"Width17.3"Depth14.6"Weight (Approximate)12.15 lbMiscellaneousPackage Contents

ICX8200-48PF Ethernet Switch
1 x Power Supply
1 x Fan

Application/Usage

Office
Business
Network
Enterprise
Campus
Industrial
Server
Security

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

WarrantyLimited WarrantyLifetimeAdditional Warranty InformationThree-year remote TAC support
