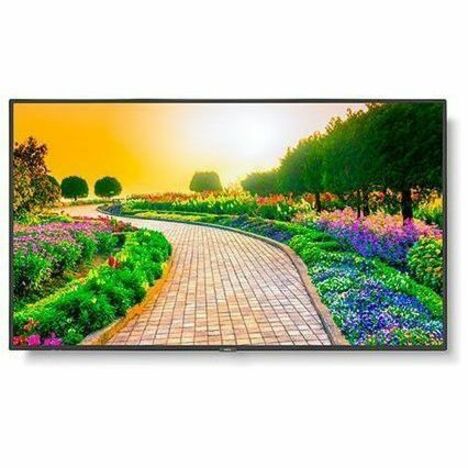

MULTISYNC 43IN DISPLAY W/ RASPBERRY PI

by
SHARP
PCN#
9CY746
MFG#
M431-MPI4E
$1,228.10
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 43" LCD
  • In
  • plane Switching (IPS) Technology

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty Information3 years Advanced Exchange
Shipping Weight: 43 lbs.

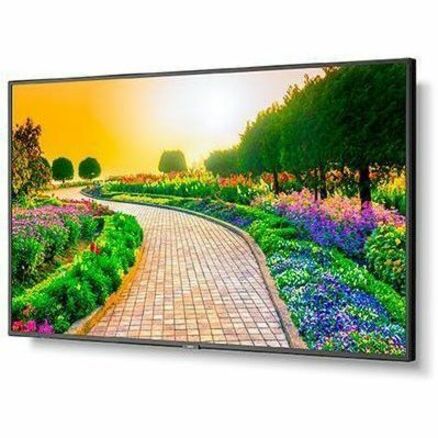

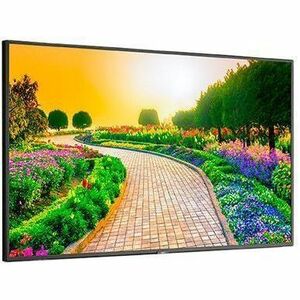

Sharp NEC Display MultiSync M431-MPI4E Digital Signage Display
Tech Specs
Specifications

Manufacturer

Sharp

Manufacturer Part Number

M431-MPI4E

Manufacturer Website Address

http://www.sharp-nec-displays.com/

Brand Name

Sharp NEC Display

Product Line

MultiSync

Product Model

M431-MPi4E

Product Name

MultiSync M431-MPI4E Digital Signage Display

Marketing Information

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also containing the integrated NEC MediaPlayer via the Raspberry Pi Compute Module 4 that allows for seamless playback through System on a chip capabilities. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

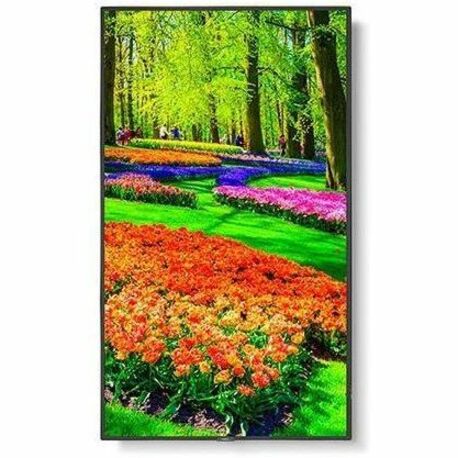

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Integrated Raspberry Pi Compute Module 4 allows for future proof expansion and NEC MediaPlayer support through the included MPi4E
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Integrated Ambient Light Sensor allows the display to autmatically adjust its luminance based on external brightness conditions
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Product Type

Digital Signage Display
Technical Information

Bezel Width (Bottom)

0.55"

Bezel Width (Top)

0.55"

Bezel Width (Left)

0.55"

Bezel Width (Right)

0.55"

Panel Technology

In-plane Switching (IPS) Technology

Minimum Color Temperature

4220.3°F (2326.8°C)

Maximum Color Temperature

17540.3°F (9726.8°C)
Display & Graphics

Number of Screens

1

Viewable Screen Size

43"

Screen Size Class

43"

Display Screen Type

LCD

Display Resolution

3840 x 2160

High Dynamic Range (HDR)

Yes

High Dynamic Range (HDR) Type

  • PQ
  • HLG
  • HDR10

Response Time

8 ms

Pixel Pitch

9.8 mil

Aspect Ratio

16:9

Backlight Technology

Edge LED

Orientation

Landscape/Portrait
Video

Scan Format

2160p

Dynamic Contrast Ratio

8,000:1

Brightness

400 Nit

Analog Tuner

NTSC
Network & Communication

Ethernet

Yes

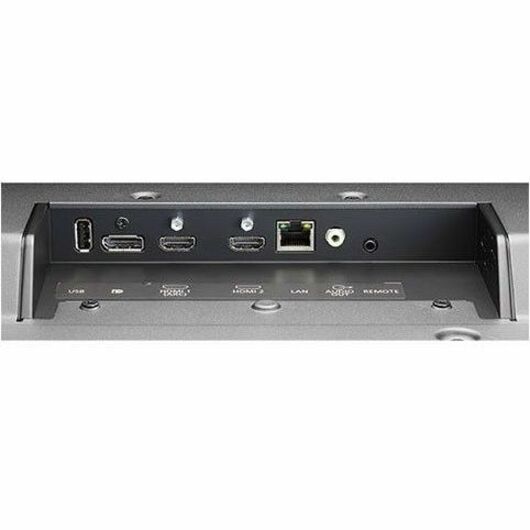

Interfaces/Ports

USB

Yes

HDMI

Yes

DisplayPort

Yes

Serial

Yes

Number of HDMI Inputs

2

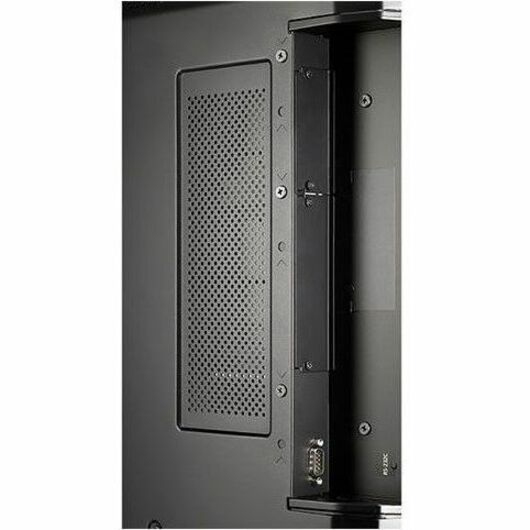

RS-232C Input

Yes

Number of HDMI 2.0 Ports

2
Environmental Conditions

Minimum Storage Temperature

-4°F (-20°C)

Maximum Storage Temperature

140°F (60°C)

Minimum Operating Humidity

20%

Maximum Operating Humidity

80%

Minimum Storage Humidity

10%

Maximum Storage Humidity

80%
Physical Characteristics

VESA Mount Standard

200 x 200

Mount Type

Wall Mountable

Height

22.1"

Width

38.3"

Depth

2.5"

Weight (Approximate)

30.64 lb
Miscellaneous

Package Contents

  • MultiSync M431-MPI4E Digital Signage Display
  • 3m Power Cord
  • 2.0m HDMI Cable
  • Wireless Remote Control
  • Batteries
  • Raspberry Pi Compute Module 4 NEC MediaPlayer (MPi4E - Integrated)
  • Setup Guide

Application/Usage

Retail

Energy Star

Yes

Energy Efficiency Certification

ENERGY STAR 8.0
Warranty

Limited Warranty

3 Year

Additional Warranty Information

3 years Advanced Exchange
