SHURE SLXD35+-G57 PORTABLE SYSTEM PLUG-ON

by
SHURE INC.
PCN#
840Q76
MFG#
SLXD35+-G57
$784.60
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 470 MHz to 608 MHz Operating Frequency
  • 20 Hz to 20 kHz Frequency Response
  • 328.08 ft Operating Range
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 3 lbs.

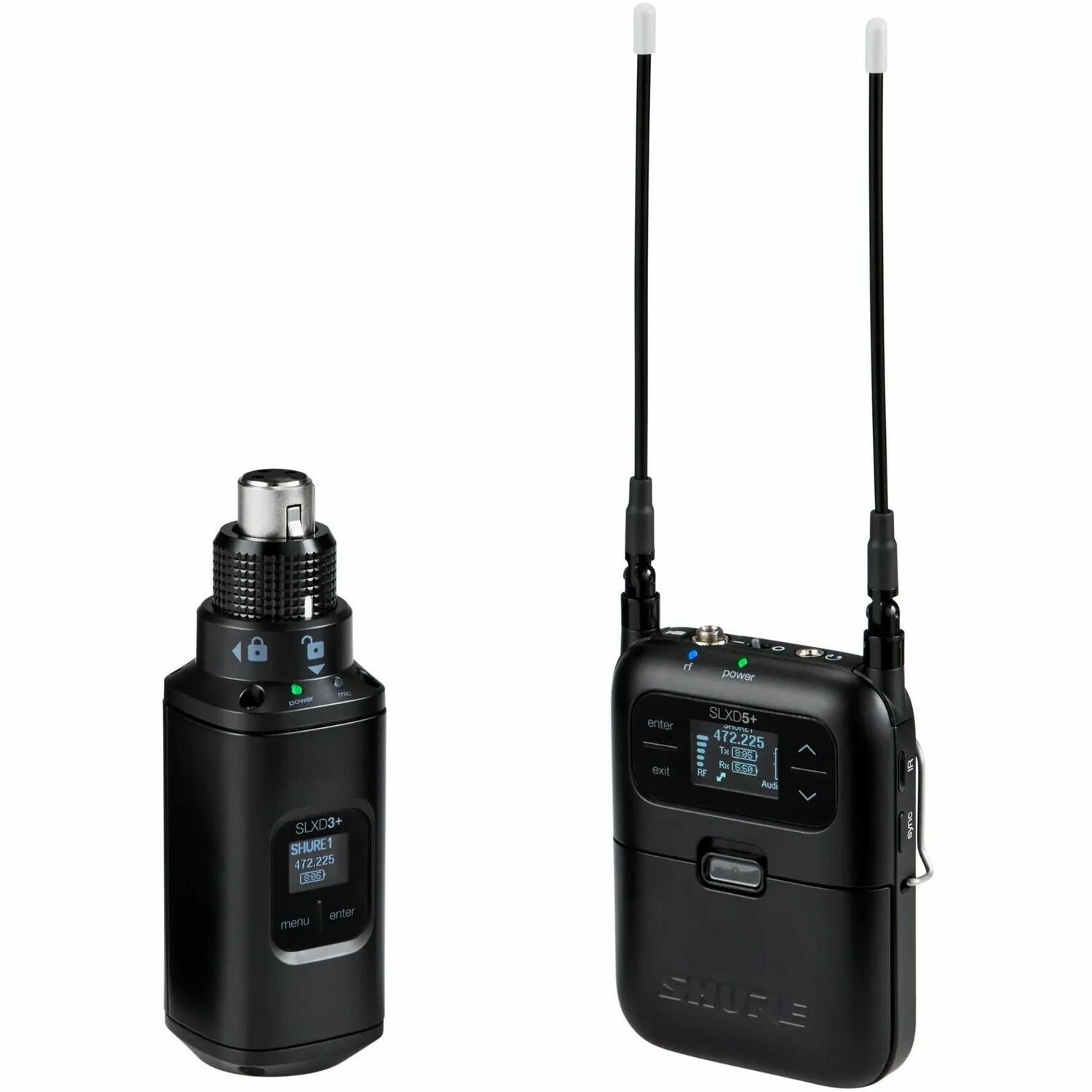

Shure Portable Digital Wireless System with SLXD3+ Plug On Transmitter
Tech Specs
Specifications

Manufacturer

Shure, Inc

Manufacturer Part Number

SLXD35+-G57

Manufacturer Website Address

http://www.shure.com

Brand Name

Shure

Product Model

SLXD35+

Product Name

Portable Digital Wireless System with SLXD3+ Plug On Transmitter

Marketing Information

The SLXD35+ portable plug-on wireless system features the SLXD5+ Portable Receiver and the SLXD3+ plug-on transmitter for use with XLR microphones. Deliver wireless excellence, wherever required, in videography, ENG and field production, film and location sound applications. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Product Type

Wireless Microphone System
Technical Information

Minimum Operating Frequency

470 MHz

Maximum Operating Frequency

608 MHz

Minimum Frequency Response

20 Hz

Maximum Frequency Response

20 kHz

Operating Range

328.08 ft

Image Rejection

> 85 dB (Typical)

Audio Latency

2.80 ms

Audio Dynamic Range

118 dB @ 1% THD

Total Harmonic Distortion (THD)

<0.02%

Microphone Offset Range

0 to 21 dB (In 3 dB Steps)

RF Tuning Step Size Details

  • JB Band: 125 kHz
  • All Other Bands: 25 kHz
  • Varies by region.


Interfaces/Ports

Bluetooth

Yes

XLR

Yes

Number Of Audio Outputs

2
Battery Information

Number of Batteries Supported

4

Battery Size Supported

AA

Battery Chemistry

Lithium Ion (Li-Ion)

Battery Run Time

8 Hour

Rechargeable Battery

Yes
Environmental Conditions

Operating Temperature Range

0°F (-17.8°C) to 122°F (50°C)

Storage Temperature Range

165°F (73.9°C)
Physical Characteristics

Product Material

Metal
Miscellaneous

Package Contents

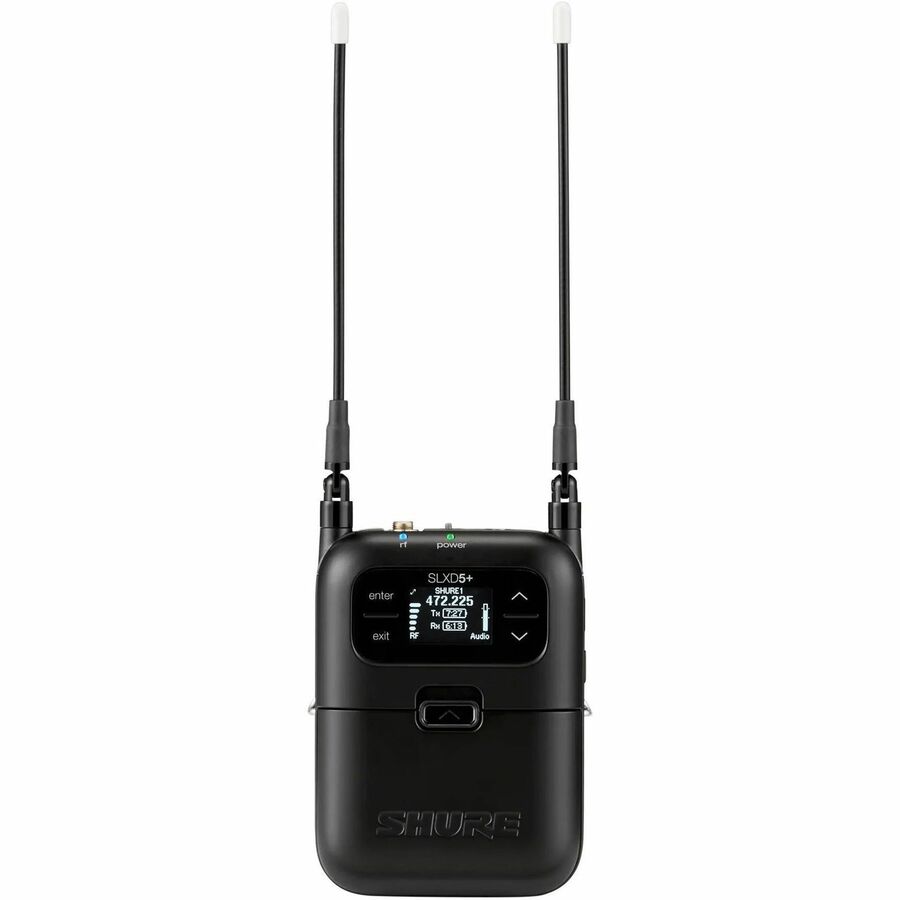

  • 1 x SLXD5+ Single-Channel Portable Wireless Receiver

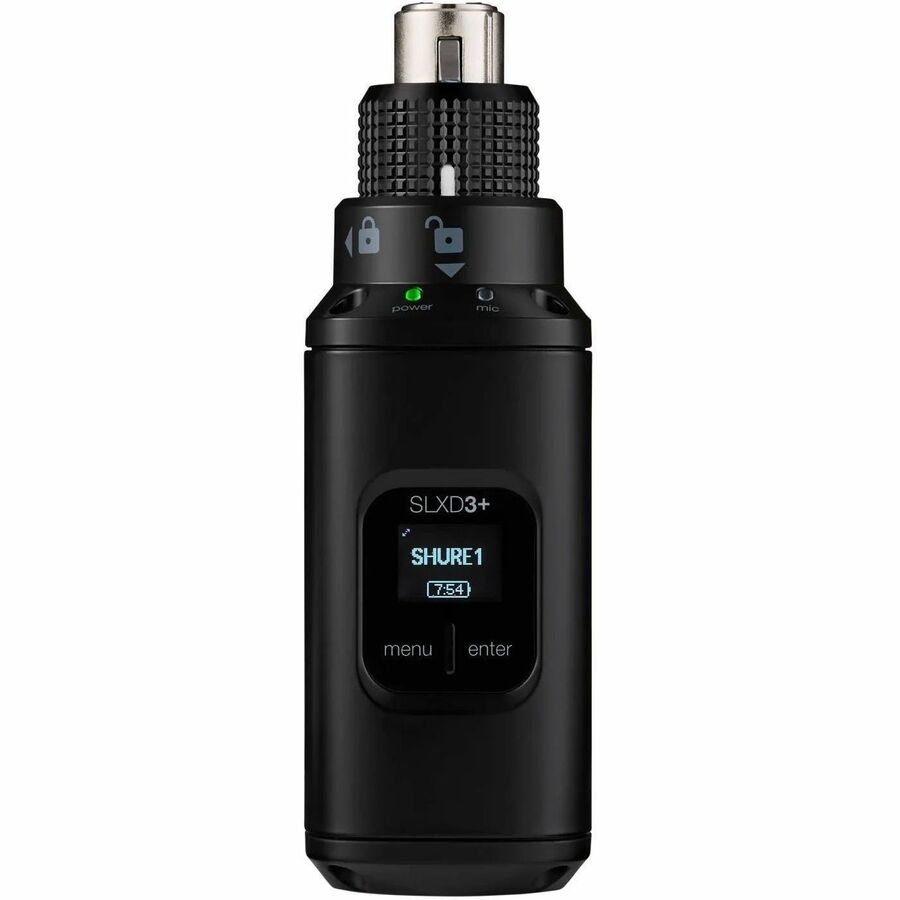

  • 1 x SLXD3+ Plug-on Transmitter with Locking XLR Connector
  • 2 x Zippered Carrying Pouches
  • 4 x AA Batteries
  • 1 x Leather Protective Sleeve with Integrated Belt Clip
  • 1 x WA311 Non-Conductive Cold Shoe Mount Adapter


Warranty

Limited Warranty

2 Year
