Shuttle XPC slim DH670 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support

Name: Shuttle XPC slim DH670 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support
Brand: SHUTTLE COMPUTER
SKU: 10HV44
Price: 382 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

10HV44

MFG#

DH670

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

Intel H670 Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2 Total Memory Slots
Serial ATA/600 Controller
Intel HD Graphics Graphic(s)
1 2.5" Bay(s)
Processor Support (Core i3, Core i5, Core i7, Core i9, Celeron, Pentium Gold)
Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
3 USB 3.2 Gen 1 Port(s)
1 x 120 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 7 lbs.

Shuttle XPC slim DH670 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	DH670
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Series	DH6xx
Product Model	DH670
Product Name	XPC slim DH670 Barebone System

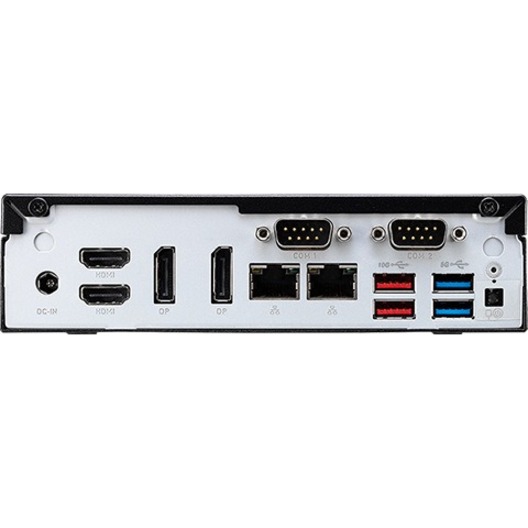

Marketing Information	ROBUST 1.3-LITRE SLIMPC SUPPORTS INTEL CORE GEN. 12 PROCESSORS "ALDER LAKE-S" AND FOUR UHD DISPLAYS The Shuttle XPC slim Barebone DH670 with H670 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH670 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket LGA-1700
Processor Supported	Core i3 Core i5 Core i7 Core i9 Celeron Pentium Gold
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	H670

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Number of Total Memory Slots	2

Storage

Supported Storage Drive Interfaces	Serial ATA III M.2 PCI Express NVMe 4.0 x4
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	HD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	1
Number of Internal 2.5" Bays	1
Number of Total Expansion Slots	2

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	3
Number of USB 3.2 Gen 2 Ports	4
USB Type-C (Front)	Yes
USB Type-C Detail	USB 3.2 Gen 1 (Type-C x 1)

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	120 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Product Color	Black
Form Factor	Slim PC
Height	1.7"
Width	6.5"
Depth	7.5"
Weight (Approximate)	2.87 lb

Miscellaneous

Package Contents	XPC slim DH670 Barebone System Power Adapter Quick Guide Screw Package Power Cord Driver DVD VESA Mount VESA Mount Quick Guide Thermal Grease HDD Screw Pack
Energy Star	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
