Shuttle XPC slim DL20NV2 Barebone System - Slim PC - Socket BGA-1338 - 1 x Processor Support - Intel Celeron N4505 2 GHz Dual-core (2 Core)

Name: Shuttle XPC slim DL20NV2 Barebone System - Slim PC - Socket BGA-1338 - 1 x Processor Support - Intel Celeron N4505 2 GHz Dual-core (2 Core)
Brand: SHUTTLE COMPUTER
SKU: 11NG06
Price: 259.59 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

11NG06

MFG#

DL20NV2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

Intel Chip
16 GB DDR4 SDRAM DDR4
2933/PC4
23466 Maximum RAM Support
2 Total Memory Slots
Serial ATA/600 Controller
Intel UHD Graphics Graphic(s)
1 2.5" Bay(s)
Processor Support (Pentium, Celeron)
2.5 Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
2 USB 3.2 Gen 1 Port(s)
40 W

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

Shuttle XPC slim DL20NV2 Barebone System - Slim PC - Socket BGA-1338 - 1 x Processor Support - Intel Celeron N4505 2 GHz Dual-core (2 Core)

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	DL20NV2
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Model	DL20NV2
Product Name	Barebone XPC slim DL20NV2
Marketing Information	FANLESS 1-LITRE PC SUITABLE FOR 24/7 OPERATION The Shuttle XPC slim Barebone DL20N Series is the successor to Shuttle's DL10J. These fanless Slim PC barebones with an energy-efficient 10 nm Intel "Jasper Lake" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. The optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful 11th gen. Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD or M.2 drive, these Slim-PCs works virtually noiseless.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket BGA-1338
Processor Supported	Pentium Celeron
Processor Manufacturer	Intel
Processor Type	Celeron
Processor Model	N4505
Processor Core	Dual-core (2 Core)
Processor Speed	2 GHz
Maximum Turbo Speed	2.90 GHz
64-bit Processing	Yes

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	16 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2933/PC4-23466
Number of Total Memory Slots	2

Storage

Supported Storage Drive Interfaces	Serial ATA III
Supported Storage Drive Types	SSD HDD

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	UHD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	1
Number of Internal 2.5" Bays	1

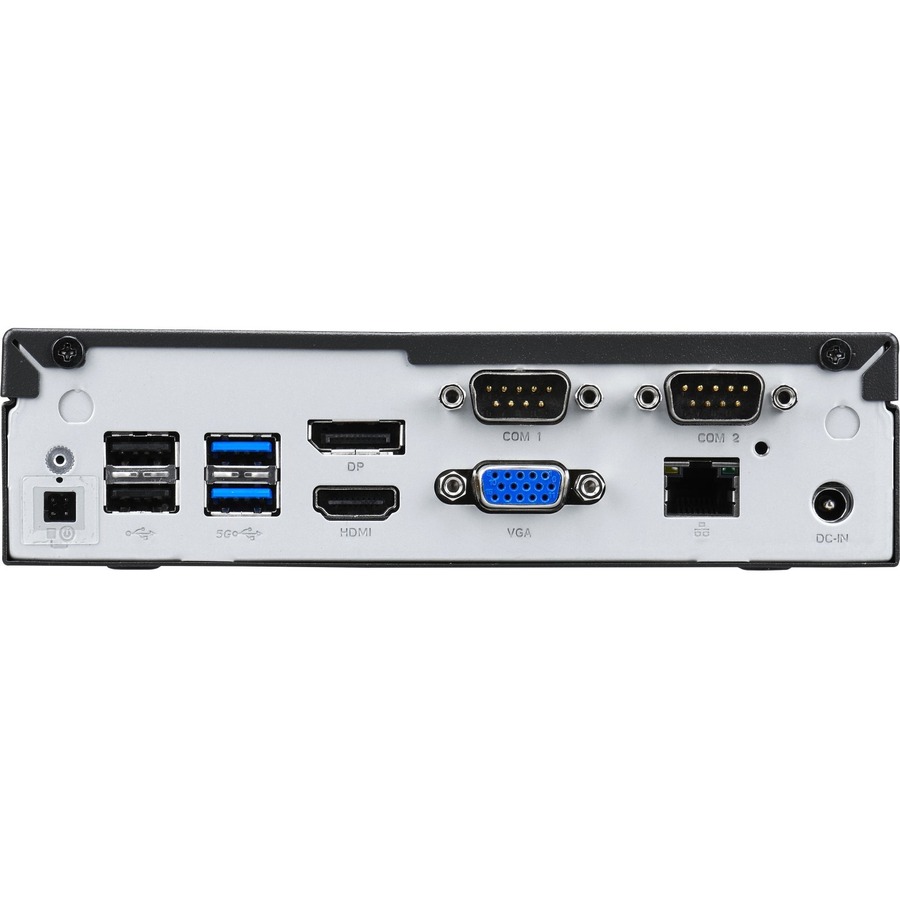

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	7
Number of USB 3.2 Gen 1 Ports	2
Number of USB 3.2 Gen 2 Ports	2
Number of Onboard USB 2.0 Ports	1
Number of VGA Ports	1

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	40 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Product Color	Black
Form Factor	Slim PC
Height	1.7"
Width	6.5"
Depth	7.5"
Weight (Approximate)	1.76 lb

Miscellaneous

Energy Star

Yes
