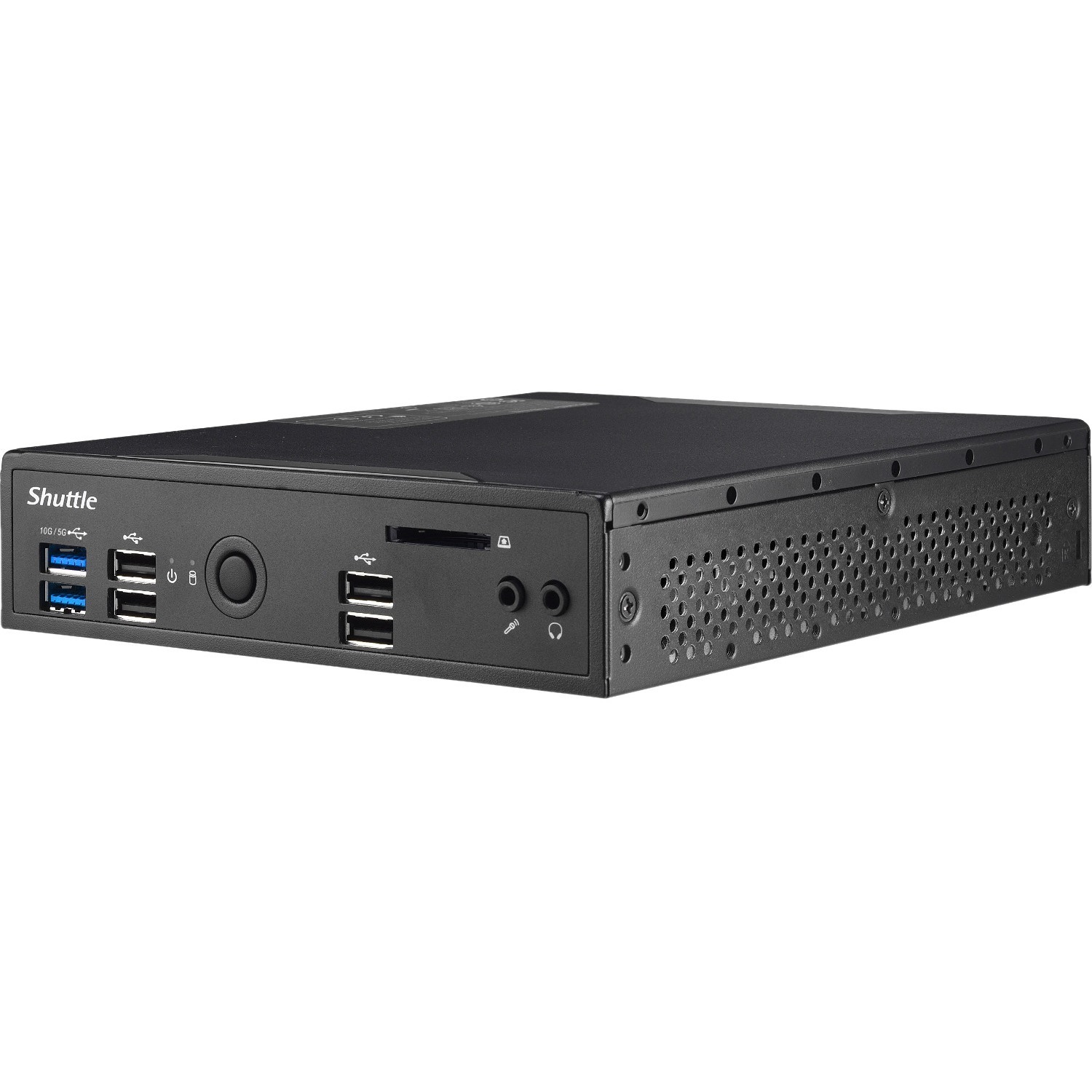

Shuttle XPC slim DS20U Barebone System - Slim PC - Socket BGA-1528 - 1 x Processor Support - Intel Celeron 5205U 1.90 GHz Dual-core (2 Core)

Name: Shuttle XPC slim DS20U Barebone System - Slim PC - Socket BGA-1528 - 1 x Processor Support - Intel Celeron 5205U 1.90 GHz Dual-core (2 Core)
Brand: SHUTTLE COMPUTER
SKU: S85754
Price: 329.94 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

S85754

MFG#

DS20U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$329.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2 Total Memory Slots
Serial ATA/600 Controller
UHD Graphics Graphic(s)
Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
4 USB 3.2 Gen 1 Port(s)
65 W

Product Condition: New and Factory Fresh

Shipping Weight: 7 lbs.

Shuttle XPC slim DS20U Barebone System - Slim PC - Socket BGA-1528 - 1 x Processor Support - Celeron 5205U 1.90 GHz Dual-core (2 Core)

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	DS20U
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Model	DS20U
Product Name	XPC slim DS20U Barebone System
Marketing Information	FANLESS SLIMPC WITH A COMET-LAKE-U PROCESSOR IN INDUSTRIAL DESIGN The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket BGA-1528
Processor Type	Celeron
Processor Model	5205U
Processor Core	Dual-core (2 Core)
Processor Speed	1.90 GHz

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	2

Storage

Supported Storage Drive Interfaces

Serial ATA III
M.2

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Model	UHD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	9
Number of USB 3.2 Gen 1 Ports	4
Number of Onboard USB 2.0 Ports	1
Number of VGA Ports	1

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	65 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Slim PC
Height	1.6"
Width	6.5"
Depth	7.9"
Weight (Approximate)	3.31 lb

Miscellaneous

Energy Star

Yes
