SHUTTLE DS50U5 CORE I5-1335U DUAL LAN FANLESS DDR5 MAX 64GB

Name: SHUTTLE DS50U5 CORE I5-1335U DUAL LAN FANLESS DDR5 MAX 64GB
Brand: SHUTTLE COMPUTER
SKU: S85759
Price: 965.55 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

S85759

MFG#

DS50U5

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$965.55

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Chip
64 GB DDR5 SDRAM DDR5
5200/PC5
41600 Maximum RAM Support
2 Total Memory Slots
Serial ATA/600, NVMe Controller
UHD Graphics Graphic(s)
1 2.5" Bay(s)
DisplayPort
Network (RJ
45)
3 M.2 Interface(s)
1 SATA Interface(s)
2.5 Gigabit Ethernet, Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
4 USB 3.2 Gen 1 Port(s)
90 W

Product Condition: New and Factory Fresh

Shipping Weight: 7 lbs.

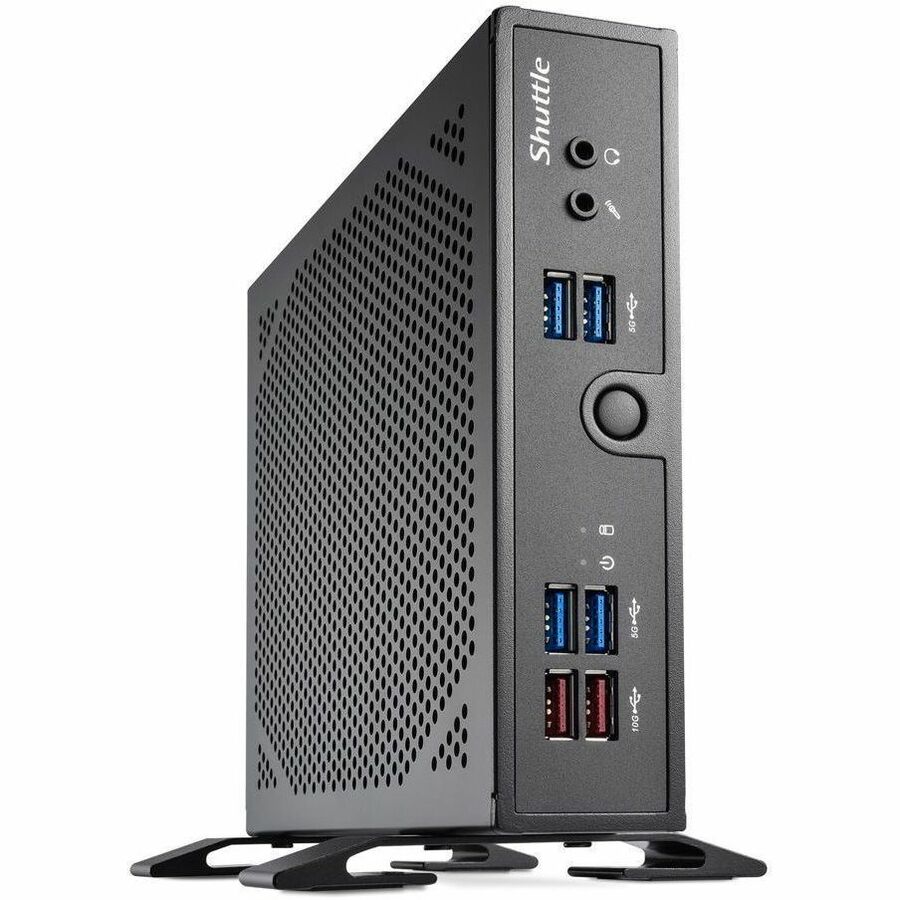

Shuttle XPC slim DS50U5 Barebone System - Slim PC - 1 x Processor Support - 1 Core i5 13th Gen i5-1335U 1.30 GHz Deca-core (10 Core)

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	DS50U5
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Series	DS50U
Product Model	DS50U5
Product Name	XPC slim DS50U5 Barebone System

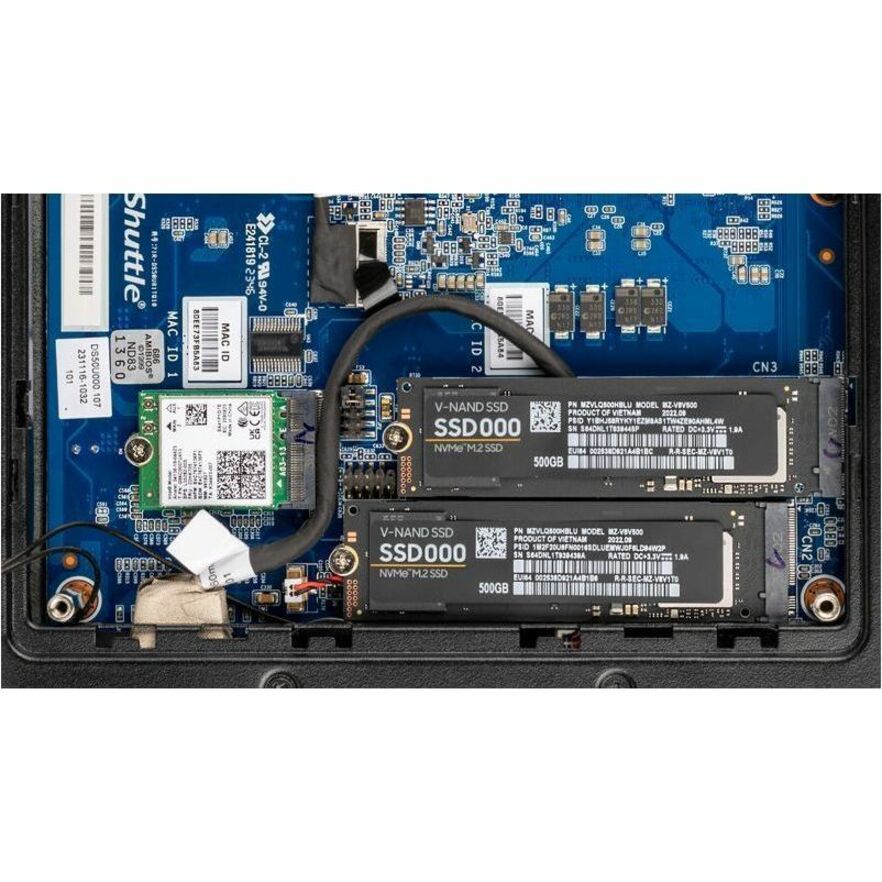

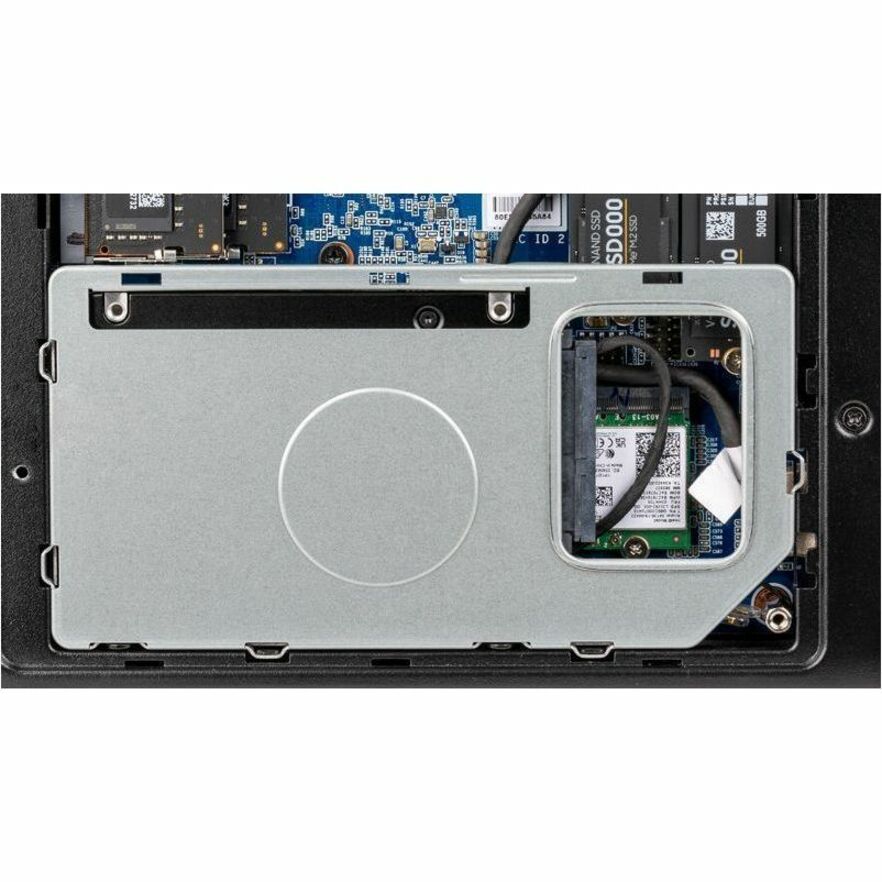

Marketing Information	FANLESS SLIMPC WITH INTEGRATED ULV PROCESSOR IN INDUSTRIAL DESIGN The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards. Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Core i5
Processor Generation	13th Gen
Processor Model	i5-1335U
Processor Core	Deca-core (10 Core)
Processor Speed	1.30 GHz
Maximum Turbo Speed	4.60 GHz
64-bit Processing	Yes

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR5 SDRAM
Memory Standard	DDR5-5200/PC5-41600
Total Number of Memory Slots	2

Storage

Supported Storage Drive Interfaces	Serial ATA III M.2
Supported Storage Drive Types	SSD HDD

Controllers

Controller Type

Serial ATA/600
NVMe

Display & Graphics

Graphics Controller Model	UHD Graphics
Graphics Memory Technology	DDR5 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	1
Number of 2.5" Bays	1
Number of M.2 Interfaces	3

Interfaces/Ports

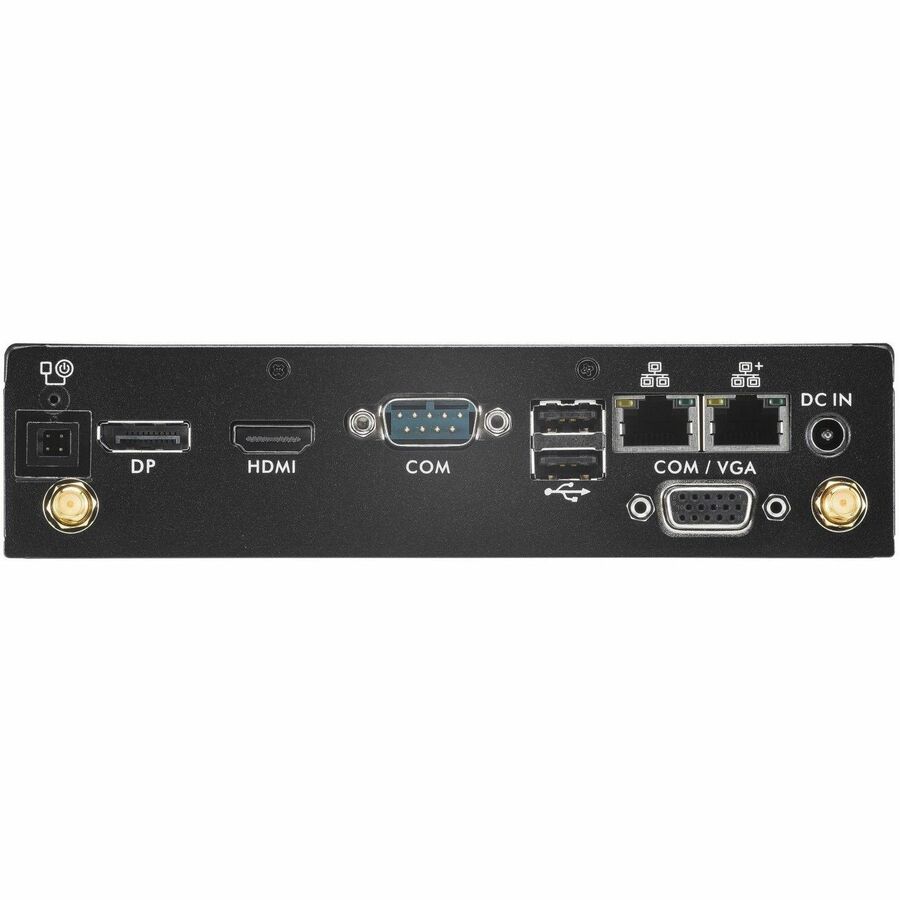

HDMI (Rear)	Yes

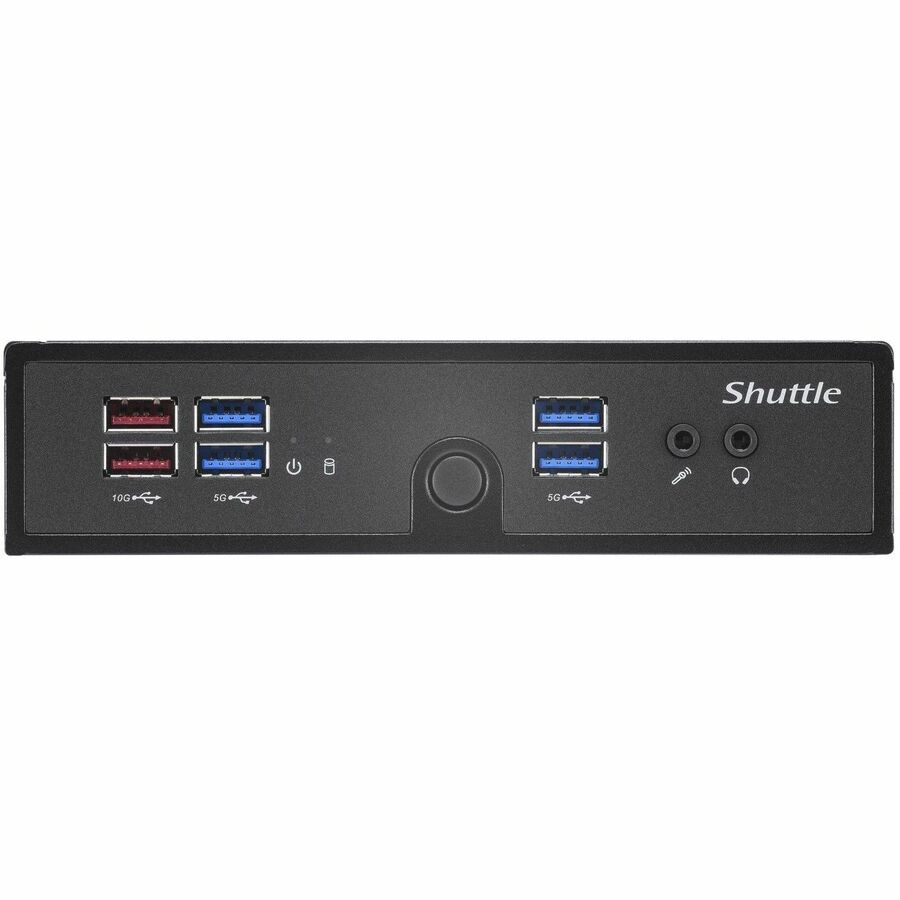

Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	4
Number of USB 3.2 Gen 2 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2

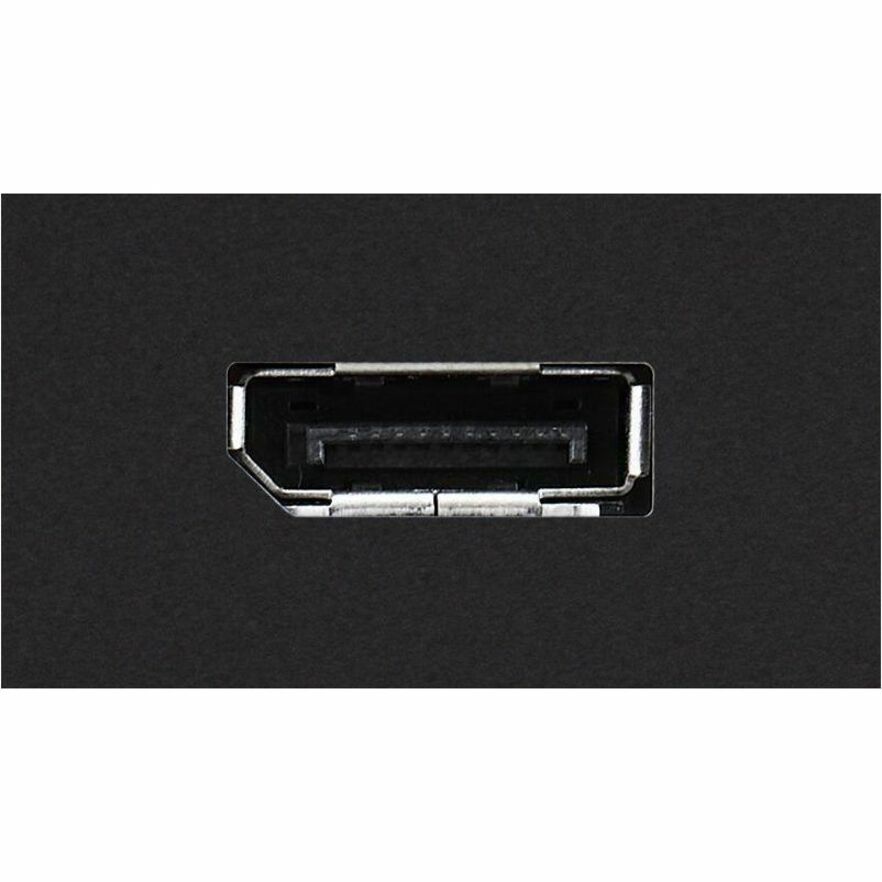

DisplayPort	Yes
Number of SATA Interfaces	1

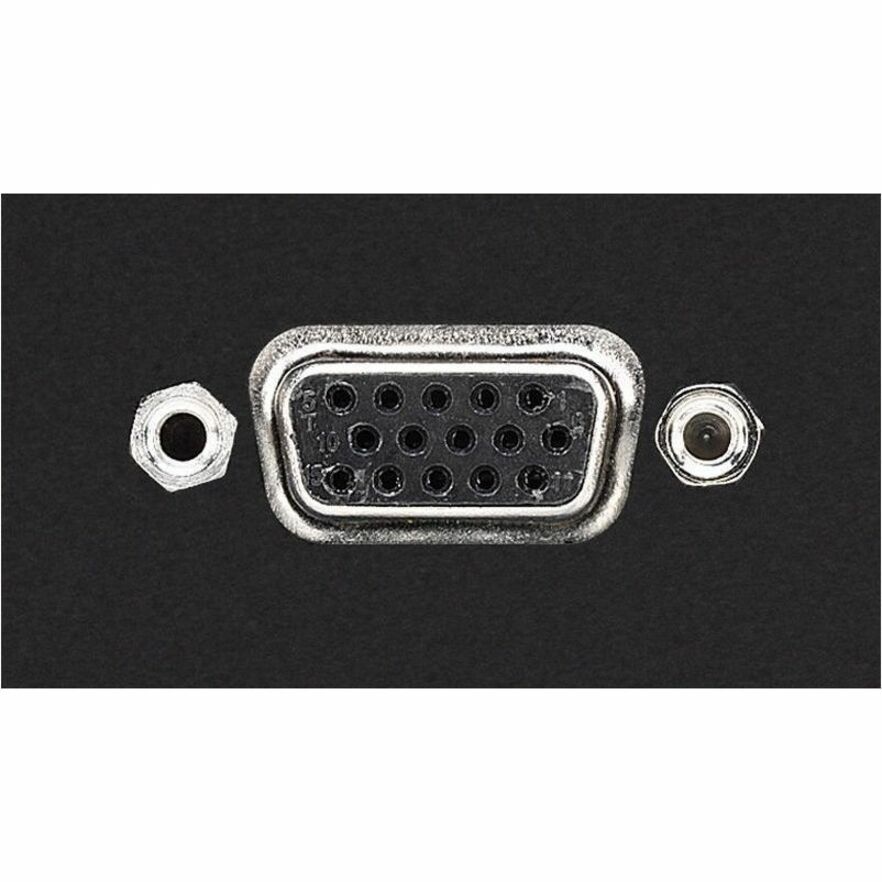

Number of VGA Ports	1

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	90 W
Thermal Design Power	15 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Slim PC
Height	1.6"
Width	6.5"
Depth	7.9"
Weight (Approximate)	3.53 lb

Miscellaneous

Energy Star

Yes
