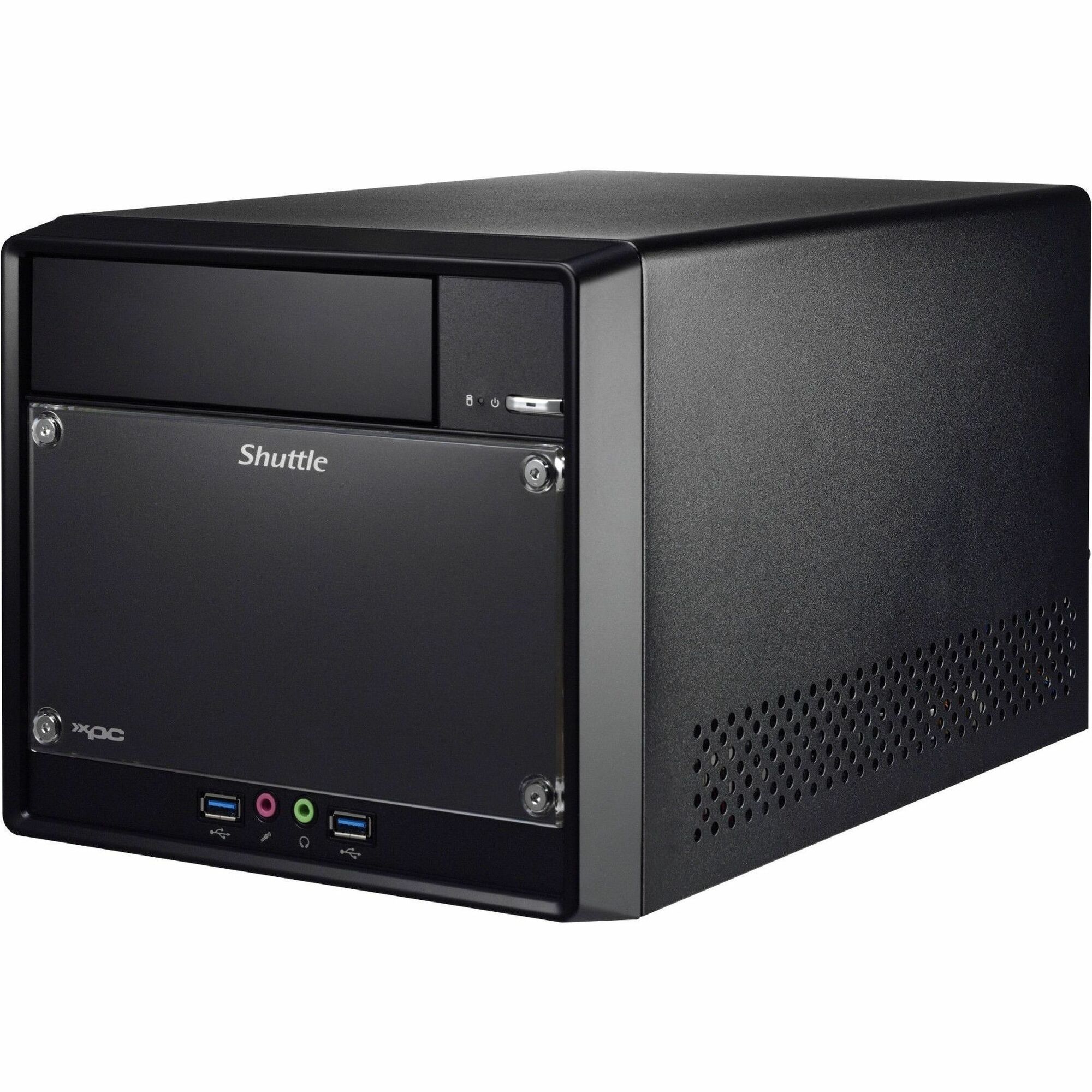

Shuttle XPC cube SH610R4 Barebone System - Mini PC - Socket LGA-1700

Name: Shuttle XPC cube SH610R4 Barebone System - Mini PC - Socket LGA-1700
Brand: SHUTTLE COMPUTER
SKU: Z51370
Price: 503.03 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

Z51370

MFG#

SH610R4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$503.03

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel H610 express Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2 Total Memory Slots
Serial ATA/600 Controller
Iris Xe Graphics
2 3.5" Bay(s)
HDMI
DisplayPort
Network (RJ
45)
3 SATA Interface(s)
Processor Support (Core i3, Core i5, Core i7, Celeron, Pentium, Core i9)
Gigabit Ethernet
Windows 11 x64, Linux Supported Operating System
4 USB 3.2 Gen 1 Port(s)
300 W

Product Condition: New and Factory Fresh

Shipping Weight: 13 lbs.

Shuttle XPC cube SH610R4 Barebone System - Mini PC - Socket LGA-1700

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	SH610R4
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC cube
Product Model	SH610R4
Product Name	XPC cube SH610R4 Barebone System
Marketing Information	The Versatile PC Supports Brand New 13th Gen Intel® Processors A 13-liter compact box based on the newest Intel® H610 chipset, Shuttle SH610R4 is a powerful and robust desktop PC with the LGA1700 design that supports 13th/12th Generation Intel® Core processor with Intel® Xe graphic architecture and dual-channel DDR4-3200 memory to reliable process multi-tasks and drive 4K/60 contents simultaneously in the most efficient way possible. Expansion-friendly is one of the critical features of the SH610R4, the built-in PCI-E Gen5 x16 allows upgrading graphics potential via a discrete graphics card to improve the visual output or adding video capture cards to expand into media-related applications. SH610R4 can support the installation of two 3.5-inch HDDs, one ODD bay and an M.2 SSD, users can configure them according to the storage required by the actual application. Sufficient and easily accessible connectivity is another reason to make SH610R4 the ideal choice for business, SH610R4 provides a wide range of I/O ports including a total of eight USB 3.2 and USB 2.0, a Gigabit LAN, HDIM 2.0b, dual DisplayPort and VGA interfaces. This is perfect for visual computing, content creation, control room PC, network security system, etc. Intel® 13th Gen processor Based on the H610 chipset, SH610R4 is designed for 13th Gen (Raptor Lake) and 12th Gen (Alder Lake) Intel® processors in the LGA1700 socket features the new hybrid processor design of Performance-cores and Efficient-cores, and supports up to 64GB (32GBx2) of DDR4-3200 memory, providing optimal computing capacity for multitasking. According to Intel, the 13th generation core processor performance improvement up to 11% in single-core and 34% in multi-core workloads. In addition, with Intel® UHD Graphics 700 series integrated, SH610R4 comes with outstanding performance to boost image processing in streaming, video recording and content creation, as well as is the potential for multi-platform AI deployment. Triple-Display Productivity Built-in one HDMI 2.0, two DisplayPort, and VGA outputs, the SH610R4 supports triple independent display, allowing the extent of the workspace across multiple monitors for a more comfortable productivity experience.
Product Type	Barebone System

Processor

Processor Socket	Socket LGA-1700
Processor Supported	Core i3 Core i5 Core i7 Celeron Pentium Core i9
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	H610 express

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	2

Storage

Supported Storage Drive Interfaces	Serial ATA
Supported Storage Drive Types	SSD HDD

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Model	Iris Xe Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	3
Number of External 5.25" Bays	1
Number of 3.5" Bays	2
Total Number of Expansion Slots	2
Number of PCI Express x16 Slots	1

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	13
Number of USB 3.2 Gen 1 Ports	4
Network (RJ-45)	Yes
DisplayPort	Yes
Number of SATA Interfaces	3
Number of VGA Ports	1

Operating System

Operating System Supported

Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	300 W

Physical Characteristics

Form Factor	Mini PC
Height	7.8"
Width	8.5"
Weight (Approximate)	8.16 lb
