Shuttle XPC cube SW580R8 Barebone System - Socket LGA-1200

Name: Shuttle XPC cube SW580R8 Barebone System - Socket LGA-1200
Brand: SHUTTLE COMPUTER
SKU: 10HV40
Price: 659.81 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

10HV40

MFG#

SW580R8

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

Intel W580 Chip
128 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
4 Total Memory Slots
Serial ATA/600 Controller
Intel UHD Graphics Graphic(s)
4 3.5" Bay(s)
4 SATA Interface(s)
Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron, Xeon)
2.5 Gigabit Ethernet, Gigabit Ethernet
Windows 10, Windows 11, Linux Supported Operating System
3 USB 3.2 Gen 1 Port(s)
500 W

Product Condition: New and Factory Fresh

Shipping Weight: 13 lbs.

Shuttle XPC cube SW580R8 Barebone System - Socket LGA-1200

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	SW580R8
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC cube
Product Model	SW580R8
Product Name	BAREBONE XPC cube SW580R8

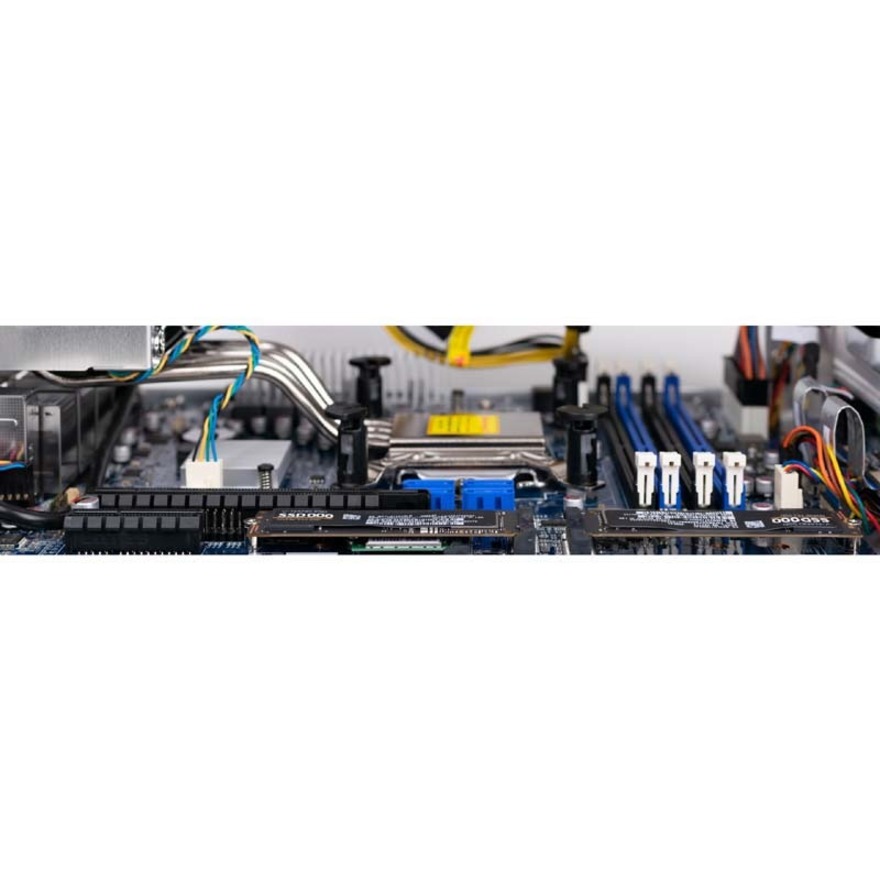

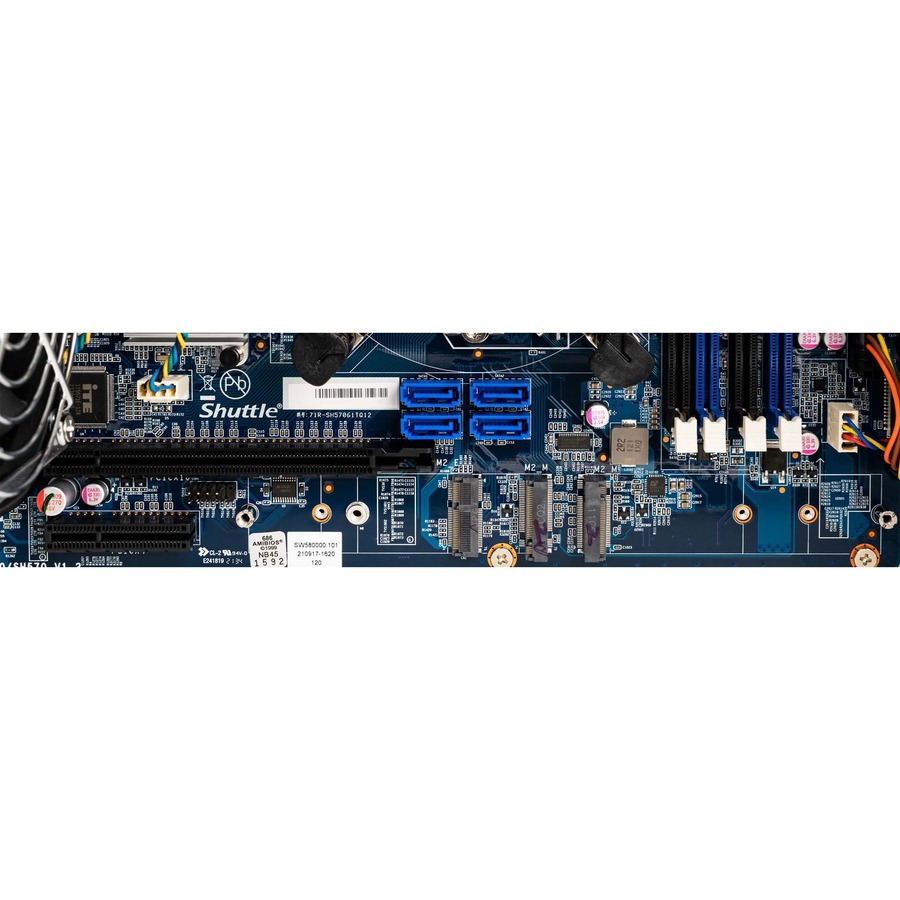

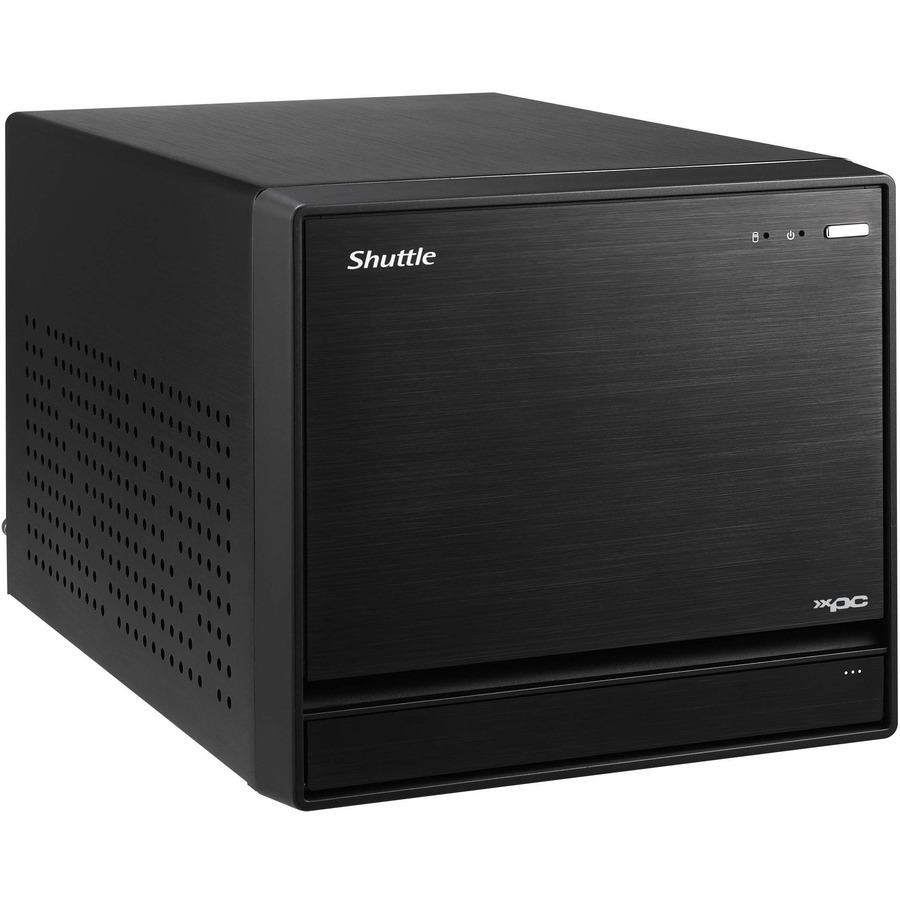

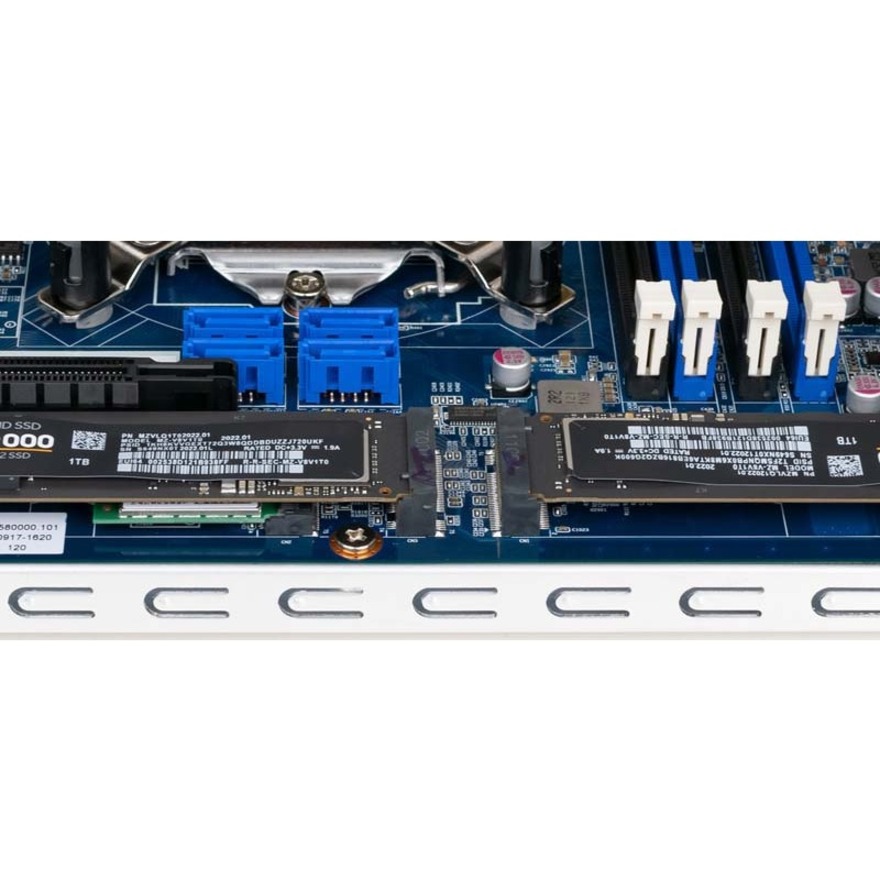

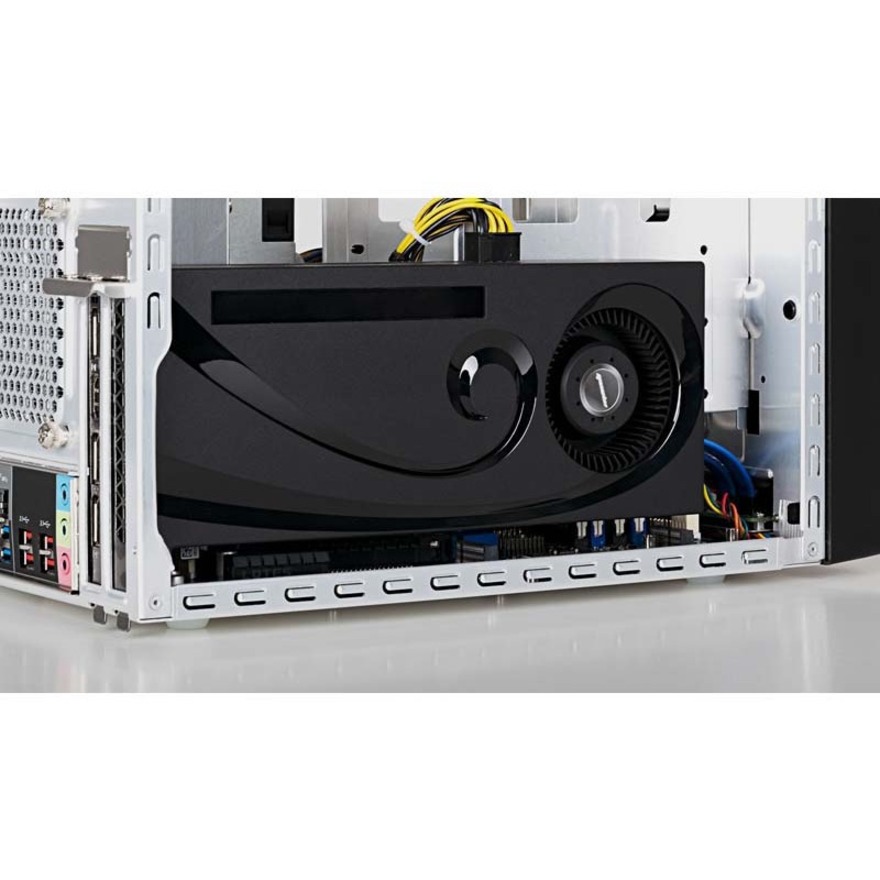

Marketing Information	14-LITER CUBE FOR SERVER AND WORKSTATION APPLICATIONS Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3.5" hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards. In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip. Such impressive per- formance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
Product Type	Barebone System

Processor

Processor Socket	Socket LGA-1200
Processor Supported	Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron Xeon

Chipset

Chipset Manufacturer	Intel
Chipset Model	W580

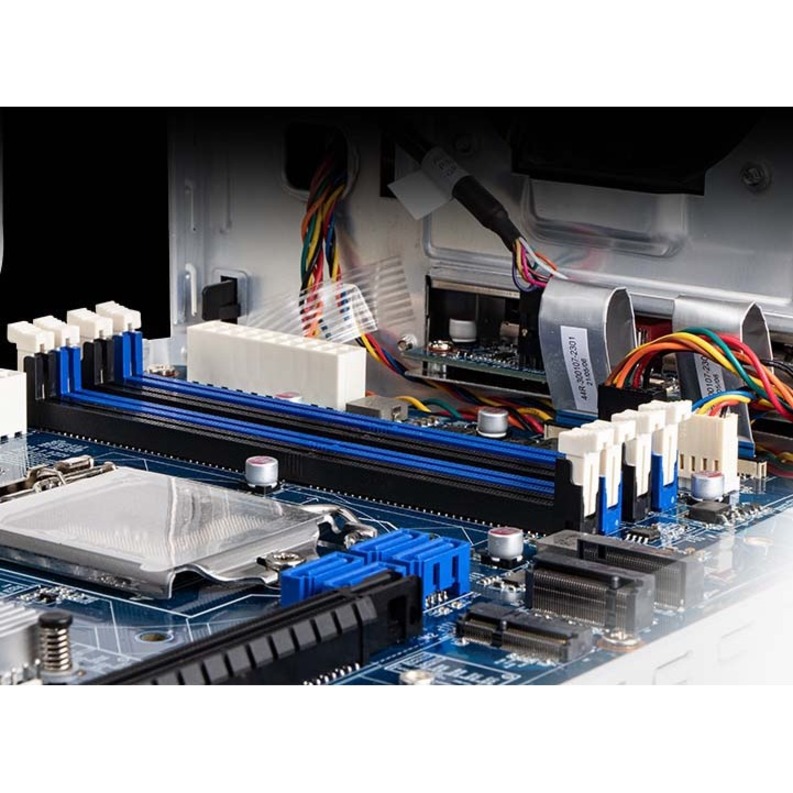

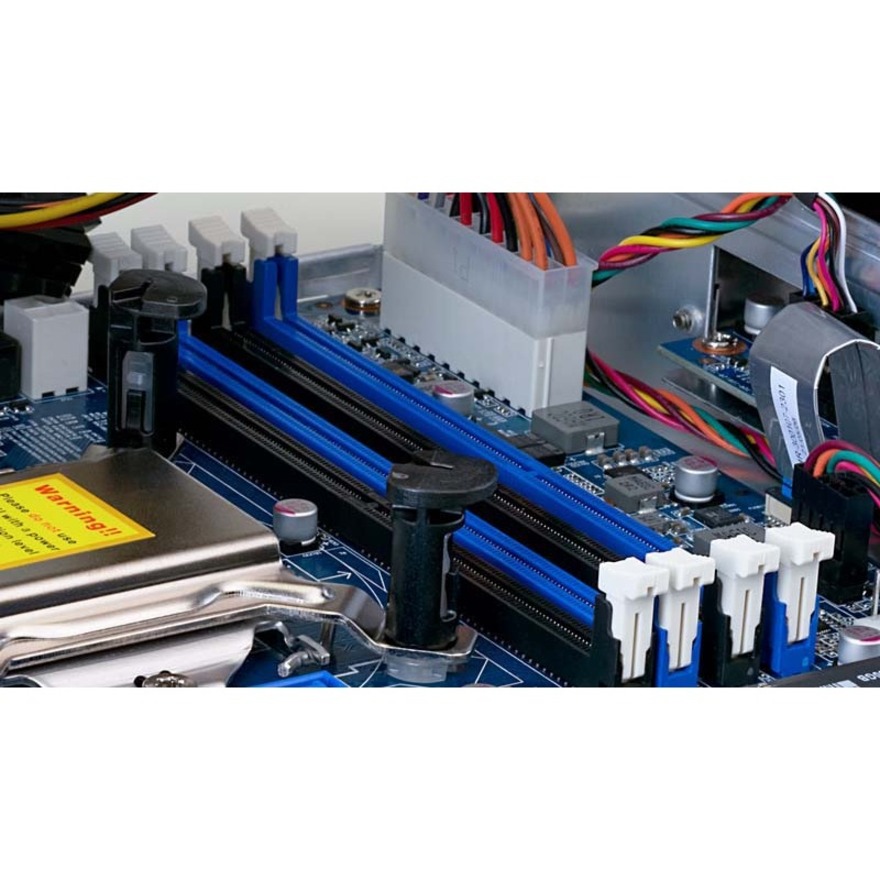

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Number of Total Memory Slots	4

Storage

Supported Storage Drive Interfaces

Serial ATA III

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	UHD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

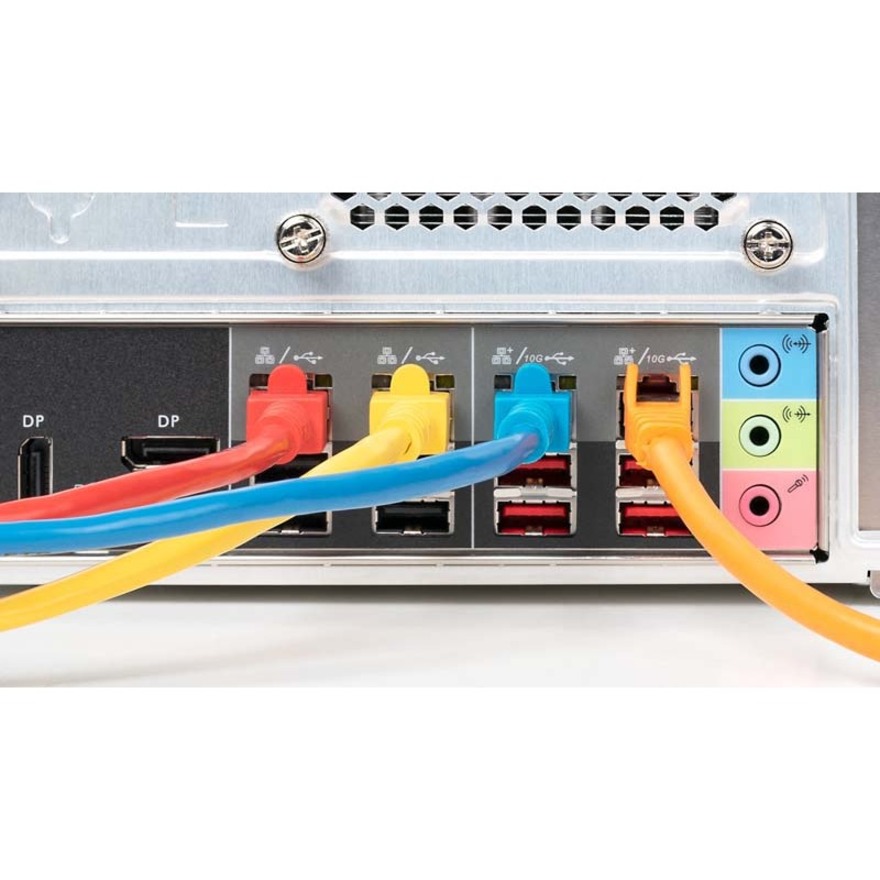

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

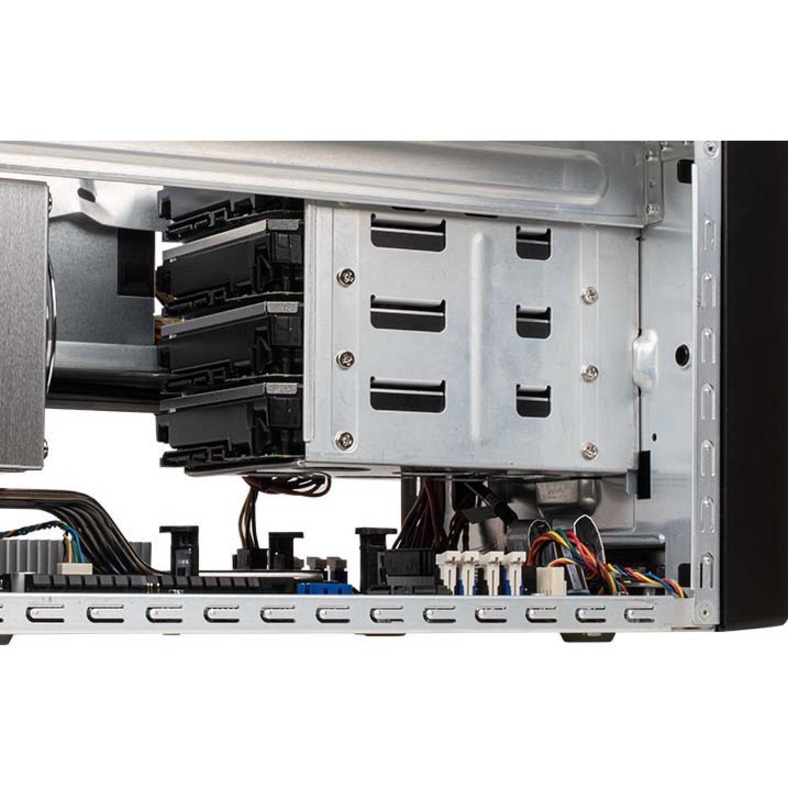

Number of Total Expansion Bays	4
Number of 3.5" Bays	4

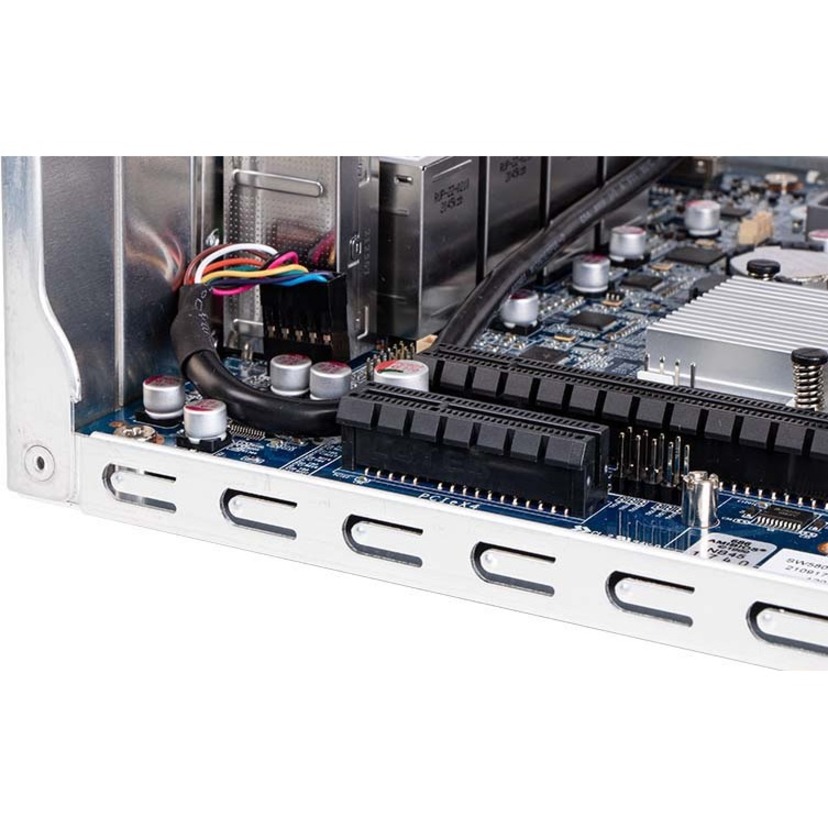

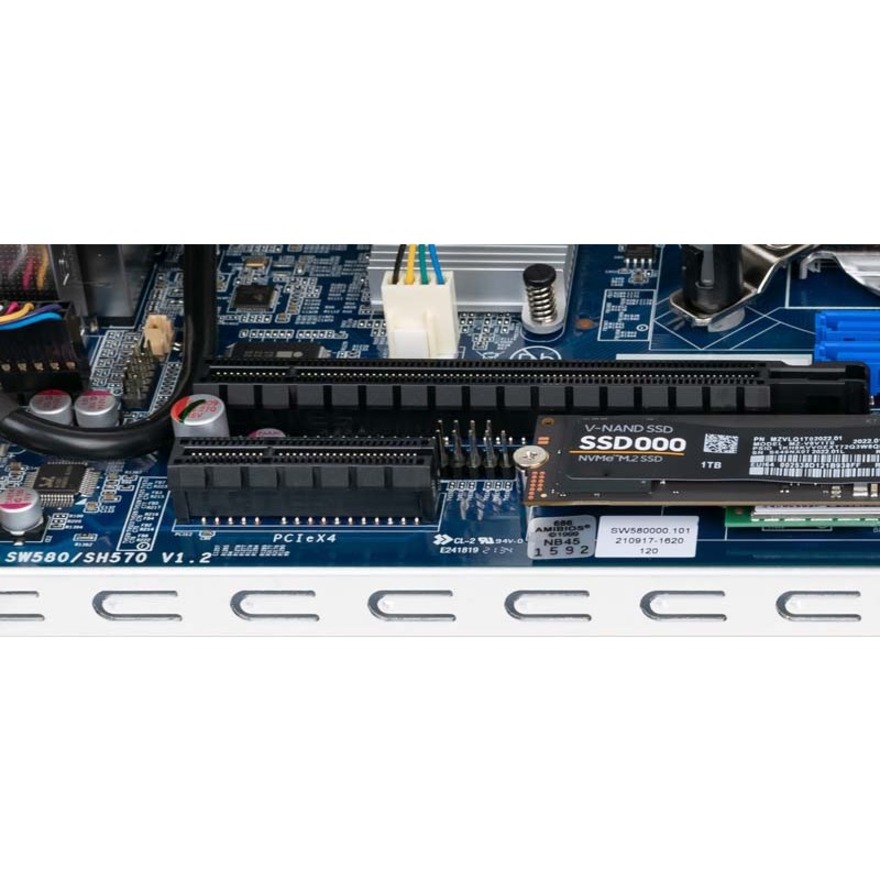

Number of Total Expansion Slots	2
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	1

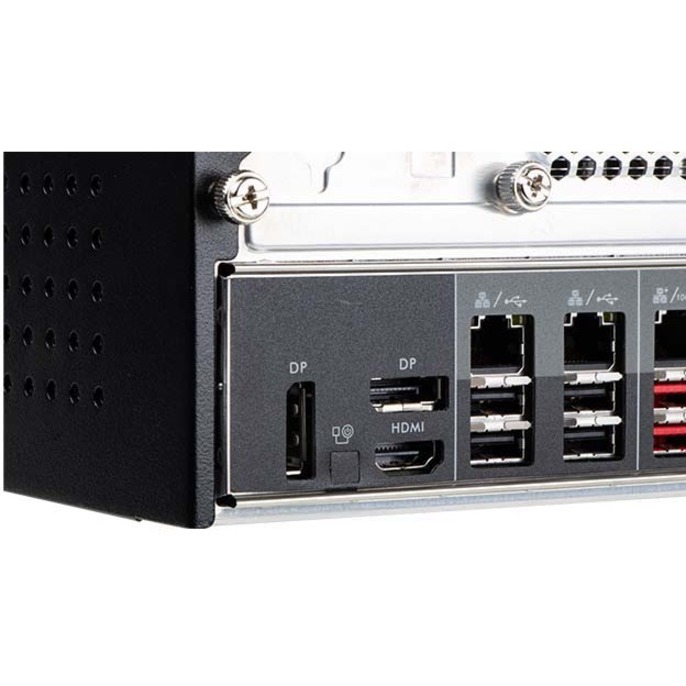

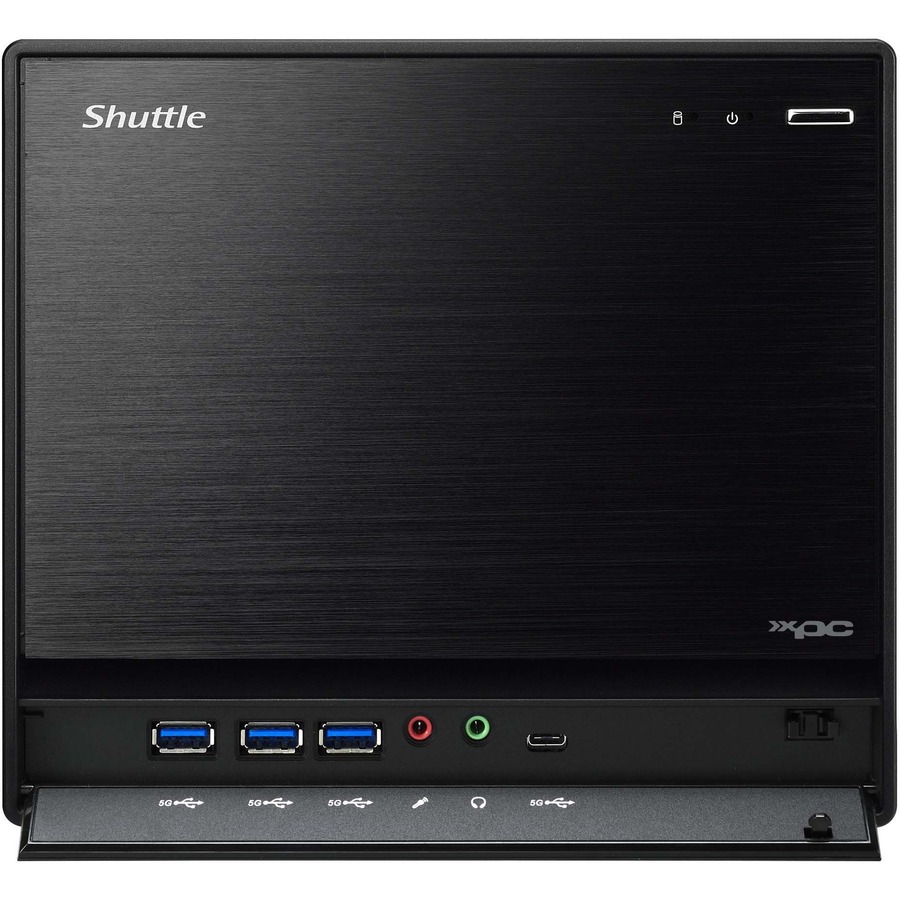

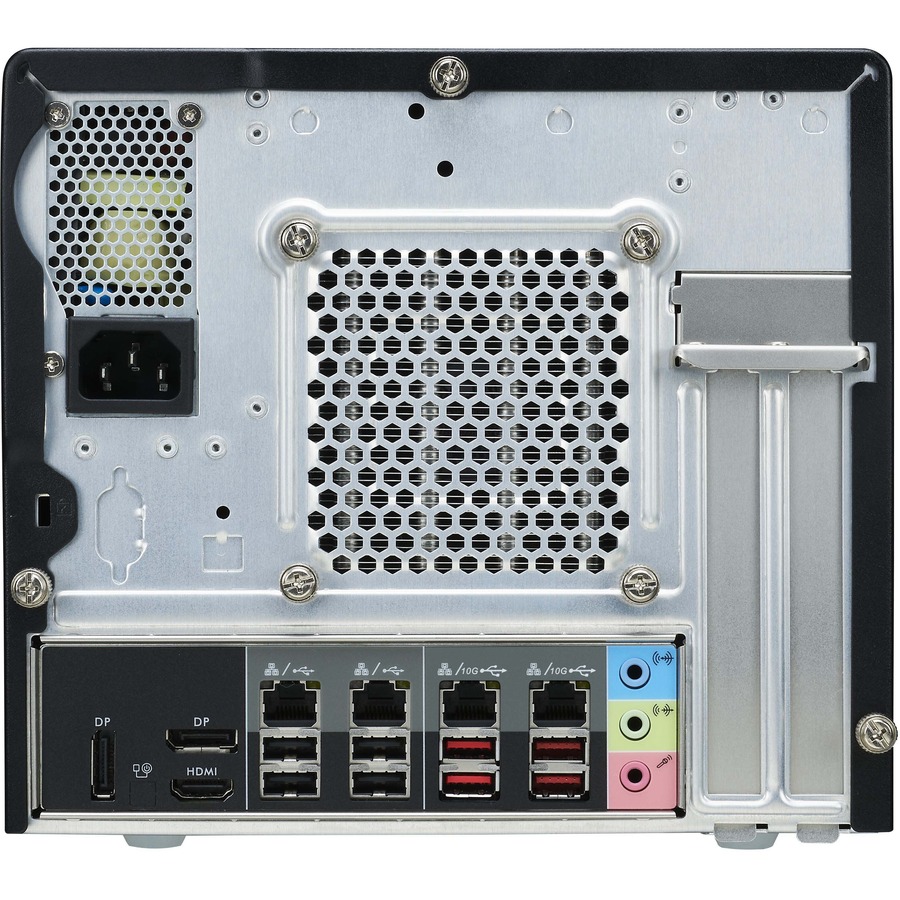

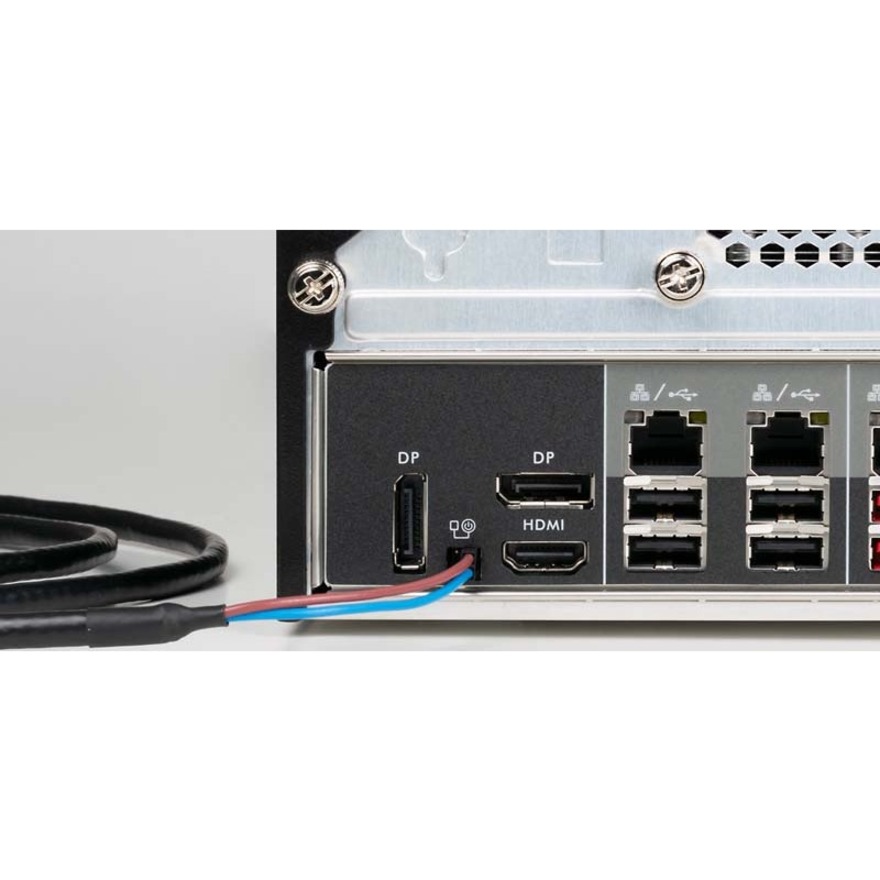

Interfaces/Ports

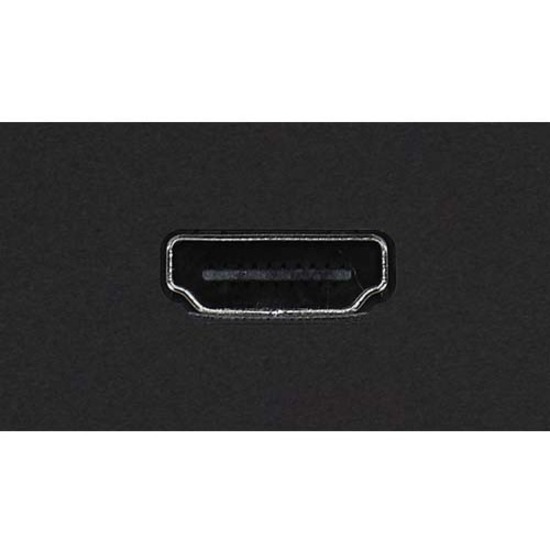

HDMI (Rear)	Yes
Total Number of USB Ports	13
Number of USB 3.2 Gen 1 Ports	3
Number of USB 3.2 Gen 2 Ports	4
Number of Onboard USB 2.0 Ports	1
USB Type-C (Front)	Yes
USB Type-C Detail	USB 3.2 Gen Type-C port (5 Gbps)
Number of SATA Interfaces	4

Operating System

Operating System Supported

Windows 10
Windows 11
Linux

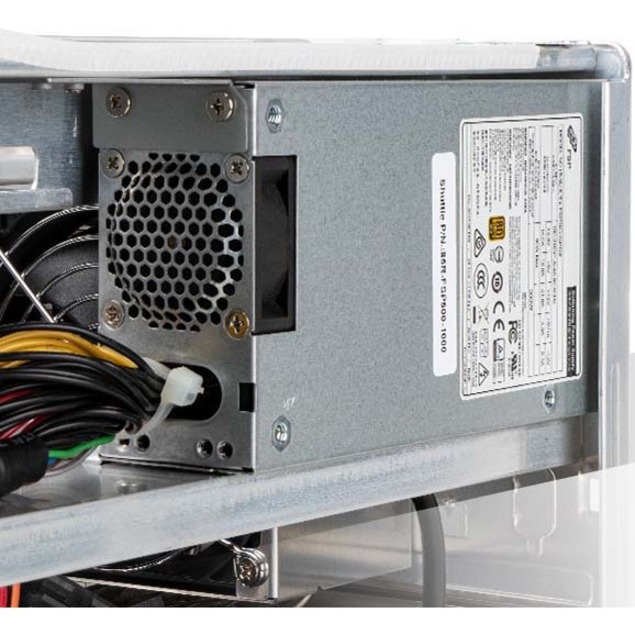

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	500 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Product Color	Black Aluminum
Height	7.5"
Width	8.5"
Depth	13.1"
Weight (Approximate)	7.72 lb

Miscellaneous

Application/Usage	Business
Energy Star	Yes
