SIIG 1x4 HDMI Splitter HDbitT over IP Extender - 120m Over Cat6

by
SIIG
PCN#
0604BV
MFG#
CE-H25F11-S1
$462.43
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Full HD 1080p @60Hz
Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 2 lbs.

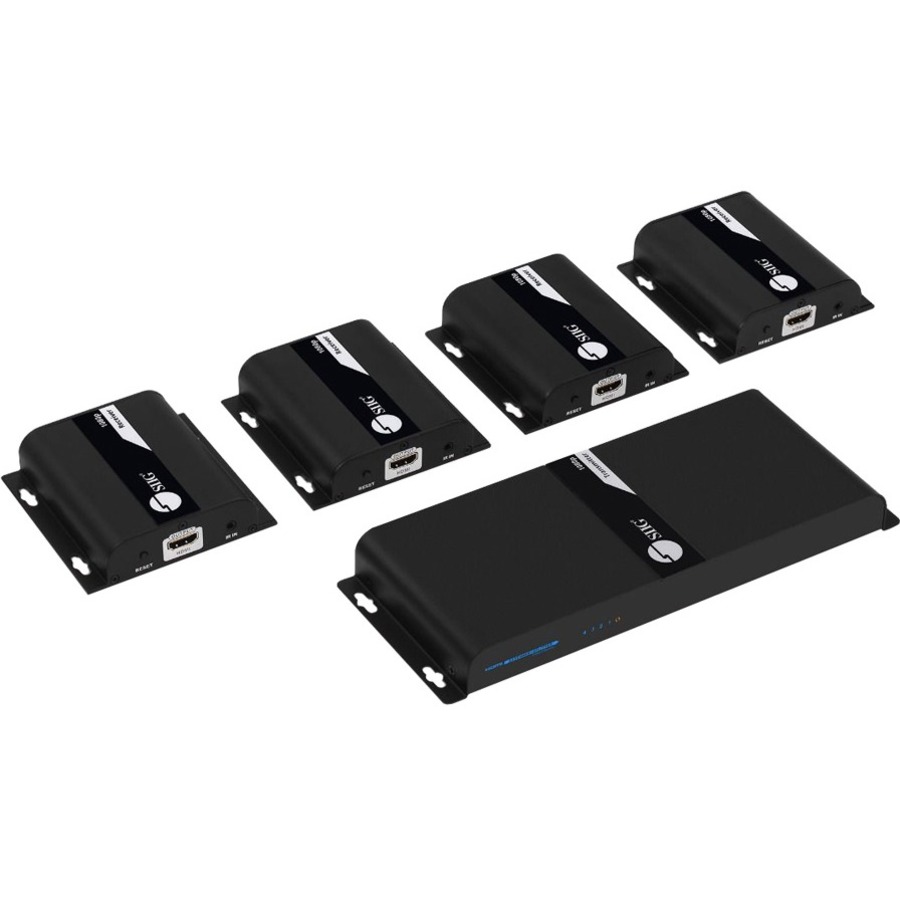

SIIG 1x4 HDMI Splitter HDbitT over IP Extender - 120m Over Cat6
Tech Specs
Specifications

Manufacturer

SIIG, Inc

Manufacturer Part Number

CE-H25F11-S1

Manufacturer Website Address

http://www.siig.com

Brand Name

SIIG

Product Name

1x4 HDMI Splitter HDbitT over IP Extender - 120m

Marketing Information

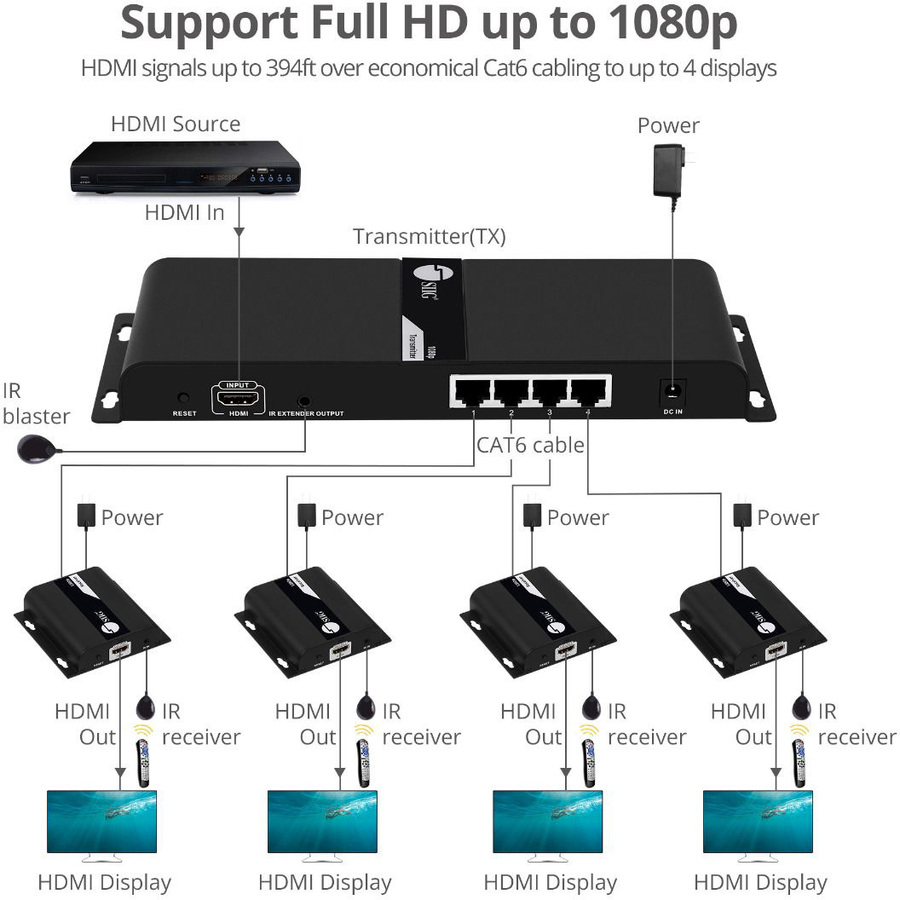

Extends 1080p HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 4 displays

  • Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 4 displays

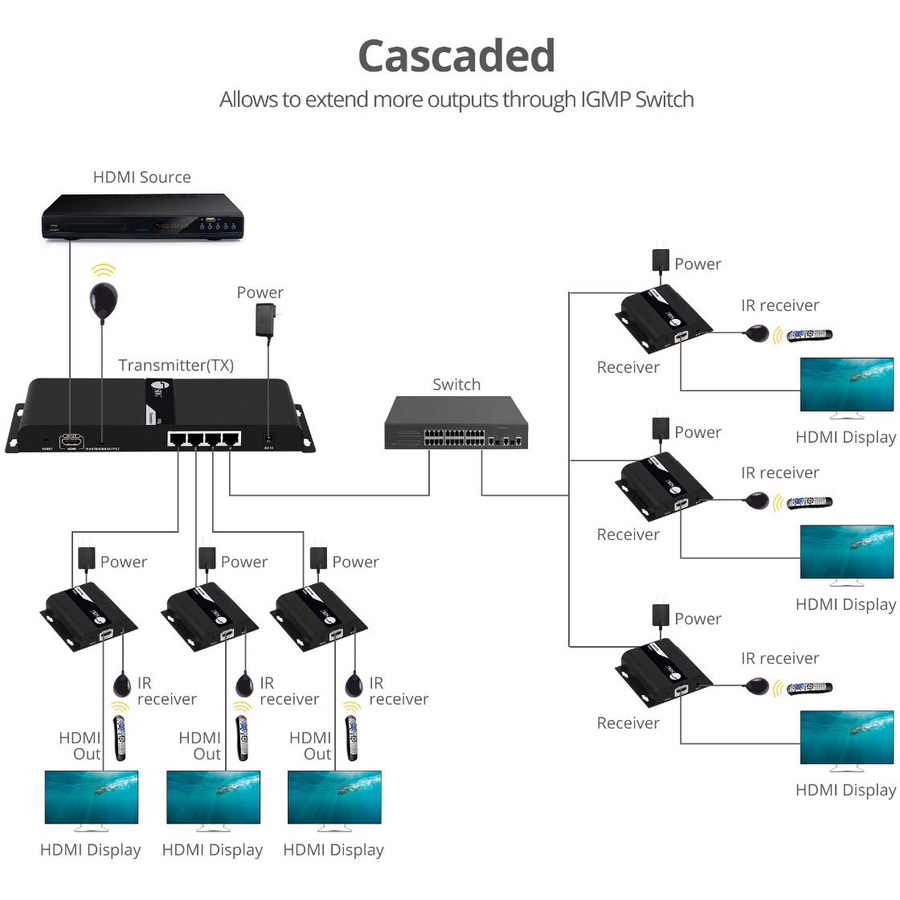

  • Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
    • Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
  • Delivers crystal clear Full HD content up to 1080p@60Hz resolution
  • IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location

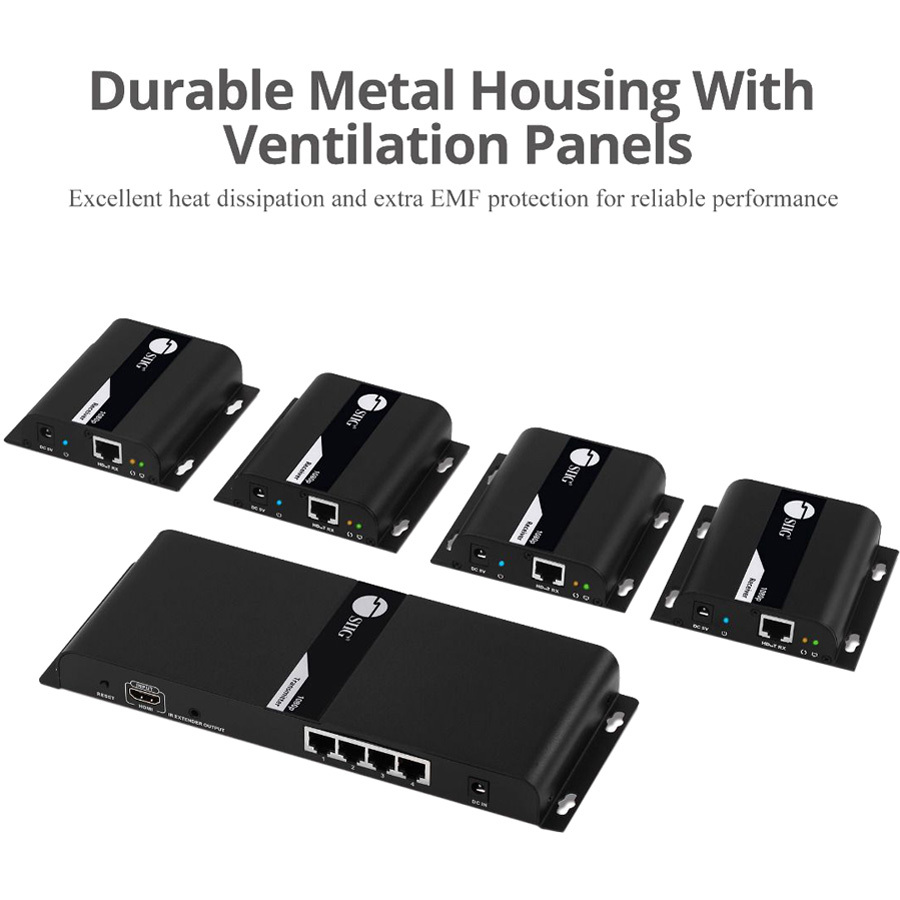

  • High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
  • Plug-n-Play installation, no software installation required

Product Type

Video Extender Transmitter/Receiver
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

4

Maximum Operating Distance

393.70 ft
Video

Graphics Modes

Full HD

Maximum Video Resolution

1920 x 1080
Interfaces/Ports

Network (RJ-45)

Yes

HDMI In

Yes

HDMI Out

Yes

Number of Network (RJ-45) Ports

8

Number of HDMI Inputs

1

Number of HDMI Outputs

4
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 7
Physical Characteristics

Transmitter Height

0.98"

Transmitter Width

3.82"

Transmitter Depth

9.92"

Receiver Height

0.93"

Receiver Width

3.70"

Receiver Depth

3.81"

Form Factor

Wall Mountable

Transmitter Weight (Approximate)

1.33 lb

Receiver Weight (Approximate)

5.28 oz
Miscellaneous

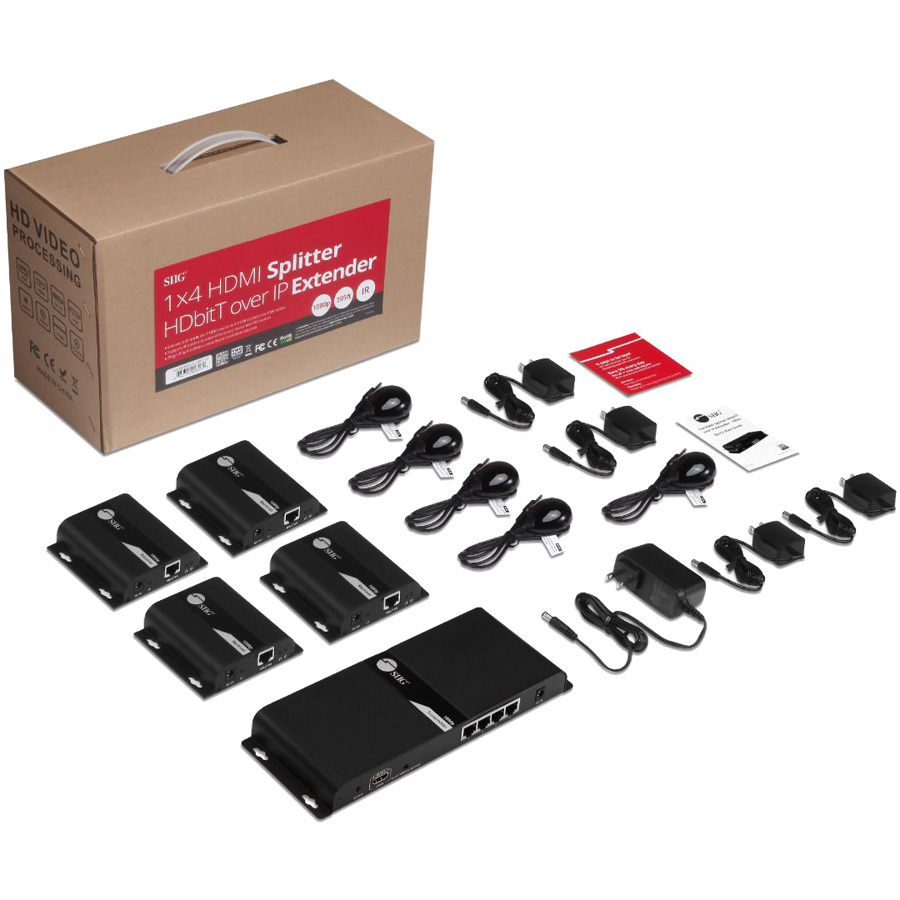

Package Contents

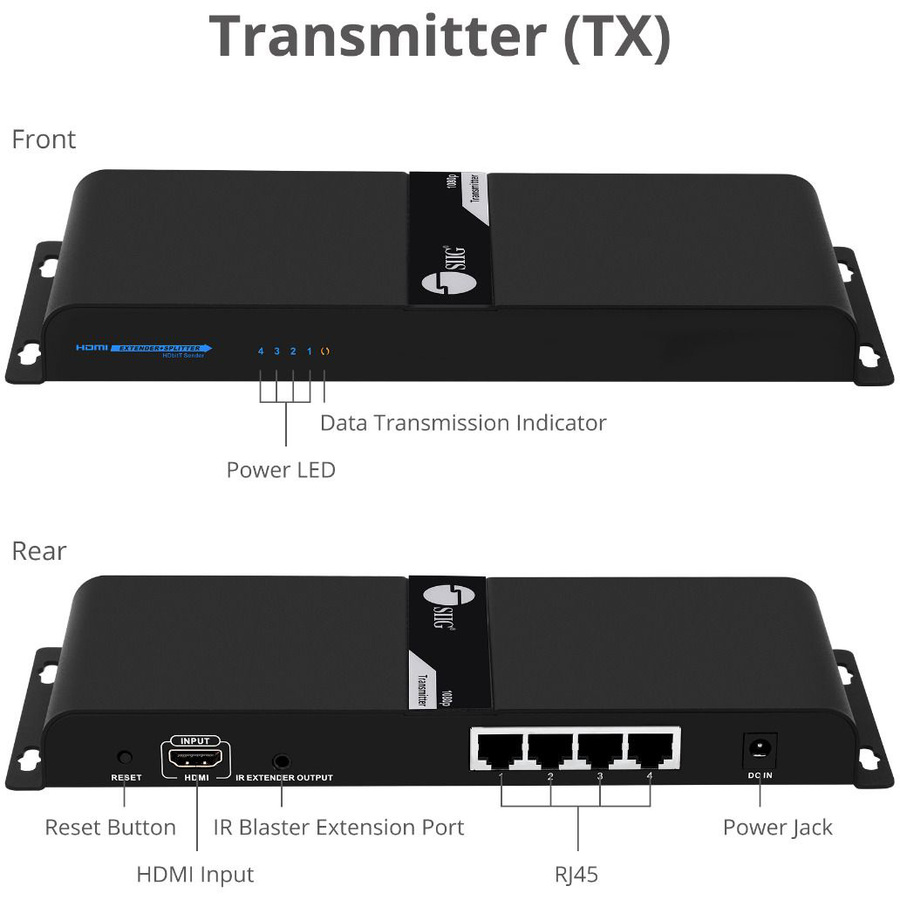

  • 1 x Transmitter

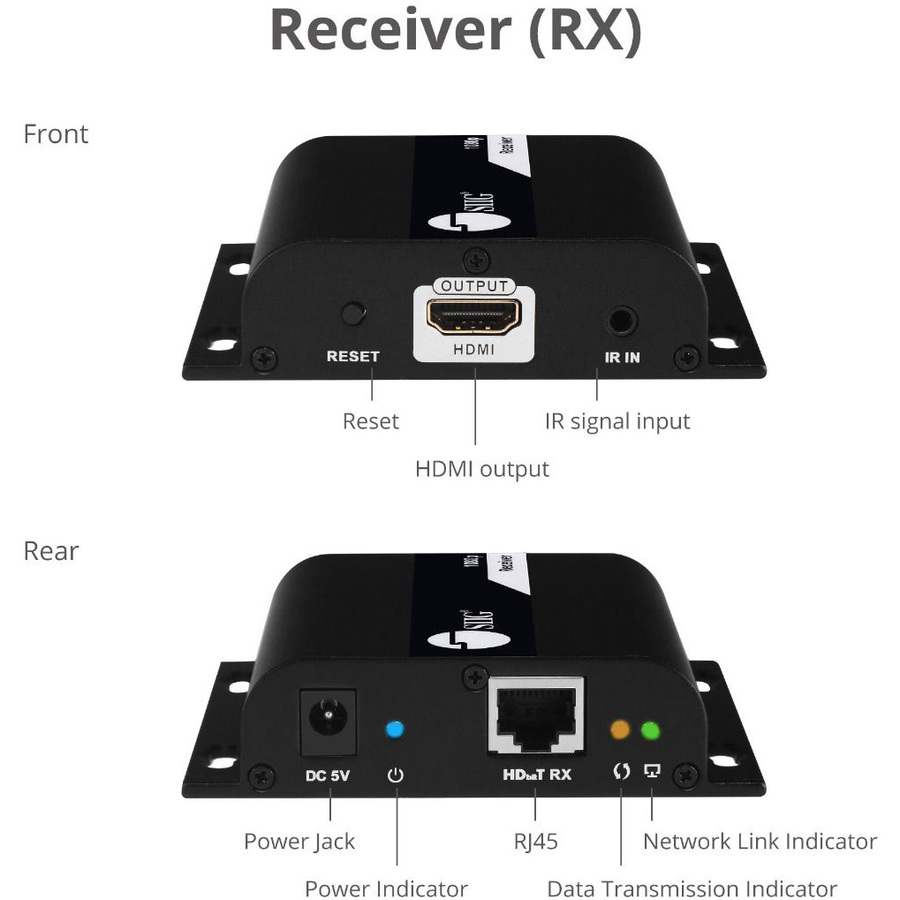

  • 4 x Receivers
  • 5 x Power Adapter
  • 1 x IR Blaster Extension Cable
  • 4 x IR Receiver Extension Cable
  • Screw kit
  • Quick Start Guide

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

5 Year
