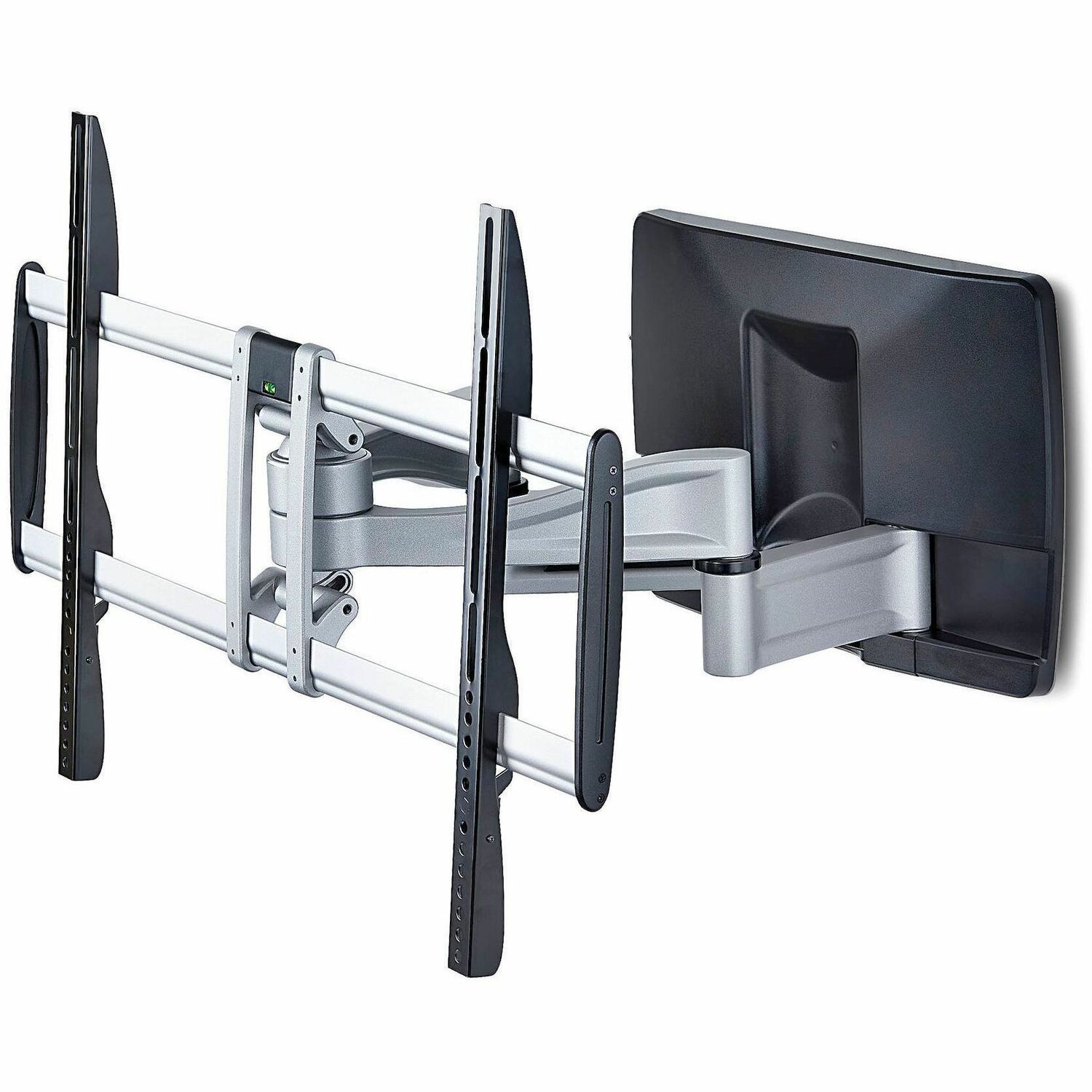

HEAVY-DUTY TV WALLMOUNT/BRACKET - FOR UP TO 100 FLAT SCREEN TAA

Name: HEAVY-DUTY TV WALLMOUNT/BRACKET - FOR UP TO 100 FLAT SCREEN TAA
Brand: STARTECH
SKU: 490N45
Price: 475.71 USD
Availability: InStock

STARTECH

PCN#

490N45

MFG#

100AP1-TV-WALL-MOUNT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$475.71

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Flat screen wallmount supports 100in TVs up to 187.4lb, VESA 800×500

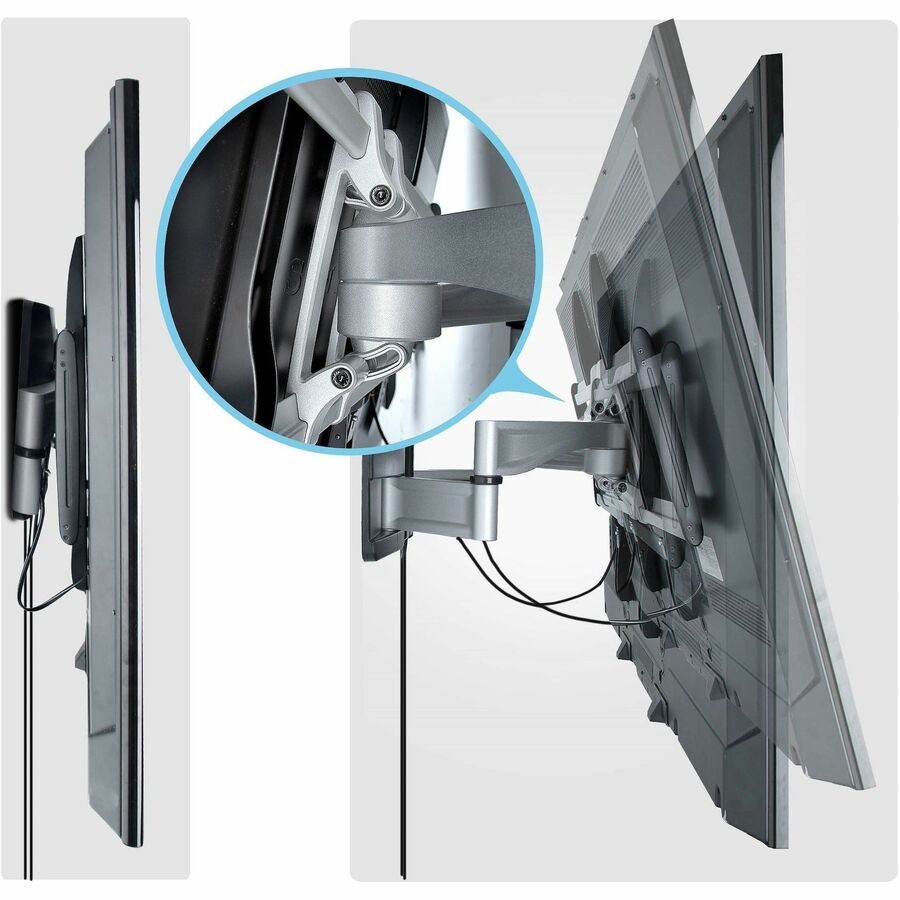

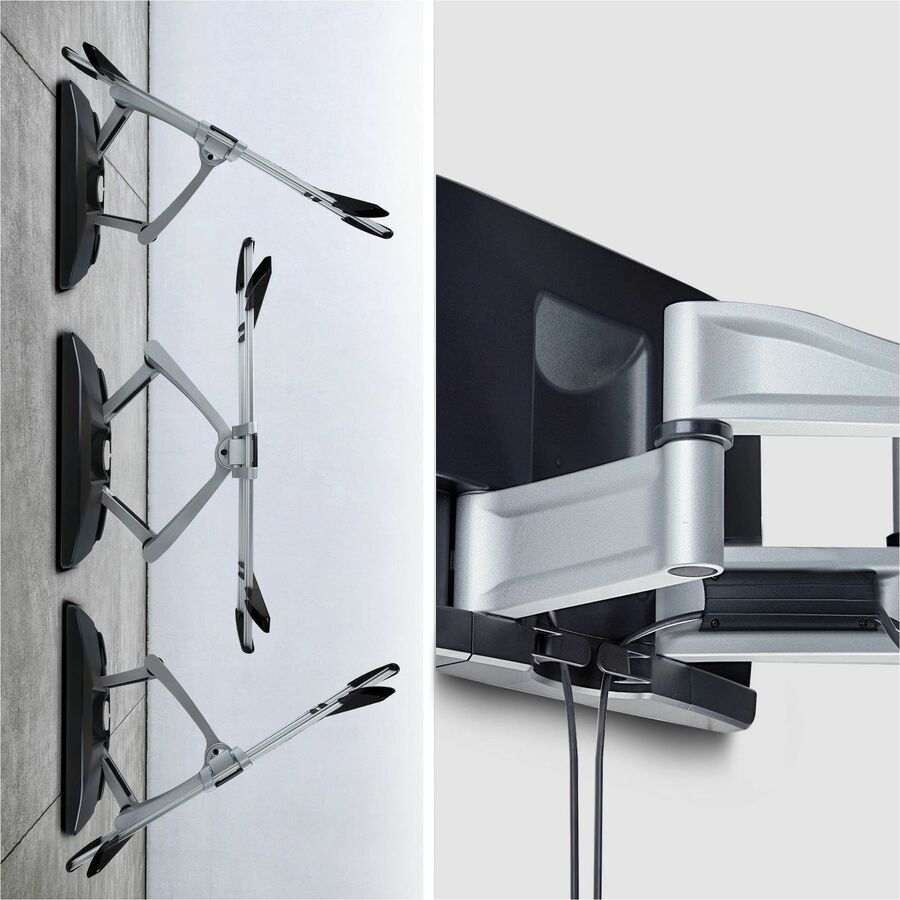

TV bracket collapses to 4.1in (10.5cm) and extends to 21.6in; Tilt +2/
12 deg, swivel +/
60 deg
Dual
stud mounting for safe installation; Includes hardware; TAA
compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 37 lbs.

StarTech Heavy-Duty Articulating TV Wall Mount for up to 100-inch and 187.4lb/85kg Flat Screens, VESA, Low-Profile Bracket, TAA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	100AP1-TV-WALL-MOUNT
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Wall Mount

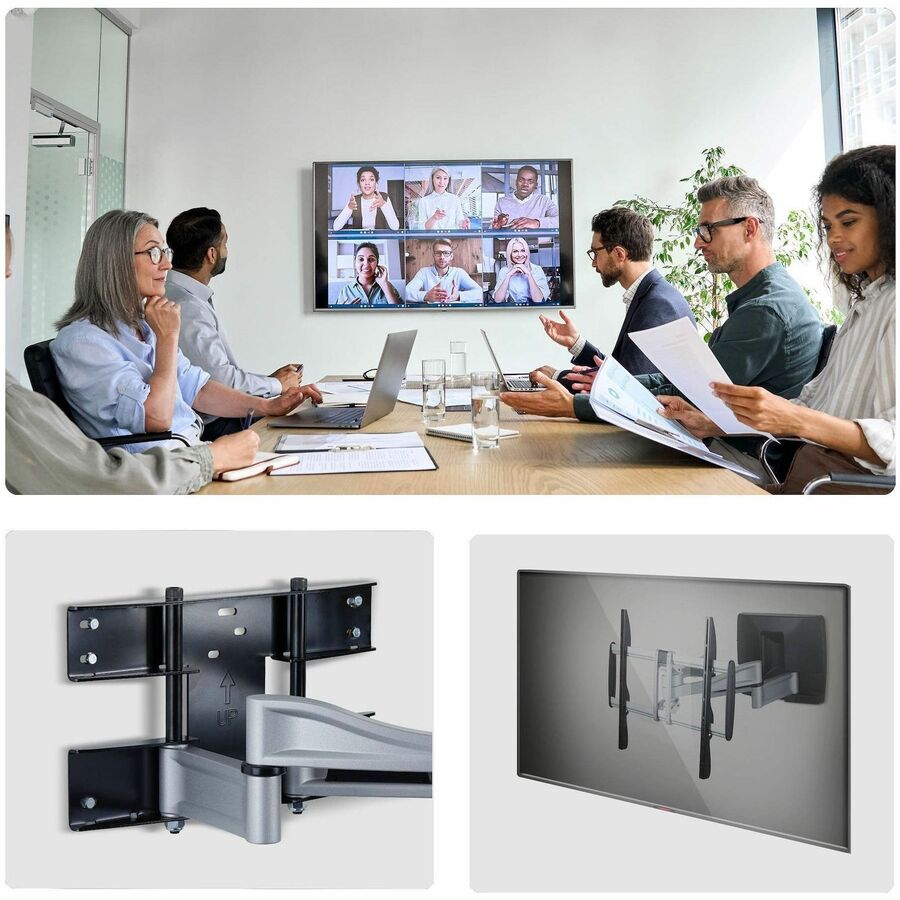

Marketing Information	Create a TV mounting solution with this articulating wall mount that supports up to 100-inch and 187.4lb (85kg) televisions. Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter. Heavy-Duty Articulating Television Mount The mount collapses to just 4.1in (10.5cm) from the wall and extends to 21.6 in (55 cm) for easy access behind the TV. Dual-stud mounting (16in spacing) and dual-arm design ensure safe mounting and smooth motion when positioning your display. For perfect screen positioning, you can tilt (+2°/-12°) and swivel (+/-60°) for post-install adjustments to achieve the best viewing angle. The flat screen bracket is TAA-compliant to meet procurement requirements. Versatile Mounting with a Premium Finish This VESA-compatible wall mount supports patterns up to 800x500mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.
Packaged Quantity	1
Product Type	Wall Mount

Product Information

Device Supported	TV Flat Panel Display Display Digital Signage Display
Number of Displays Supported	1
Maximum Load Capacity	187.40 lb
Minimum Screen Size Supported	32"
Maximum Screen Size Supported	100"
Features	Heavy Duty Articulating Durable Motion Wall Mount Tilt Swivel Adjustable Cable Management Extendable Pivot
Orientation	Horizontal
Mount Profile	Low Profile
Height Adjustable	No
Minimum Tilt Angle	-12°
Maximum Tilt Angle	2°
Minimum Swivel Angle	-60°
Maximum Swivel Angle	60°
Mount Function	Articulating Tilt Swivel Adjustable Wall Mount Cable Management
Mount Surface	Wall Wood Stud Concrete

Physical Characteristics

Color Family	Dual Color
Product Color	Silver Black
VESA Mount Compatible	Yes
Mounting Pattern	800 x 500 200 x 200 200 x 300 200 x 400 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 500 x 300 600 x 300 600 x 400 800 x 400
Product Material	Aluminum Steel
Form Factor	Wall Mountable
Height	21.70"
Width	20.70"
Length	34.30"
Weight (Approximate)	31.39 lb

Miscellaneous

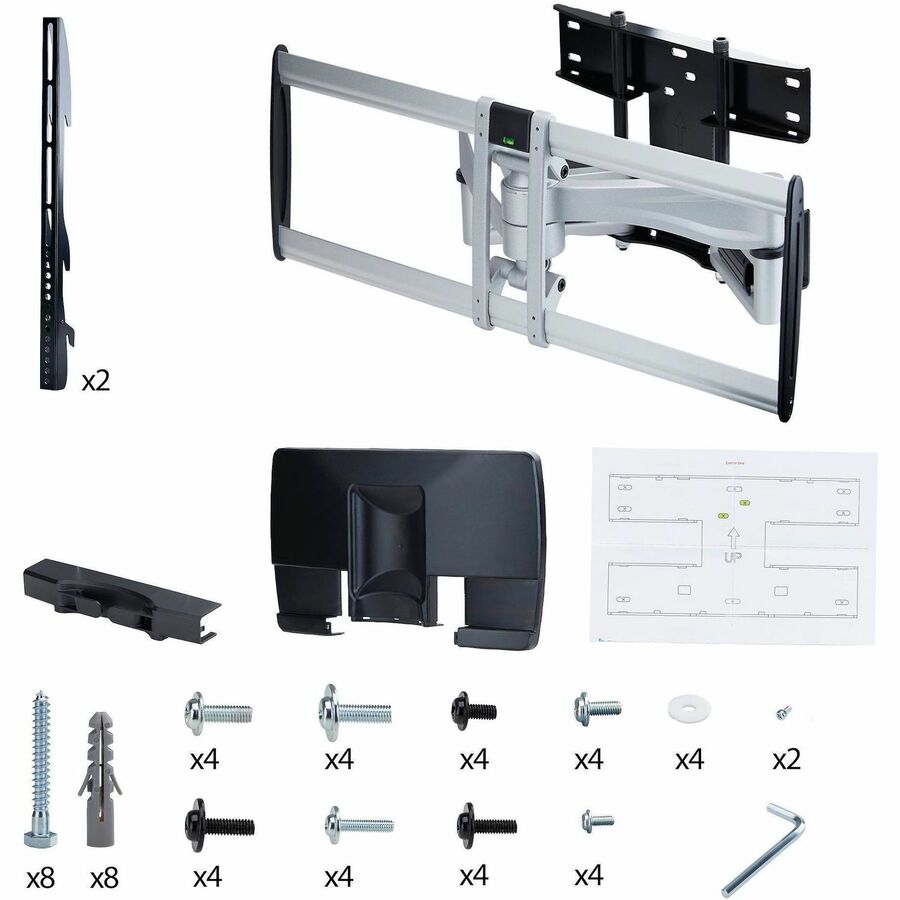

Package Contents	1 x TV Wall Mount Assembly 2 x Vertical Mounting Brackets 2 x Vertical Mounting Bracket Screws 1 x Wall Plate Cover 1 x 6mm Hex Key 4 x M4x12mm Screws 4 x M4x18mm Screws 4 x M5x12mm Screws 4 x M6x12mm Screws 4 x M6x18mm Screws 4 x M8x12mm Screws 4 x M8x18mm Screws 4 x M8x25mm Screws 8 x Wall Mounting Screws 8 x Concrete Anchors 4 x Flat Washers 1 x Wall Mounting Template 1 x Wall Cable Manager 1 x Product Documentation
Application/Usage	Conference Room Digital Signage Meeting Room Wall Wood Stud Brick Concrete
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
