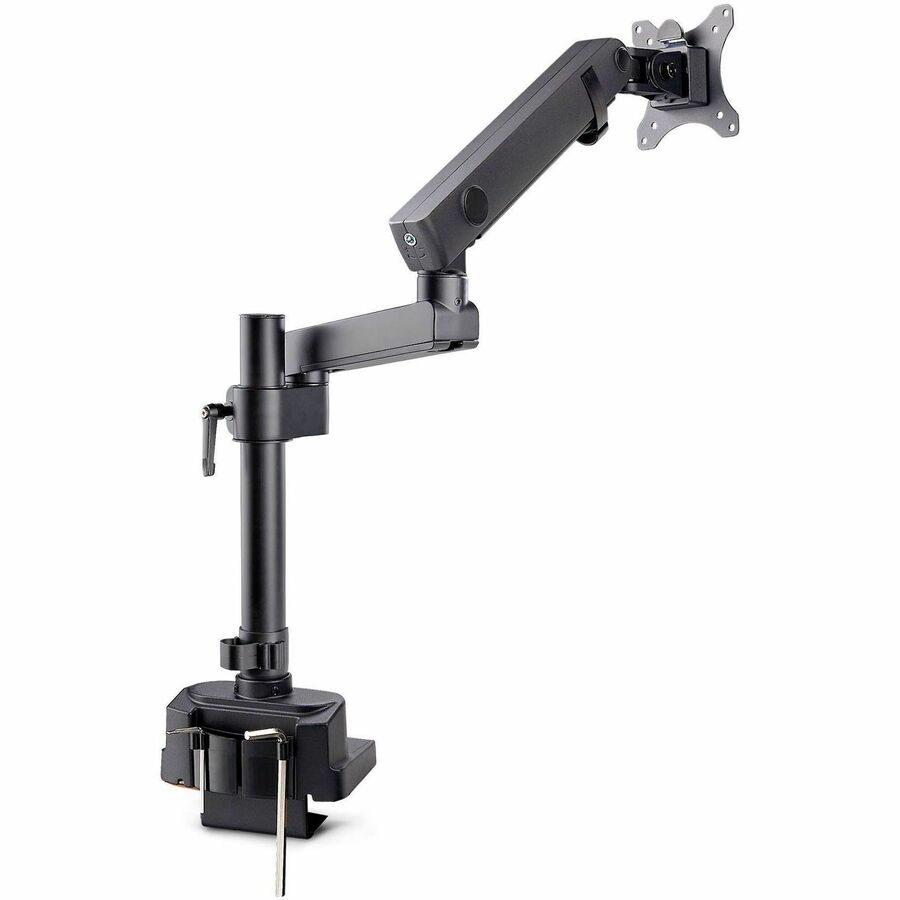

DESK MOUNT MONITOR ARM FOR 40 - SCREEN/17.6LB MECHANICAL SPRING

This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

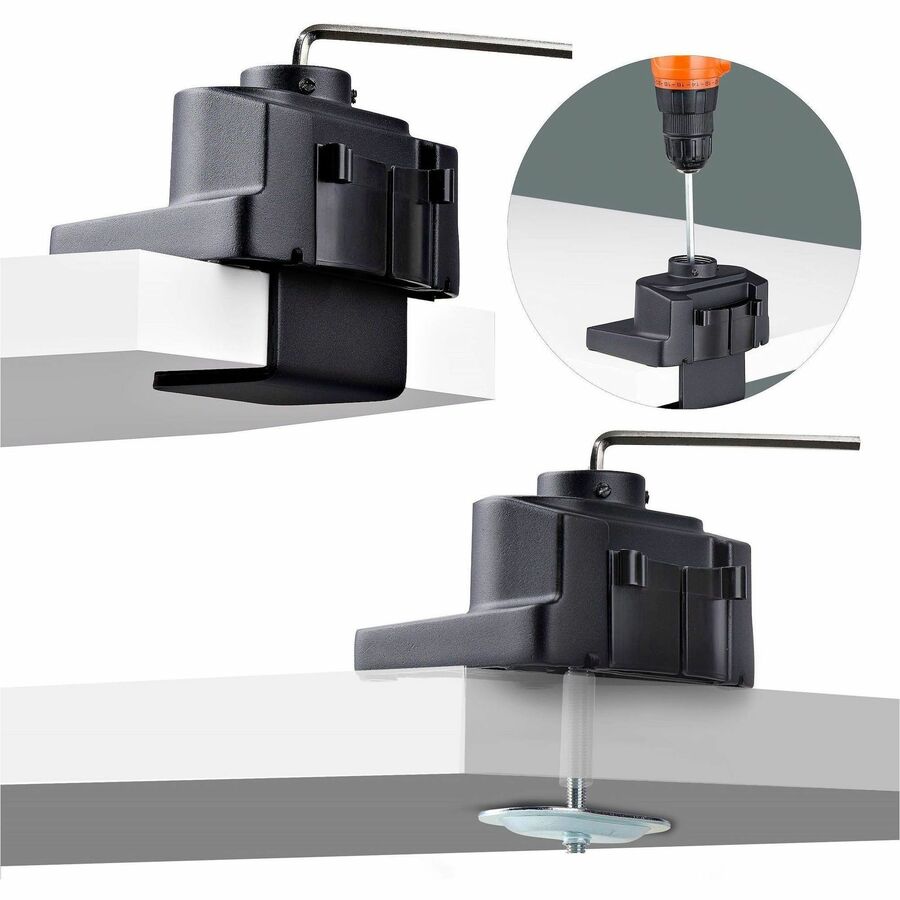

Top-Down Installation

The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

Height Adjustment with One Smooth Motion

Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

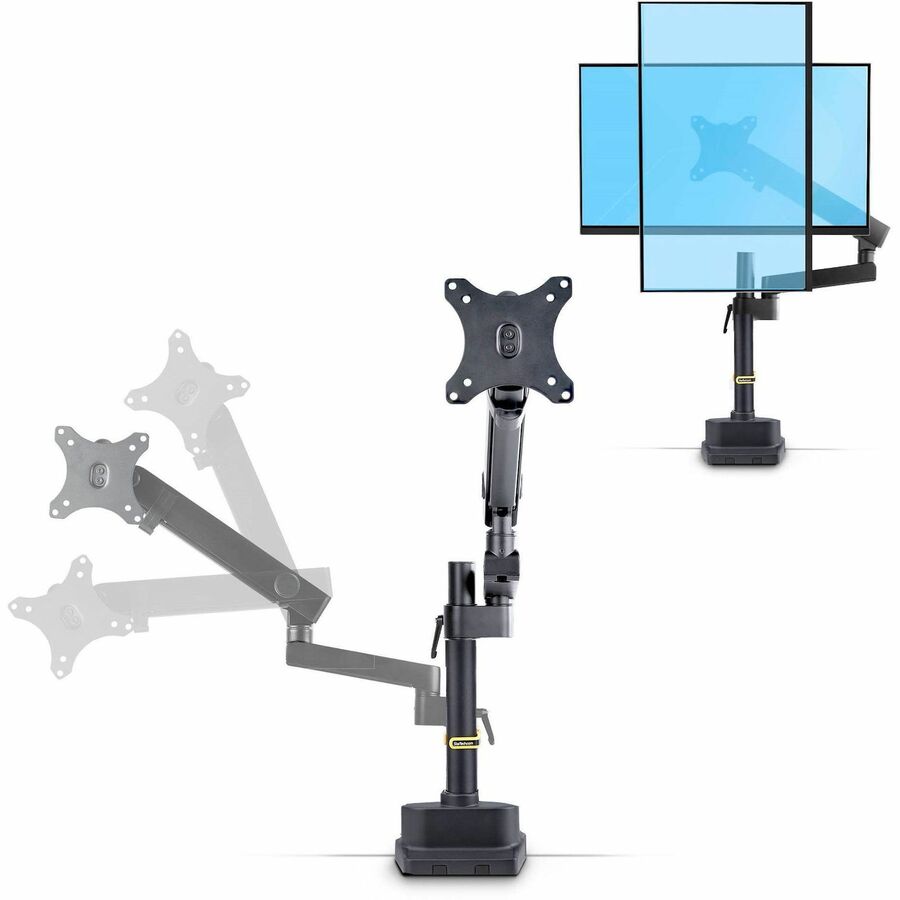

Range of Motion

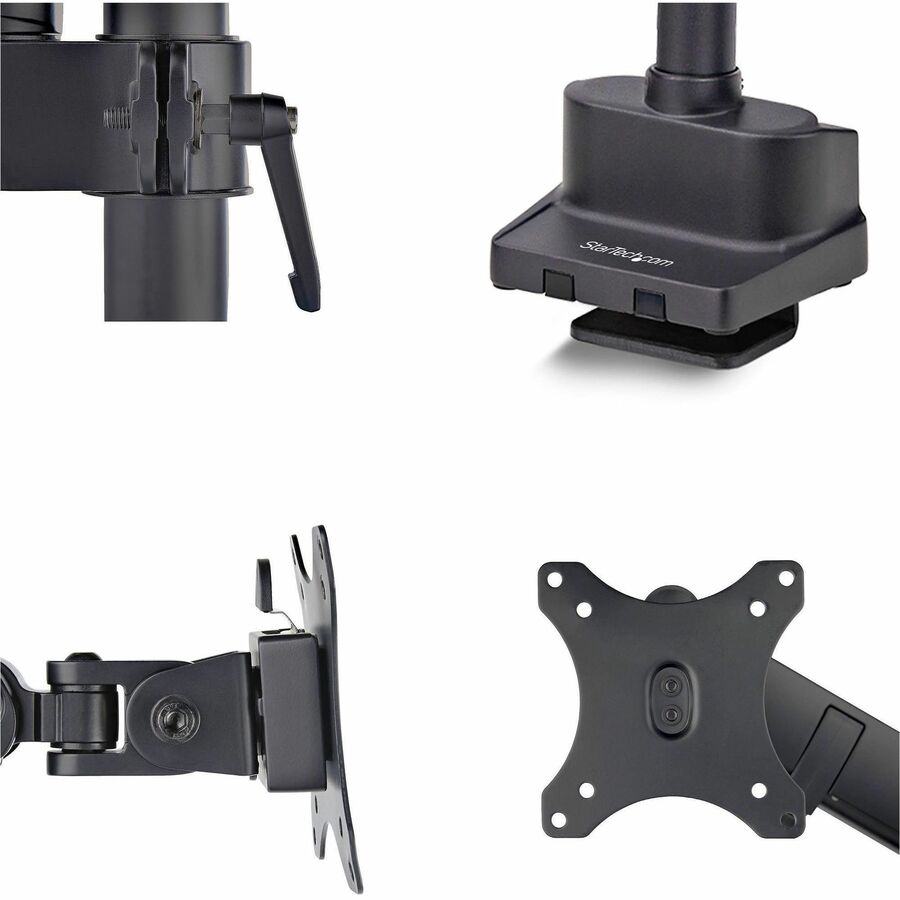

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Cable Management

Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.

• Monitor
• Display Screen

• Spring Arm
• Grommet
• Tool-less Adjustment
• Ergonomic
• Robust
• Durable
• Adjustable Arm
• Flexible
• Articulating Arm
• Quick Release Mechanism
• Pan
• Swivel
• Tilt
• Rotate
• Cable Management
• Cable Clip
• Easy to Install
• Adjustable Tension
• Full Motion
• Pivot
• Extendable Arm

• Desktop
• Articulating
• Pan
• Swivel
• Tilt
• Rotate
• Cable Management
• Pivot
• Extendable

• 75 x 75
• 100 x 100

• Steel
• Plastic

• Desk
• Desktop

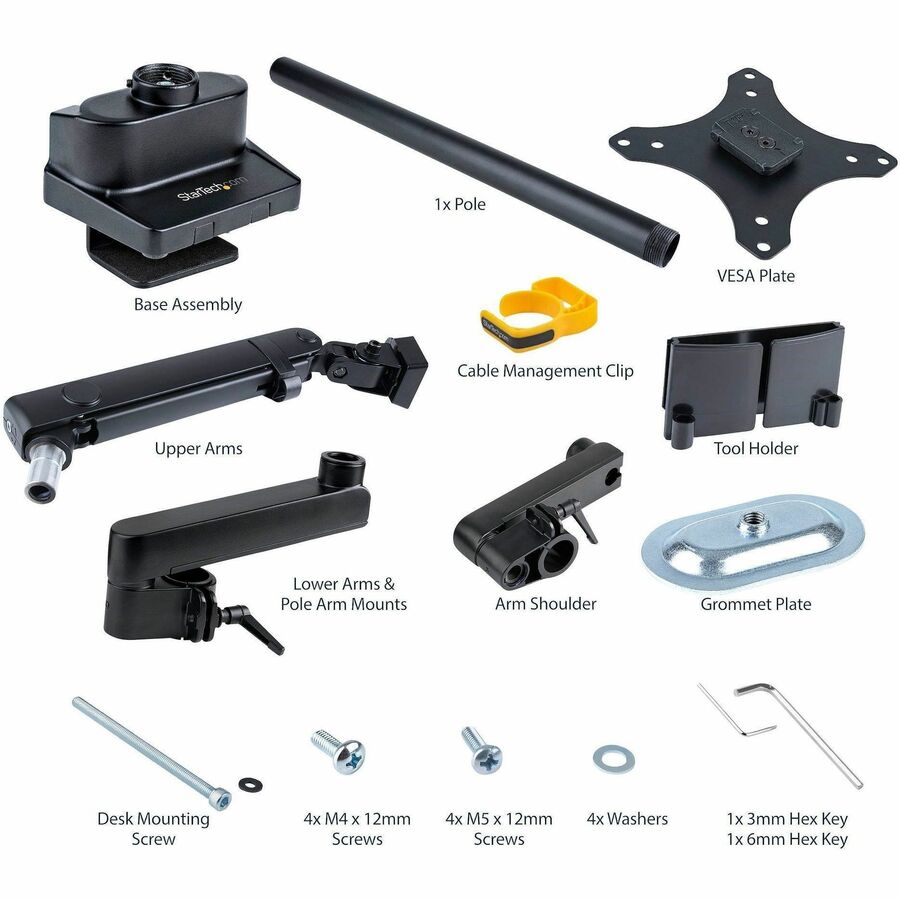

• 1 x Base Assembly
• 1 x Spring Arm
• 1 x Swivel Arm
• 1 x Pole
• 1 x VESA Plate
• 1 x Arm Shoulder
• 1 x 3mm Hex Key
• 1 x 6mm Hex Key
• 1 x Tool Holder
• 1 x Cable Management Clip
• 1 x Grommet Plate
• 1 x Grommet Screw
• 4 x M4x12mm Screws
• 4 x M5x12mm Screws
• 4 x Washers
• 1 x Product Documentation
