StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port

by
STARTECH
PCN#
V10089
MFG#
ICUSB422IS
$139.49
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Add an R422/485 serial port to your laptop or desktop computer through USB
  • USB to Serial
  • usb to rs485

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ICUSB422IS

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Model

ICUSB422IS

Product Name

1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation

Marketing Information

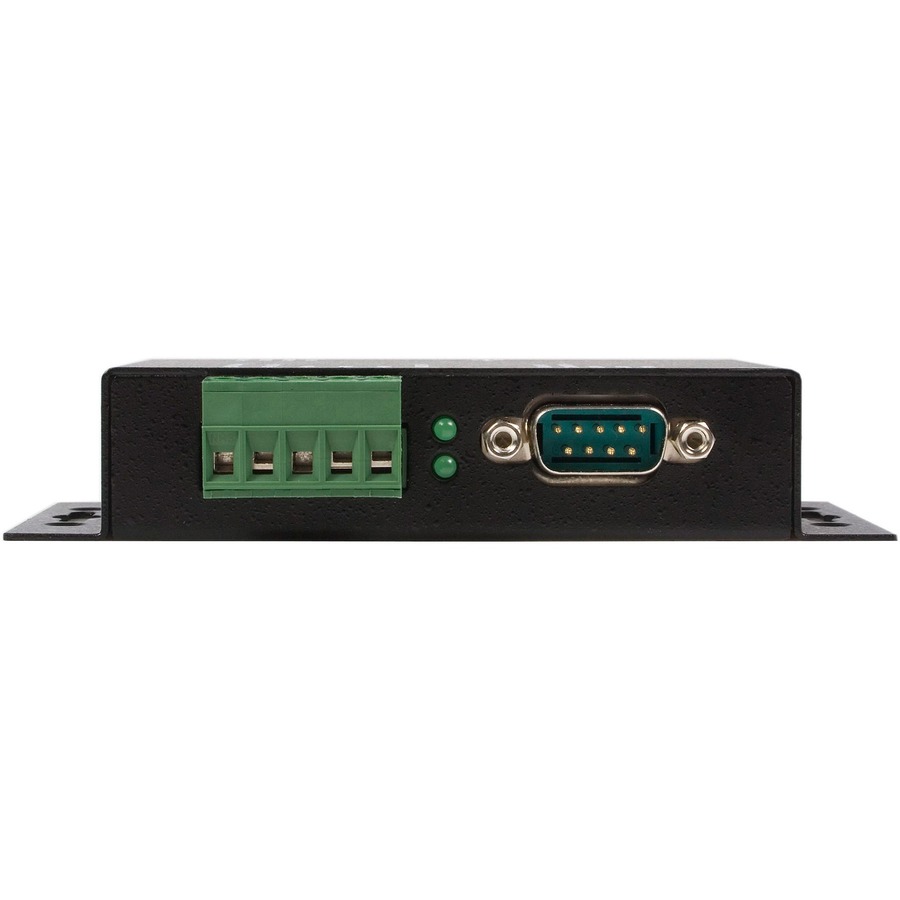

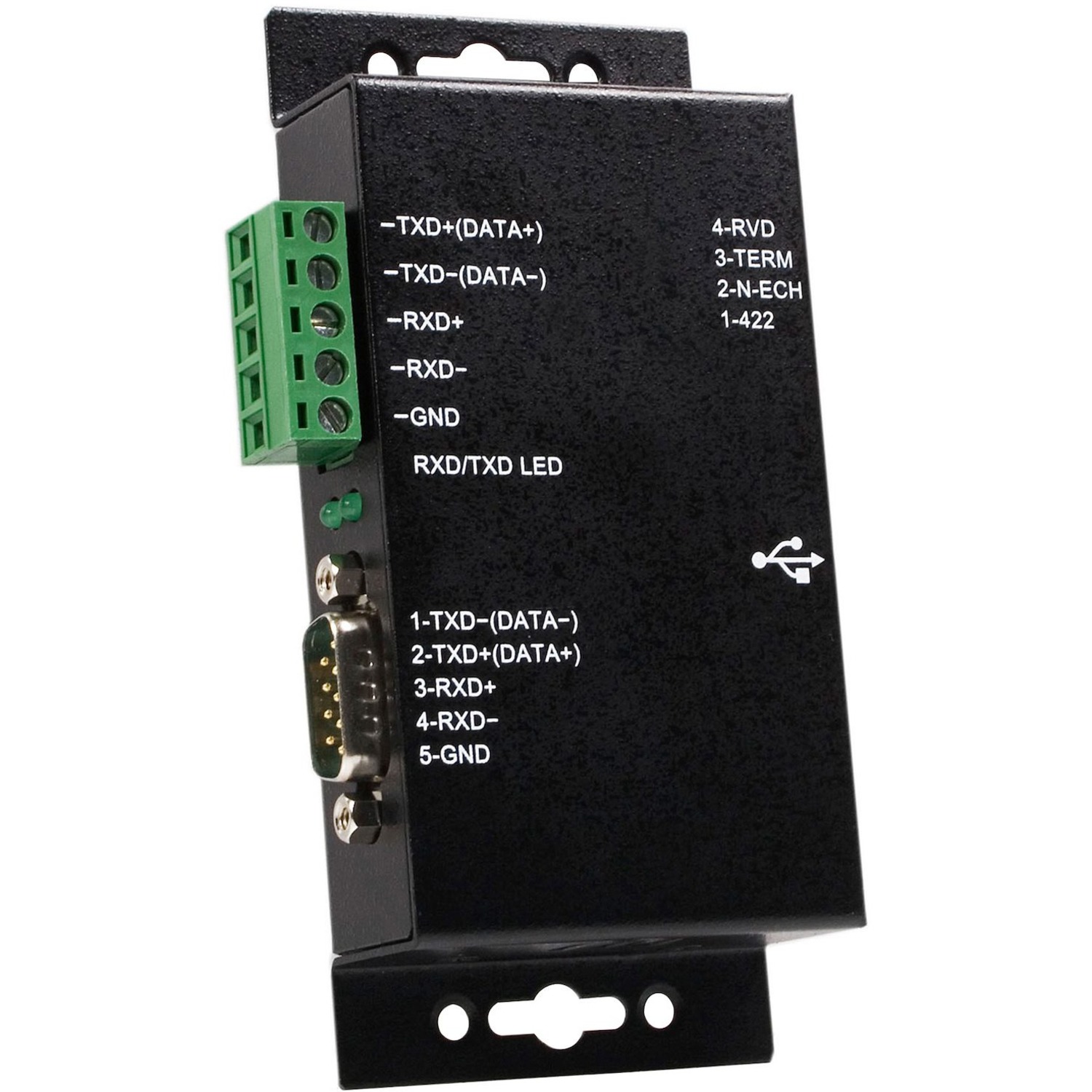

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.

The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.

The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

Serial Adapter
Technical Information

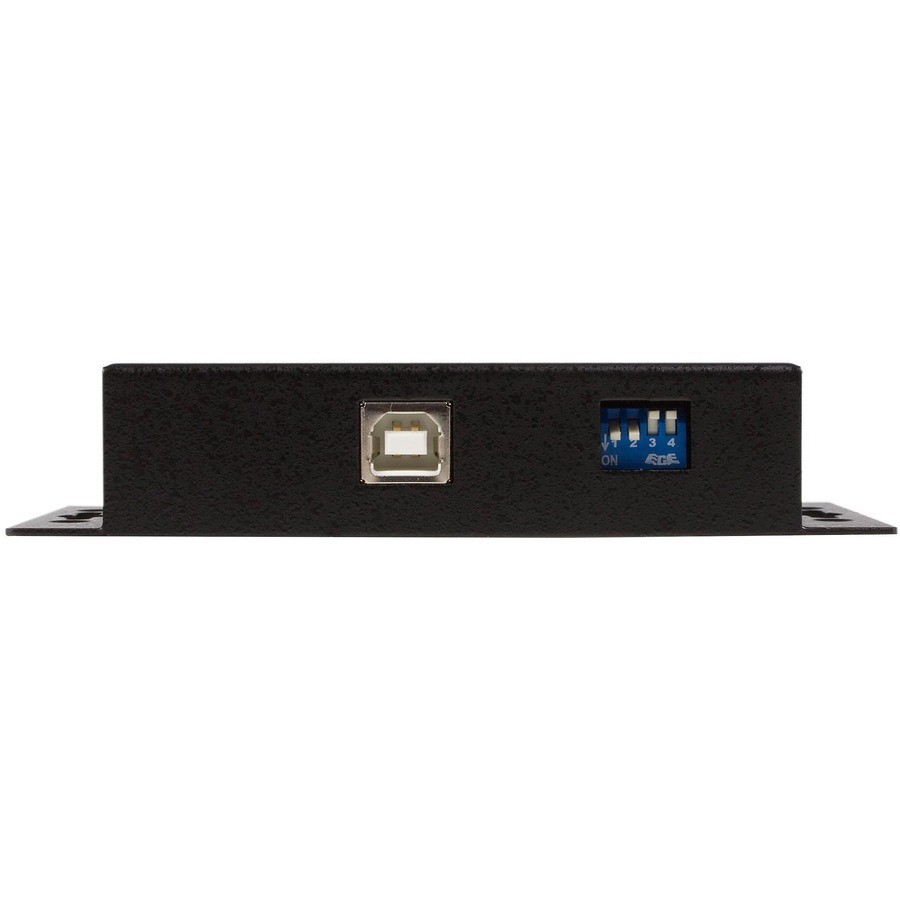

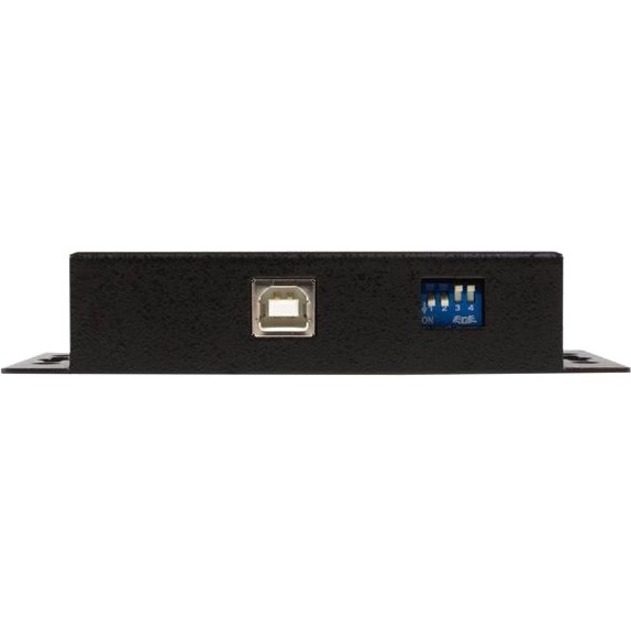

Host Interface

USB 2.0 Type B

Platform Supported

  • PC
  • Linux
  • Mac
Interfaces/Ports

Number of Serial Ports (External)

1
Physical Characteristics

Height

0.9"

Width

2.5"

Depth

4.6"

Weight (Approximate)

6.40 oz
Miscellaneous

Package Contents

  • 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
  • 1 x 6ft USB A to B Cable
  • 1 x Driver CD
  • 1 x User Manual

Additional Information

OS Compatiblity:

  • Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • macOS 10.6 to 10.15, 11.0, 12.0, 13.0
  • Linux Kernel 3.0.x and up - LTS Versions only

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
